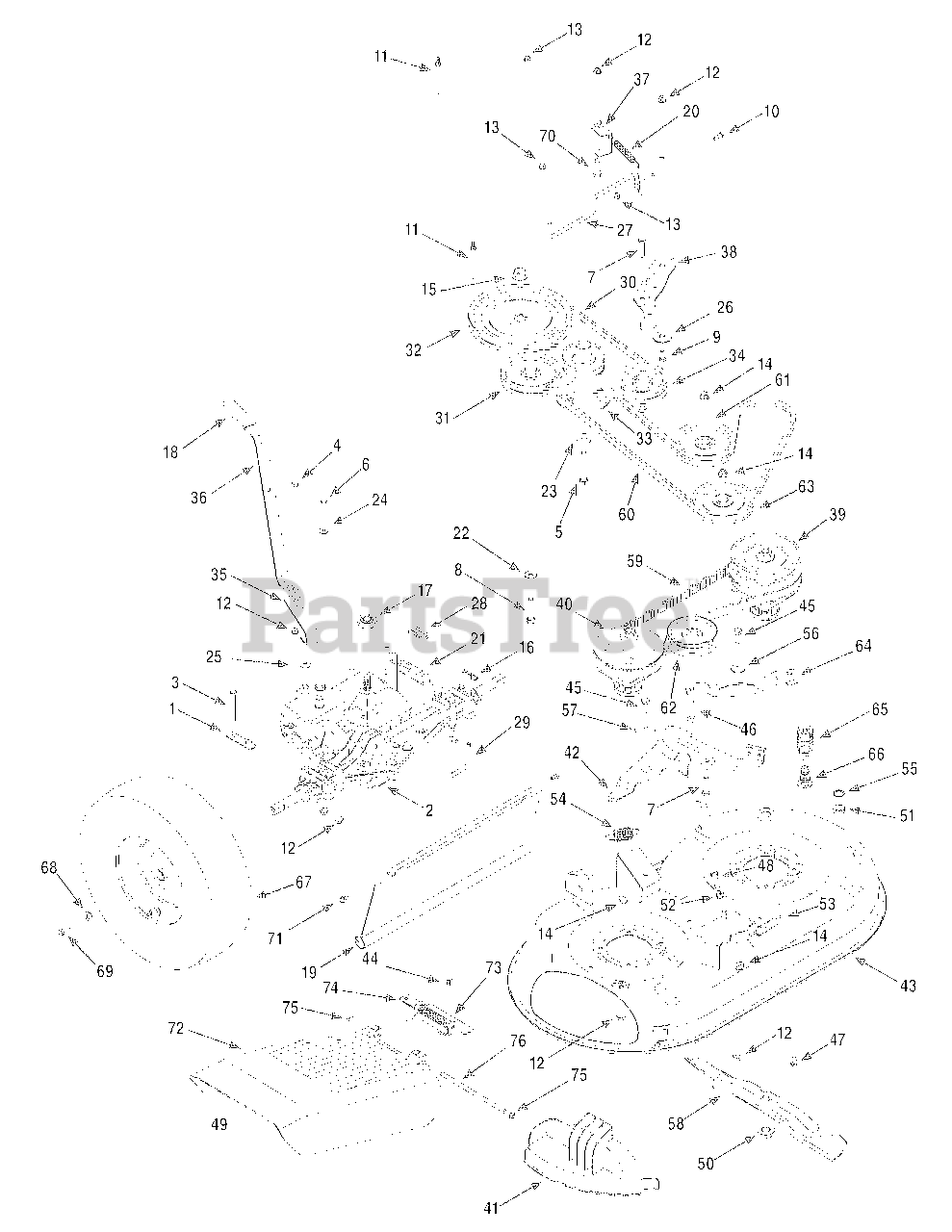

247.889980 (12AE764H099) - Craftsman Walk-Behind Mower (2009) (Sears) Drive Assembly Parts Diagram

Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

MTD 17840-0637

Transaxle Bracket Mount

$11.99

$

Usually ships in 3-6 days

0

2

MTD 918-04639

Transmission 4-Speed

$921.99

$

Usually ships in 3-6 days

0

3

MTD 710-0176

Screw, HH Cap: 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

4

MTD 710-0376

Screw, HH Cap: 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-04377

Screw, HH Cap: 7/16-20 x 2.75"

$11.99

$

In Stock, only 1 left!

0

6

MTD 710-0513

Screw, HH Cap: 1/4-28 x .625"
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

7

MTD 710-0520

Screw, HH Cap: 3/8-16 x 1.50"

$4.49

$

In Stock, Qty 5

0

8

MTD 710-0347

Screw, HH Cap: 3/8-16 x 1.75"

$5.49

$

In Stock, Qty 20+

0

9

MTD 710-3008

Screw, HH Cap: 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3015

Screw, HH Cap: 1/4-20 x .75"

$3.99

$

In Stock, Qty 20+

0

11

MTD 911-1000

Belt Keeper

$10.99

$

Usually ships in 3-6 days

0

12

MTD 712-04063

Nut, Flange Lock: 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04064

Nut, Flange Lock: 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04065

Nut, Flange Lock: 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-0700

Nut, Flange: 9/16-18

$10.99

$

In Stock, only 2 left!

0

16

MTD 914-0145

Hairpin Clip: 092" x 1.64" Long
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

17

MTD 718-04407

Pulley Hub

$12.99

$

In Stock, Qty 20+

0

18

MTD 720-0142

Grip

$3.99

$

Usually ships in 3-6 days

0

19

MTD 731-05766

Trailing Shield

$35.99

$

In Stock, Qty 9

0

20

MTD 732-04409

Extension Spring

$8.99

$

In Stock, Qty 9

0

21

MTD 732-04443A

Extension Spring

$13.99

$

Usually ships in 3-6 days

0

22

MTD 736-0105

Washer, Spring: .401" x .870" x .063"

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0322

Washer, Flat: 450" x 1.250" x .164"

$9.49

$

In Stock, Qty 8

0

24

MTD 736-0270

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-04256

Washer, Flat: .39" x .87" x .06"

$6.99

$

Usually ships in 3-6 days

0

26

MTD 738-04166

Spacer, Shoulder: .50" x .1475"

$6.49

$

In Stock, Qty 8

0

27

MTD 747-04635A

Belt Keeper Rod

$49.99

$

Usually ships in 3-6 days

0

28

MTD 747-04673

Loop Link Coupling
(Superseded to 747-05571)

$25.99

$

Usually ships in 3-6 days

0

29

MTD 747-04678A

Trans Mount Rod

$13.99

$

Usually ships in 3-6 days

0

30

MTD 954-04145A

Belt, V Type

$39.99

$

In Stock, Qty 20+

0

31

MTD 756-04129

Idler Pulley: 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

32

MTD 756-04258

Flat Sheave 7.75"

$65.99

$

Usually ships in 3-6 days

0

33

MTD 756-04260

Engine Pulley 3.20" x 4.35" Dia.

$93.99

$

Usually ships in 3-6 days

0

34

MTD 756-04280

Idler Pulley 3.50" Dia.
(Superseded to 756-04280A)

$39.99

$

In Stock, only 3 left!

0

35

MTD 787-01469B-0637

Shift Rod, Lower

$47.99

$

Usually ships in 3-6 days

0

36

MTD 787-01470A-0637

Shift Rod, Upper

$56.99

$

Usually ships in 3-6 days

0

37

MTD 787-01473-0637

Belt Keeper
(Superseded to 787-01473A-0637)

$24.99

$

Usually ships in 3-6 days

0

38

MTD 787-01523A-0637

Wheel Drive idler Bracket
(Superseded to 787-01523A)

$11.99

$

Usually ships in 3-6 days

0

39

MTD 918-04438A

Drive Spindle Assembly
(Superseded to 918-04438C)

$223.99

$

In Stock, Qty 8

0

40

MTD 918-04439A

Spacer Spindle Assembly
(Superseded to 918-04439C)

$204.99

$

In Stock, only 3 left!

0

41

MTD 631-04252

Mulch Plug

$33.99

$

In Stock, only 2 left!

0

42

MTD 987-02420

Idler Arm Assembly

$75.99

$

In Stock, only 4 left!

0

43

MTD 687-02421-0691

Deck Assembly 33-inch
(Superseded to 687-02476-0691)

$421.99

$

Usually ships in 3-6 days

0

44

MTD 710-0451

Bolt, Carriage: 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0514

Screw, HH Cap: 3/8-16 x 1.00"

$4.49

$

In Stock, Qty 20+

0

46

MTD 710-0560

Screw, Carriage: 3/8-16 x 1.75"

$6.99

$

In Stock, Qty 11

0

47

MTD 710-04484

Screw, LD: 5/16-18 x .750"

$3.99

$

In Stock, Qty 20+

0

48

MTD 710-3184A

Screw, HH Cap: 3/8-16 x 2.00"

$6.99

$

Usually ships in 3-6 days

0

49

MTD 931-04244

Chute Deflector Assy (includes ref. 72-76)

$70.99

$

In Stock, Qty 20+

0

50

MTD 712-0417A

Nut, Flange: 5/8-18

$6.99

$

In Stock, Qty 20+

0

51

MTD 912-0641

Nut, Hex
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

52

MTD 912-3017

Nut, Hex 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

53

MTD 732-04406

Extension Spring: Timing Belt Tension

$10.99

$

In Stock, only 1 left!

0

54

MTD 732-04452

Extension Spring: Deck Brake

$9.49

$

In Stock, Qty 9

0

55

MTD 736-0225

Washer, Lock

$4.49

$

In Stock, only 2 left!

0

56

MTD 938-0347

Spacer, Shoulder: .625" x .169"

$10.99

$

Usually ships in 3-6 days

0

57

MTD 738-04162A

Spacer, Shoulder: .884" x .190"
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

58

MTD 942-04154A

Blade: 17.9"

$20.99

$

In Stock, Qty 20+

0

59

MTD 754-04136

Belt, Timing

$73.99

$

In Stock, Qty 20+

0

60

MTD 954-04139

Belt, V Type

$36.99

$

In Stock, only 3 left!

0

61

MTD 756-04129

Idler Pulley 4.25"
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

62

MTD 756-04280

Idler Pulley 3.50"
(Superseded to 756-04280A)

$39.99

$

In Stock, only 3 left!

0

63

MTD 756-0616

Idler Pulley V-Type 5.0"

$76.99

$

In Stock, only 1 left!

0

64

MTD 787-01440-0637

Idler Timing Bracket

$19.99

$

In Stock, Qty 9

0

65

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

66

MTD 737-04003C

Water Nozzle
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

67

MTD 634-04285-0911

Wheel 16 x 4 x 8

$341.99

$

Usually ships in 3-6 days

0

68

MTD 736-0242

Washer, Bell: .340" x .872" x .060"

$4.49

$

In Stock, Qty 20+

0

69

MTD 710-0627

Screw, HH Cap: 5/16-24 x .75"

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-1315

Screw, TT: 3/8-16 x 1.25"

$4.49

$

In Stock, Qty 20+

0

71

MTD 710-04187

Screw, HL: 1/4-15 x .50"
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

72

MTD 931-04244

Chute Deflector, 33" SD Deck

$70.99

$

In Stock, Qty 20+

0

73

MTD 787-01017A-0637

Deflector Hinge Bracket

$41.99

$

Usually ships in 3-6 days

0

74

MTD 732-04012

Deflector Torsion Spring

$12.99

$

Usually ships in 3-6 days

0

75

MTD 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0

76

MTD 711-04027

Deflector Pin

$14.99

$

In Stock, only 1 left!

0

MTD 977S30145

Label Chute Deflector

Note: Not Shown

$10.99

$

In Stock, only 1 left!

0
