247.889780 (31AH8ESJ799) - Craftsman Snow Thrower (2016) Auger Housing Parts Diagram

Snow Thrower

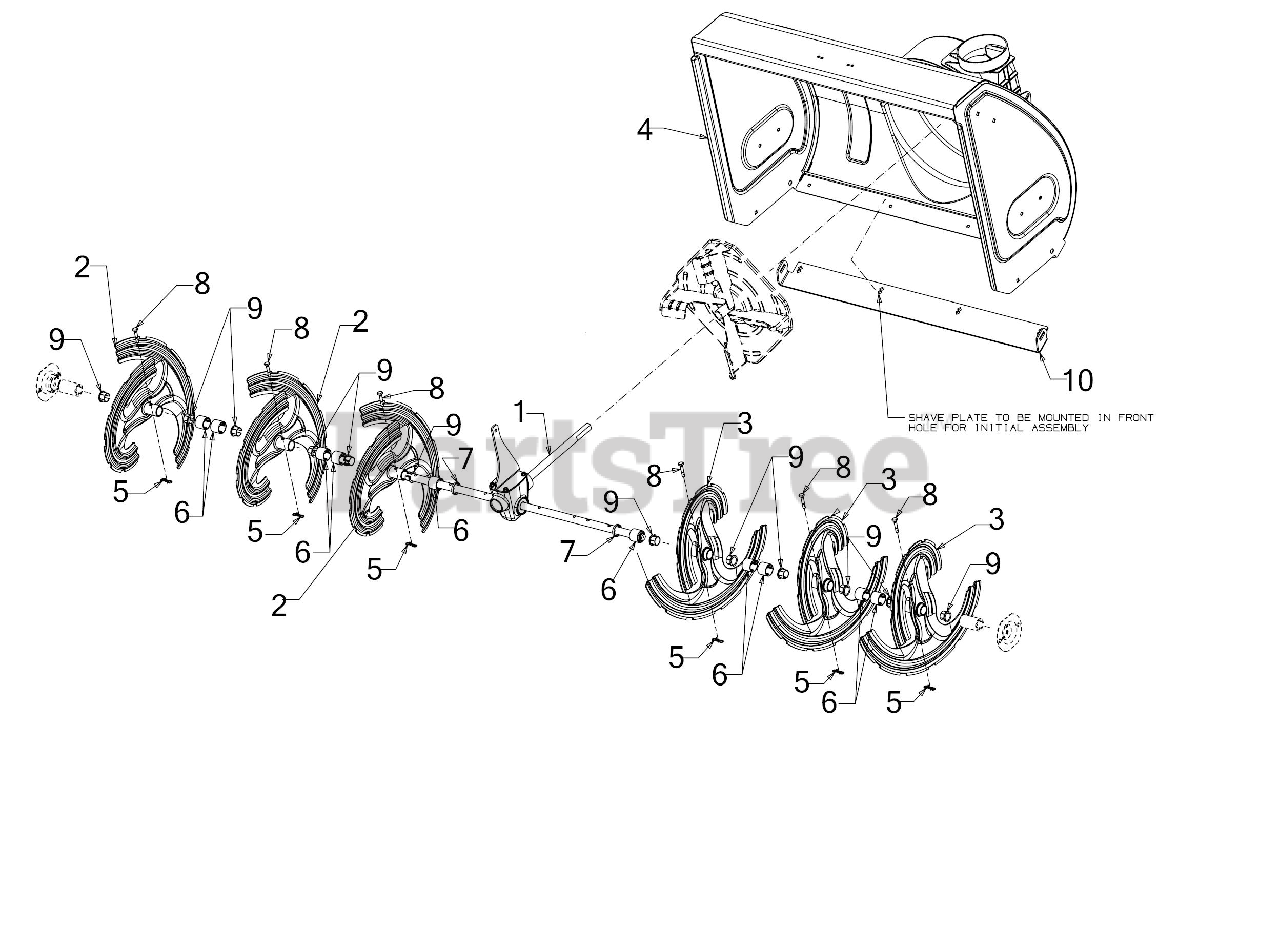

Auger Housing Parts Diagram

  • Title
1

MTD 918-07237

34" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$481.99

$

Usually ships in 3-6 days

0

2

MTD 684-05142-4028

14" AUGER SPIRAL ASSEMBLY (RH)

$71.99

$

Usually ships in 3-6 days

0

3

MTD 684-05143-4028

14" AUGER SPIRAL ASSEMBLY (LH)

$78.99

$

Usually ships in 3-6 days

0

4

MTD 684-05165-0691

34" AUGER HOUSING ASSEMBLY

$667.99

$

Usually ships in 3-6 days

0

5

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

MTD 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 18

0

7

MTD 731-04871

SPCR 1.25 OD x 75IDX2.00LG

$6.99

$

In Stock, Qty 20+

0

8

MTD 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

9

MTD 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

10

MTD 790-00731-0691

33.50" SHAVE PLATE

$75.99

$

In Stock, only 1 left!

0
