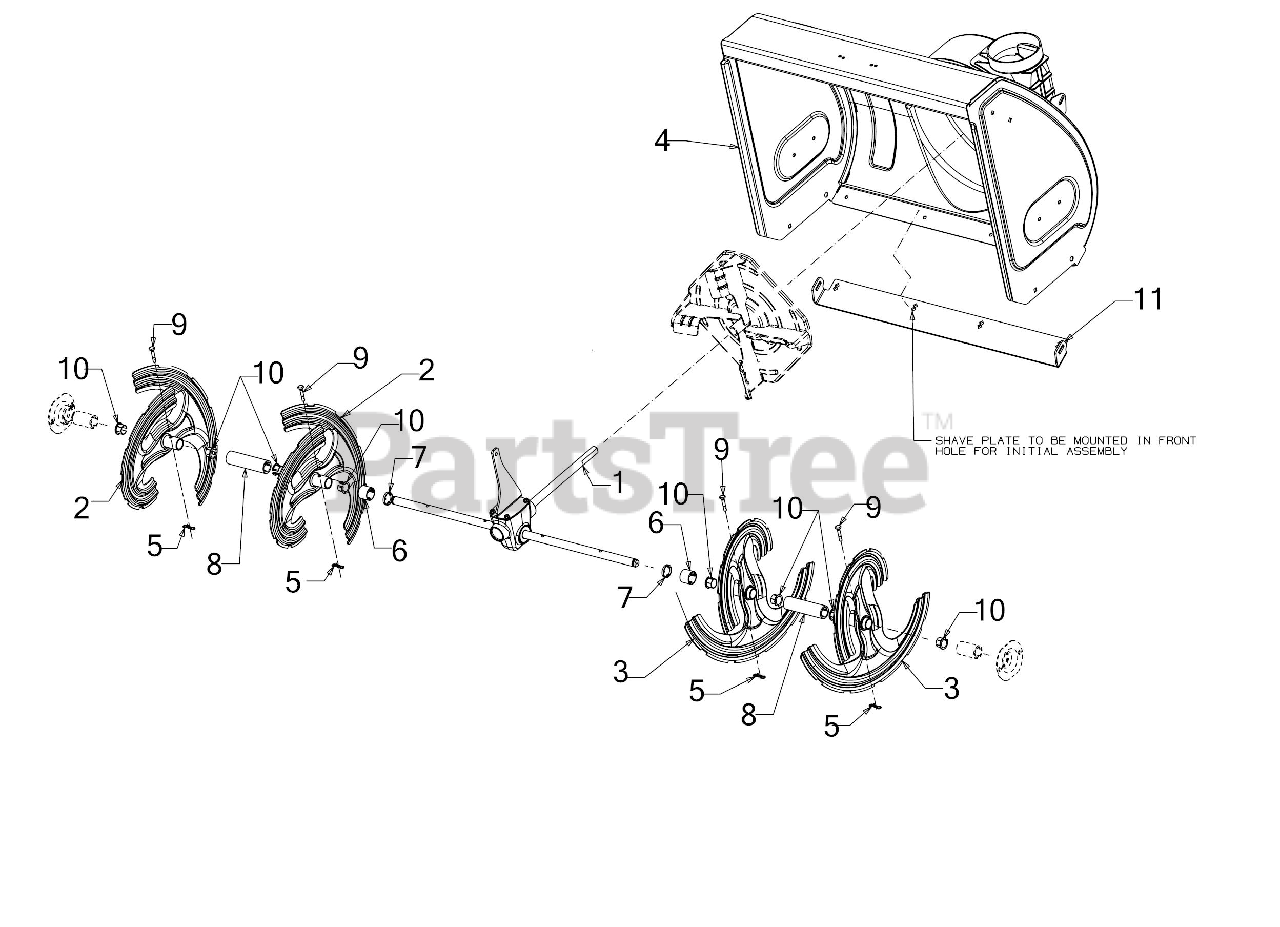

247.889760 (31AH8DSH799) - Craftsman Snow Thrower (2017) Auger Housing Parts Diagram

Snow Thrower

Auger Housing Parts Diagram

  • Title
1

MTD 918-07238

30" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$509.99

$

Usually ships in 3-6 days

0

2

MTD 684-05142

14" AUGER SPIRAL ASSEMBLY (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-05142-0637

SPRL ASM-RH AUGER - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 684-05142-0638

SPRL ASM-RH AUGER - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

MTD 684-05142-4028

SPRL ASM-RH AUGER - SEARS YELLOW (4028)

$71.99

$

Usually ships in 3-6 days

0

$73.99

$

Usually ships in 3-6 days

0

3

MTD 684-05143

14" AUGER SPIRAL ASSEMBLY (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-05143-0637

SPRL ASM-LH AUGER - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

MTD 684-05143-0638

SPRL ASM-LH AUGER - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

MTD 684-05143-4028

SPRL ASM-LH AUGER - SEARS YELLOW (4028)

$78.99

$

Usually ships in 3-6 days

0

$73.99

$

Usually ships in 3-6 days

0

4

MTD 684-05166

30" AUGER HOUSING ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-05166-0691

HSG ASM-AUGER 30" - BLACK JACK (0691)

$

$

Not available

$555.99

$

Usually ships in 3-6 days

0

5

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

MTD 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 18

0

7

MTD 731-04871

SPCR 1.25 OD x 75IDX2.00LG

$6.99

$

In Stock, Qty 20+

0

8

MTD 731-11752

SPACER 1.25OD X .75ID X 4.470 LG

$6.49

$

Usually ships in 3-6 days

0

9

MTD 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

10

MTD 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

11

MTD 790-00550

29.50" SHAVE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00550-0606

PLATE-SHAVE 29.50 - MAJESTIC ORANGE (0606)

$66.99

$

In Stock, only 1 left!

0

MTD 790-00550-4021

Shave Plate, 29.50 - CUB YELLOW 2 (4021)

$66.99

$

In Stock, only 1 left!

0

MTD 790-00550-0691

PLATE-SHAVE 29.50 - BLACK JACK (0691)

$66.99

$

In Stock, only 1 left!

0

MTD 790-00550-0717

PLATE-SHAVE 29.50 - SILVER MIST (0717)

$66.99

$

In Stock, only 1 left!

0

MTD 790-00550-4033

PLATE-SHAVE 29.50 - FLINT MICA (4033)

$66.99

$

In Stock, only 1 left!

0

$61.99

$

Usually ships in 3-6 days

0
