247.889721 (31AS68SF799) - Craftsman Snow Thrower (2016) Chute Parts Diagram

Snow Thrower

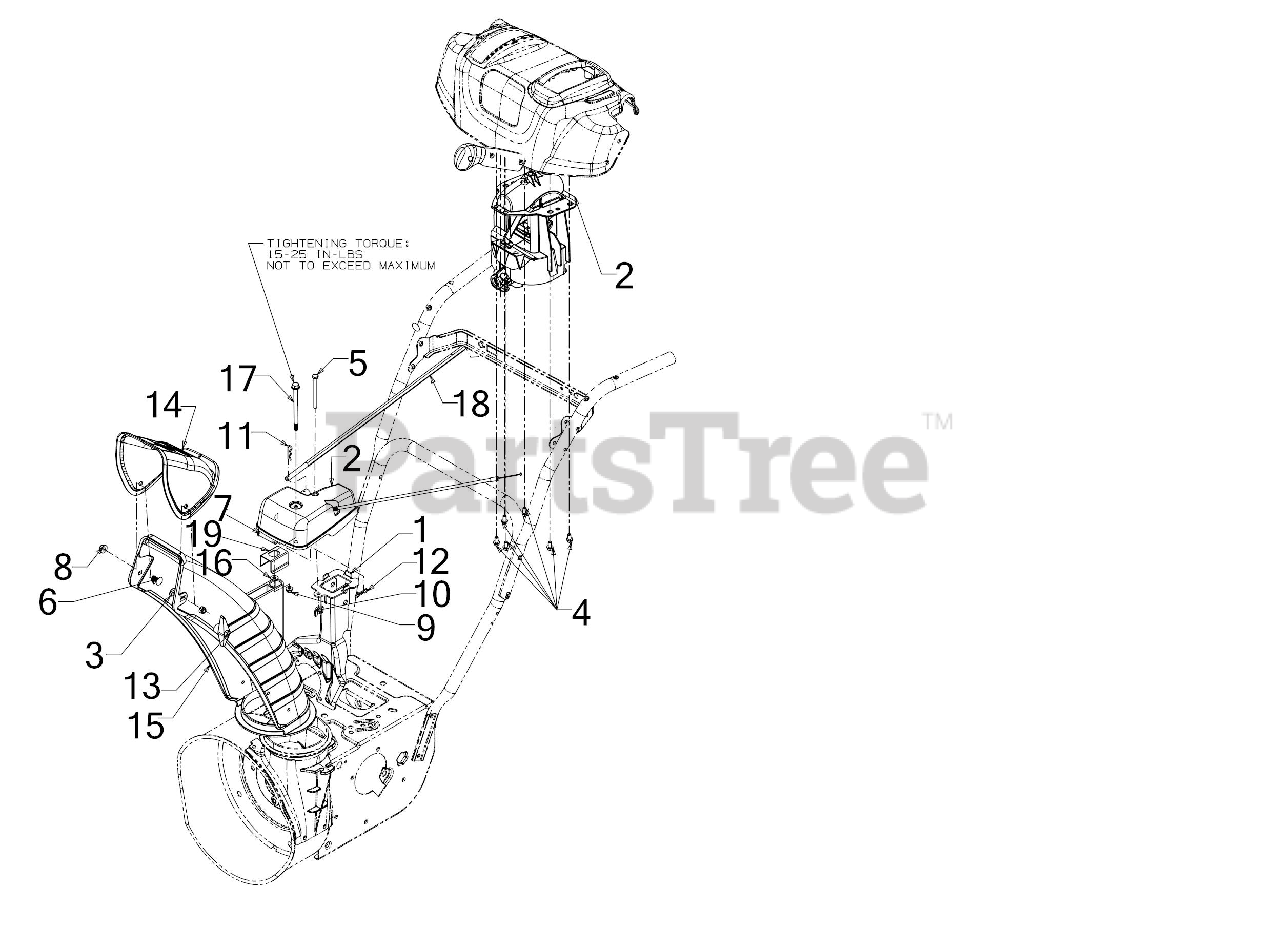

Chute Parts Diagram

  • Title

1

MTD 684-04311A-0637

CHUTE SUPPORT BRACKET ASSEMBLY

$42.99

$

Usually ships in 3-6 days

0

2

MTD n/a

CHUTE CONTROL ASSEMBLY

Note: (See Separate Breakdown)

$

$

Currently unavailable

3

MTD 710-04071

CARRIAGE BOLT 5/16-18 x 1

$4.49

$

In Stock, Qty 14

0

4

MTD 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

5

MTD 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, only 1 left!

0

6

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, only 4 left!

0

8

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-3087

WING NUT 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

MTD 914-0101

INTERNAL COTTER PIN
(Superseded to 714-0101)

$

$

Not available

12

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

13

MTD 720-04072A

STAR KNOB 5/16

Note: (Not Shown)

$6.99

$

In Stock, Qty 20+

0

13

MTD 912-0429

HEX NUT
(Superseded to 712-0429)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

13

MTD 920-0284

WING NUT KNOB
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

14

MTD 731-04426A

UPPER CHUTE
(Superseded to 731-04426C)

$19.99

$

In Stock, only 3 left!

0

15

MTD 731-06440A

LOWER CHUTE 5" DIA

$51.99

$

In Stock, Qty 18

0

16

MTD 736-04446

FLAT WASHER

$4.49

$

In Stock, only 2 left!

0

17

MTD 738-04367

SHOULDER SCREW

$4.99

$

In Stock, Qty 11

0

18

MTD 747-05116

CHUTE ROTATION ROD

$30.99

$

In Stock, only 4 left!

0

19

MTD 790-00503

CHUTE BRACKET

$6.49

$

In Stock, only 3 left!

0
