247.889702 (31AS63TF799) - Craftsman Snow Thrower (2010) (Sears) .Quick Reference Parts Diagram

Snow Thrower

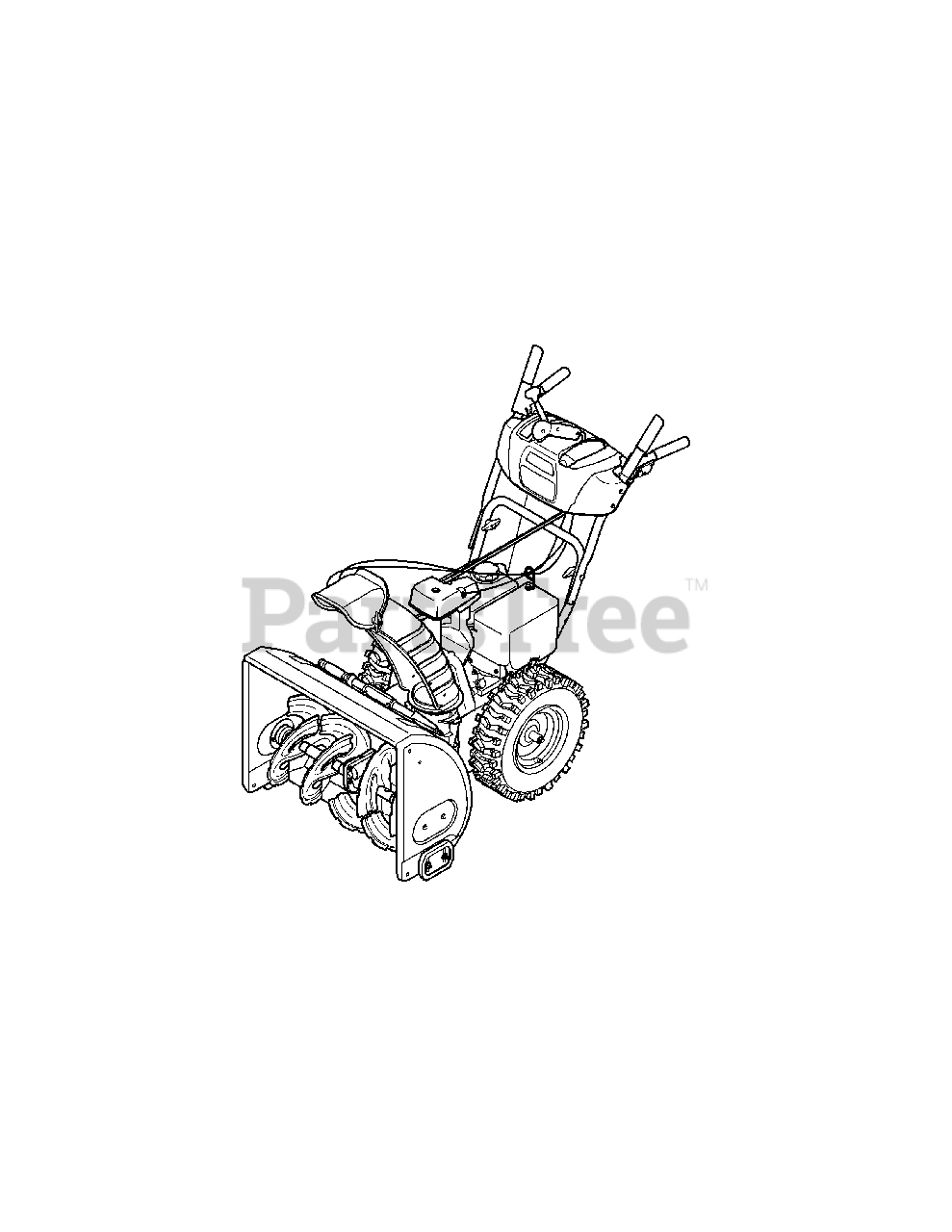

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 731-05632

Key
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0

MTD 931-2643

Snow Removal Tool

$19.99

$

In Stock, Qty 16

0

MTD 746-04230

Auger Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

MTD 946-04396A

Speed Cable

$20.99

$

In Stock, Qty 20+

0

MTD 746-04229

Wheel Cable
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

MTD 684-04107-0637

Auger Assembly - LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04108-0637

Auger Assembly - RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 10

0

MTD 790-00121-4044

Shave Plate
(Superseded to 790-00121-0637)

$36.99

$

In Stock, Qty 20+

0

MTD 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 20+

0

MTD 731-06439

Slide Shoe

$21.99

$

In Stock, Qty 20+

0

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

N/A

Lamp

$

$

Not available

MTD 954-04050

Auger Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

MTD 954-04260

Wheel Belt

$28.99

$

In Stock, Qty 20+

0

N/A

Spiral Cresent

$

$

Not available

N/A

Rubber Paddle

$

$

Not available

MTD 684-04153

Friction Wheel
(Superseded to 684-04153C)

$101.99

$

In Stock, Qty 20+

0

MTD 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

MTD 634-04147A-0911

Wheel - LH

$194.99

$

In Stock, only 1 left!

0

MTD 634-04148A-0911

Wheel - RH

$232.99

$

Usually ships in 3-6 days

0
