247.889702 (31AS63TF799) - Craftsman Snow Thrower (2010) (Sears) Drive Assembly Parts Diagram

Snow Thrower

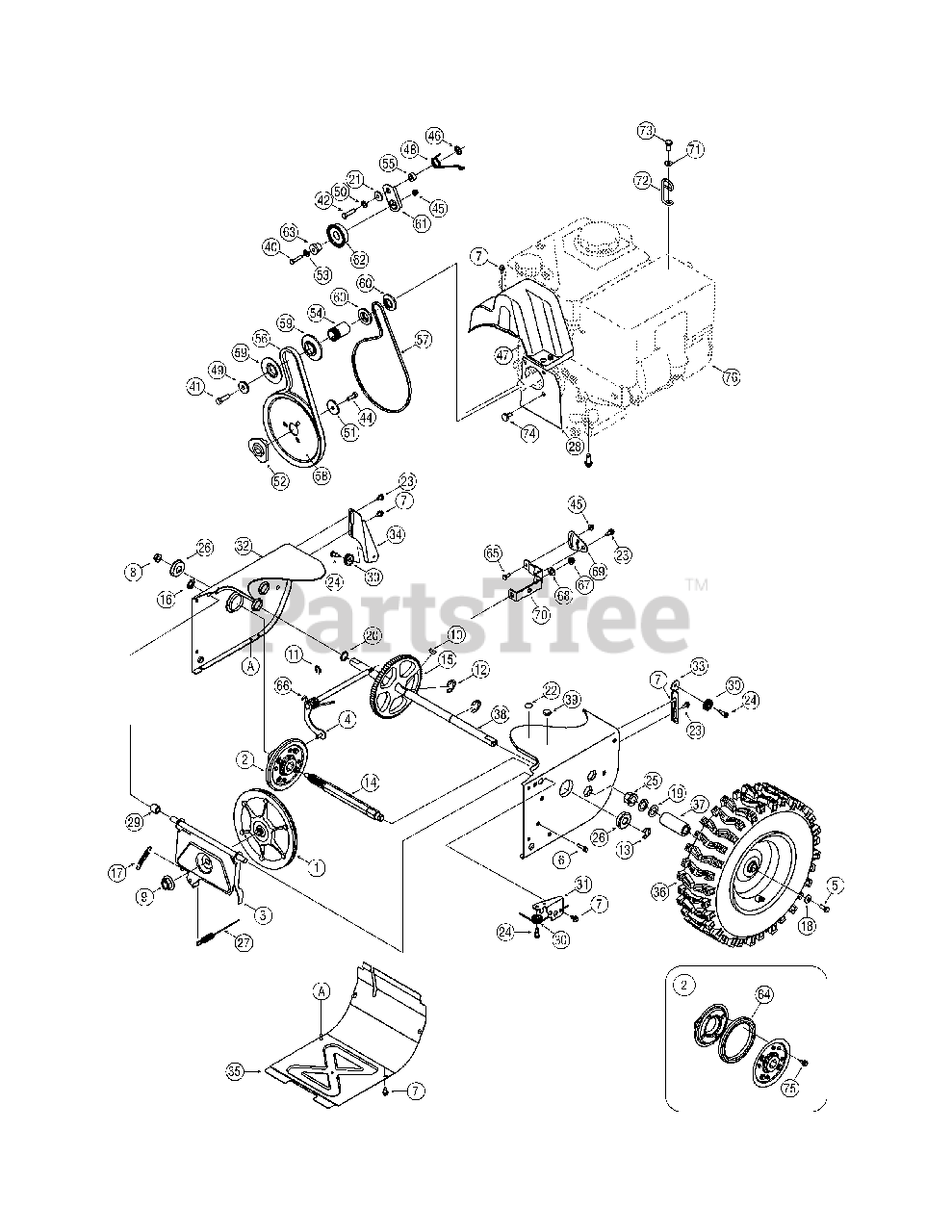

Drive Assembly Parts Diagram

  • Title

1

MTD 656-04055

Disc Assembly, Friction Wheel
(Superseded to 656-04055A)

$59.99

$

Usually ships in 3-6 days

0

2

MTD 684-04153

Friction Wheel Assembly, 5.5 OD
(Superseded to 684-04153C)

$101.99

$

In Stock, only 3 left!

0

3

MTD 684-04154B-0637

Support Bracket, Friction Wheel

$41.99

$

Usually ships in 3-6 days

0

4

MTD 684-04156A

Shift Assembly, Rod

$61.99

$

Usually ships in 3-6 days

0

5

MTD 710-0627

Hex Screw, 5/16-24, .750, Gr5

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0788

Screw, 1/4-20, 1.000

$7.49

$

In Stock, only 4 left!

0

7

MTD 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0417A

Nut, Jam Lock, 5/8-18, Gr5, Nylon

$6.99

$

In Stock, Qty 20+

0

10

MTD 914-0126

Key, Hi Pro, 3/16 x 3/4 Dia.
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 18

0

11

MTD 916-0104

E-ring, .500 Dia.

$3.99

$

In Stock, Qty 15

0

12

MTD 716-0136

E-ring, Retaining, .875 Dia.

$8.99

$

In Stock, only 2 left!

0

13

MTD 916-0231

E-ring, .750 Dia.
(Superseded to 716-0231)

$

$

Not available

14

MTD 917-04209A

Hex Shaft, .8125, 7-Tooth
(Superseded to 917-04209B)

$143.99

$

In Stock, only 1 left!

0

15

MTD 917-04230

Gear, 80-Tooth

$108.99

$

Usually ships in 3-6 days

0

16

MTD 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 1 left!

0

17

MTD 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

19

MTD 936-0287

Washer, Flat, .793 x 1.24 x .060
(Superseded to 736-0287)

$

$

Not available

20

MTD 736-04161

Washer, Flat, .75 x 1.00 x .060

$6.99

$

In Stock, only 1 left!

0

21

MTD 748-04112B

Spacer, Shldr., .3175 ID x .500 x .094

$4.49

$

Usually ships in 3-6 days

0

22

MTD 735-04100

Plug, 1/2 ID

$5.99

$

Usually ships in 3-6 days

0

23

MTD 738-04184A

Screw, Shoulder, .37 x .105, 1/4-20

$6.99

$

In Stock, Qty 15

0

24

MTD 738-0924A

Screw, 1/4-28, .375

$6.99

$

In Stock, Qty 5

0

25

MTD 941-0245

Bearing, Hex Flange x .75 ID

$9.99

$

In Stock, Qty 20+

0

26

MTD 941-0563

Bearing, Ball, 17 x 40 x 12

$36.99

$

In Stock, Qty 11

0

27

MTD 746-04229

Clutch Cable, Wheel, 44.95"
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

28

MTD 790-00289A-0637

Plate, Cover
(Superseded to 790-00289B-0637)

$26.99

$

Usually ships in 3-6 days

0

29

MTD 748-0190

Spacer, .508 ID x .75 OD x .68

$6.49

$

In Stock, only 1 left!

0

30

MTD 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 16

0

31

MTD 790-00096-0637

Front Guide Bracket, Auger Cable
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 1 left!

0

32

MTD 790-00180A-4044

Frame
(Superseded to 790-00180D-4044)

$153.99

$

Usually ships in 3-6 days

0

33

MTD 790-00206A-0637

Guide Bracket, Auger Cable
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

34

MTD 790-00207B

Guide Bracket, Drive Cable
(Superseded to 790-03997)

$5.49

$

In Stock, only 4 left!

0

35

MTD 790-00316-0637

Cover, Frame

$47.99

$

In Stock, only 1 left!

0

36

MTD 634-04148A-0911

Wheel Assembly - RH

$232.99

$

Usually ships in 3-6 days

0

36

MTD 634-04147A-0911

Wheel Assembly - LH

$194.99

$

In Stock, only 1 left!

0

37

MTD 731-04873

Spacer, 1.25 x .75 x 3.0

$10.99

$

In Stock, only 2 left!

0

38

MTD 938-04168

Axle, .75 x 22"
(Superseded to 938-04493)

$63.99

$

Usually ships in 3-6 days

0

39

MTD 735-04099

Plug, 3/8 ID

$5.99

$

Usually ships in 3-6 days

0

40

MTD 710-0809

Hex Screw, 1/4-20, 1.25, Gr5

$6.99

$

In Stock, Qty 19

0

41

MTD 710-0191

Hex Screw, 3/8-24, 1.25, Gr8

$4.99

$

In Stock, Qty 8

0

42

MTD 710-0672

Hex Screw, 5/16-24, 1.25, Gr5

$4.49

$

In Stock, Qty 18

0

43

MTD 710-0654A

Screw, Sems, 3/8-16, 1.00

$4.49

$

In Stock, only 3 left!

0

44

MTD 710-1245B

Hex Screw, 5/16-24, .875, Gr8

$8.49

$

In Stock, only 2 left!

0

45

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

46

MTD 926-04012

Nut, Push-on, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

47

MTD 731-05353

Cover, Belt
(Superseded to 731-05353B)

$

$

Not available

48

MTD 732-04308B

Spring, Torsion, .850 ID x .354

$

$

Currently unavailable

49

MTD 736-0247

Washer, Flat, .406 x 1.25 x .157

$9.49

$

In Stock, Qty 15

0

50

MTD 936-0119

Washer, Lock .3125

$4.99

$

In Stock, Qty 20+

0

51

MTD 736-0505

Washer, Flat, .34 x 1.50 x .150

$6.49

$

In Stock, only 2 left!

0

52

MTD 748-04053A

Pulley, Adapter, .75 Dia.

$22.99

$

In Stock, only 1 left!

0

53

MTD 936-0329

Lock Washer

$4.49

$

In Stock, Qty 11

0

54

MTD 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 1 left!

0

55

MTD 750-04477A

Spacer, .340 x .750 x .360

$5.49

$

In Stock, only 4 left!

0

56

MTD 954-04050

Belt, Auger Drive
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

57

MTD 954-04260

Belt, Wheel Drive

$28.99

$

In Stock, Qty 20+

0

58

MTD 756-04109

Pulley, Auger Drive, 8.1 x .5

$54.99

$

In Stock, only 2 left!

0

59

MTD 756-04113

Pulley, Half, V x 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

60

MTD 756-04252

Pulley, Half, 3/8-V x 1.7160 OD

$6.49

$

In Stock, only 1 left!

0

61

MTD 790-00208C

Idler Bracket, Wheel Drive
(Superseded to 790-00208D)

$8.99

$

Usually ships in 3-6 days

0

62

MTD 684-04169

Idler Pulley Assembly

$34.99

$

In Stock, only 2 left!

0

63

MTD 750-04571

Spacer, Shoulder, .26 x .79 x .538

$6.99

$

In Stock, only 3 left!

0

64

MTD 935-04054

Rubber, Friction Wheel, 5.5 OD
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

65

MTD 710-0751

Hex Screw, 1/4-20, .620, Gr5

$3.99

$

In Stock, Qty 20+

0

66

MTD 732-04311

Spring, Torsion, .750 ID x .968
(Superseded to 732-04311A)

$10.99

$

In Stock, only 1 left!

0

67

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

68

MTD 936-3015

Washer, Flat, .469 x .875 x .105

$4.49

$

In Stock, only 1 left!

0

69

MTD 790-00217A-0637

Pivot Bracket, Speed Selector
(Superseded to 790P01117)

$53.99

$

In Stock, only 1 left!

0

70

MTD 790-00218A-0637

Shift Bracket, Speed Selector
(Superseded to 790-00218A)

$47.99

$

Usually ships in 3-6 days

0

71

MTD 936-0264

Washer, Flat, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

72

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

73

MTD 710-04022

Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

74

MTD 738-04439

Shoulder Screw

$3.99

$

In Stock, Qty 6

0

75

MTD 710-0896

Screw, AB, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0
