247.889701 (31AM63TF799) - Craftsman Snow Thrower (2008) (Sears) General Assembly Parts Diagram

Snow Thrower

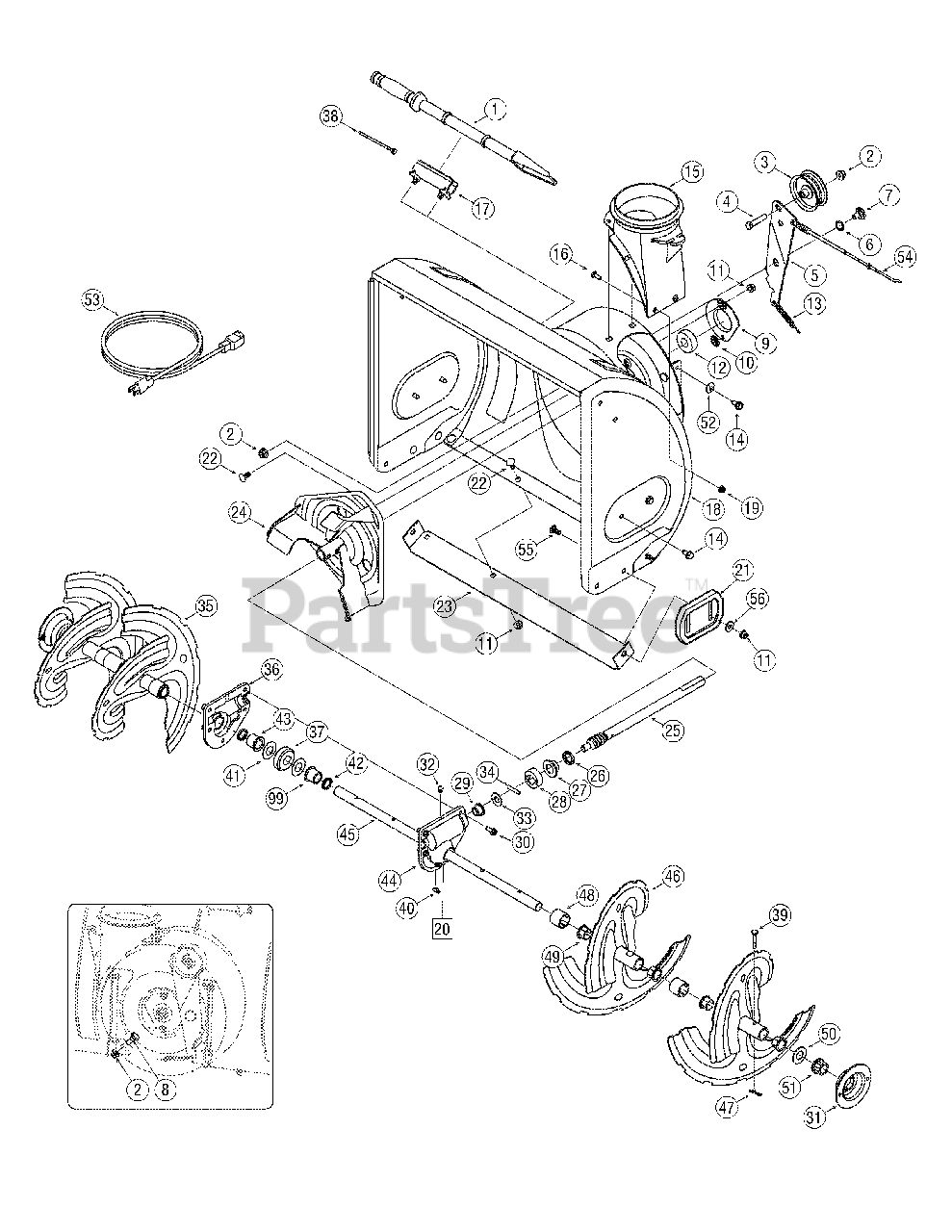

General Assembly Parts Diagram

  • Title

1

MTD 731-2643

Clean-Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, only 1 left!

0

2

MTD 712-04065

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

3

MTD 756-0981B

Flat Idler Pulley
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

4

MTD 710-0347

Hex Bolt, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

MTD 790-00080A-0637

Auger Idler Bracket
(Superseded to 790-00080D)

$28.99

$

In Stock, only 4 left!

0

6

MTD 736-0174

Wave Washer

$6.99

$

In Stock, only 2 left!

0

7

MTD 738-0281

Shoulder Screw

$10.99

$

In Stock, only 1 left!

0

8

MTD 738-0143

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

9

MTD 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

10

MTD 726-04012

Push Nut

$7.49

$

In Stock, Qty 9

0

11

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 741-0309

Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

13

MTD 732-04460

Extension Spring

$5.49

$

In Stock, Qty 20+

0

14

MTD 710-04484

Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

15

MTD 731-04705

Chute Adapter
(Superseded to 731-04705D)

$26.99

$

In Stock, only 3 left!

0

16

MTD 710-0703

Carriage Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 15

0

17

MTD 731-2635

Clean-out Tool Mtg. Bracket
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 7

0

18

MTD 684-04264-0637

Auger Housing Assembly, 26-inch

$

$

Currently unavailable

19

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

MTD 618-04172A

Gearbox Assembly, 26-inch
(Superseded to 918-04172C)

$434.99

$

Usually ships in 3-6 days

0

21

MTD 731-06439

Slide Shoe

Note: Polymer

$21.99

$

In Stock, Qty 7

0

21

MTD 753-06206

Standard Polymer Reversible Shoe Kit

Note: (Will replace 731-06439, kit includes hardware & 2 shoes)

$54.99

$

In Stock, Qty 8

0

22

MTD 710-0451

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

23

MTD 790-00121-0637

Shave Plate

$36.99

$

In Stock, Qty 20+

0

24

MTD 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 5

0

25

MTD 717-04126

Worm Shaft
(Superseded to 917-04126)

$79.99

$

In Stock, only 4 left!

0

26

MTD 721-0327

Oil Seal

$6.99

$

In Stock, Qty 20+

0

27

MTD 741-0662

Flange Bearing

$10.99

$

In Stock, Qty 20+

0

28

MTD 718-04071

Thrust Collar

$7.99

$

In Stock, Qty 10

0

29

MTD 741-0663

Flange Bearing

$9.99

$

In Stock, Qty 20+

0

30

MTD 710-0642

Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

31

MTD 790-00087A-0637

Bearing Housing

$22.99

$

In Stock, only 2 left!

0

32

MTD 721-0325

Plug

$4.49

$

In Stock, only 4 left!

0

33

MTD 736-3084

Flat Washer

$4.99

$

In Stock, Qty 20+

0

34

MTD 715-04021

Dowel Pin

$4.49

$

In Stock, Qty 8

0

35

MTD 684-04108-0637

Spiral Assembly-RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 14

0

36

MTD 618-0123A

Reducer Hsg.-RH
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 10

0

37

MTD 717-04449

Worm Gear, 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

38

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

39

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

40

MTD 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

41

MTD 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

42

MTD 721-0338

Oil Seal
(Superseded to 921-0338)

$7.49

$

In Stock, Qty 20+

0

43

MTD 741-0661A

Flange Bearing
(Superseded to 741-0661B)

$10.99

$

Usually ships in 3-6 days

0

44

MTD 618-0124A

Reducer Hsg.-LH
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 12

0

45

MTD 711-04284

Axle, Auger, 26"
(Superseded to 711-06144)

$82.99

$

In Stock, only 1 left!

0

46

MTD 684-04107-0637

Spiral Assembly-LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 7

0

47

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

48

MTD 731-04870

Spacer

$4.99

$

In Stock, Qty 18

0

49

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

51

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

52

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

53

MTD 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

54

MTD 746-04230

Auger Clutch Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

55

MTD 710-0276

Screw, Carriage, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 12

0

56

MTD 736-0159

Washer, Flat, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0
