247.889571 (31AS62EE799) - Craftsman Snow Thrower (2010) (Sears) Handle Panel Assembly Parts Diagram

Snow Thrower

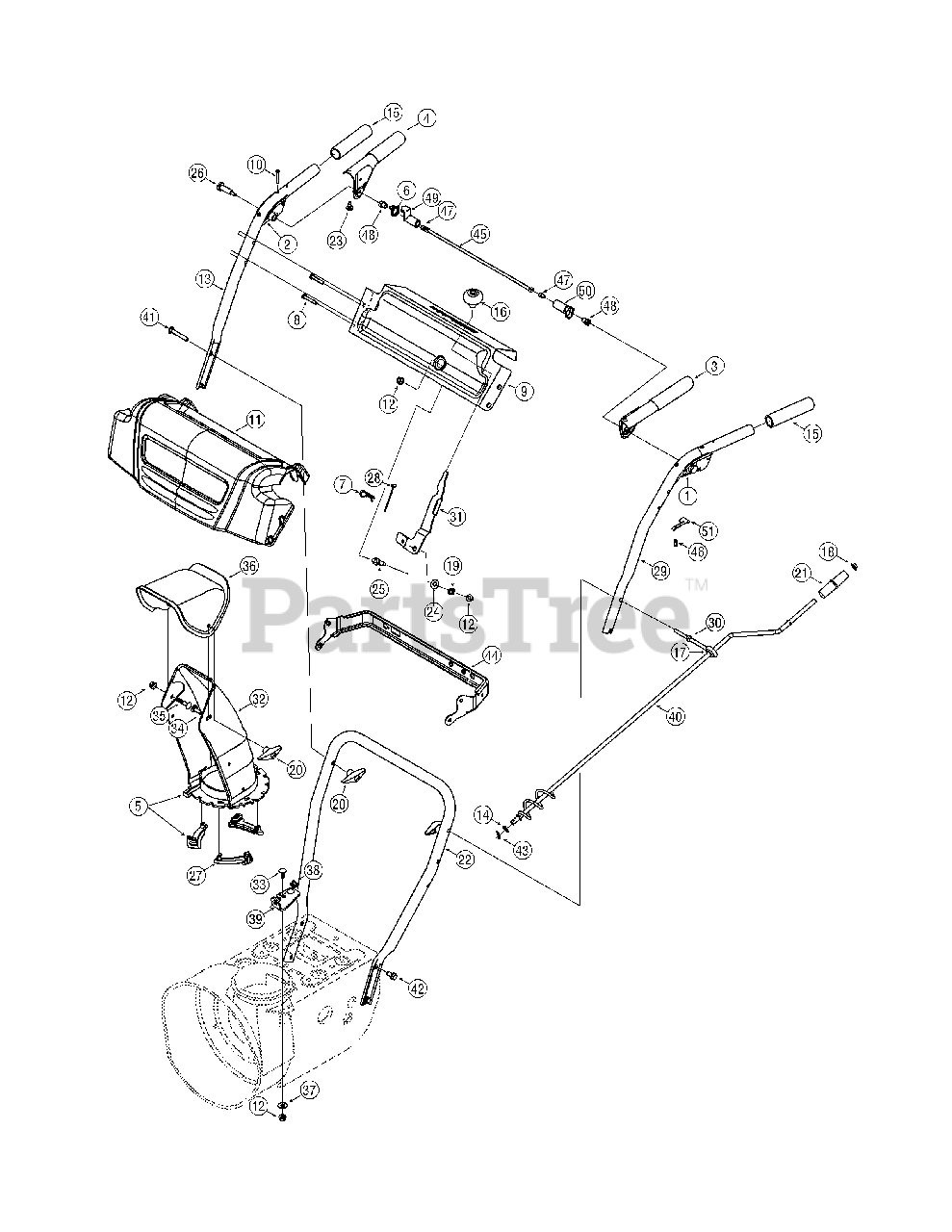

Handle Panel Assembly Parts Diagram

  • Title

1

MTD 631-04133A

Handle Assembly, Clutch Lock, LH

$15.99

$

In Stock, only 1 left!

0

2

MTD 631-04134B

Handle Assembly, Clutch Lock, RH

$15.99

$

In Stock, only 1 left!

0

3

MTD 684-04111B

Handle Ass’y, Engage, Red, LH
(Superseded to 684-04111D)

$22.99

$

Usually ships in 3-6 days

0

4

MTD 684-04112B

Handle Ass’y, Engage, Red, RH
(Superseded to 684-04112D)

$21.99

$

In Stock, only 1 left!

0

5

MTD 631-04131B

Chute, Lower (Incl. Ref. # 27, Qty. 3)

$37.99

$

Usually ships in 3-6 days

0

6

MTD 732-04238

Spring, Torsion, .8156 ID x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

7

MTD 914-0145

Click Pin
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

8

MTD 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

9

MTD 790-00219-4044

Panel, Handle, (no cutout)
(Superseded to 790-00219A-4044)

$72.99

$

Usually ships in 3-6 days

0

10

MTD 710-1233

Screw, Machine, #10-24, 1.375

$4.99

$

In Stock, Qty 11

0

11

MTD 731-06471

Handle Panel Cover

$40.99

$

Usually ships in 3-6 days

0

12

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

13

MTD 749-04190A-0637

Handle, Upper, RH

$45.99

$

Usually ships in 3-6 days

0

14

MTD 936-0185

Washer, Flat, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

15

MTD 720-0274

Grip, 1.0 ID x 5.0

$11.99

$

In Stock, only 2 left!

0

16

MTD 720-04039

Knob, Shift, Black

$10.99

$

In Stock, only 2 left!

0

17

MTD 735-0234

Grommet, .44 ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

18

MTD 926-0100

Cap, Push, 3/8 Rod
(Superseded to 726-0100)

$

$

Not available

19

MTD 732-0193

Spring, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

20

MTD 720-0284

Knob, 5/16-18, Black

$6.99

$

In Stock, Qty 20+

0

21

MTD 720-0201A

Crank Knob, 1.0 Dia. x 3.2, Black

$10.99

$

In Stock, only 4 left!

0

22

MTD 749-04138A-0637

Handle, Lower
(Superseded to 749-04138C-0637)

$88.99

$

Usually ships in 3-6 days

0

23

MTD 935-0199A

Bumper, Rubber, .62 OD x .22
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

24

MTD 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

25

MTD 738-04118

Bolt, Shoulder, 5/16-18 x 0.905

$5.49

$

Usually ships in 3-6 days

0

26

MTD 738-04348

Screw, Shoulder, .43 x 1.3, 1/4-20

$3.99

$

In Stock, Qty 20+

0

27

MTD 731-04869A

Chute, Flange Keeper

$4.49

$

In Stock, Qty 20+

0

28

MTD 946-04397A

Cable, Speed Selector

$20.99

$

In Stock, Qty 10

0

29

MTD 749-04191A-0637

Handle, Upper, LH

$45.99

$

Usually ships in 3-6 days

0

30

MTD 747-04263

Eye Bolt, Chute Crank

$9.49

$

In Stock, only 2 left!

0

31

MTD 790-00313-0637

Shift Lever
(Superseded to 790-00313A-0637)

$48.99

$

Usually ships in 3-6 days

0

32

MTD 731-04912B

Chute, Lower, 5.0 Dia.

$38.99

$

In Stock, only 3 left!

0

33

MTD 710-0276

Bolt, Carriage, 5/16-18, 1.0

$3.99

$

In Stock, Qty 12

0

34

MTD 710-04071

Bolt, Carriage, 5/16-18, 1.0

$4.49

$

In Stock, Qty 15

0

35

MTD 710-0451

Bolt, Carriage, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

36

MTD 731-04426A

Chute, Upper, w/ Label
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

37

MTD 936-0159

Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

38

MTD 941-0475

Bushing, Plastic, .380

$4.49

$

In Stock, Qty 20+

0

39

MTD 784-5647-0637

Bracket, Chute Crank

$14.99

$

In Stock, Qty 7

0

40

MTD 684-04104-0637

Crank Assembly, Chute

$62.99

$

In Stock, only 1 left!

0

41

MTD 710-0449

Screw, Carriage, 5/16-18, 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, only 4 left!

0

42

MTD 710-04484

Screw, 5/16-18, 2.25, Gr5

$3.99

$

In Stock, Qty 20+

0

43

MTD 914-0104

Pin, Cotter, .072 x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

44

MTD 790-00248B-0637

Bracket, Panel
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, only 1 left!

0

45

MTD 684-04250

Rod, Pivot

$12.99

$

In Stock, only 2 left!

0

46

MTD 710-04326

Screw., #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

47

MTD 710-3069

Screw., 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

48

MTD 712-04081A

Nut, Hex, 1/4-20

$7.49

$

In Stock, only 2 left!

0

49

MTD 731-04894D

Plate, Lock

$5.49

$

In Stock, only 1 left!

0

50

MTD 731-04896B

Cam, Clutch Lock
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

51

MTD 732-04219C

Sping, Clutch Lock

$4.49

$

In Stock, Qty 20+

0
