247.889570 (31BM62EE799) - Craftsman Snow Thrower (2009) (Sears) .Quick Reference Parts Diagram

Snow Thrower

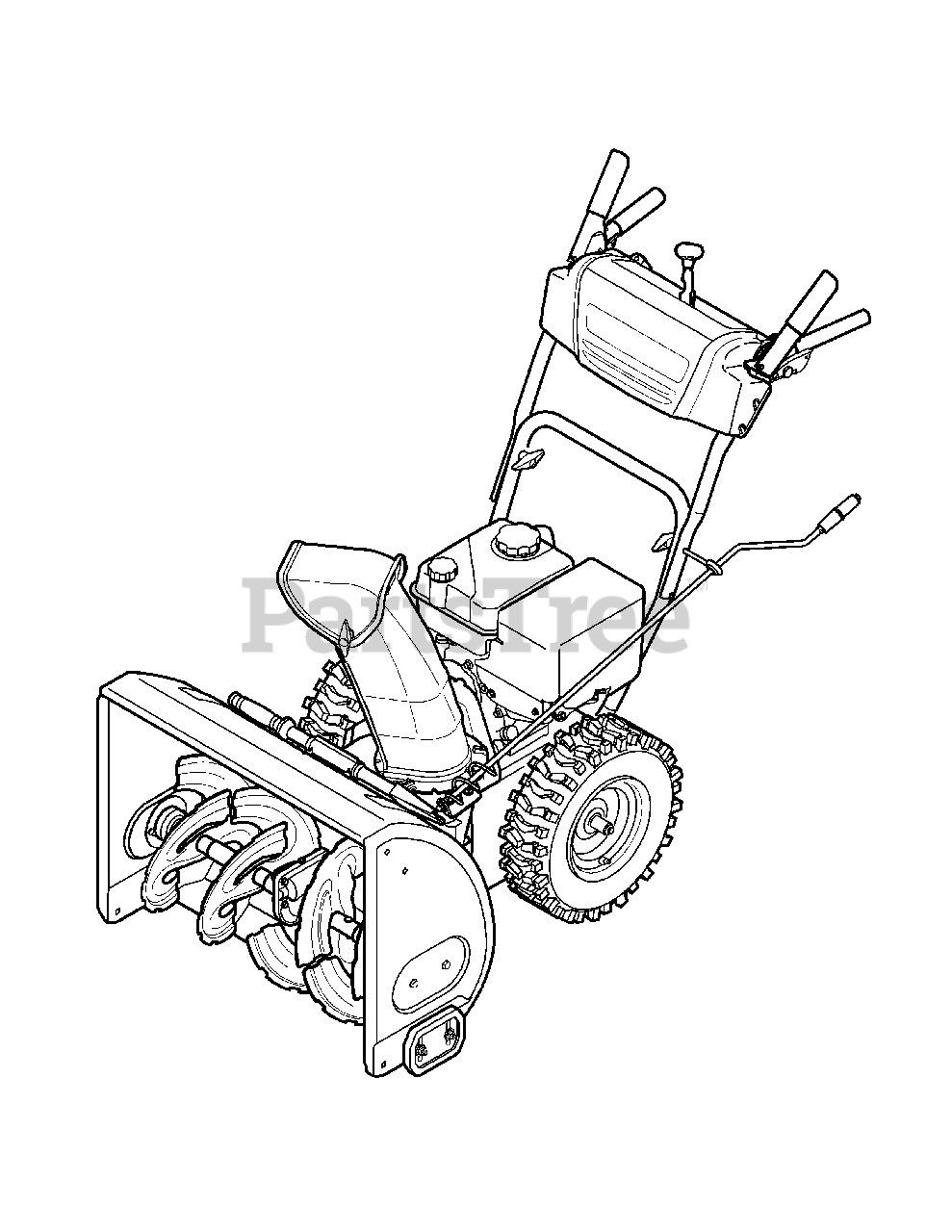

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 731-05632

Key
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

MTD 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

MTD 731-2643

Snow Removal Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 16

0

MTD 746-04230

Auger Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

MTD 746-04397A

Speed Cable
(Superseded to 946-04397A)

$20.99

$

In Stock, Qty 14

0

MTD 746-04229

Wheel Cable
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

MTD 684-04107-0637

Auger Assembly - LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04108-0637

Auger Assembly - RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 10

0

MTD 790-00120-0637

Shave Plate

$34.99

$

In Stock, Qty 20+

0

MTD 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 20+

0

MTD 731-06439

Slide Shoe

Note: Polymer

$21.99

$

In Stock, Qty 19

0

MTD 753-06206

Standard Polymer Reversible Shoe Kit

Note: (Will replace 731-06439, kit includes hardware & 2 shoes)

$54.99

$

In Stock, Qty 8

0

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

N/A

Lamp

$

$

Not available

MTD 754-04050

Auger Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

MTD 754-0637

Wheel Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

N/A

Spiral Cresent

$

$

Not available

N/A

Rubber Paddle

$

$

Not available

MTD 684-04153

Friction Wheel
(Superseded to 684-04153C)

$101.99

$

In Stock, Qty 20+

0

MTD 735-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

MTD 634-04167A-0911

Wheel - LH

$189.99

$

In Stock, Qty 5

0

MTD 634-04168A-0911

Wheel - RH

$189.99

$

Usually ships in 3-6 days

0
