247.889360 (55AC5GMR099) - Craftsman Walk-Behind Mower (2008) (Sears) Handle Assembly Parts Diagram

Walk-Behind Mower

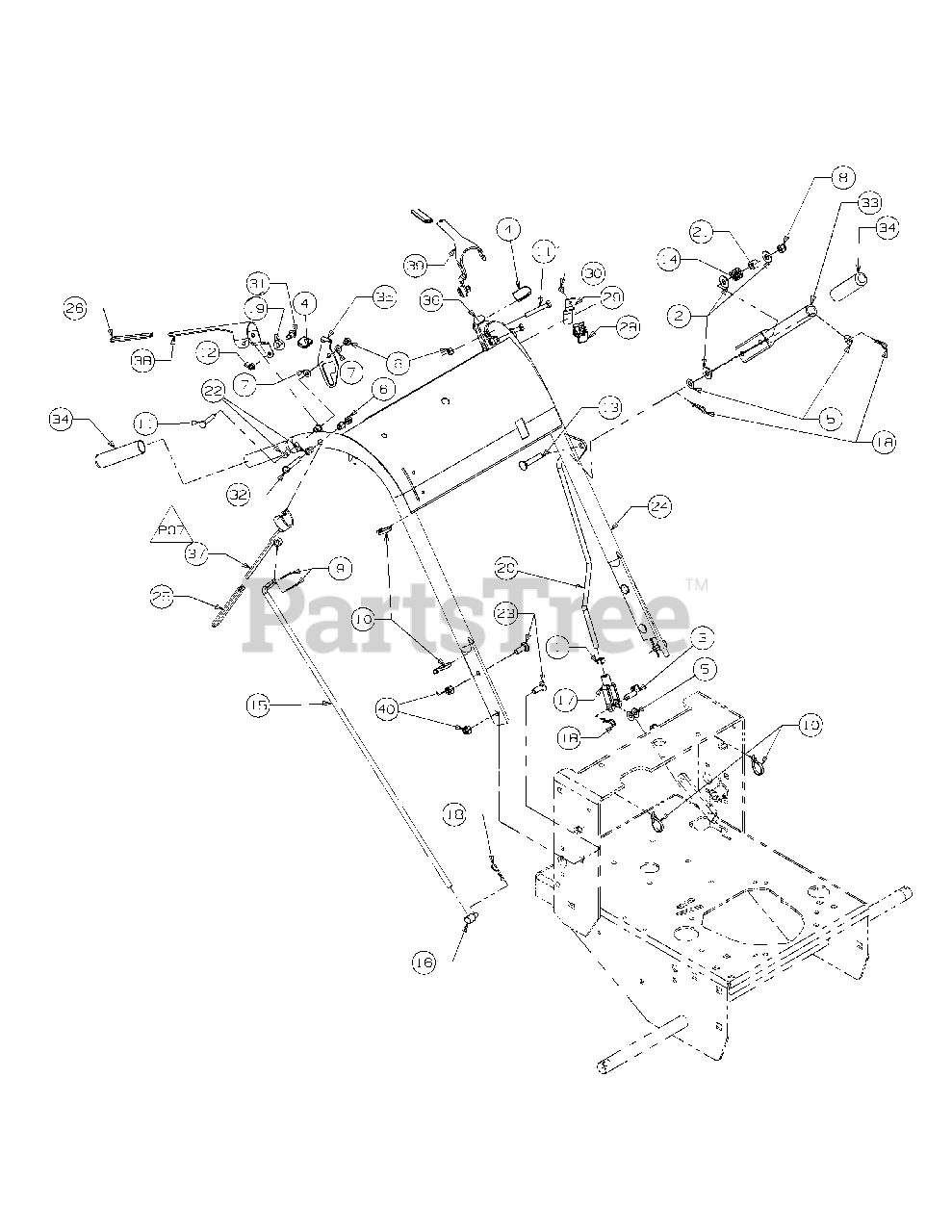

Handle Assembly Parts Diagram

  • Title

1

MTD 00006131

Hex Nut, 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

2

MTD 00006168

Flat Washer, 3/8 Zinc
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

3

MTD 00009678

Clevis Pin, 3/8 x 1-1/8 Zinc
(Superseded to 711-05735)

$12.99

$

Usually ships in 3-6 days

0

4

MTD 00011211

Grip, Neutral Latch, 1.25"

$8.99

$

In Stock, only 2 left!

0

5

MTD 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

6

MTD 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

7

MTD 00012169

Flat Washer, 5/16 Zinc

$4.49

$

In Stock, only 2 left!

0

8

MTD 00012173

Lock Nut, Nylon Insert, 3/8-16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

9

MTD 00012204

Cotter Pin, 3/32 x 3/4, Zinc

$

$

Not available

10

MTD 00012470

Cable Tie, 3/16 x .05 x 7.4
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

11

MTD 00013198

Hex Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

12

MTD 00014081

Lock Nut, Nylon Insert
(Superseded to 712-04177)

$6.99

$

In Stock, only 4 left!

0

13

MTD 00014270

Carriage Bolt, 3/8-16 x 2
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

14

MTD 00021797

Spring, .850 OD x 1

$9.49

$

Usually ships in 3-6 days

0

15

MTD 00021927

Steering Control Rod

$33.99

$

Usually ships in 3-6 days

0

16

MTD 00021943

Joint Swivel

$20.99

$

In Stock, only 1 left!

0

17

MTD 00021955

Yoke, 3/8-16 Female

$42.99

$

In Stock, only 1 left!

0

18

MTD 00021956

Hair Pin 3/8-1/2
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

19

MTD 00071691

Control Rod, Hydro Spacer

$11.99

$

In Stock, only 1 left!

0

20

MTD 00071879

Blade Clutch Rod

$50.99

$

In Stock, only 1 left!

0

21

MTD 00076730

Spring Sleeve

$5.99

$

Usually ships in 3-6 days

0

22

MTD 00087108

Nylon Bushing

$

$

Not available

23

MTD 01002010

Carriage Bolt, 3/8-16 x 1-1/4
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 5

0

24

MTD 01001556

Handle Assembly
(Superseded to 01001556-0637)

Variations

MTD 01001556-0637

HANDLE ASSY-5 SPEE - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 01001714

Control Sleeve, Black

$11.99

$

Usually ships in 3-6 days

0

26

MTD 01001715

Operator Control Sleeve, Yellow

$11.99

$

Usually ships in 3-6 days

0

28

MTD 01001717

Switch Mounting Snap
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

29

MTD 01001863

Operator Presence Return Spring

$

$

Not available

30

MTD 01001864

Hex Index Washer Screw, 0.500
(Superseded to 1767754)

$

$

Not available

31

MTD 01001919

Shoulder Screw, .38 x .412, 1/4-28
(Superseded to 938-0826)

$12.99

$

In Stock, Qty 5

0

32

MTD 01001972

Hex Cap Screw, 5/16-18, 2.00

$3.99

$

Usually ships in 3-6 days

0

33

MTD 01003209

Blade Clutch Lever
(Superseded to 01003209-0637)

Variations

MTD 01003209-0637

LEVER-BLADE CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 01007530

Handle Grip, Black, 1"

$23.99

$

In Stock, only 1 left!

0

35

MTD 01010156

Neutral Latch, Right Hand

$19.99

$

Usually ships in 3-6 days

0

36

MTD 01010157

Neutral Latch, Left Hand

$

$

Not available

37

MTD 02002358

Lever Assembly Control
(Superseded to 02002358-0637)

Variations

MTD 02002358-0637

LEVER ASSY-CONTROL - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 02002360

Operator Presence Control RH
(Superseded to 02002360-0637)

Variations

MTD 02002360-0637

Right Control Handle - POWDER BLACK (0637)

$38.99

$

In Stock, only 1 left!

0

$38.99

$

In Stock, only 1 left!

0

39

MTD 02002362

Operator Presence Control LH
(Superseded to 02002362-0637)

Variations

MTD 02002362-0637

Left Control Handle - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

MTD 01001716

Harness Assembly Adapter

Note: not shown

$

$

Not available
