247.889360 (55AC5GMR099) - Craftsman Walk-Behind Mower (2008) (Sears) Deck Assembly Parts Diagram

Walk-Behind Mower

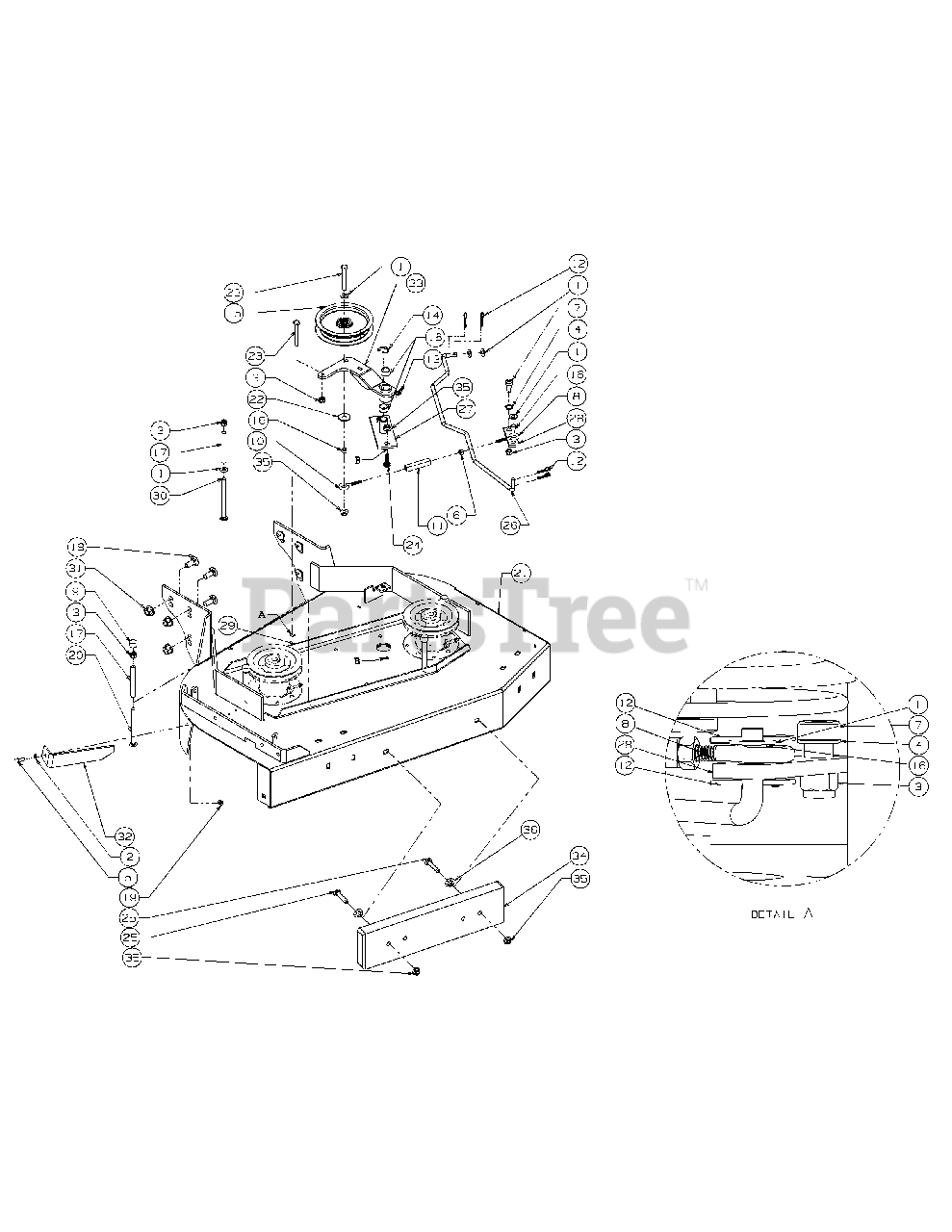

Deck Assembly Parts Diagram

  • Title

1

MTD 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

2

MTD 00012169

Flat Washer, 5/16 Zinc

$4.49

$

In Stock, only 2 left!

0

3

MTD 00012173

Lock Nut, Nylon Insert, 3/8-16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

4

MTD 00012402

Shim Washer

$

$

Not available

5

MTD 00013406

Hex Cap Screw, 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

MTD 00013433

Hex Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

7

MTD 00014439

Shoulder Bolt

$

$

Not available

8

MTD 00014459

Eye Bolt, Right Hand

$11.99

$

In Stock, only 3 left!

0

9

MTD 00018468

Cap, Black Vinyl

$

$

Not available

10

MTD 00019271

Eye Bolt, Left Hand

$14.99

$

In Stock, only 3 left!

0

11

MTD 00019554

Turnbuckle

$32.99

$

Usually ships in 3-6 days

0

12

MTD 00021956

Hair Pin, 3/8"-1/2"
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

13

MTD 00021958

Grease Fitting, 45°, 1/4-28

$5.49

$

In Stock, only 4 left!

0

14

MTD 00021961

E-Ring, Retainer

$11.99

$

Usually ships in 3-6 days

0

15

MTD 00021977

Idler Deck Take-up

$66.99

$

Usually ships in 3-6 days

0

16

MTD 00062715

Turnbuckle, Sleeve

$18.99

$

In Stock, only 1 left!

0

17

MTD 01000160

Spacer, Belt Guide

$

$

Not available

18

MTD 01000517

Carriage Bolt, 1/2-13 x 1-1/4
(Superseded to 710-05375)

$6.49

$

Usually ships in 3-6 days

0

19

MTD 01000635

Nut, Hex Flange Lock, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

20

MTD 01000644

Carriage Bolt, 3/8-16 x 4.5

$

$

Not available

21

MTD 01000826

Deck 36"

Variations

MTD 01000826-0637

DECK ASM - 36" WAM - POWDER BLACK (0637)

$

$

Not available

MTD 01000826-4028

DECK ASM - 36" WAM - SEARS YELLOW (4028)

$

$

Not available

$

$

22

MTD 01000872

Washer, 1.25 x .411 x .100
(Superseded to 936-0133)

$

$

Not available

23

MTD 01001371

Hex Cap Screw, 3/8-16 x 2.75
(Superseded to 710-3022)

$4.99

$

In Stock, Qty 7

0

24

MTD 01002010

Carriage Bolt, 3/8-16 x 1-1/4
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 5

0

25

MTD 01002011

Carriage Bolt, 3/8-16 x 1-1/2

$

$

Not available

26

MTD 01002103

Rod Clutch Link

$

$

Not available

27

MTD 00063043

Idler Base

$55.99

$

Usually ships in 3-6 days

0

28

MTD 01003153

Clutch Link
(Superseded to 01003153-0637)

Variations

MTD 01003153-0637

Clutch Rod Link - POWDER BLACK (0637)

$14.99

$

In Stock, only 2 left!

0

$14.99

$

In Stock, only 2 left!

0

29

MTD 01005061

Deck Stiffener
(Superseded to 01005061-0637)

Variations

MTD 01005061-0637

PLATE-STIFFENER 36 - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 01009906

Carriage Bolt, 3/8-16 x 5.00

$5.99

$

Usually ships in 3-6 days

0

31

MTD 01010119

Nut, Flange Lock, 1/2-13

$7.49

$

In Stock, only 2 left!

0

32

MTD 02000320

Chute Baffle
(Superseded to 02000320-0637)

Variations

MTD 02000320-0637

BAFFLE-CHUTE 36" - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 00021895

Idler Arm

$170.99

$

Usually ships in 3-6 days

0

33

MTD 00021990

Bearing
(Superseded to 741-04333)

Note: not shown

$10.99

$

Usually ships in 3-6 days

0

34

MTD 02002426

Bar Weight

Variations

MTD 02002426-0637

BAR- WEIGHT CAT - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

$168.99

$

Usually ships in 3-6 days

0

35

MTD 712-04065

Flange Lock Hex Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

36

MTD 01008225

Push Retainer
(Superseded to 712-0229)

Note: If equipped

$3.99

$

In Stock, Qty 20+

0
