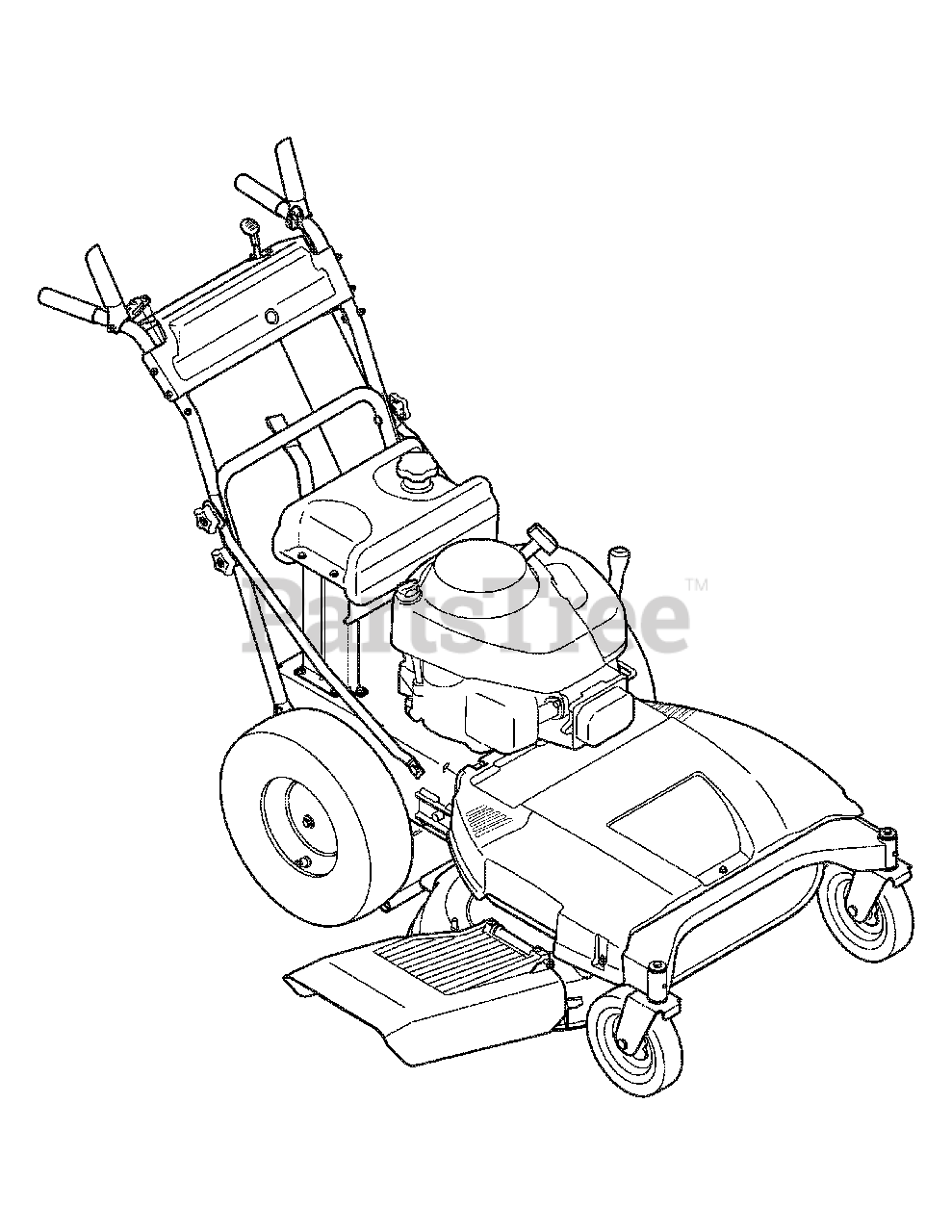

247.889330 (12A-764M799) - Craftsman Walk-Behind Mower (2007) (Sears) .Quick Reference Parts Diagram

Walk-Behind Mower

.Quick Reference Parts Diagram

  • Title

MTD BS-491055S

Spark Plug

$4.99

$

In Stock, Qty 20+

0

MTD BS-697292

Pre Cleaner

$5.99

$

In Stock, Qty 16

0

MTD BS-698413

Air Filter
(Superseded to BS-794421)

$16.99

$

In Stock, Qty 20+

0

MTD BS-394358S

Fuel Filter

$5.99

$

In Stock, Qty 20+

0

MTD 746-04344

Control Cable
(Superseded to 946-04344)

Note: (RH)

$55.99

$

In Stock, only 1 left!

0

MTD 746-04361

Control Cable
(Superseded to 946-04361)

Note: (LH)

$49.99

$

In Stock, only 1 left!

0

MTD 746-04343

Drive Cable
(Superseded to 946-04343)

$57.99

$

In Stock, only 1 left!

0

MTD 746-04355

Choke Cable
(Superseded to 946-04355)

$52.99

$

Usually ships in 3-6 days

0

MTD 754-04145

Drive Belt
(Superseded to 954-04145A)

Note: (Upper)

$39.99

$

In Stock, Qty 20+

0

MTD 754-04139

Drive Belt
(Superseded to 954-04139)

Note: (Lower)

$36.99

$

In Stock, only 4 left!

0

MTD 754-04136

Timing Belt

$73.99

$

In Stock, Qty 20+

0

MTD 742-04154

Blade
(Superseded to 942-04154A)

$20.99

$

In Stock, Qty 20+

0

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

MTD 618-04438

Blade Spindle
(Superseded to 918-04438C)

Note: (Double - LH)

$223.99

$

In Stock, Qty 9

0

MTD 618-04439

Blade Spindle
(Superseded to 918-04439C)

Note: (Single - RH)

$204.99

$

In Stock, only 4 left!

0

MTD 634-04343

Wheels

Note: (Front)

$

$

Currently unavailable

MTD 34-04285

Wheels

Note: (Rear)

$

$

Currently unavailable

Hub Cap

$

$

Not available

Trailshield

$

$

Not available

MTD 631-04244

Discharge Chute
(Superseded to 931-04244)

$70.99

$

In Stock, Qty 20+

0

Grass Bag

$

$

Not available

MTD 731-05938

Mulch Plug
(Superseded to 631-04252)

$33.99

$

In Stock, only 2 left!

0
