247.888900 (31AE7H8G799) - Craftsman Snow Thrower (2005) (Sears) General Assembly Parts Diagram

Snow Thrower

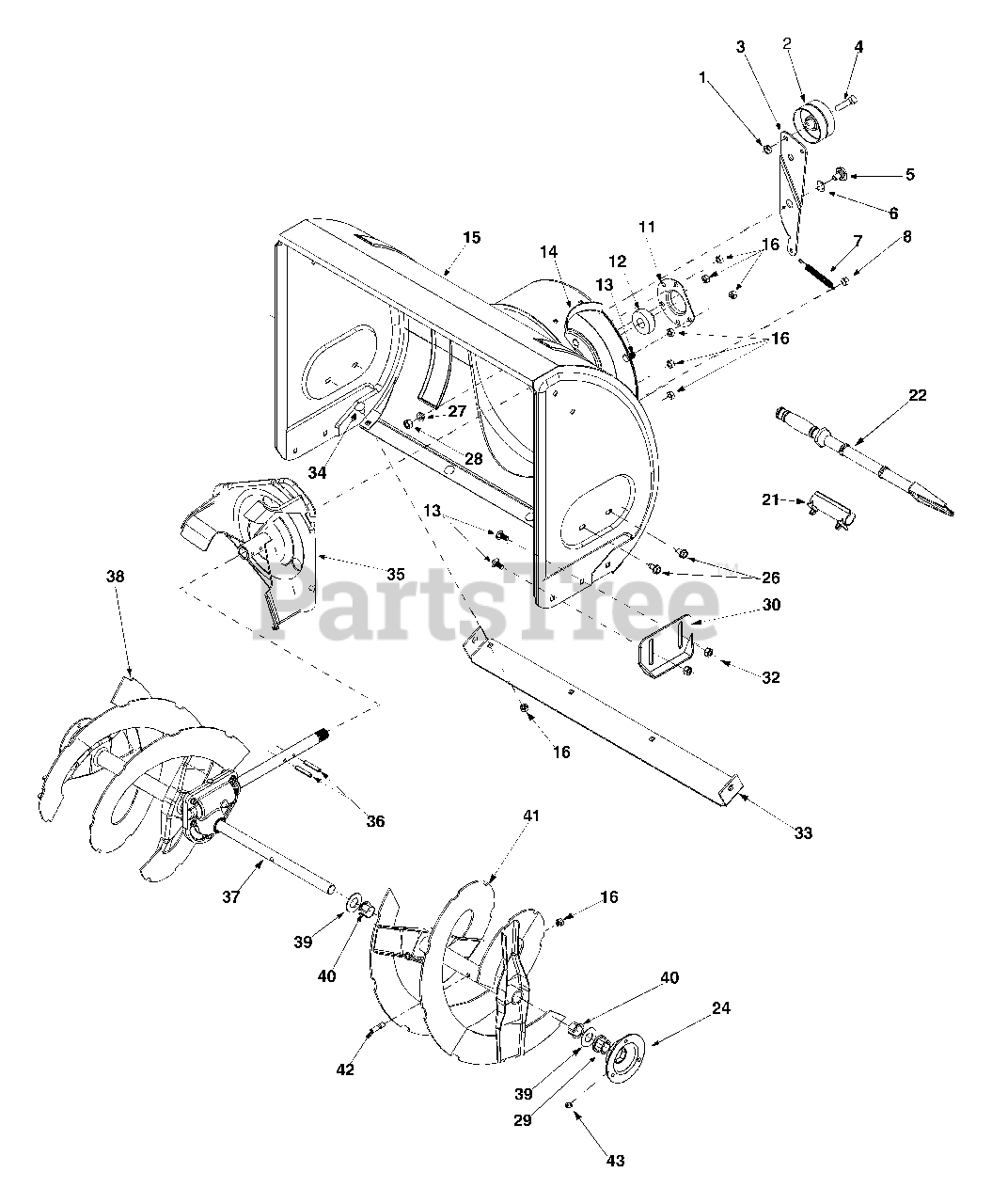

General Assembly Parts Diagram

  • Title

1

MTD 912-0116

Lock Jam Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

2

MTD 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

3

MTD 984-0064-0637

Auger Idler Arm

$32.99

$

In Stock, only 3 left!

0

4

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

5

MTD 938-0281

Shoulder Screw
(Superseded to 738-0281)

$

$

Not available

6

MTD 736-0174

Wave Washer

$6.99

$

In Stock, only 2 left!

0

7

MTD 932-0611

Extension Spring

$7.49

$

In Stock, Qty 20+

0

8

MTD 912-3009

Hex Nut 5/16-18
(Superseded to 712-3009)

$

$

Not available

9

MTD 710-0276

Carriage Bolt, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 12

0

11

MTD 05931A

Housing

$10.99

$

In Stock, only 2 left!

0

12

MTD 941-0309

Ball Bearing

$74.99

$

In Stock, only 1 left!

0

13

MTD 710-0451

Carriage Bolt, 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

14

MTD 705-5226-0637

Chute Reinforcement

$10.99

$

In Stock, Qty 7

0

15

MTD 684-04129-4044

Auger Housing Assembly 28"

$

$

Not available

16

MTD 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0320

Flat Washer

$6.99

$

In Stock, Qty 7

0

21

MTD 731-2635

Clean-Out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 7

0

22

MTD 931-2643

Clean-Out Tool

$19.99

$

In Stock, only 1 left!

0

24

MTD 790-00087A-0637

Bearing Housing

$22.99

$

In Stock, only 2 left!

0

26

MTD 710-0726

Hex Screw 5/16-12

$4.49

$

In Stock, Qty 20+

0

27

MTD 725-0157

Cable Tie (not shown)

$3.99

$

In Stock, only 2 left!

0

28

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

MTD 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

30

MTD 784-5580-0637

Skid Shoe

$23.99

$

In Stock, Qty 20+

0

32

MTD 712-04063

Flange Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

33

MTD 790-00118-4044

Shave Plate
(Superseded to 790-00118-0637)

$37.99

$

In Stock, only 4 left!

0

34

MTD 710-0451

Carriage Bolt 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

35

MTD 984-0065-0637

Impeller Assembly
(Superseded to 684-06276-0637)

$90.99

$

In Stock, only 1 left!

0

36

MTD 915-0114

Pin
(Superseded to 715-0114)

$9.49

$

In Stock, only 3 left!

0

37

MTD 918-0416B

Gear Assembly Complete, 28"

$474.99

$

Usually ships in 3-6 days

0

38

MTD 684-04184-0637

Spiral Assembly RH

$218.99

$

Usually ships in 3-6 days

0

39

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

MTD 684-04185-0637

Spiral Assembly LH

$184.99

$

Usually ships in 3-6 days

0

42

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

43

MTD 937-3000

Lube Fitting

$4.99

$

In Stock, Qty 20+
