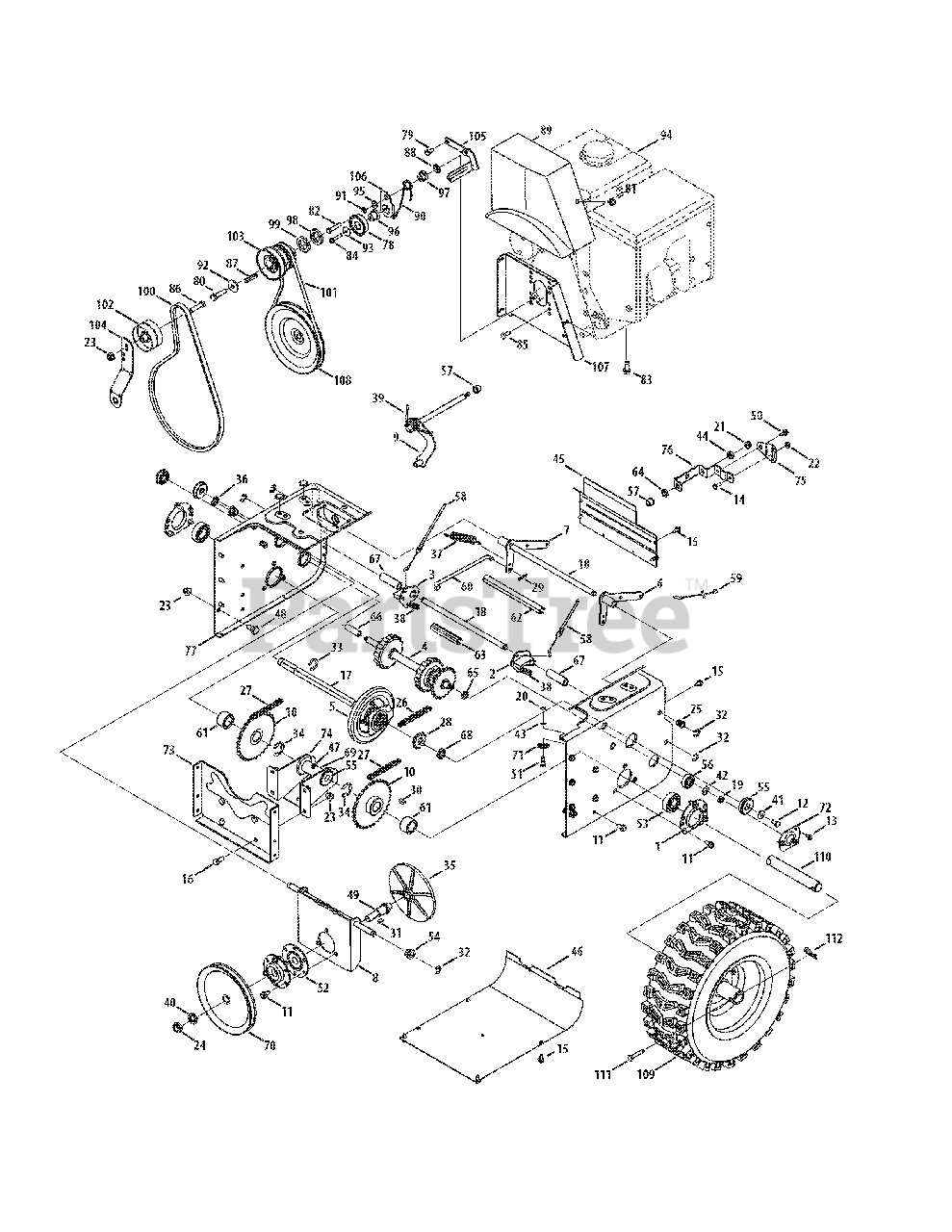

247.888760 (31CH95SI799) - Craftsman Snow Thrower (2015) Drive Assembly Parts Diagram

Snow Thrower

Drive Assembly Parts Diagram

  • Title

1

MTD 05244B

Housing, Bearing

$23.99

$

Usually ships in 3-6 days

0

2

MTD 918-0279A

Dogg, Steering Drive, LH

$42.99

$

Usually ships in 3-6 days

0

3

MTD 918-0280A

Dogg, Steering Drive, RH

$42.99

$

Usually ships in 3-6 days

0

4

MTD 918-0282E

Shaft Assembly, Steering

$559.99

$

Usually ships in 3-6 days

0

5

MTD 918-04178

Assembly, Friction Wheel
(Superseded to 918-07239)

$165.99

$

In Stock, Qty 6

0

5

MTD 718-04034

Wheel, Friction, Bonded

$

$

Not available

5

MTD 710-0896

Screw, Hex Wash

$4.49

$

In Stock, Qty 20+

0

6

MTD 684-0118B-0637

Bracket, Auger Actuator

$

$

Not available

7

MTD 684-0119B-0637

Bracket, Drive Actuator

$

$

Not available

8

MTD 684-04212-0637

Brkt, Friction Drive Suprt.

$52.99

$

Usually ships in 3-6 days

0

9

MTD 684-04229

Rod Assembly, Shift

$56.99

$

In Stock, only 1 left!

0

10

MTD 684-04235

Sprocket, 32T

$124.99

$

Usually ships in 3-6 days

0

11

MTD 710-04484

TT Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0538

Screw, Hex Cap Lock,

$4.49

$

In Stock, Qty 7

0

13

MTD 710-0599

Hex Screw, 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0751

Hex Head Screw, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-1652

Screw, Hex Wash.

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-3001

Screw, Hex Cap, 3/8-16

$7.49

$

In Stock, Qty 9

0

17

MTD 911-04279

Shaft, Hex Drive

$

$

Not available

18

MTD 711-04605

Shaft, Actuator

$

$

Not available

19

MTD 912-0116

Nut, Hex Insert Jam Lock
(Superseded to 712-0116)

$

$

Not available

20

MTD 912-0138

Nut, Hex, 1/4-28 GR5
(Superseded to 712-0138)

$

$

Not available

21

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

24

MTD 912-0413

Hex Nut, 5/8-18
(Superseded to 712-0413)

$

$

Not available

25

MTD 728-04062A

Rivet Nut, 3/8-16
(Superseded to 728-04062B)

$4.99

$

Usually ships in 3-6 days

0

26

MTD 713-0284

Chain, Endless, #41 x 36L

$24.99

$

Usually ships in 3-6 days

0

27

MTD 713-0286

Chain, #420 x 40L

$66.99

$

Usually ships in 3-6 days

0

28

MTD 913-04015

Sprocket, #41 x 10T

$12.99

$

Usually ships in 3-6 days

0

29

MTD 914-0104

Pin, Internal Cotter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

30

MTD 914-0135

Key, Woodruff
(Superseded to 714-0135)

$

$

Not available

31

MTD 914-0388

Key, Hi-Pro, 3/16 x 5/8

$7.99

$

In Stock, Qty 20+

0

32

MTD 916-0104

E-Ring

$3.99

$

In Stock, Qty 20+

0

33

MTD 716-0136

Ring, Retaining

$8.99

$

In Stock, Qty 18

0

34

MTD 716-04048

Ring, Retainer

$

$

Not available

35

MTD 917-0302

Plate, Drive

$82.99

$

In Stock, only 1 left!

0

36

MTD 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 2 left!

0

37

MTD 932-0121

Spring, Extension

$14.99

$

In Stock, only 1 left!

0

38

MTD 932-0209

Spring, Extension

$7.99

$

In Stock, only 2 left!

0

39

MTD 732-04385

Torsion Spring, .750 I.D. x .968 Lg.

$5.99

$

Usually ships in 3-6 days

0

40

MTD 936-0158

Washer, Lock, 5/8

$4.49

$

In Stock, Qty 11

0

41

MTD 736-0242

Wsh, Bell., .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

42

MTD 936-0864

Wash, .375 x .812 x .060

$4.49

$

Usually ships in 3-6 days

0

43

MTD 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 9

0

44

MTD 936-3015

Flat Washer, .469 x .875 x .105

$4.49

$

In Stock, Qty 19

0

45

MTD 790-00257-0691

Cover, Upper Frame

$14.99

$

Usually ships in 3-6 days

0

46

MTD 790-00259-0691

Cover, Lower Frame
(Superseded to 790-00259)

$27.99

$

Usually ships in 3-6 days

0

47

MTD 937-3000

Fitting, Lube, 3/16 Drive

$4.99

$

In Stock, Qty 20+

0

48

MTD 738-0143

Screw, Shldr., .498 x .34

$4.49

$

In Stock, Qty 20+

0

49

MTD 738-0279

Spindle, Drive Plate

$57.99

$

Usually ships in 3-6 days

0

50

MTD 738-04184A

Shoulder Screw, .368 x .113, 1/4-20

$6.99

$

In Stock, Qty 5

0

51

MTD 738-0924A

Screw, Hex Shldr., 1/4-28

$6.99

$

In Stock, Qty 5

0

52

MTD 741-0163A

Ass’y, Bearing/Housing

$48.99

$

Usually ships in 3-6 days

0

53

MTD 941-04025

Bearing, Self Aligning

$36.99

$

Usually ships in 3-6 days

0

54

MTD 741-04108

Bearing, Hex Flange

$5.99

$

In Stock, Qty 11

0

55

MTD 941-0563

Bearing, Ball

$36.99

$

In Stock, Qty 7

0

56

MTD 741-0747

Bush, Flg, .5625 x 1.375 x .4375

$18.99

$

In Stock, only 2 left!

0

57

MTD 741-0748

Bush, Flg, .5 ID x .627 OD

$11.99

$

Usually ships in 3-6 days

0

58

MTD 946-04337A

Steering Cable, 35.97" Long

$34.99

$

Usually ships in 3-6 days

0

59

MTD 946-0951A

Cable, Auger Idler

$45.99

$

In Stock, only 3 left!

0

60

MTD 747-0973

Rod, Drive Clutch

$48.99

$

Usually ships in 3-6 days

0

61

MTD 750-04703

Spcr., 1.0 ID x 1.50 OD

$12.99

$

Usually ships in 3-6 days

0

62

MTD 750-04717

Spcr., .51 ID x 7.895 Lg.

$8.49

$

Usually ships in 3-6 days

0

63

MTD 750-04718

Spcr., .51 ID x 3.66 Lg.

$5.49

$

Usually ships in 3-6 days

0

64

MTD 750-04719

Spcr., .5151 ID x .750 OD x .220

$4.49

$

Usually ships in 3-6 days

0

65

MTD 750-05342

Spcr., .566 ID x .87 OD x .190

$3.49

$

Usually ships in 3-6 days

0

66

MTD 750-05343

Spcr., .566 ID x .87 OD x 1.25

$4.49

$

Usually ships in 3-6 days

0

67

MTD 750-0903B

Spcr., .514 x .632 x 2.44

$10.99

$

Usually ships in 3-6 days

0

68

MTD 950-0997

Spacer, .675 x 1.0 x .23

$6.99

$

In Stock, only 4 left!

0

69

MTD 750-1302B

Spcr, .6725 x 1.125 x 2.48

$47.99

$

In Stock, only 1 left!

0

70

MTD 756-0344

Pulley, Auger

$81.99

$

Usually ships in 3-6 days

0

71

MTD 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

72

MTD 784-0404

Bearing Retaining Bracket

$8.49

$

In Stock, only 2 left!

0

73

MTD 784-0406A-0637

Bracket, Frame Support

$37.99

$

Usually ships in 3-6 days

0

74

MTD 784-0407-0637

Bracket, Axle Support

$37.99

$

Usually ships in 3-6 days

0

75

MTD 790-00217A-0637

Speed Selector Pivot Bracket
(Superseded to 790P01117)

$53.99

$

Usually ships in 3-6 days

0

76

MTD 790-00218A-0637

Speed Selector Shift Bracket
(Superseded to 790-00218A)

$47.99

$

In Stock, only 1 left!

0

77

MTD 790-00349A-0691

Transmission Frame

$144.99

$

Usually ships in 3-6 days

0

78

MTD 684-04169

Idler Pulley Assembly

$34.99

$

In Stock, Qty 8

0

79

MTD 710-0627

Screw, Hex Cap, 5/16-24

$4.49

$

In Stock, Qty 20+

0

80

MTD 710-0191

Hex Hd. Screw, 3/8-24 x 1.25 GR8

$4.99

$

In Stock, Qty 9

0

81

MTD 710-0607

Screw, Hx Wash Hd Tapp

$6.99

$

In Stock, Qty 9

0

82

MTD 710-0624

Screw, Hex Cap, 5/16-24 x 1.50

$5.99

$

Usually ships in 3-6 days

0

83

MTD 710-0654A

Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

84

MTD 710-0809

Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

85

MTD 738-04439

Hex Head Screw, 5/16-24 x .875

$3.99

$

In Stock, Qty 5

0

86

MTD 710-0347

Hex Head Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

87

MTD 914-0105

Square Key, 3/16 x 1.00

$3.99

$

Usually ships in 3-6 days

0

88

MTD 926-04012

Nut, Push
(Superseded to 726-04012)

$

$

Not available

89

MTD 931-2531

Cover, Belt

$51.99

$

In Stock, only 1 left!

0

90

MTD 732-04308C

Torsion Spring, .850 dia. x .333 lg.

$5.49

$

In Stock, Qty 20+

0

91

MTD 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

92

MTD 736-3082A

Washer, Flat, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

93

MTD 736-3092

Washer, Flat, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 6

0

94

N/A

Engine

Note: (See Breakdown, Craftsman Model No. 483-SUC)

$

$

Not available

95

MTD 748-04112B

Shoulder Spacer, .3175 x .500 x .094

$4.49

$

In Stock, Qty 9

0

96

MTD 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

97

MTD 750-04821

Shoulder Spacer, .340 x 1.00

$6.49

$

Usually ships in 3-6 days

0

98

MTD 750-05316

Spacer, 1.155 ID x 1.78 OD x .150

$5.49

$

Usually ships in 3-6 days

0

99

MTD 750-05318

Spacer, 1.004 ID x 1.625 OD x .50

$6.99

$

Usually ships in 3-6 days

0

100

MTD 954-04194A

V-Belt, 4L x 44.60 Lg.

$22.99

$

In Stock, Qty 9

0

101

MTD 954-04202

V Belt, 3/8 x 36.68

$18.99

$

In Stock, Qty 15

0

102

MTD 756-04224

Pulley, Flat Idler, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

103

MTD 756-04351

Double Pulley, 3.25 x 2.75

$47.99

$

Usually ships in 3-6 days

0

104

MTD 784-0385D

Bracket, Auger Idler

$29.99

$

Usually ships in 3-6 days

0

105

MTD 790-00167A-0637

Belt Keeper Bracket

$36.99

$

Usually ships in 3-6 days

0

106

MTD 790-00208D

Idler Drive Wheel Bracket

$8.99

$

In Stock, Qty 9

0

107

MTD 790-00254A-0637

Belt Cover Bracket

$27.99

$

Usually ships in 3-6 days

0

108

MTD 756-0344

Pulley, Drive

$81.99

$

Usually ships in 3-6 days

0

109

MTD 634-0225A-0941

Wheel Ass’y. - LH

$220.99

$

Usually ships in 3-6 days

0

109

MTD 634-0226A-0941

Wheel Ass’y. - RH

$233.99

$

Usually ships in 3-6 days

0

109

MTD 734-2031

Tire

$166.99

$

Usually ships in 3-6 days

0

109

MTD 934-0255

Valve

$4.49

$

In Stock, Qty 20+

0

109

MTD 741-0246A

Bearing

$14.99

$

Usually ships in 3-6 days

0

110

MTD 711-04607A

Axle, Wheel, 33"

$112.99

$

In Stock, only 1 left!

0

111

MTD 711-04615

Pin, Clevis

$5.99

$

Usually ships in 3-6 days

0

112

MTD 914-0149B

Pin, Internal Cotter
(Superseded to 714-0149B)

$

$

Not available
