247.888640 (31AS615E099) - Craftsman Snow Thrower (2002) (Sears) Drive Assembly Parts Diagram

Snow Thrower

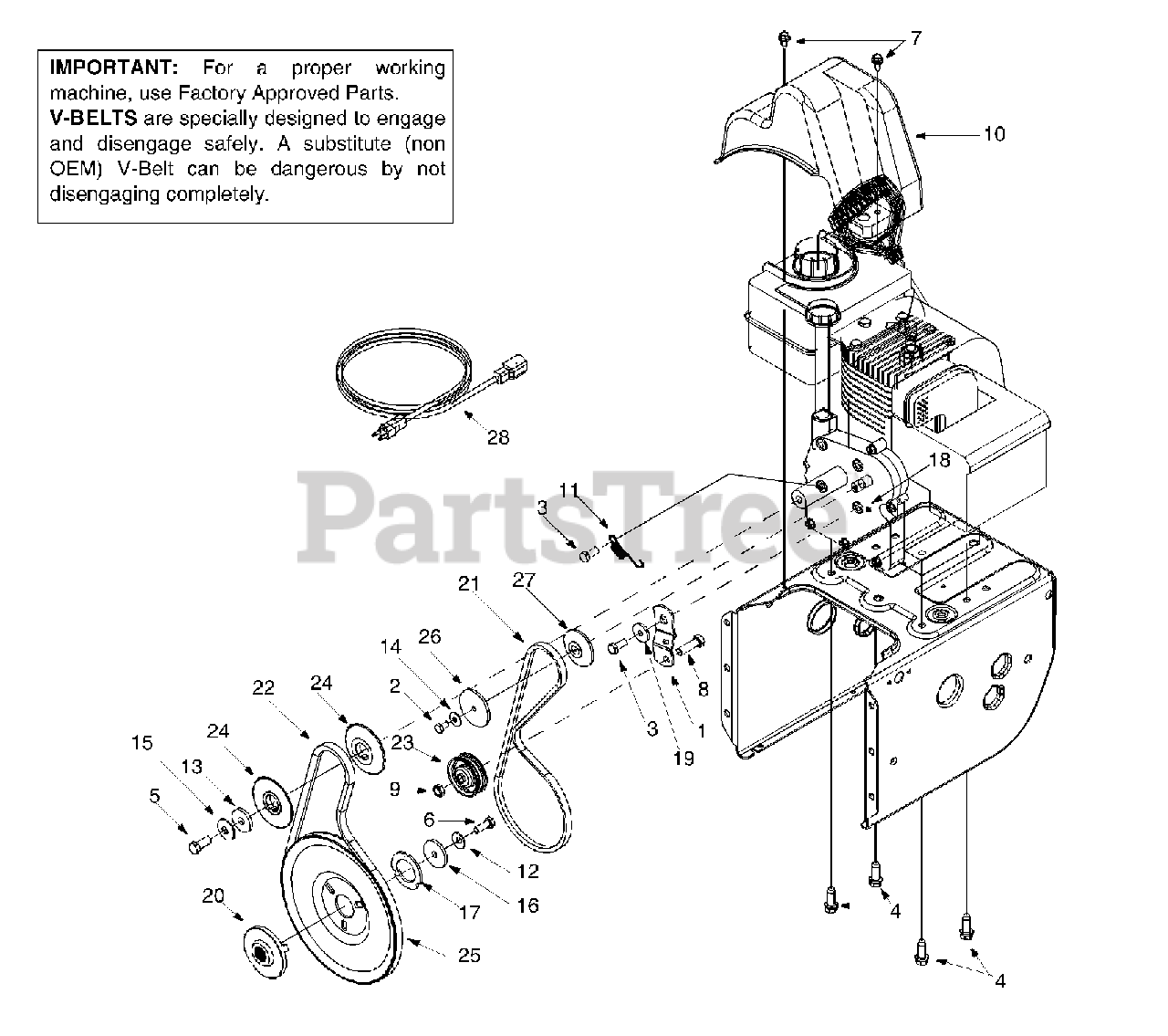

Drive Assembly Parts Diagram

  • Title

1

MTD 05896A

Idler Bracket

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0230

Hex Bolt 1/4-28 x 0.50"

$

$

Not available

3

MTD 710-0627

Hex Bolt: Lock 5/16-24 x .750"

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0696

Hex Bolt 3/8-24 x .875"

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-1245A

Hex Bolt : Lock 5/16-24 x .875"

$

$

Not available

7

MTD 710-1652

Self-Tapping Screw

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3005

Hex Screw 3/8-16 x 1.25"

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0181

Jam Nut

$4.49

$

In Stock, only 3 left!

0

10

MTD 731-1324

Belt Cover

$21.99

$

In Stock, Qty 6

0

11

MTD 732-0339

Extension Spring
(Superseded to 932-0339)

$

$

Not available

12

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 12

0

14

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

15

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

16

MTD 736-0505

Flat Washer

$6.49

$

In Stock, Qty 11

0

17

MTD 736-0507

Special Washer
(Superseded to 936-0507)

$6.99

$

Usually ships in 3-6 days

0

18

MTD 737-0318

Grease
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

19

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

20

MTD 748-0360

Pulley: Adapter
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

21

MTD 754-0343

V-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, Qty 9

0

22

MTD 754-0430A

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

MTD 756-0313

Idler: Flat

$26.99

$

In Stock, only 3 left!

0

24

MTD 756-0569

Pulley: Half

$10.99

$

Usually ships in 3-6 days

0

25

MTD 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

26

MTD 756-0984

Pulley Half

$

$

Not available

27

MTD 756-0985

Pulley Half

$

$

Not available

28

MTD 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

?29

Engine, Craftsman model 143.015007

$

$

Not available

30

MTD 770-10433B

Operator's Manual

Note: (Not shown)

$

$

Currently unavailable
