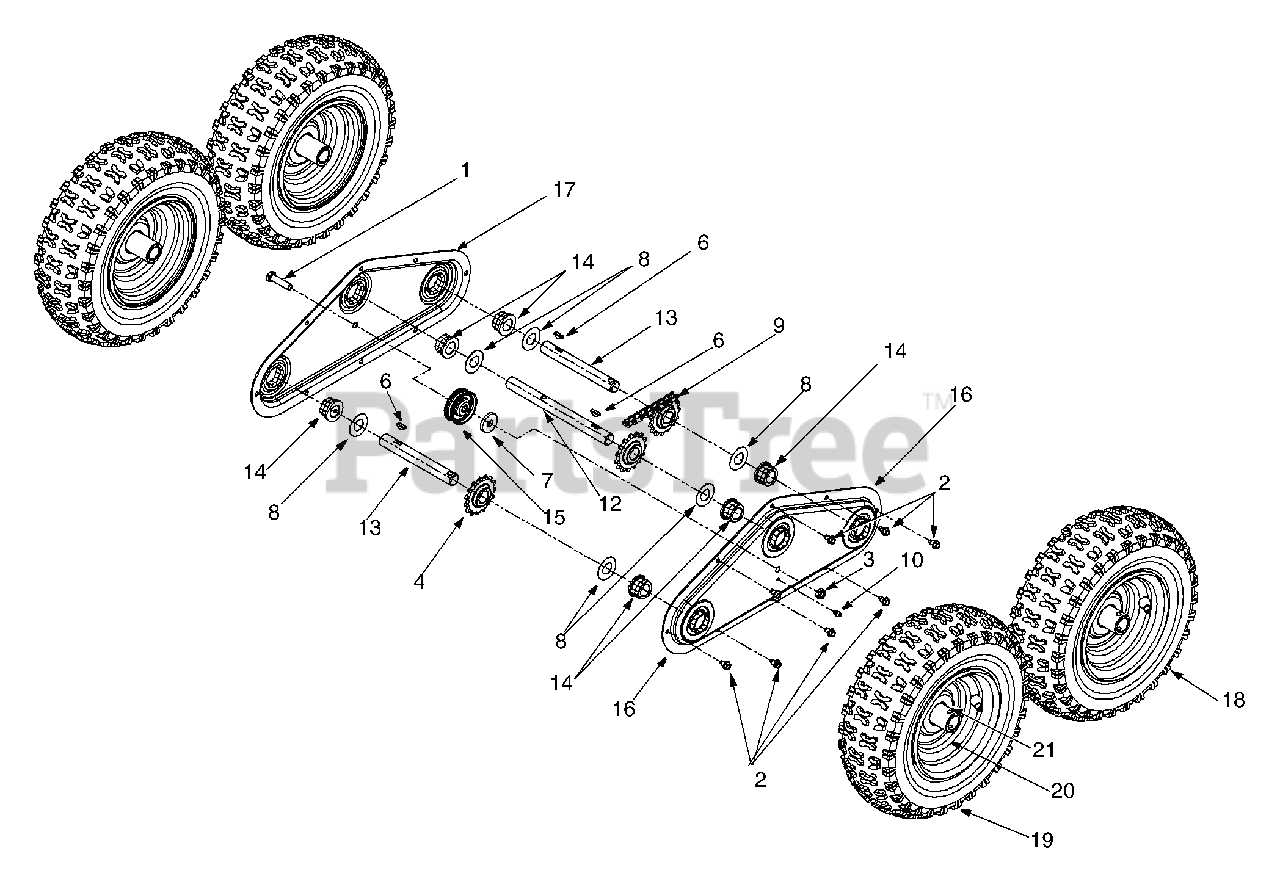

247.888540 (31AE458G099) - Craftsman Snow Thrower (2000) (Sears) Wheel Assembly Parts Diagram

Snow Thrower

Wheel Assembly Parts Diagram

  • Title
1

MTD 710-0459A

Special Hex Screw: 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

2

MTD 710-0599

TT Screw: 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-0116

Jam Nut

$4.99

$

In Stock, Qty 6

0

4

MTD 713-0491

Sprocket

$

$

Not available

?5

MTD 713-0492

Chain

$

$

Not available

6

MTD 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0235

Flat Washer
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 12

0

8

MTD 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

9

MTD 737-0170

Lubricant: 6in 1

$

$

Currently unavailable

10

MTD 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

?11

MTD 737-3007

Grease

Note: (Not shown)

$

$

Currently unavailable

12

MTD 738-1135

Drive Axle

$

$

Not available

13

MTD 738-1136

Wheel Axle

$

$

Not available

14

MTD 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

15

MTD 756-0313

Flat Idler

$26.99

$

In Stock, only 3 left!

0

16

MTD 784-0400-0689

Chain Case: Outer, Polo Green

$

$

Currently unavailable

17

MTD 784-0401-0689

Chain Case: Inner, Polo Green

$

$

Currently unavailable

18

MTD 634-0195

Complete Wheel Assembly: Oyster Grey

Note: (Includes items 19-21)

Variations

MTD 634-0195-0911

No Longer Available WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0195-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

$

$

19

MTD 734-1732

Tire Assembly

Variations

MTD 734-1732-0901

TIRE:SNOW HOG 13X4 - Carlisle (0901)

$150.99

$

Usually ships in 3-6 days

0

MTD 734-1732-0904

TIRE:SNOW HOG 13X4 - Cheng (0904)

$150.99

$

Usually ships in 3-6 days

0

MTD 734-1732-0905

TIRE:SNOW HOG 13X4 - Duro (0905)

$150.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

20

MTD 734-1735-0662

Rim Assembly: Oyster Grey

$

$

Not available

21

MTD 741-0401

Bearing
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 8

0
