247.888540 (31AE458G099) - Craftsman Snow Thrower (2000) (Sears) Blower Housing Parts Diagram

Snow Thrower

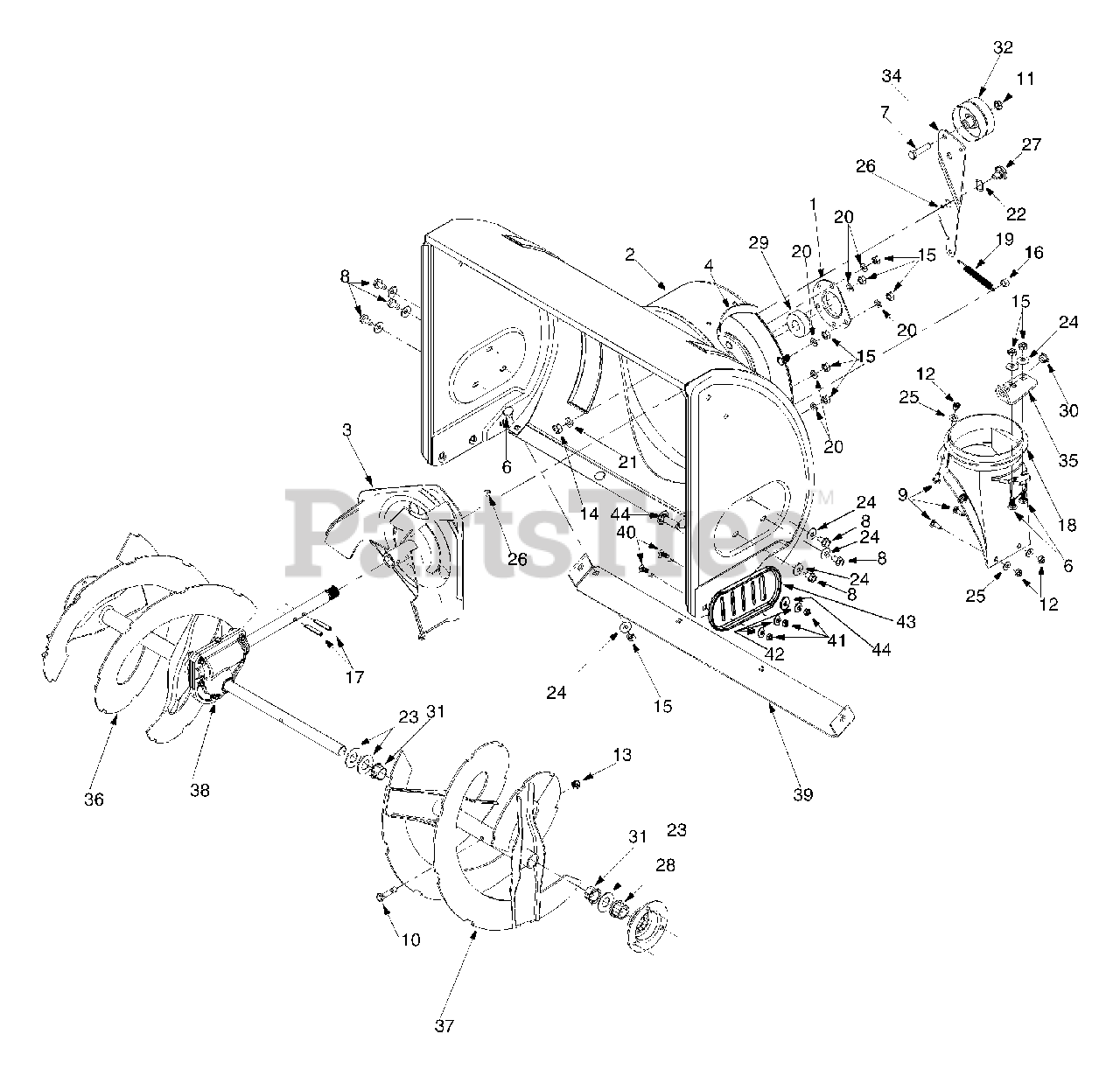

Blower Housing Parts Diagram

  • Title
1

MTD 05931

Bearing Housing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

2

MTD 684-0041C-0689

Auger Housing Assy. 28" Polo Green
(Superseded to 684-0041D-0689)

$

$

Not available

3

MTD 684-0065

Impeller Assy. 12" dia.
(Superseded to 984-0065-0637)

Variations

MTD 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, only 1 left!

0

MTD 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, only 1 left!

0

$90.99

$

In Stock, only 1 left!

0

4

MTD 705-5226-0689

Chute Reinforcement: Polo Green

$

$

Currently unavailable

6

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Gr.2

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0459A

Hex Screw 3/8-24 x 1.5" Gr.5

$6.99

$

In Stock, Qty 8

0

8

MTD 710-0604

Hex Washer Head Self-Tapping Screw 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0703

Carriage Screw 1/4-20 x .75"

$4.49

$

In Stock, Qty 15

0

10

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5"

$1.99

$

In Stock, Qty 20+

0

11

MTD 712-0116

Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

12

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

13

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0798

Hex Nut 3/8-16 Gr.2

$4.49

$

In Stock, only 2 left!

0

15

MTD 712-3010

Hex Nut 5/16-18 Gr.5

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-3068

Hex Patch Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

17

MTD 715-0114

Spiral Pin

$9.49

$

In Stock, only 3 left!

0

18

MTD 731-1379A

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, only 1 left!

0

19

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

20

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

22

MTD 736-0174

Wave Washer

$6.99

$

In Stock, only 2 left!

0

23

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0463

Flat Washer

$4.49

$

In Stock, only 2 left!

0

26

MTD 737-3007

Grease

$

$

Currently unavailable

27

MTD 738-0281

Shoulder Screw

$10.99

$

In Stock, only 1 left!

0

28

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

29

MTD 741-0309

Flange Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

30

MTD 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

31

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

32

MTD 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

34

MTD 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

MTD 784-5632A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 3 left!

0

$32.99

$

In Stock, only 3 left!

0

35

MTD 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 6

0

$14.99

$

In Stock, Qty 6

0

36

MTD 605-5196A-0637

Spiral Assembly: RH 28" Powder Black
(Superseded to 684-04184-0637)

$218.99

$

Usually ships in 3-6 days

0

37

MTD 605-5197A-0637

Spiral Assembly: LH 28" Powder Black
(Superseded to 684-04185-0637)

$184.99

$

Usually ships in 3-6 days

0

38

MTD 618-0122

Gear Assembly: Auger 28"
(Superseded to 918-0416B)

$474.99

$

Usually ships in 3-6 days

0

39

MTD 784-5582A

Shave Plate: Auger 28"
(Superseded to 790-00118-0637)

Variations

MTD 784-5582A-0637

Shave Plate, 28" Powder Black - POWDER BLACK (0637)

$37.99

$

In Stock, only 2 left!

0

$37.99

$

In Stock, only 2 left!

0

40

MTD 710-0451

Carr. Bolt: 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-3010

Hex Nut: 5/16-18 Gr.5

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

43

MTD 784-5038B-0689

Slide Shoe: Polo Green

$

$

Currently unavailable

44

MTD 710-0276

Carriage Screw: 5/16-18 x 1.0"

$3.99

$

In Stock, Qty 11

0
