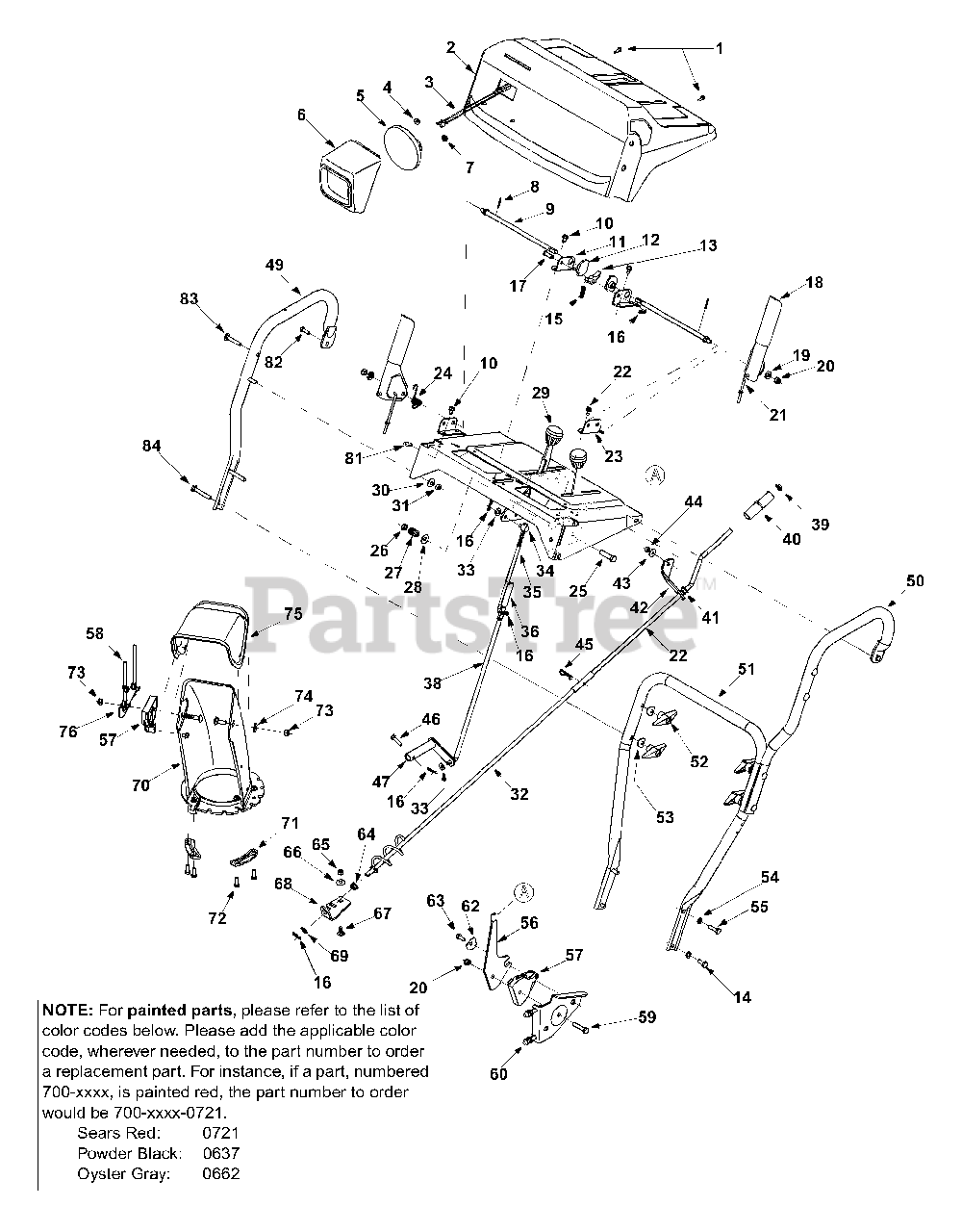

247.888531 (31AE558G099) - Craftsman Snow Thrower (2004) (Sears) Handle & Controls Parts Diagram

Snow Thrower

Handle & Controls Parts Diagram

  • Title

1

MTD 710-1003

Hex Washer Hd. Special Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 10

0

2

MTD 731-1773A

Handle Panel

$

$

Not available

3

MTD 629-0058

Harness: Light
(Superseded to 929-0058B)

$

$

Not available

4

MTD 712-0415

Self Thd. Hex Nut

$5.49

$

In Stock, only 3 left!

0

5

MTD 725-1300

Sealed Light
(Superseded to 925-1300)

$

$

Not available

6

MTD 731-1317

Headlight Bezel

$

$

Not available

7

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

8

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

9

MTD 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

10

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

11

MTD 784-5680

Handle Support Bracket RH
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5679

Handle Support Bracket LH
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

12

MTD 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

13

MTD 748-0363

Pawl: Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

14

MTD 710-1880

Hex Bolt 5/16-18 x 0.75"

$4.99

$

In Stock, Qty 11

0

15

MTD 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

16

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

17

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

18

MTD 684-0037B

Handle Engagement Assembly LH

$38.99

$

In Stock, only 2 left!

0

MTD 684-0036A

Handle Engagement Assembly RH

$44.99

$

Usually ships in 3-6 days

0

19

MTD 736-0509

Special Washer

$6.99

$

In Stock, only 1 left!

0

20

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

21

MTD 746-0778

Z Fitting: Cable
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

22

MTD 747-0737

Upper Chute Crank
(Superseded to 747-0737-0637)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

23

MTD 784-5681

Handle Support Bracket LH

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

MTD 784-5682

Handle Support Bracket RH
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

24

MTD 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

25

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

26

MTD 712-0116

Jam Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

27

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

28

MTD 736-0105

Spring Washer

$4.49

$

In Stock, Qty 20+

0

29

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

30

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-3068

Patch Nut
(Superseded to 912-3009)

$

$

Not available

32

MTD 684-0053B

Chute Crank Assembly
(Superseded to 684-0053B-0637)

Variations

MTD 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

34

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

35

MTD 747-0620A

Shift Rod

$11.99

$

In Stock, only 3 left!

0

36

MTD 750-0963

Rod Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

37

MTD 710-3015

Hex Bolt 1/4-20 x 0.75"

$3.99

$

In Stock, Qty 20+

0

38

MTD 747-0621

Lower Shift Rod

$

$

Not available

39

MTD 726-0100

Push Cap

$4.49

$

In Stock, only 3 left!

0

40

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, only 4 left!

0

41

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

42

MTD 705-5266

Chute Crank Bracket
(Superseded to 705-5266-0637)

Variations

MTD 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

43

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

44

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

45

MTD 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

46

MTD 710-0788

TT Screw 1/4-20 x 1.0"

$7.49

$

In Stock, only 4 left!

0

47

MTD 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

48

MTD 710-0643

Hex Bolt 5/16-18 x 1.0"

$6.99

$

In Stock, Qty 5

0

49

MTD 749-0954

Handle: C Style RH

Variations

MTD 749-0954-0637

Handle: C Style RH - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 749-0955

Handle: C Style LH
(Superseded to 749-0955-0637)

Variations

MTD 749-0955-0637

HANDLE-LH C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

MTD 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

MTD 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

52

MTD 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

53

MTD 736-0451

Saddle Washer 736-0119

$4.49

$

Usually ships in 3-6 days

0

54

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

MTD 710-0643

Lock Bolt 5/16-18 x 1.0"

$6.99

$

In Stock, Qty 5

0

56

MTD 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

57

MTD 731-1313B

Cable Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

58

MTD 746-0896

Chute Deflector Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

59

MTD 710-0442

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

60

MTD 746-0901

Chute Deflector Cable w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

62

MTD 736-0509

Special Washer

$6.99

$

In Stock, only 1 left!

0

63

MTD 710-0896

Hex AB Tap Screw 1/4 x 0.62"

$4.49

$

In Stock, Qty 20+

0

69

MTD 736-0185

Flat Washer

$3.99

$

In Stock, only 2 left!

0

70

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

71

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

72

MTD 710-3015

Hex Bolt 1/4-20 x 0.75"

$3.99

$

In Stock, Qty 20+

0

73

MTD 712-0429

Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

74

MTD 736-0506

Special Washer
(Superseded to 736-0506A)

$

$

Not available

75

MTD 731-1320

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

76

MTD 784-5594

Cable Bracket

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0
