247.888530 (31AE558G099) - Craftsman Snow Thrower (2003) (Sears) Recoil Starter Parts Diagram

Snow Thrower

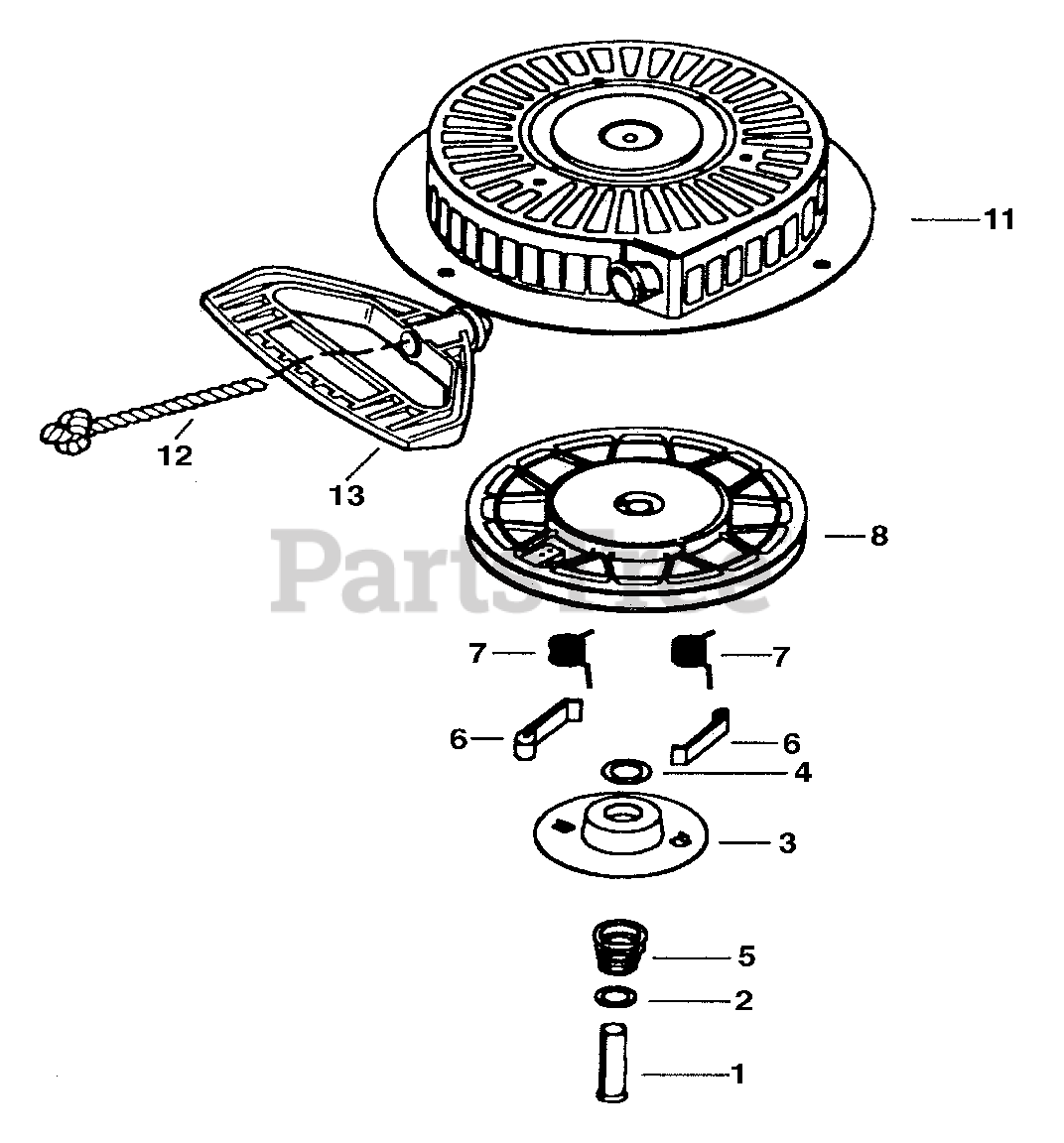

Recoil Starter Parts Diagram

  • Title
?0

Tecumseh 590733

Rewind Starter
(Superseded to 590789)

$87.99

$

In Stock, only 1 left!

0

1

Tecumseh 590599A

Spring Pin

Note: (Incl. 4)

$5.49

$

In Stock, only 2 left!

0

2

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 590696

Retainer

$7.49

$

In Stock, only 1 left!

0

4

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590697

Brake Spring

$3.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590698

Starter Dog

$6.99

$

In Stock, only 4 left!

0

7

Tecumseh 590699

Dog Spring

$7.49

$

In Stock, only 2 left!

0

8

Tecumseh 590709

Pulley & Rewind Spring Ass'y.

$18.99

$

In Stock, only 1 left!

0

11

Tecumseh 590734

Starter Housing Ass'y.
(Superseded to 590734B)

$

$

Not available

12

Tecumseh 590535

Starter Rope (Length 98" x 9/64" Dia.)

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590574

Mitten Grip Handle (Not

Note: Included With Starter)

$5.49

$

In Stock, only 1 left!

0
