247.888530 (31AE558G099) - Craftsman Snow Thrower (2003) (Sears) Engine 143.999005 Parts Diagram

Snow Thrower

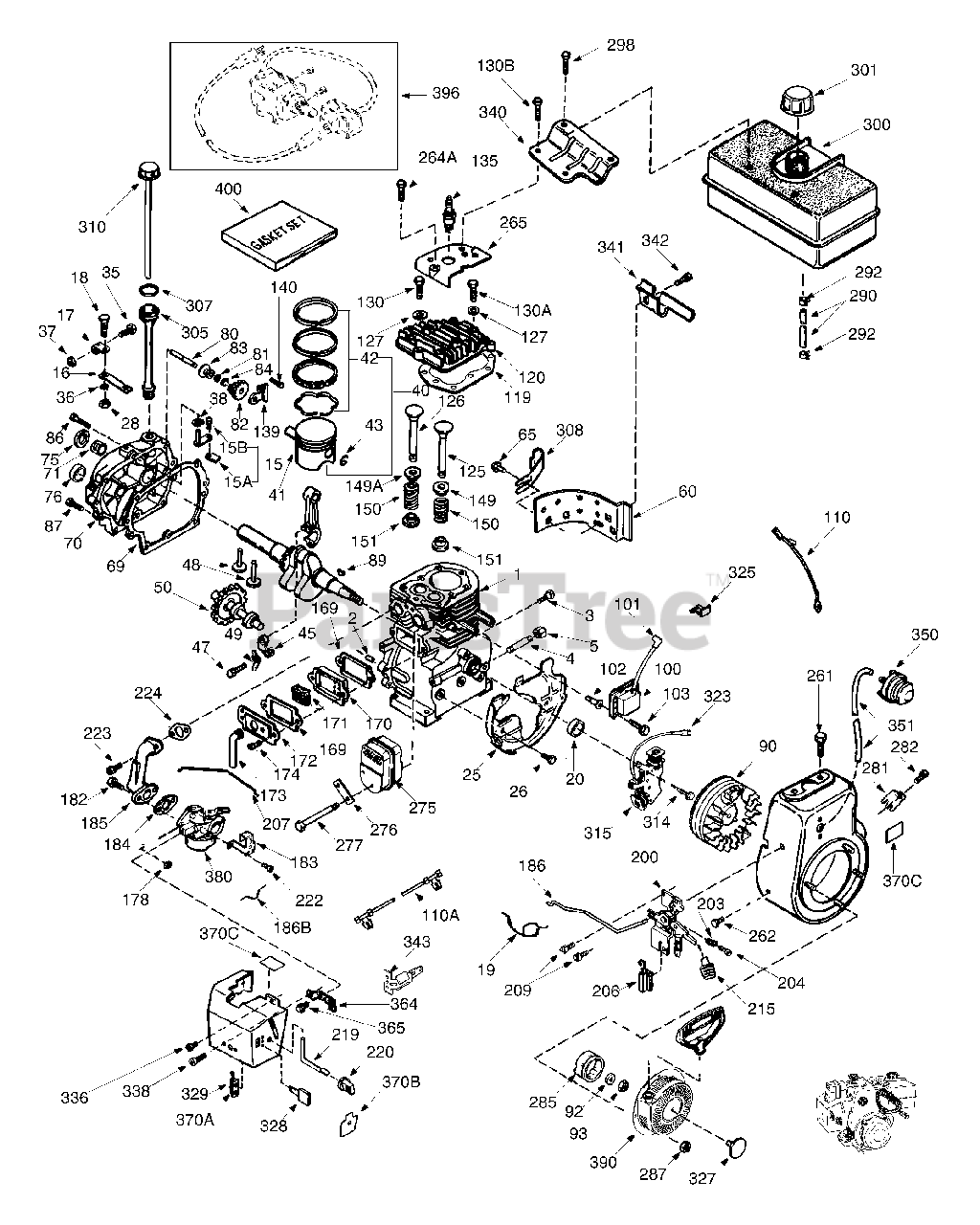

Engine 143.999005 Parts Diagram

  • Title

1

Tecumseh 35385

Cylinder

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 650820

Screw

$3.99

$

In Stock, Qty 15

0

4

Oil Drain Extension

$

$

Not available

5

Tecumseh 30969

Extension Cap

$5.49

$

In Stock, only 1 left!

0

15

Tecumseh 30699C

Governor Rod

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Governor Yoke

$1.99

$

In Stock, only 1 left!

0

15B

Tecumseh 650494

Screw

$1.99

$

Usually ships in 3-12 days

0

16

Tecumseh 33454

Governor Lever
(Superseded to 33454A)

$10.99

$

In Stock, only 1 left!

0

17

Tecumseh 29916

Governor Lever Clamp

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 651028

Screw, Torx

$1.99

$

In Stock, only 4 left!

0

19

Tecumseh 34663

Speed Control Spring

$1.99

$

In Stock, only 1 left!

0

20

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, only 4 left!

0

25

Tecumseh 36460

Blower Housing Baffle
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

26

Tecumseh 650561

Screw

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 30322

Lock Nut

$1.99

$

Usually ships in 3-12 days

0

?30

Tecumseh 35980A

Crankshaft

$

$

Not available

35

Tecumseh 29826

Screw

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Lock Washer

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Lock Nut

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Retaining Ring

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 40011

Piston, Pin & Ring Set (Std.)
(Superseded to 40049)

$

$

Not available

40

Tecumseh 40012

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

41

Tecumseh 40009

Piston, & Pin Ass'y. (Std.)
(Superseded to 40049)

$

$

Not available

41

Tecumseh 40010

Piston, & Pin Ass'y. (.010" OS)
(Superseded to 40012)

$

$

Not available

42

Tecumseh 40013

Ring Set (Std.)

$28.99

$

In Stock, only 1 left!

0

42

Tecumseh 40014

Ring Set (.010" OS)

$43.99

$

Usually ships in 3-12 days

0

43

Tecumseh 27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 36897

Connecting Rod Ass'y.
(Superseded to 36897A)

$48.99

$

In Stock, only 1 left!

0

47

Tecumseh 651033

Connecting Rod Bolt
(Superseded to 651033A)

$

$

Not available

48

Tecumseh 34034

Valve Lifter
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

49

Tecumseh 36896

Oil Dipper

$1.99

$

Usually ships in 3-12 days

0

50

Tecumseh 36655

Camshaft (MCR)

$

$

Not available

60

Tecumseh 33273A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

69

Tecumseh 35262A

Cylinder Cover Gasket
(Superseded to 37342)

$11.99

$

In Stock, only 3 left!

0

70

Tecumseh 35445A

Cylinder Cover
(Superseded to 38028)

$138.99

$

Usually ships in 3-12 days

0

71

Tecumseh 35377

Crankshaft Bushing

$11.99

$

In Stock, only 3 left!

0

75

Tecumseh 35319

Oil seal

$4.99

$

In Stock, only 4 left!

0

76

Tecumseh 28926

Camshaft Seal

$9.49

$

In Stock, only 1 left!

0

80

Tecumseh 31845

Governor Shaft
(Superseded to 37587)

$

$

Not available

81

Tecumseh 30590A

Washer

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 35378

Governor Gear Ass'y.

$3.99

$

Usually ships in 3-12 days

0

83

Tecumseh 30588A

Governor Spool

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw

$

$

Not available

89

Tecumseh 32589

Flywheel Key

$1.49

$

In Stock, Qty 6

0

90

Tecumseh 611093

Flywheel (W/ Ring Gear)

$

$

Not available

92

Tecumseh 650880

Belleville Washer

$1.99

$

In Stock, only 3 left!

0

93

Tecumseh 650881

Flywheel Nut

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 35135

Solid State Ignition
(Superseded to 35135B)

$62.99

$

In Stock, only 1 left!

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 651024

Solid State Mounting Stud

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw, Torx

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35187

Ground Wire

$

$

Not available

110A

Tecumseh 37047

Ground Wire

$1.99

$

In Stock, Qty 5

0

119

Tecumseh 36448

Cylinder Head Gasket

$9.99

$

In Stock, only 2 left!

0

120

Tecumseh 36449

Cylinder Head

$

$

Not available

125

Tecumseh 27878A

Exhaust Valve (Std.)

$23.99

$

Usually ships in 3-12 days

0

125

Tecumseh 27880A

Exhaust Valve (1/32" Os)

$

$

Not available

126

Tecumseh 34035

Intake Valve(Std.)

$15.99

$

In Stock, only 1 left!

0

126

Tecumseh 34036

Intake Valve (1/32" Os)

$

$

Not available

127

Tecumseh 650691

Washer

$1.99

$

Usually ships in 3-12 days

0

130

Tecumseh 6021A

Screw

$1.99

$

In Stock, only 3 left!

0

130A

Tecumseh 650727

Screw

$3.99

$

In Stock, only 1 left!

0

130B

Tecumseh 651055

Screw
(Superseded to 650273)

$1.99

$

In Stock, Qty 5

0

135

Tecumseh 35395

Resistor Spark Plug

$3.49

$

In Stock, Qty 16

0

139

Tecumseh 33369

Governor Gear Bracket

$8.49

$

In Stock, only 1 left!

0

140

Tecumseh 650836

Screw
(Superseded to 650965)

$

$

Not available

149

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, only 4 left!

0

149A

Tecumseh 35862

Valve Spring Cap

$9.49

$

Usually ships in 3-12 days

0

150

Tecumseh 27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

151

Tecumseh 32581

Valve Spring Keeper

$6.49

$

In Stock, Qty 10

0

169

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 10

0

170

Tecumseh 28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Breather Element

$3.99

$

In Stock, only 3 left!

0

172

Tecumseh 28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Breather Tube

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

178

Tecumseh 29752

Nut & Lock Washer

$1.99

$

In Stock, only 1 left!

0

182

Tecumseh 30088A

Screw

$1.99

$

In Stock, only 4 left!

0

183

Tecumseh 34587A

Choke Bracket
(Superseded to 34587B)

$9.49

$

In Stock, only 1 left!

0

184

Tecumseh 33263

Carburetor to intake pipe gasket

$1.49

$

In Stock, Qty 20+

0

185

Tecumseh 33877

Intake Pipe

$48.99

$

Usually ships in 3-12 days

0

186

Tecumseh 34667

Governor Link

$1.99

$

Usually ships in 3-12 days

0

186B

Tecumseh 36652

Choke Spring

$7.49

$

In Stock, Qty 5

0

200

Tecumseh 34677

Control Bracket

$54.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 651029

Torx. Screw

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

207

Tecumseh 33878

Throttle Link

$6.99

$

In Stock, only 2 left!

0

209

Tecumseh 650821

Screw

$1.99

$

In Stock, only 3 left!

0

215

Tecumseh 35440

Control Knob

$3.99

$

In Stock, only 1 left!

0

219

Tecumseh 34586

Choke Rod

$5.49

$

In Stock, only 1 left!

0

220

Tecumseh 35438

Choke Knob

$3.99

$

In Stock, only 2 left!

0

222

Tecumseh 28820

Screw
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

223

Tecumseh 650378

Screw, Torx

$1.99

$

In Stock, only 3 left!

0

224

Tecumseh 27915A

Intake Pipe Gasket

$5.99

$

In Stock, Qty 20+

0

?260

Tecumseh 35447A

Blower Housing
(Superseded to 37961)

$

$

Not available

261

Tecumseh 650788

Screw

$1.99

$

In Stock, only 1 left!

0

262

Tecumseh 29747B

Screw, Torx

$1.99

$

In Stock, Qty 9

0

264A

Tecumseh 650802

Screw

$1.99

$

In Stock, Qty 5

0

265

Tecumseh 33272B

Cylinder Head Cover
(Superseded to 33272D)

$7.49

$

Usually ships in 3-12 days

0

275

Tecumseh 35056

Muffler

$62.99

$

In Stock, only 2 left!

0

276

Tecumseh 31588

Locking Plate

$4.99

$

In Stock, Qty 20+

0

277

Tecumseh 651002

Screw

$4.49

$

In Stock, Qty 12

0

281

Tecumseh 33013

Starter Bubble Cover

$3.99

$

Usually ships in 3-12 days

0

282

Tecumseh 650760

Screw

$1.99

$

In Stock, only 3 left!

0

285

Tecumseh 35985B

Starter Cup
(Superseded to 35985C)

$13.99

$

In Stock, only 1 left!

0

287

Tecumseh 29752

Nut & Lock Washer

$1.99

$

In Stock, only 1 left!

0

290

Tecumseh 30705

Fuel Line

$16.99

$

In Stock, only 2 left!

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

298

Tecumseh 650665

Screw

$1.99

$

In Stock, only 3 left!

0

300

Tecumseh 34156A

Fuel Tank

$54.99

$

Usually ships in 3-12 days

0

301

Tecumseh 35355

Fuel Cap
(Superseded to 37845)

$8.99

$

In Stock, Qty 10

0

305

Tecumseh 35554

Oil Fill Tube

$19.99

$

In Stock, only 1 left!

0

307

Tecumseh 35499

"O" Ring

$1.49

$

In Stock, only 3 left!

0

308

Tecumseh 35540

Fill Tube Clip

$1.99

$

In Stock, only 2 left!

0

310

Tecumseh 36205

Dipstick

$10.99

$

In Stock, only 1 left!

0

314

Tecumseh 650873

Screw

$1.99

$

Usually ships in 3-12 days

0

315

Tecumseh 611111

Alternator Coil

$68.99

$

Usually ships in 3-12 days

0

323

UNKNOWN

$

$

Not available

?323B

Tecumseh 611118

Terminal

$1.99

$

Usually ships in 3-12 days

0

325

Tecumseh 29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

327

Tecumseh 35392

Starter Plug

$1.99

$

Usually ships in 3-12 days

0

328

Tecumseh 35593

Ignition Key
(Superseded to 35062)

$3.99

$

Usually ships in 3-12 days

0

329

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

?335

Tecumseh 35057A

Carburetor Cover
(Superseded to 36547A)

$70.99

$

In Stock, only 1 left!

0

336

Tecumseh 650765

Screw

$1.49

$

In Stock, only 4 left!

0

338

Tecumseh 28942

Screw

$1.49

$

In Stock, only 4 left!

0

340

Tecumseh 34154

Fuel Tank Bracket

$

$

Not available

341

Tecumseh 34155

Fuel Tank Bracket

$

$

Not available

342

Tecumseh 650561

Screw

$1.99

$

In Stock, only 2 left!

0

343

Tecumseh 35079

Key Switch Bracket
(Superseded to 35079A)

$16.99

$

Usually ships in 3-12 days

0

350

Tecumseh 570682A

Primer Bulb

$10.99

$

In Stock, Qty 6

0

351

Tecumseh 32180C

Primer Line

$6.99

$

In Stock, only 4 left!

0

?355

Tecumseh 590574

Starter Handle

$5.49

$

In Stock, only 1 left!

0

364

Tecumseh 33377

Carburetor Cover Bracket
(Superseded to 37659)

$

$

Not available

365

Tecumseh 650767

Screw

$1.49

$

In Stock, only 4 left!

0

370A

Tecumseh 36501

Primer Decal

$2.49

$

In Stock, only 2 left!

0

370B

Tecumseh 35077

Choke Decal

$

$

Not available

370C

Tecumseh 35878

Warning Decal

$

$

Not available

380

Tecumseh 640052

Carburetor
(Superseded to 640349)

$109.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590749

Rewind Starter
(Superseded to 590789)

$87.99

$

In Stock, only 1 left!

0

396

Tecumseh 37000

Electric Starter Motor
(Superseded to 33329E)

$

$

Not available

400

Tecumseh 36450A

Gasket Set
(Superseded to 36450C)

$21.99

$

In Stock, only 1 left!

0

?900

Replacement Engine-none

$

$

Not available

?900

Short Block 756325

Note: Order from 71-999

$

$

Not available
