247.888510 (31AE758F099) - Craftsman Snow Thrower (1999) (Sears) Handle & Chute Parts Diagram

Snow Thrower

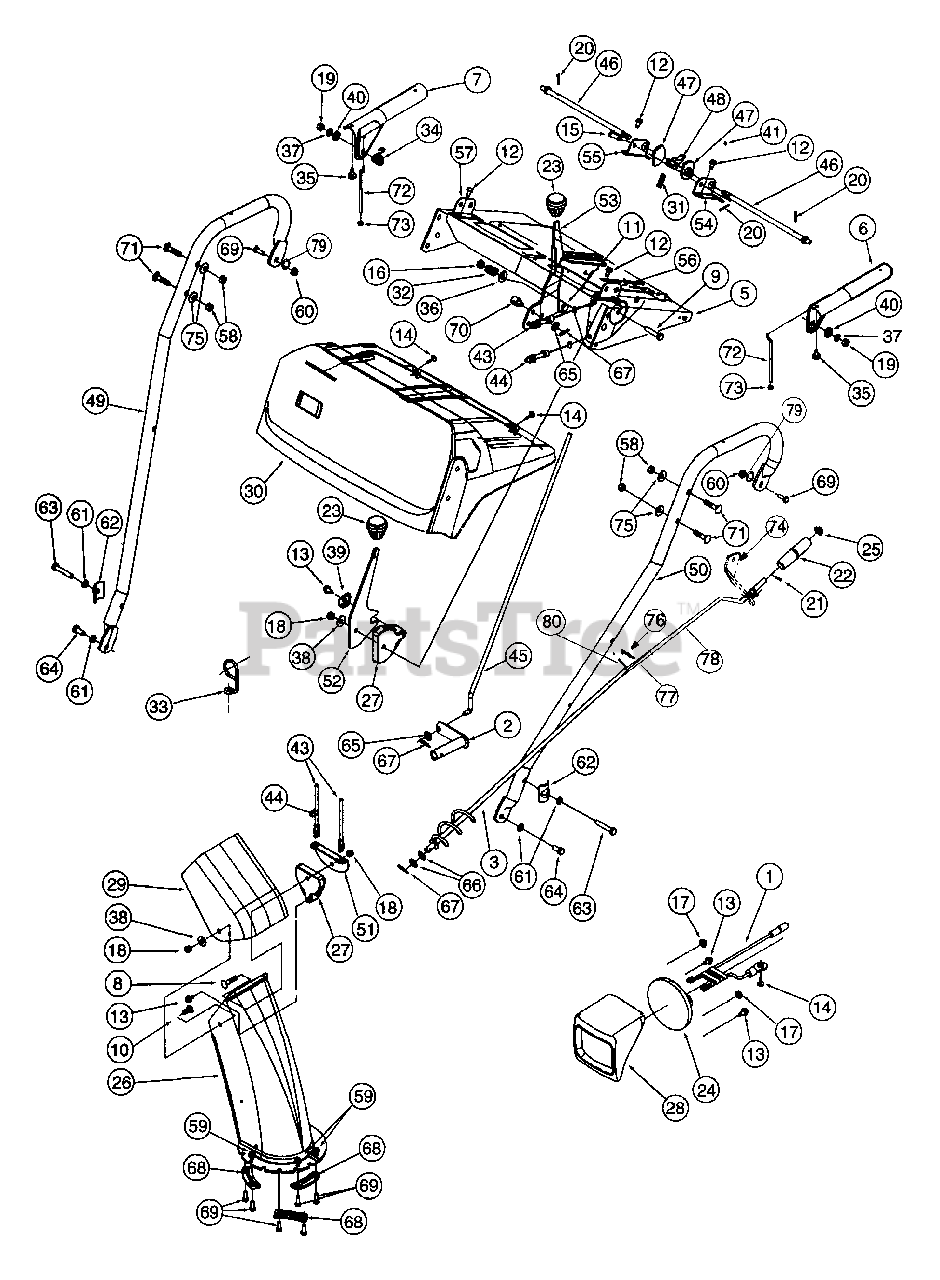

Handle & Chute Parts Diagram

  • Title

1

MTD 629-0058

Harness for Headlight
(Superseded to 929-0058B)

$

$

Not available

2

MTD 684-0008A-0637

Shift Arm Assembly

$50.99

$

Usually ships in 3-6 days

0

3

MTD 684-0053

Chute Crank Assembly
(Superseded to 684-0053B-0637)

Variations

MTD 684-0053-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

?4

MTD 684-0066

Hardware Pack

Note: Includes references 58 thru 75

$

$

Not available

5

MTD 684-0102

Handle Panel Assembly w/Tilt
(Superseded to 684-0102A)

Variations

MTD 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

6

MTD 684-0111

Handle Assembly Engagement (L.H.)
(Superseded to 684-0111B)

$

$

Not available

7

MTD 684-0112

Handle Assembly Engagement (R.H.)

$

$

Not available

8

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

9

MTD 710-0442

Hex Bolt 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

10

MTD 710-0451

Carriage Bolt 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0459

Hex Screw 3/8-24 x 1.5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

12

MTD 710-0599

Hex Washer Hd. TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0896

Hex AB Tap Screw 1/4 x .62

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-1003

Hex B-Tapp Screw #10-16 x.62
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 10

0

15

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

16

MTD 712-0116

Hex Ins. Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

17

MTD 712-0415

Self Threading Nut

$5.49

$

In Stock, only 3 left!

0

18

MTD 712-0429

Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-3010

Hex Nut

$4.49

$

In Stock, Qty 20+

0

20

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

21

MTD 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

22

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, only 4 left!

0

23

MTD 720-0300

Shift Knob

$

$

Not available

24

MTD 725-1300

Headlight
(Superseded to 925-1300)

$

$

Not available

25

MTD 726-0100

Push Cap

$4.49

$

In Stock, only 3 left!

0

26

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

27

MTD 731-1313B

Cable Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

28

MTD 731-1317

Headlight Bezel

$

$

Not available

29

MTD 731-1320

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

30

MTD 731-1773A

Handle Panel

$

$

Not available

31

MTD 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

32

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

33

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

34

MTD 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

35

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

36

MTD 736-0105

Bell Washer .380 x .880 x .062

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0119

Lock Washer 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

MTD 736-0159

Washer 5/6 I.D.

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0506

Special Washer
(Superseded to 736-0506A)

$

$

Not available

40

MTD 736-0509

Special Washer

$6.99

$

In Stock, only 1 left!

0

41

MTD 737-0133

Grease
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 19

0

43

MTD 746-0896

Chute Deflector Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

44

MTD 746-0901

Chute Deflector Cable w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

45

MTD 747-0798A

Shift Rod

$38.99

$

Usually ships in 3-6 days

0

46

MTD 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

47

MTD 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

48

MTD 748-0363

Pawl Handle lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

49

MTD 749-0908A

Right Handle
(Superseded to 749-0908A-0637)

Variations

MTD 749-0908A-0637

Right Handle: Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 749-0909

Left Handle
(Superseded to 749-0909-0637)

Variations

MTD 749-0909-0637

HANDLE-LH-C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 784-5594

Cable Bracket

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

52

MTD 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

53

MTD 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

MTD 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 784-5679

Handle Support Bracket (L.H.) 5/8
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

55

MTD 784-5680

Handle Support Bracket (R.H.) 5/8
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

56

MTD 784-5681

Handle Support Bracket (L.H.) 3/8

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

57

MTD 784-5682

Handle Support Bracket (R.H.) 3/8
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

58

MTD 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

59

MTD 712-3027

Hex Range Locked Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

60

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

61

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

63

MTD 710-3180

Hex Bolt 5/16-18 x 1.75 Gr.5

$5.49

$

In Stock, Qty 15

0

64

MTD 710-3008

Hex Bolt

$4.49

$

In Stock, Qty 20+

0

65

MTD 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

66

MTD 736-0185

Flat Washer 3/8 x .738 x .063

$3.99

$

In Stock, only 2 left!

0

67

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

68

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

69

MTD 710-3015

Hex Bolt 1/4-20 x 0.75" Gr.5

$3.99

$

In Stock, Qty 20+

0

70

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

71

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

72

MTD 746-0778

Z Fitting
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

73

MTD 712-0121

Hex Nut #10-24

$4.49

$

In Stock, Qty 20+

0

74

MTD 705-5266

Chute Crank Reinforcement Bracket
(Superseded to 705-5266-0637)

Variations

MTD 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

75

MTD 736-0242

Cupped Washer .340 I.D. x .872 O.D.

$4.49

$

In Stock, Qty 20+

0

76

MTD 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

77

MTD 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

78

MTD 747-0737

Upper Chute crank
(Superseded to 747-0737-0637)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

79

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

80

MTD 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0
