247.888510 (31AE758F099) - Craftsman Snow Thrower (1999) (Sears) Blower Housing Parts Diagram

Snow Thrower

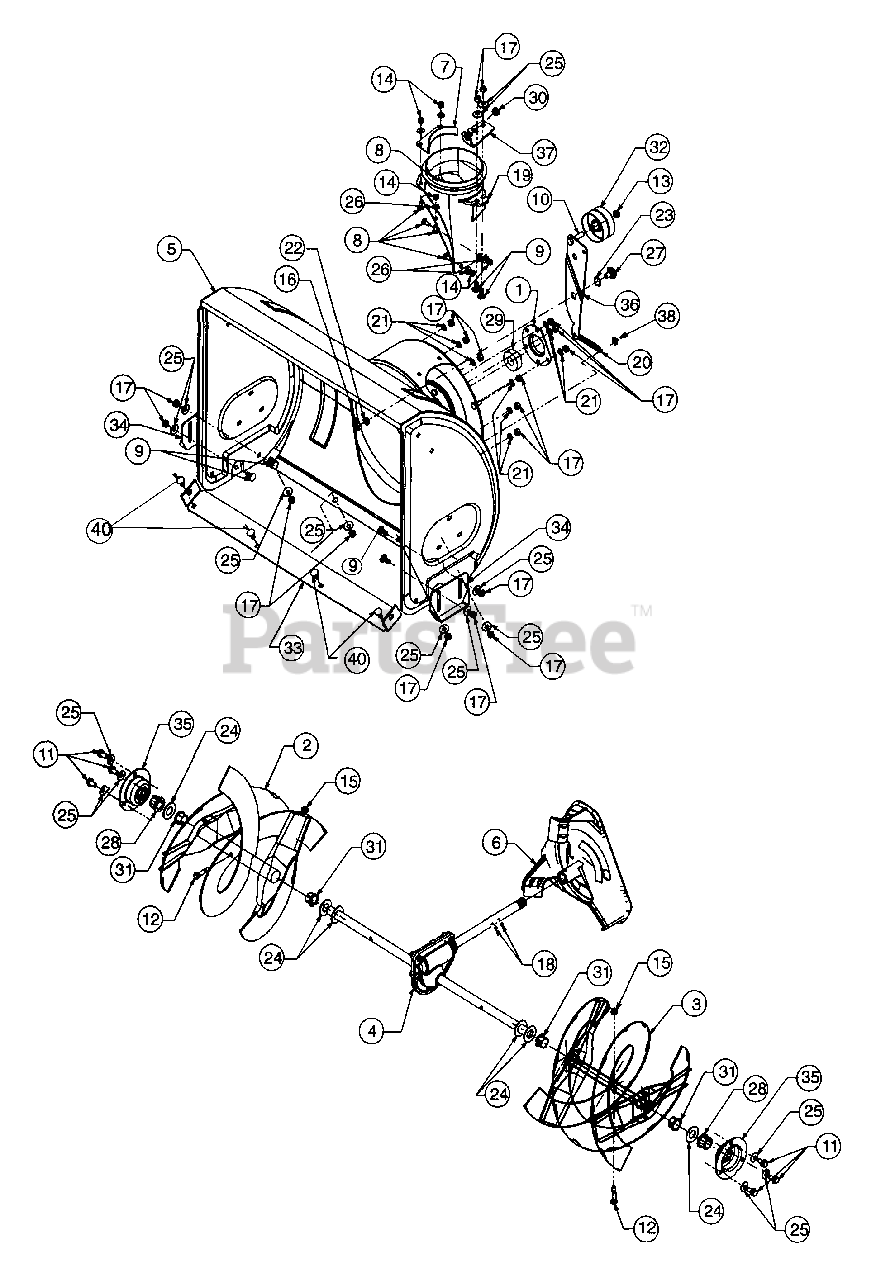

Blower Housing Parts Diagram

  • Title

1

MTD 05931

Bearing Housing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

2

MTD 605-5192A

Spiral Assembly
(Superseded to 684-04182-0637)

Variations

MTD 605-5192A-0637

Spiral Assembly, RH 26" - POWDER BLACK (0637)

$187.99

$

Usually ships in 3-6 days

0

$187.99

$

Usually ships in 3-6 days

0

3

MTD 605-5193A

Spiral Assembly
(Superseded to 684-04183-0637)

Variations

MTD 605-5193A-0637

Spiral Assembly, LH 26" - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 618-0121

Auger Gear Assembly
(Superseded to 918-0415B)

$442.99

$

Usually ships in 3-6 days

0

5

MTD 684-0040A

Spiral Housing Assembly
(Superseded to 684-0040D)

Variations

MTD 684-0040A-0483

HOUSING ASM-26" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0040A-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0040A-0638

HOUSING ASM-26" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0040A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0040A-0629

HOUSING ASM-26" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0040A-0665

HOUSING ASM-26" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0040A-0667

HOUSING ASM-26" - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 684-0040A-0689

HOUSING ASM-26" - POLO GREEN (0689)

$

$

Not available

$

$

6

MTD 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

MTD 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, only 1 left!

0

MTD 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, only 1 left!

0

$90.99

$

In Stock, only 1 left!

0

7

MTD 705-5226

Chute Reinforcement

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

8

MTD 710-0703

Carriage Screw 1/4-20 X .75

$4.49

$

In Stock, Qty 15

0

9

MTD 710-0451

Carriage Bolt 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0459A

Hex Screw 3/8-24 X 1.5 Grade 5

$6.99

$

In Stock, Qty 8

0

11

MTD 710-0604

Hex Washer Head TT-Screw 5/16-18 X .62
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0890A

Shear Bolt 5/16-18 X 1.5

$1.99

$

In Stock, Qty 20+

0

13

MTD 712-0116

Jam Lock Nut

$4.99

$

In Stock, Qty 6

0

14

MTD 712-0324

Toplock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

15

MTD 712-0429

Hex Lock Nut 5/16-1B

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

17

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

MTD 715-0114

Spiral Pin

$9.49

$

In Stock, only 3 left!

0

19

MTD 731-1379

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, only 1 left!

0

20

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

21

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

23

MTD 736-0174

Wave Washer

$6.99

$

In Stock, only 2 left!

0

24

MTD 736-0188

Flat Washer .76 I.D. x 1.49 O.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0242

Bell Washer .345 I.D. x.88

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0463

Flat Washer 1/4 x .630

$4.49

$

In Stock, only 2 left!

0

27

MTD 738-0281

Shoulder Screw

$10.99

$

In Stock, only 1 left!

0

28

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

29

MTD 741-0309

Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

30

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

31

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

32

MTD 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

33

MTD 784-5579A

Shave Plate
(Superseded to 790-00121-0637)

Variations

MTD 784-5579A-0629

Shave Plate, 26" Silver - SILVER FLAKE (0629)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0637

Shave Plate, 26" Powder Black - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0638

Shave Plate, 26" Red - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0667

Shave Plate, 26" Blue - MIDNIGHT BLUE (0667)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0689

Shave Plate, 26" Green - POLO GREEN (0689)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0691

Shave Plate, 26" Black - BLACK JACK (0691)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0692

Shave Plate, 26" Blue - AGWAY BLUE (0692)

$36.99

$

In Stock, Qty 20+

0

$36.99

$

In Stock, Qty 20+

0

34

MTD 784-5580

Slide Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

35

MTD 784-5618

Bearing Assembly
(Superseded to 784-5618A-0637)

Variations

MTD 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

36

MTD 784-5632

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

MTD 784-5632-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 3 left!

0

$32.99

$

In Stock, only 3 left!

0

37

MTD 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 6

0

$14.99

$

In Stock, Qty 6

0

38

MTD 712-3068

Patch Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

?39

MTD 737-3007

Grease

$

$

Currently unavailable

40

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0
