247.888510 (31AE758F099) - Craftsman Snow Thrower (1999) (Sears) Belt Drive Parts Diagram

Snow Thrower

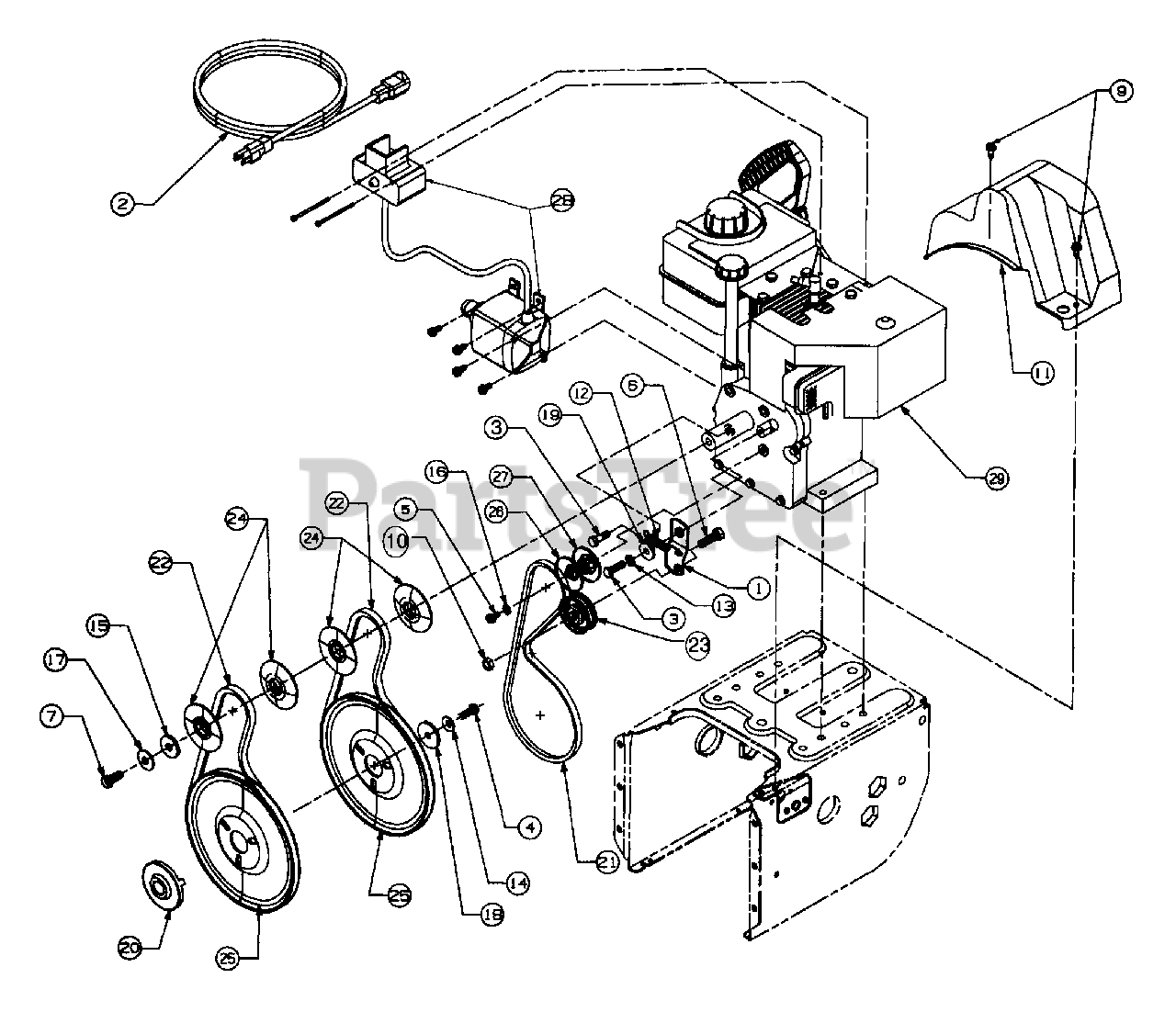

Belt Drive Parts Diagram

  • Title
1

MTD 05896A

Bracket

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0

3

MTD 710-0627

Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1245

Screw

$8.49

$

In Stock, only 2 left!

0

5

MTD 710-0230

Screw

$

$

Not available

6

MTD 710-3005

Screw

$3.99

$

In Stock, Qty 11

0

7

MTD 710-0696

Screw

$6.99

$

In Stock, only 2 left!

0

9

MTD 710-1652

Screw

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0181

Jam Nut

$4.49

$

In Stock, only 3 left!

0

11

MTD 731-1324

Belt Cover

$21.99

$

In Stock, only 1 left!

0

12

MTD 732-0710

Spring
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 8

0

13

MTD 736-0119

Flat Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 15

0

16

MTD 736-0270

Lock Washer

$3.99

$

In Stock, Qty 20+

0

17

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 11

0

18

MTD 736-0505

Flat Washer

$6.49

$

In Stock, only 2 left!

0

19

MTD 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

20

MTD 748-0360

Adapter Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

21

MTD 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, only 4 left!

0

22

MTD 754-0430

V-Belt Matched
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

MTD 756-0313

Flat Idler

$26.99

$

In Stock, Qty 6

0

24

MTD 756-0569

Half Pulley

$10.99

$

Usually ships in 3-6 days

0

25

MTD 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

26

MTD 756-0986

Pulley Half

$

$

Not available

27

MTD 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

28

MTD 390-987

Starter

$

$

Currently unavailable

29

$

$

Currently unavailable

?31

MTD 737-3007

Grease

$

$

Currently unavailable
