Craftsman 247.888500 (31AE7C8F099) - Craftsman Snow Thrower (1998) (Sears) Frame Assembly Parts Lookup with Diagrams

1

MTD 611-0053

Axle Assembly

$97.99

$

In Stock, only 2 left!

2

MTD 618-0043

Dogg Assembly: R.H.

$23.99

$

In Stock, only 1 left!

3

MTD 618-0044

Dogg Assembly: L.H.

$24.99

$

In Stock, only 1 left!

4

MTD 618-0169

Shift Assembly: Track Drive

(Superseded to 918-0169B) 

$345.99

$

Usually ships in 3-6 days

6

UNKNOWN

$

Not available 

7

MTD 683-0024-0637

Track Hub Assembly - POWDER BLACK (0637)

(Superseded to 683-0024-0637) 

Variations

MTD 683-0024-0637

Track Hub Assembly - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

$84.99

$

Usually ships in 3-6 days

9

MTD 684-0014B-0637

Shift Rod Assembly - POWDER BLACK (0637)

(Superseded to 684-0014B-0637) 

Variations

MTD 684-0014B-0637

Shift Rod Assembly - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

$47.99

$

In Stock, only 1 left!

10

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

(Superseded to 984-0021-0637) 

Variations

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

Not available 

$

Not available 

12

MTD 684-0031-0483

KIT-REPLACEMENT (6 - CHARCOAL GRAY (0483)

(Superseded to 984-0031) 

Variations

MTD 684-0031-0483

KIT-REPLACEMENT (6 - CHARCOAL GRAY (0483)

$

Not available 

MTD 684-0031-0499

KIT-REPLACEMENT (6 - CUB BEIGE (0499)

$

Not available 

MTD 684-0031-0637

KIT-REPLACEMENT (6 - POWDER BLACK (0637)

$

Not available 

MTD 684-0031-0650

USE 753-06327 KIT-REPLACEMENT - RED METALLIC (0650)

$

Not available 

MTD 684-0031-0662

KIT-REPLACEMENT (6 - OYSTER GRAY (0662)

$

Not available 

MTD 684-0031-0665

KIT-REPLACEMENT (6 - YARDMAN GREEN (0665)

$

Not available 

MTD 684-0031-0721

KIT-REPLACEMENT (6 - SEARS RED (0721)

$

Not available 

$

Not available 

14

MTD 684-0042B

Friction Wheel Bearing Assembly

(Superseded to 984-0042C) 

$138.99

$

In Stock, Qty 9

17

MTD 710-0538

Hex Lock Screw 5/16-18 x .625 Grade 5

$4.49

$

In Stock, only 3 left!

18

MTD 710-0599

Hex Washer Hd. TT Screw

$4.49

$

In Stock, Qty 20+

19

MTD 710-0602

Hex Washer Hd. TT Screw

$4.49

$

In Stock, Qty 20+

20

MTD 710-0604

Hex Washer Hd. TT Screw

(Superseded to 710-0604A) 

$4.49

$

In Stock, Qty 20+

21

MTD 710-0654A

Hex Washer Hd. TT Screw

$4.49

$

In Stock, Qty 20+

22

MTD 710-0788

Hex Washer Screw

$7.49

$

In Stock, only 1 left!

23

MTD 710-0809

Hex Washer Screw

$6.99

$

In Stock, Qty 12

24

MTD 710-0875

TT Screw

$3.99

$

In Stock, only 1 left!

25

MTD 710-0896

Hex Washer Head AB Screw

$4.49

$

In Stock, Qty 14

27

MTD 710-1233

Oval C-Sunk Screw

$4.99

$

In Stock, Qty 9

28

MTD 711-0911

Actuator Shaft

$

Not available 

29

MTD 711-1042

Hex Shaft: Track Drive

$149.99

$

In Stock, only 2 left!

30

MTD 712-0127

Flanged Weld Nut #10-24

$3.49

$

In Stock, Qty 12

33

MTD 712-0324

Top Lock Nut 1/4-20

$3.99

$

In Stock, Qty 11

36

MTD 712-0711

Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

37

MTD 713-0233

Chain Links

$41.99

$

Usually ships in 3-6 days

38

MTD 713-0413

Sprocket: 10T

$12.99

$

Usually ships in 3-6 days

39

MTD 713-0437

Chain

$37.99

$

Usually ships in 3-6 days

40

MTD 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 13

41

MTD 719-0295A

Track Housing

$

Not available 

43

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

46

MTD 732-0209

Extension Spring

(Superseded to 932-0209) 

$7.99

$

In Stock, Qty 16

47

MTD 732-0264

Extension Spring

(Superseded to 932-0264) 

$4.99

$

In Stock, only 2 left!

48

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

49

MTD 736-0160

Flat Washer

$4.49

$

Usually ships in 3-6 days

50

MTD 736-0176

Flat Washer

$4.99

$

In Stock, Qty 20+

51

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

52

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

54

MTD 736-0287

Flat Washer

$4.49

$

In Stock, Qty 20+

58

MTD 738-0924

Shoulder Screw

(Superseded to 738-0924A) 

$6.99

$

In Stock, only 2 left!

59

MTD 741-0339

Flange Bearing

(Superseded to 941-0339) 

$12.99

$

In Stock, Qty 20+

60

MTD 741-0563

Ball Bearing

(Superseded to 941-0563) 

$36.99

$

In Stock, Qty 6

61

MTD 741-0597

Hex Flange Bearing

(Superseded to 941-0597) 

$12.99

$

In Stock, Qty 9

62

MTD 746-0897

Auger Clutch Cable

(Superseded to 946-0897) 

$24.99

$

In Stock, only 1 left!

63

MTD 746-0898

Drive Clutch Cable

(Superseded to 946-0898) 

$27.99

$

In Stock, only 4 left!

64

MTD 746-0948

Track Steering Cable

(Superseded to 946-0948A) 

$37.99

$

Usually ships in 3-6 days

65

MTD 746-0950

Trigger Control

(Superseded to 746-0950A) 

$22.99

$

Usually ships in 3-6 days

66

MTD 748-0190

Spacer

$6.49

$

In Stock, Qty 10

67

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 15

70

MTD 750-0903

Split Spacer

(Superseded to 750-0903B) 

$10.99

$

Usually ships in 3-6 days

71

MTD 750-0904

Split Spacer

$

Not available 

74

MTD 750-0997

Spacer

(Superseded to 950-0997) 

$6.99

$

In Stock, only 2 left!

75

MTD 756-0625

Roller Cable

$9.49

$

In Stock, Qty 11

76

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

Not available 

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

Not available 

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

Not available 

$15.99

$

Usually ships in 3-6 days

77

MTD 784-5609-0483

BRACKET-STEERING - CHARCOAL GRAY (0483)

Variations

MTD 784-5609-0483

BRACKET-STEERING - CHARCOAL GRAY (0483)

$

Not available 

MTD 784-5609-0498

BRACKET-STEERING - OLD CUB YELLOW (0498)

$

Not available 

MTD 784-5609-0499

BRACKET-STEERING - CUB BEIGE (0499)

$

Not available 

MTD 784-5609-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

Not available 

MTD 784-5609-0638

BRACKET-STEERING - MTD/TROY-BILT RED (0638)

$

Not available 

MTD 784-5609-0662

BRACKET-STEERING - OYSTER GRAY (0662)

$

Not available 

MTD 784-5609-0691

BRACKET-STEERING - BLACK JACK (0691)

$

Not available 

MTD 784-5609-0692

No Longer Available - AGWAY BLUE (0692)

$

Not available 

MTD 784-5609-0716

BRACKET-STEERING - CUB YELLOW-99 (0716)

$

Not available 

MTD 784-5609-0721

BRACKET-STEERING - SEARS RED (0721)

$

Not available 

MTD 784-5609-4021

BRACKET-STEERING - CUB YELLOW 2 (4021)

$

Not available 

MTD 784-5609-4033

BRACKET-STEERING - FLINT MICA (4033)

$

Not available 

MTD 784-5609-4044

BRACKET-STEERING - CRAFTSMAN RED (4044)

$

Not available 

$

Not available 

80

MTD 784-5648-0483

Track Frame Cover - CHARCOAL GRAY (0483)

(Superseded to 784-5648A-0637) 

Variations

MTD 784-5648-0483

Track Frame Cover - CHARCOAL GRAY (0483)

$

Not available 

MTD 784-5648-0638

Track Frame Cover - MTD/TROY-BILT RED (0638)

$

Not available 

MTD 784-5648-0662

Track Frame Cover - OYSTER GRAY (0662)

$

Not available 

MTD 784-5648-0687

COVER-FRAME:TRACK - PINE GREEN (0687)

$

Not available 

MTD 784-5648-0498

Track Frame Cover - OLD CUB YELLOW (0498)

$

Not available 

MTD 784-5648-0637

Track Frame Cover - POWDER BLACK (0637)

$

Not available 

MTD 784-5648-0650

Track Frame Cover - RED METALLIC (0650)

$

Not available 

MTD 784-5648-0665

Track Frame Cover - YARDMAN GREEN (0665)

$

Not available 

MTD 784-5648-0689

Track Frame Cover - POLO GREEN (0689)

$

Not available 

MTD 784-5648-0716

Track Frame Cover - CUB YELLOW-99 (0716)

$

Not available 

MTD 784-5648-0721

Track Frame Cover - SEARS RED (0721)

$

Not available 

$

Not available 

81

MTD 784-5687-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

(Superseded to 784-5687A-0637) 

Variations

MTD 784-5687-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

Not available 

MTD 784-5687-0662

BRACKET-GUIDE-AUGER - OYSTER GRAY (0662)

$

Not available 

$

Not available 

82

MTD 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

(Superseded to 784-5688-0637) 

Variations

MTD 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

Not available 

MTD 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

Not available 

$

Not available 

83

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

(Superseded to 784-5689A-0637) 

Variations

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

Not available 

MTD 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

Not available 

$

Not available 

84

MTD 710-0371

Hex Screw

(Superseded to 710-1880) 

$4.99

$

Usually ships in 3-6 days

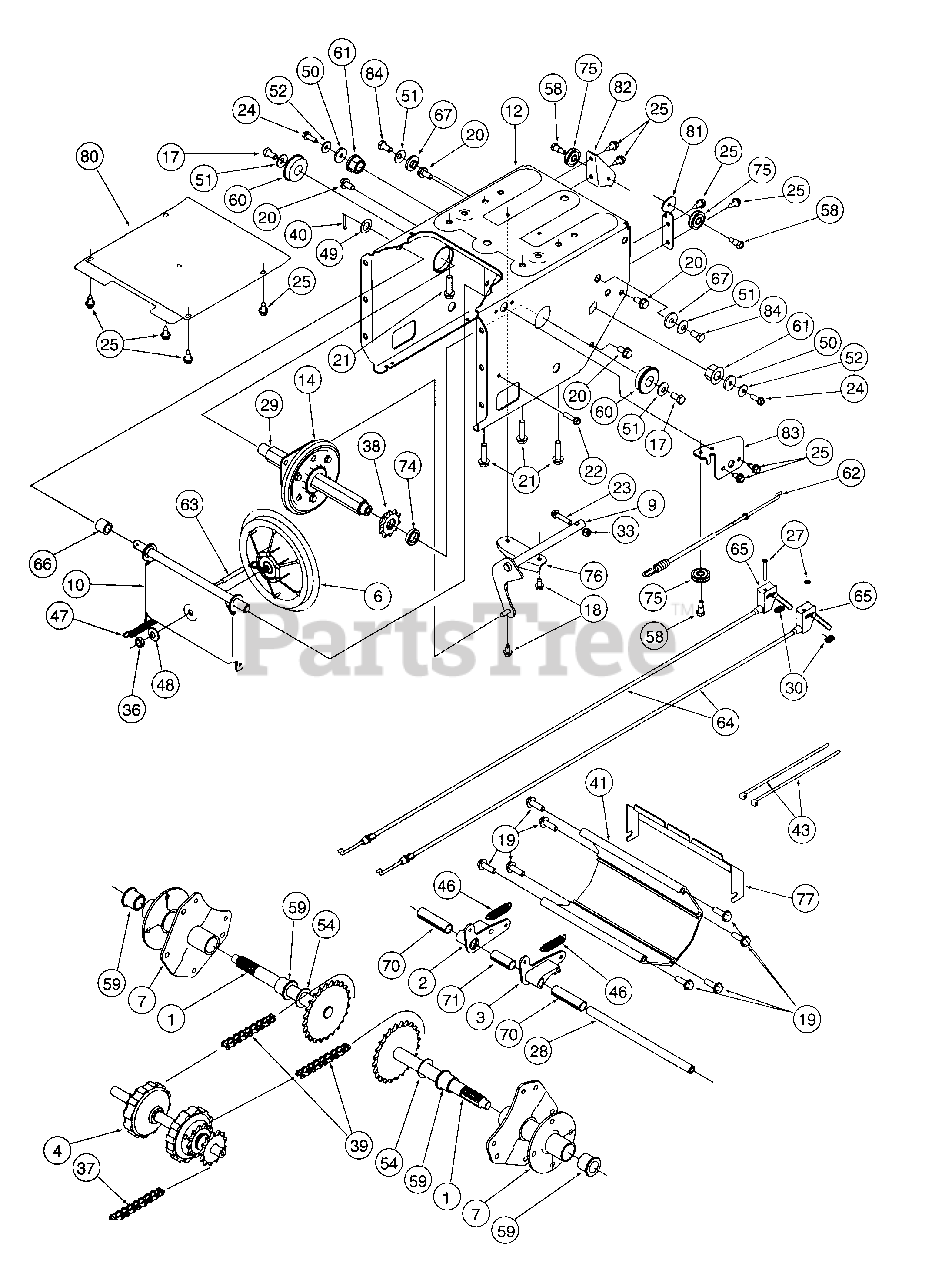

247.888500 (31AE7C8F099) - Craftsman Snow Thrower (1998) (Sears) Frame Assembly Parts Diagram
