247.888500 (31AE7C8F099) - Craftsman Snow Thrower (1998) (Sears) Auger Gear Assembly Parts Diagram

Snow Thrower

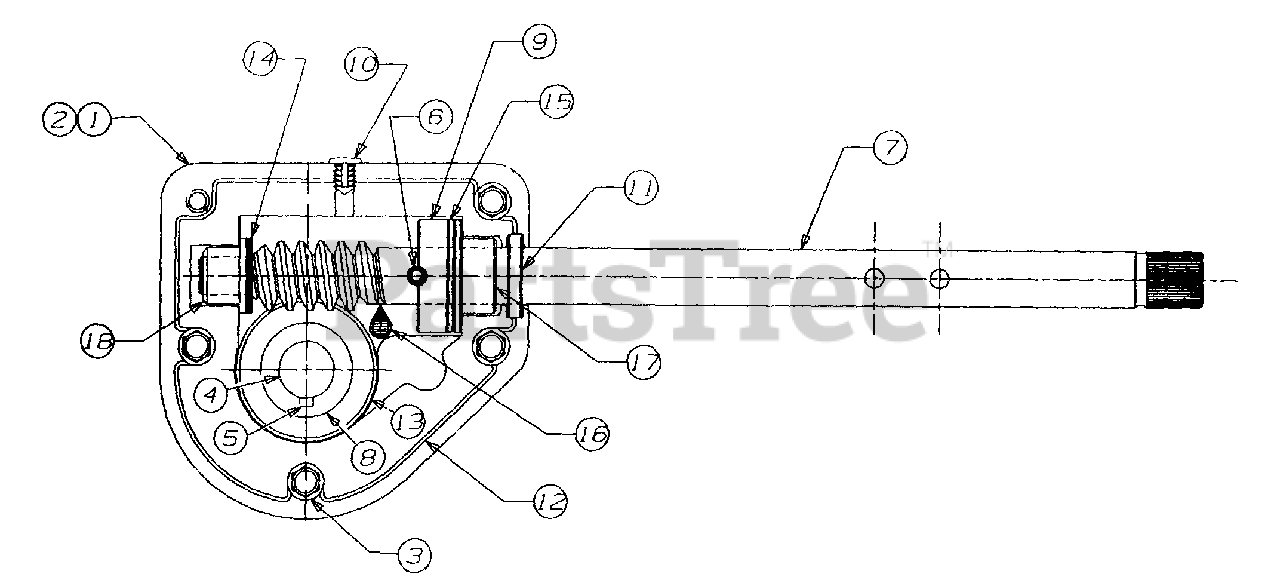

Auger Gear Assembly Parts Diagram

  • Title

1

MTD 618-0123

Housing - R.H.
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 20+

0

2

MTD 618-0124

Housing - L.H.
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 17

0

3

MTD 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0909

Axle, Spiral
(Superseded to 711-0909A)

$

$

Not available

5

MTD 714-0161

Key, Hi-Pro
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

MTD 715-0143

Pin, Spiral

$4.99

$

In Stock, Qty 15

0

7

MTD 717-0526

Worm, Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

8

MTD 717-0528

Gear, Worm
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

9

MTD 718-0186

Collar, Thrust

$8.49

$

In Stock, Qty 12

0

10

MTD 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

11

MTD 721-0327

Seal, Oil

$6.99

$

In Stock, Qty 20+

0

12

MTD 721-0328

Loctite 5699, Ultra

$

$

Currently unavailable

13

MTD 736-0351

Washer

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0369

Washer

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0445

Washer

$4.49

$

In Stock, Qty 13

0

16

MTD 737-0168

Grease
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 14

0

17

MTD 741-0662

Bearing Flange

$10.99

$

In Stock, Qty 18

0

18

MTD 741-0663

Bearing Flange

$9.99

$

In Stock, Qty 20+

0
