247.888460 (31AH976J799) - Craftsman Snow Thrower (2009) (Sears) .Quick Reference Parts Diagram

Snow Thrower

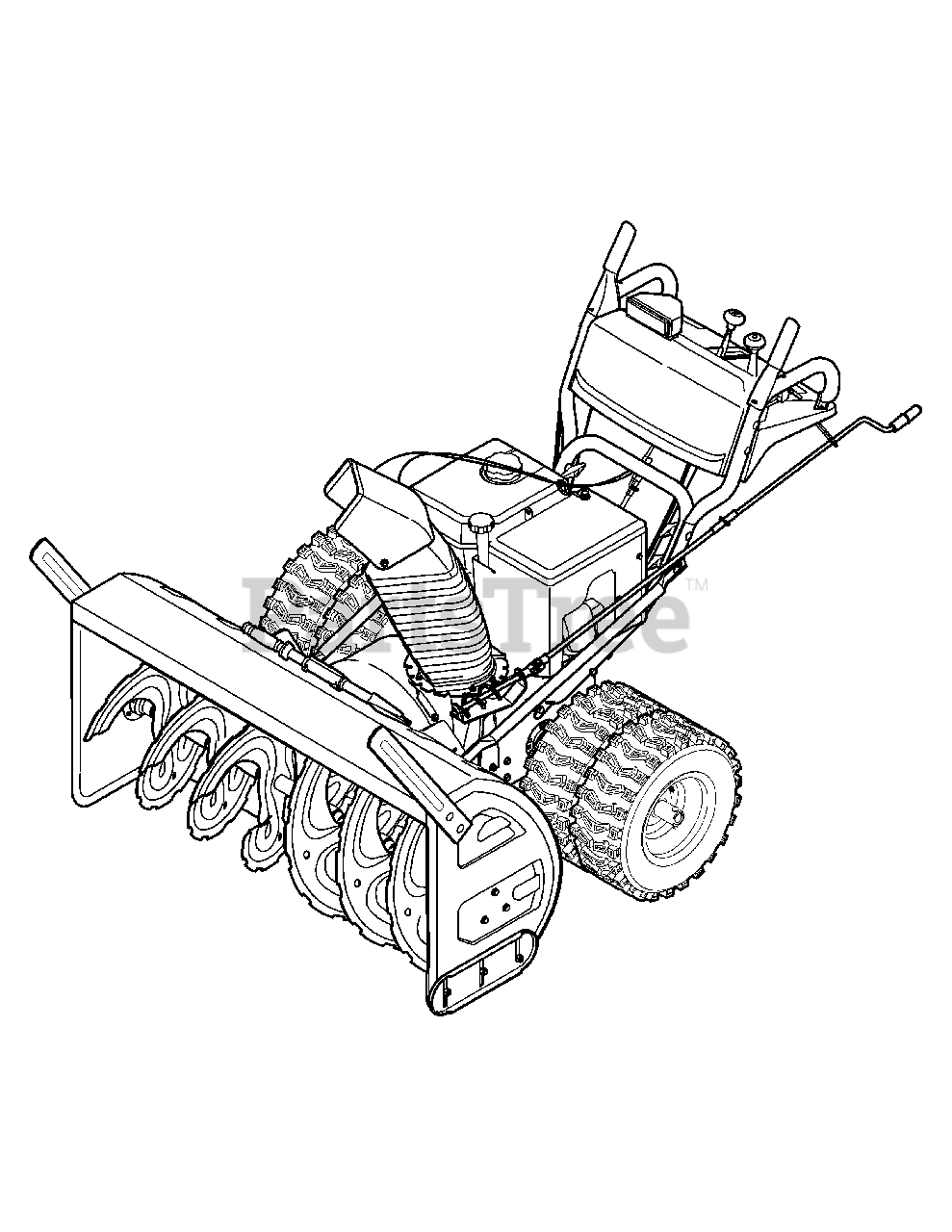

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 731-05632

Key
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 7

0

MTD 929-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

MTD 731-2643

Snow Removal Tool
(Superseded to 931-2643)

$19.99

$

In Stock, only 1 left!

0

MTD 646-0012

Auger/Drive Cable

$36.99

$

In Stock, only 1 left!

0

MTD 746-0902

Chute Control Cable
(Superseded to 946-0902)

$49.99

$

Usually ships in 3-6 days

0

MTD 746-0903

Chute Control Cable w/Clip
(Superseded to 946-0903)

$53.99

$

In Stock, only 1 left!

0

MTD 746-0949A

Steering Cable

$52.99

$

In Stock, only 1 left!

0

MTD 946-0951A

Auger Idler Cable

$45.99

$

In Stock, only 4 left!

0

MTD 684-04151-0637

Auger Assembly - LH

$261.99

$

Usually ships in 3-6 days

0

MTD 684-04152-0637

Auger Assembly - RH

$261.99

$

Usually ships in 3-6 days

0

MTD 790-00280-0637

Shave Plate

$60.99

$

In Stock, only 4 left!

0

MTD 684-0090B-0637

Impeller Assembly

$425.99

$

Usually ships in 3-6 days

0

MTD 784-5697-0637

Slide Shoe

$44.99

$

In Stock, only 2 left!

0

MTD 738-04155

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

MTD 925-1658

Lamp

$60.99

$

In Stock, only 4 left!

0

MTD 954-04194A

Auger Belt

$22.99

$

In Stock, only 4 left!

0

MTD 954-04202

Wheel Belt

$18.99

$

In Stock, Qty 8

0

N/A

Spiral Cresent

$

$

Not available

N/A

Rubber Paddle

$

$

Not available

MTD 918-04178

Friction Wheel
(Superseded to 918-07239)

$165.99

$

In Stock, only 1 left!

0

MTD 718-04034

Friction Wheel Rubber

$

$

Not available

MTD 634-0225A-0911

Wheel - LH

$252.99

$

Usually ships in 3-6 days

0

MTD 634-0226A-0911

Wheel - RH

$308.99

$

Usually ships in 3-6 days

0
