247.888350 (31AH95SI799) - Craftsman Snow Thrower (2011) (Sears) Handle Panel Assembly Parts Diagram

Snow Thrower

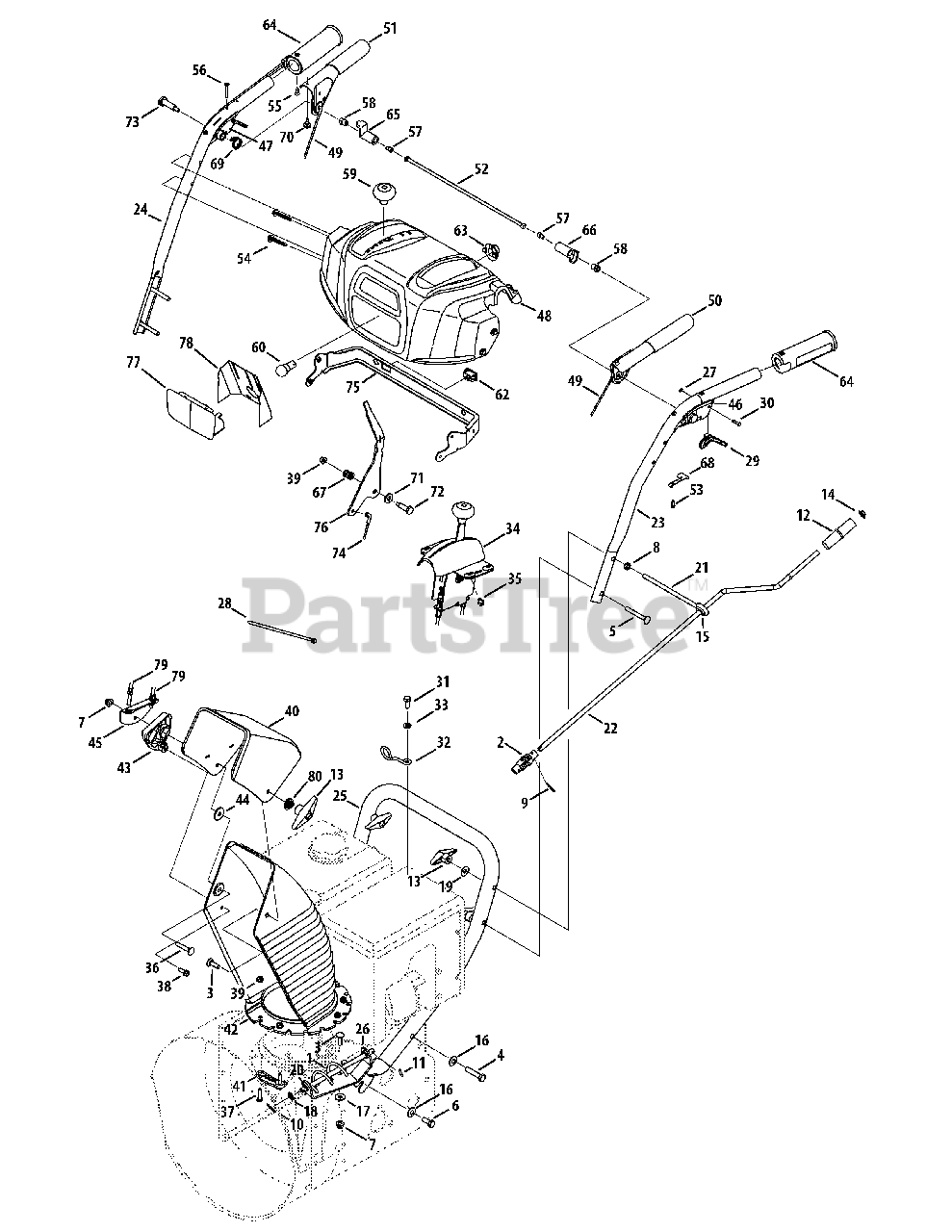

Handle Panel Assembly Parts Diagram

  • Title

1

MTD 684-04308A

Chute Crank Assembly

$39.99

$

Usually ships in 3-6 days

0

2

MTD 684-04350

Joint Block Assembly

$29.99

$

In Stock, only 4 left!

0

3

MTD 710-0276

Screw, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 12

0

4

MTD 710-04682

Screw, Hex, 3/8-16 x 2.00 Lock, Gr5

$5.99

$

Usually ships in 3-6 days

0

5

MTD 710-0572

Screw, Carriage, 5/16-18 x 2.5

$4.49

$

In Stock, only 4 left!

0

6

MTD 710-3118

Screw, Hex, 3/8-16 x 1.0 Lock, Gr5

$5.49

$

Usually ships in 3-6 days

0

7

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

10

MTD 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

11

MTD 715-04095

Spring Pin

$5.49

$

In Stock, only 2 left!

0

12

MTD 720-0201A

Knob, Crank

$10.99

$

In Stock, only 4 left!

0

13

MTD 720-04072A

Knob, Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

14

MTD 926-0100

Cap, Push, 3/8
(Superseded to 726-0100)

$

$

Not available

15

MTD 735-0234

Grommet, Rubber

$5.49

$

In Stock, only 2 left!

0

16

MTD 736-0105

Washer, Bel, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

17

MTD 936-0159

Washer, Flat, .349 x .879 .063
(Superseded to 736-0159)

$

$

Not available

18

MTD 936-0185

Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

19

MTD 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

20

MTD 941-0475

Plastic Bushing, .380 I.D.

$4.49

$

In Stock, Qty 20+

0

21

MTD 747-04747

Eye Bolt

$12.99

$

Usually ships in 3-6 days

0

22

MTD 747-04925A-0637

Chute Rod

$38.99

$

Usually ships in 3-6 days

0

23

MTD 749-04309-0691

Handle, Upper - LH
(Superseded to 749-04309-0637)

$42.99

$

Usually ships in 3-6 days

0

24

MTD 749-04310-0691

Handle, Upper - RH

$

$

Not available

25

MTD 749-0991-0691

Handle, Lower
(Superseded to 749-0991-0637)

$79.99

$

Usually ships in 3-6 days

0

26

MTD 790-00329-0637

Chute Crank Bracket

$16.99

$

Usually ships in 3-6 days

0

27

MTD 716-04036

Ring, Retainer

$6.49

$

In Stock, Qty 6

0

28

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

29

MTD 731-06113

Trigger

$4.99

$

In Stock, Qty 20+

0

30

MTD 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 17

0

31

MTD 710-04022

Hex Head Screw, MB 1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

32

MTD 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

33

MTD 936-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

34

MTD 984-04230

2-Way Chute Control™ Assy

$134.99

$

Usually ships in 3-6 days

0

35

MTD 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

36

MTD 710-0458

Bolt, Carriage, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

37

MTD 710-0597

Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

38

MTD 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

39

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

40

MTD 731-0846C

Upper Chute

$52.99

$

Usually ships in 3-6 days

0

41

MTD 731-0851A

Chute, Flange Keeper

$4.49

$

In Stock, Qty 20+

0

42

MTD 731-0903E

Lower Chute

$43.99

$

In Stock, Qty 8

0

43

MTD 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

44

MTD 936-0231

Flat Washer
(Superseded to 736-0231)

$

$

Not available

45

MTD 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 1 left!

0

46

MTD 631-04133A

Handle Clutch Lock - LH

$15.99

$

In Stock, only 1 left!

0

47

MTD 631-04134B

Handle Clutch Lock - RH

$15.99

$

In Stock, only 1 left!

0

48

MTD 931-04187A

Handle Panel

$71.99

$

In Stock, only 1 left!

0

49

MTD 646-0012

Cable Assembly, Auger/Drive

$36.99

$

In Stock, only 1 left!

0

49

MTD 746-0952

Cable, Clutch
(Superseded to 746P0952)

$46.99

$

Usually ships in 3-6 days

0

49

MTD 732-0184

Spring, Extension

$25.99

$

Usually ships in 3-6 days

0

50

MTD 684-04111B

Handle Engage Assy - LH
(Superseded to 684-04111D)

$22.99

$

Usually ships in 3-6 days

0

51

MTD 684-04112B

Handle Engage Assy - RH
(Superseded to 684-04112D)

$21.99

$

In Stock, only 1 left!

0

52

MTD 684-04250

Rod Ass’y, Clutch Lock Pivot

$12.99

$

In Stock, only 2 left!

0

53

MTD 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

54

MTD 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

55

MTD 710-0837

AB Screw, #10-16

$4.49

$

In Stock, Qty 6

0

56

MTD 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

57

MTD 710-3069

Screw, 1/4-20 x.375

$4.99

$

In Stock, Qty 10

0

58

MTD 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, only 3 left!

0

59

MTD 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

60

MTD 725-05326

Lamp

$4.49

$

In Stock, Qty 9

0

62

MTD 725-04393

Htd. Hand Grip on/off Switch

$16.99

$

Usually ships in 3-6 days

0

63

MTD 925-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

64

MTD 725-1757

Heated Hand Grip

$111.99

$

Usually ships in 3-6 days

0

65

MTD 731-04894D

Lock Plate

$5.49

$

In Stock, only 1 left!

0

66

MTD 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 8

0

67

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

68

MTD 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

69

MTD 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

70

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

71

MTD 936-0267

Flat Washer, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

72

MTD 738-04125

Shoulder Screw

$4.99

$

In Stock, only 4 left!

0

73

MTD 738-04348

Shoulder Screw, 1/4-20 x 1.345

$3.99

$

In Stock, Qty 20+

0

74

MTD 746-04341

Speed Selector Cable

$25.99

$

Usually ships in 3-6 days

0

75

MTD 790-00248B-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, only 1 left!

0

76

MTD 790-00281B-0637

Shift Lever

$18.99

$

Usually ships in 3-6 days

0

77

MTD 731-05324

Lens Panel

$14.99

$

Usually ships in 3-6 days

0

78

MTD 777X41804

Reflector Label

$9.99

$

Usually ships in 3-6 days

0

79

MTD 746-04338

Cable, Chute Tilt
(Superseded to 946-04338)

$56.99

$

In Stock, only 2 left!

0

80

MTD 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

MTD 725-04216B

Wiring Harness

Note: (Not Shown)

$75.99

$

Usually ships in 3-6 days

0
