247.888350 (31AH95SI799) - Craftsman Snow Thrower (2010) (Sears) Engine Assembly 483-SU 2010 & After Parts Diagram

Snow Thrower

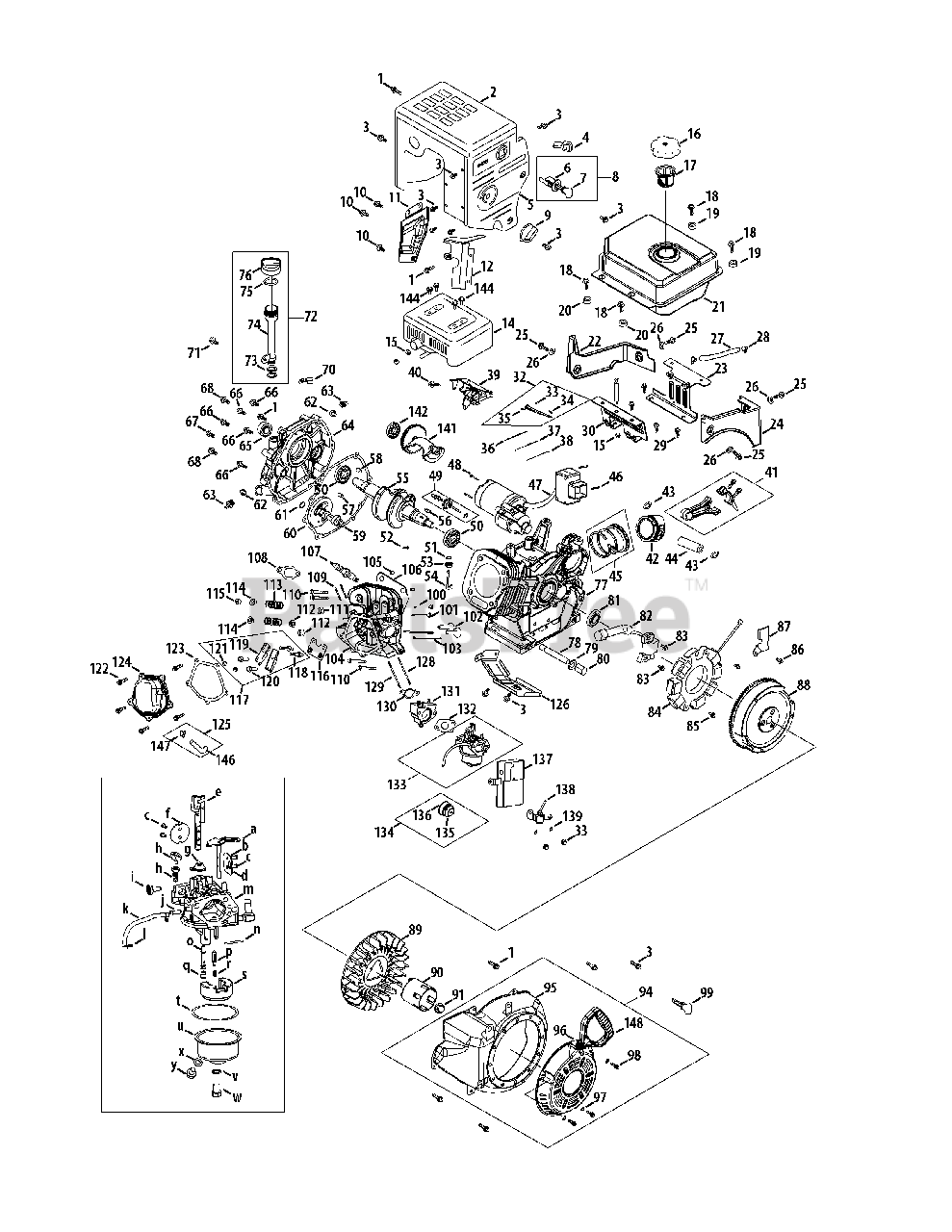

Engine Assembly 483-SU 2010 & After Parts Diagram

  • Title

1

MTD 710-11012

Bolt, M6 x 16

$

$

Currently unavailable

2

MTD 951-11339

Muffler Shield

$80.99

$

Usually ships in 3-6 days

0

3

MTD 710-04915

Bolt, M6 x 12

$4.49

$

In Stock, only 3 left!

0

4

MTD 951-10757

Throttle Control Knob
(Superseded to 951-11224)

$7.99

$

In Stock, Qty 5

0

5

MTD 951-11595

Control Panel

$54.99

$

Usually ships in 3-6 days

0

7

MTD 731-05632

Key
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 7

0

8

MTD 951-10637

Key Switch Ass’y

$14.99

$

In Stock, only 1 left!

0

9

MTD 951-11302

Choke Knob

$6.99

$

In Stock, only 1 left!

0

10

MTD 710-04914

Bolt, Flange, M6 x 10

$4.49

$

In Stock, only 3 left!

0

11

MTD 951-11181

Muffler Baffle

$30.99

$

Usually ships in 3-6 days

0

12

MTD 951-11321

Carb Isolator Bracket

$28.99

$

Usually ships in 3-6 days

0

14

MTD 951-11338

Muffler Ass’y

$139.99

$

Usually ships in 3-6 days

0

15

MTD 712-04219

Nut, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

16

MTD 951-10649

Fuel Cap Ass’y
(Superseded to 951-12533)

$23.99

$

In Stock, only 4 left!

0

17

MTD 951-11933

Fuel Level Indicator

$9.99

$

Usually ships in 3-6 days

0

18

MTD 710-04970

Flange Bolt, M8 x 20

$6.49

$

Usually ships in 3-6 days

0

19

MTD 750-05312

Bushing, Gas Tank

$4.49

$

Usually ships in 3-6 days

0

20

MTD 750-05313

Bushing, Gas Tank

$3.99

$

Usually ships in 3-6 days

0

21

MTD 951-11201

Fuel Tank Ass’y

$144.99

$

In Stock, only 1 left!

0

22

MTD 951-11319

Fuel Tank Shroud

$22.99

$

Usually ships in 3-6 days

0

23

MTD 951-11318

Rear Mounting Bracket Ass’y

$43.99

$

Usually ships in 3-6 days

0

24

MTD 951-11351

Engine Shroud

$23.99

$

Usually ships in 3-6 days

0

25

MTD 951-11012

Bolt, M6 x 16
(Superseded to 710-04968)

$6.99

$

In Stock, only 3 left!

0

26

MTD 736-04452

Bush - Washer

$6.49

$

In Stock, only 1 left!

0

27

MTD 951-11336

Fuel Line Kit

$33.99

$

In Stock, only 1 left!

0

28

MTD 951-11731

Fuel Line Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

29

MTD 710-04921

Bolt, M8 x 14

$5.49

$

Usually ships in 3-6 days

0

30

MTD 951-11182

Fuel Tank Mounting Bracket

$38.99

$

Usually ships in 3-6 days

0

33

MTD 712-04212

Nut, M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

34

MTD 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0

35

MTD 951-11307

Governor Arm

$23.99

$

Usually ships in 3-6 days

0

36

MTD 951-11306

Governor Spring

$4.49

$

In Stock, only 3 left!

0

37

MTD 951-11203

Throttle Linkage Spring

$4.49

$

In Stock, only 3 left!

0

38

MTD 951-11309

Throttle Linkage

$3.99

$

Usually ships in 3-6 days

0

39

MTD 951-11311

Primer Bracket

$47.99

$

Usually ships in 3-6 days

0

40

MTD 710-04916

Bolt, Flange, M6 x 14

$4.49

$

Usually ships in 3-6 days

0

41

MTD 951-11951

Connecting Rod Ass’y

$77.99

$

Usually ships in 3-6 days

0

42

MTD 951-11952

Piston

$43.99

$

Usually ships in 3-6 days

0

43

MTD 951-11953

Piston Pin Snap Ring
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 5

0

44

MTD 951-11954

Piston Pin
(Superseded to 951-11954A)

$8.49

$

Usually ships in 3-6 days

0

45

MTD 951-11955

Piston Ring Set
(Superseded to 951-12579)

$29.99

$

Usually ships in 3-6 days

0

46

MTD 710-04965

Bolt, M4 x 55

$6.99

$

In Stock, only 1 left!

0

47

MTD 951-11196

Startup Electromotor

$407.99

$

Usually ships in 3-6 days

0

48

MTD 710-04967

Bolt, M8 x 55

$6.49

$

Usually ships in 3-6 days

0

49

MTD 951-11956

Governor Gear/Shaft Ass’y

$41.99

$

Usually ships in 3-6 days

0

50

MTD 951-11957

Radial Ball Bearing
(Superseded to 951-11373)

$34.99

$

Usually ships in 3-6 days

0

51

MTD 736-04453

Washer

$6.49

$

Usually ships in 3-6 days

0

52

MTD 714-04077

Cotter Pin

$6.49

$

In Stock, only 1 left!

0

53

MTD 951-11958

Governor Seal

$4.49

$

Usually ships in 3-6 days

0

54

MTD 951-11365

Governor Arm Shaft

$5.99

$

Usually ships in 3-6 days

0

55

MTD 951-11342

Crankshaft Kit

$257.99

$

Usually ships in 3-6 days

0

56

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

57

MTD 715-04102

Dowel Pin, 9 x 12

$5.99

$

Usually ships in 3-6 days

0

58

MTD 715-04092

Dowel Pin, 7 x 14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

59

MTD 951-11959

Camshaft Ass’y
(Superseded to 951-11959B)

$68.99

$

Usually ships in 3-6 days

0

59

MTD 951-11959

Camshaft Ass’y
(Superseded to 951-11959B)

$68.99

$

Usually ships in 3-6 days

0

60

MTD 951-11376

Crankcase Cover Gasket

$18.99

$

Usually ships in 3-6 days

0

61

MTD 736-04476

Washer

$5.99

$

Usually ships in 3-6 days

0

62

MTD 951-11960

Ring

$4.49

$

In Stock, only 1 left!

0

63

MTD 951-11345

Oil Filler Plug Ass’y

$10.99

$

Usually ships in 3-6 days

0

64

MTD 951-11340

Crankcase Cover Kit
(Superseded to 951-11340A)

$75.99

$

Usually ships in 3-6 days

0

65

MTD 951-11375

Oil Seal
(Superseded to 951-11375A)

$15.99

$

Usually ships in 3-6 days

0

66

MTD 710-04971

Bolt, M8 x 38
(Superseded to 710-06061)

$6.49

$

Usually ships in 3-6 days

0

67

MTD 710-04972

Bolt, M8 x 45
(Superseded to 710-06062)

$5.99

$

Usually ships in 3-6 days

0

68

MTD 710-05052

Bolt, M8 x 35
(Superseded to 710-06063)

$6.49

$

Usually ships in 3-6 days

0

70

MTD 951-11320

Dipstick Clamp

$7.99

$

Usually ships in 3-6 days

0

71

MTD 710-04966

Bolt, M6 x 8

$6.49

$

Usually ships in 3-6 days

0

73

MTD 951-11903

Fill Tube O-Ring
(Superseded to 951-11381)

$5.49

$

In Stock, only 1 left!

0

73

MTD 951-11903

Oil Fill Tube O-Ring
(Superseded to 951-11381)

$5.49

$

In Stock, only 1 left!

0

74

MTD 951-11972

Oil Fill Tube Assembly
(Superseded to 951-12073)

$11.99

$

Usually ships in 3-6 days

0

75

MTD 951-11904

Dipstick O-Ring

$4.49

$

In Stock, only 1 left!

0

75

MTD 951-11904

Dipstick O-Ring

$4.49

$

In Stock, only 1 left!

0

76

MTD 951-11971

Dipstick Ass'y
(Superseded to 951-11971A)

$31.99

$

Usually ships in 3-6 days

0

77

MTD 951-11341A

Crankcase Kit

$368.99

$

Usually ships in 3-6 days

0

78

MTD 951-11350

Oil Drain Pipe Ass’y

$9.49

$

Usually ships in 3-6 days

0

79

MTD 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

80

MTD 710-04906

Drain Plug

$6.99

$

In Stock, only 3 left!

0

81

MTD 951-11499

Oil Seal
(Superseded to 951-11499A)

$13.99

$

In Stock, only 2 left!

0

82

MTD 951-11305

Ignition Coil Ass’y
(Superseded to 951-11305A)

$77.99

$

In Stock, only 1 left!

0

83

MTD 710-04920

Ignition Coil Bolt
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

84

MTD 951-11961

Coil Assy. Charge

$

$

Not available

85

MTD 710-04969

Bolt, M6 x 30

$4.49

$

In Stock, only 3 left!

0

86

MTD 710-04966

Bolt, M6 x 8

$6.49

$

Usually ships in 3-6 days

0

87

MTD 951-11186

Alternator Wire Clamp Bracket

$4.99

$

Usually ships in 3-6 days

0

88

MTD 951-11312

Flywheel

$235.99

$

Usually ships in 3-6 days

0

89

MTD 951-11313

Fan, Cooling
(Superseded to 951-11313A)

$50.99

$

Usually ships in 3-6 days

0

90

MTD 951-11314

Starter Cup

$18.99

$

Usually ships in 3-6 days

0

91

MTD 712-04220

Nut, Special, M16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

95

MTD 951-11211

Blower Housing

$86.99

$

Usually ships in 3-6 days

0

96

MTD 951-11310

Recoil Starter
(Superseded to 951-14223)

$88.99

$

In Stock, Qty 12

0

97

MTD 736-04455

Gasket
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

98

MTD 710-04974

Bolt, M6 x 10

$6.99

$

In Stock, only 3 left!

0

99

MTD 731-05632

Key
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 7

0

100

MTD 951-11337

Valve Kit

$50.99

$

Usually ships in 3-6 days

0

101

MTD 951-11337

Valve Kit

$50.99

$

Usually ships in 3-6 days

0

102

MTD 951-11962

Tappet
(Superseded to 951-11962A)

$6.99

$

In Stock, only 1 left!

0

103

MTD 951-11335

Push Rod (2X)

$24.99

$

In Stock, Qty 9

0

104

MTD 951-11329A

Cylinder Head Ass'y
(Superseded to 951-11329B)

$332.99

$

Usually ships in 3-6 days

0

105

MTD 715-04097

Dowel Pin, 12 × 20

$6.49

$

Usually ships in 3-6 days

0

106

MTD 951-11963

Gasket, Cylinder Head
(Superseded to 951-11963A)

$16.99

$

Usually ships in 3-6 days

0

107

MTD 951-10292

Spark Plug/F6rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

108

MTD 951-11212

Exhaust Pipe Gasket
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

109

MTD 710-04964

Stud, M8 x 48.5

$6.49

$

In Stock, only 1 left!

0

109

MTD 951-11207

Muffler Stud Ass’y

$8.49

$

Usually ships in 3-6 days

0

110

MTD 710-05053

Bolt, M10 × 1.25 × 87

$

$

Not available

111

MTD 751-11964

Intake Valve Seal
(Superseded to 951-11964A)

$11.99

$

Usually ships in 3-6 days

0

112

MTD 751-12077

Valve Spring Retainer
(Superseded to 951-12077A)

$3.99

$

Usually ships in 3-6 days

0

113

MTD 751-12078

Valve Spring
(Superseded to 951-12078)

$3.99

$

Usually ships in 3-6 days

0

114

MTD 751-12080

Retainer, Ex.Valve Spring
(Superseded to 951-12080)

$4.49

$

In Stock, Qty 20+

0

115

MTD 751-12081

Adjuster, Exh Valve
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

116

MTD 951-11965

Push Rod Guide
(Superseded to 951-11965B)

$6.99

$

Usually ships in 3-6 days

0

117

MTD 951-11981

Rocker Arm Ass’y
(Superseded to 951-11981A)

$40.99

$

Usually ships in 3-6 days

0

118

MTD 710-04962

Bolt, Pivot

$6.49

$

In Stock, only 1 left!

0

119

MTD 951-11966

Rocker Arm

$8.49

$

In Stock, only 3 left!

0

120

MTD 751-11123

Adjusting Nut, Valve

$10.99

$

In Stock, only 4 left!

0

121

MTD 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

122

MTD 710-05054

Valve Cover Bolt

$6.49

$

In Stock, only 2 left!

0

123

MTD 951-11967

Valve Cover Gasket

$16.99

$

Usually ships in 3-6 days

0

124

MTD 951-11220

Valve Cover

$35.99

$

Usually ships in 3-6 days

0

126

MTD 951-11317

Cylinder Baffle

$27.99

$

Usually ships in 3-6 days

0

128

MTD 710-05055

Stud, M6 x 8 x 98

$5.99

$

Usually ships in 3-6 days

0

129

MTD 710-05056

Stud, M6 x 8 x 118

$6.99

$

Usually ships in 3-6 days

0

130

MTD 951-11315

Carburetor Insulator Gasket

$4.49

$

In Stock, Qty 5

0

131

MTD 951-11316

Carburetor Insulator Plate
(Superseded to 751P11316A)

$8.99

$

Usually ships in 3-6 days

0

132

MTD 951-11223

Carburetor Gasket

$5.49

$

In Stock, Qty 20+

0

133

MTD 951-11303A

Carburetor Ass’y
(Superseded to 951-14023A)

$99.99

$

In Stock, only 3 left!

0

134

MTD 951-10639A

Primer Ass’y

$15.99

$

In Stock, Qty 17

0

135

MTD 951-11824

Primer Bulb

$11.99

$

In Stock, only 2 left!

0

137

MTD 951-11304

Heater Box

$23.99

$

Usually ships in 3-6 days

0

138

MTD 951-11192

Choke Control

$9.49

$

Usually ships in 3-6 days

0

139

MTD 736-04477

Lock Washer

$6.49

$

Usually ships in 3-6 days

0

141

MTD 951-11968

Camshaft Gear Ass’y

$116.99

$

Usually ships in 3-6 days

0

142

MTD 951-11969

Bearing

$32.99

$

Usually ships in 3-6 days

0

144

MTD 710-05051

Bolt

$6.49

$

In Stock, only 1 left!

0

146

MTD 951-11221

Breather Hose

$6.99

$

In Stock, only 1 left!

0

147

MTD 726-04101

Clamp

$4.49

$

In Stock, only 1 left!

0

148

MTD 731-05696

Starter Handle

$16.99

$

In Stock, only 1 left!

0

149

MTD 951-11333

Valve Cover Kit

$40.99

$

Usually ships in 3-6 days

0

150

MTD 951-10641

Oil Drain Ass’y

$12.99

$

In Stock, only 2 left!

0

g

N/A

Throttle Pressure Lock Plate

$

$

Not available

k

MTD 751-11991

Primer Hose
(Superseded to 751-11991A)

$12.99

$

In Stock, only 1 left!

0

n

N/A

Float Pin

$

$

Not available

o

N/A

Main Nozzle

$

$

Not available

p

N/A

Needle Valve

$

$

Not available

q

N/A

Main Jet

$

$

Not available

r

N/A

Needle Valve Spring

$

$

Not available

s

N/A

Float

$

$

Not available

t

MTD 951-11970

Bowl Gasket

$6.99

$

In Stock, only 2 left!

0

v

MTD 951-11348

Main Bowl Bolt Gasket
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

w

MTD 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

x

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

y

MTD 710-04903

Fuel Drain Plug
(Superseded to 710-04938)

$4.49

$

In Stock, only 1 left!

0

MTD 951-10651

Fuel Tank Nipple

Note: Not Shown

$15.99

$

In Stock, only 1 left!

0

MTD 951-11329A

Cylinder Head Ass’y
(Superseded to 951-11329B)

Note: (Incl Ref No. 100,101,104,106,108-116,118-121,123,128-131), Not Shown

$332.99

$

Usually ships in 3-6 days

0

MTD 951-11328A

Short Block Ass’y
(Superseded to 951-11328B)

Note: (Incl Ref No. 41-45,49-61,63-68,77-79,81,102,105,106,108,110,123,130,131, 141, 142), Not Shown

$900.99

$

Usually ships in 3-6 days

0

MTD 951-11330A

Gasket Kit - Complete

Note: (Incl Ref No. 53,60,65,79,81,106,108,123,130-132), Not Shown

$69.99

$

Usually ships in 3-6 days

0

MTD 951-11331

Gasket Kit - External

Note: (Incl Ref No. 79,108,123,130-132), Not Shown

$37.99

$

Usually ships in 3-6 days

0

MTD 951-11337

Valve Kit

Note: (Incl Ref No. 100,101), Not Shown

$50.99

$

Usually ships in 3-6 days

0

MTD 951-11334

Cylinder Head Kit
(Superseded to 951-12555)

Note: (Incl Ref No. 106,110,111,123), Not Shown

$50.99

$

Usually ships in 3-6 days

0

MTD 951-11342

Crankshaft Kit

Note: (Incl Ref No. 50,55,56,65,81), Not Shown

$257.99

$

Usually ships in 3-6 days

0

MTD 951-11332

Carburetor Kit - Major
(Superseded to 951-12760A)

Note: (Incl Ref g,n,o,p,r,s,t,v,x), Not Shown

$54.99

$

In Stock, Qty 6

0

MTD 951-11340

Crankcase Cover Kit
(Superseded to 951-11340A)

Note: (Incl Ref No. 50,60,61,64-68), Not Shown

$75.99

$

Usually ships in 3-6 days

0

MTD 751-11341A

Crankcase Kit
(Superseded to 951-11341A)

Note: (Incl Ref No. 50,53,77,81), Not Shown

$368.99

$

Usually ships in 3-6 days

0

MTD 952Z483-SU-10

Replacement Engine
(Superseded to 952Z683-WUB)

Note: Not Shown

$1500.99

$

Usually ships in 3-6 days

0
