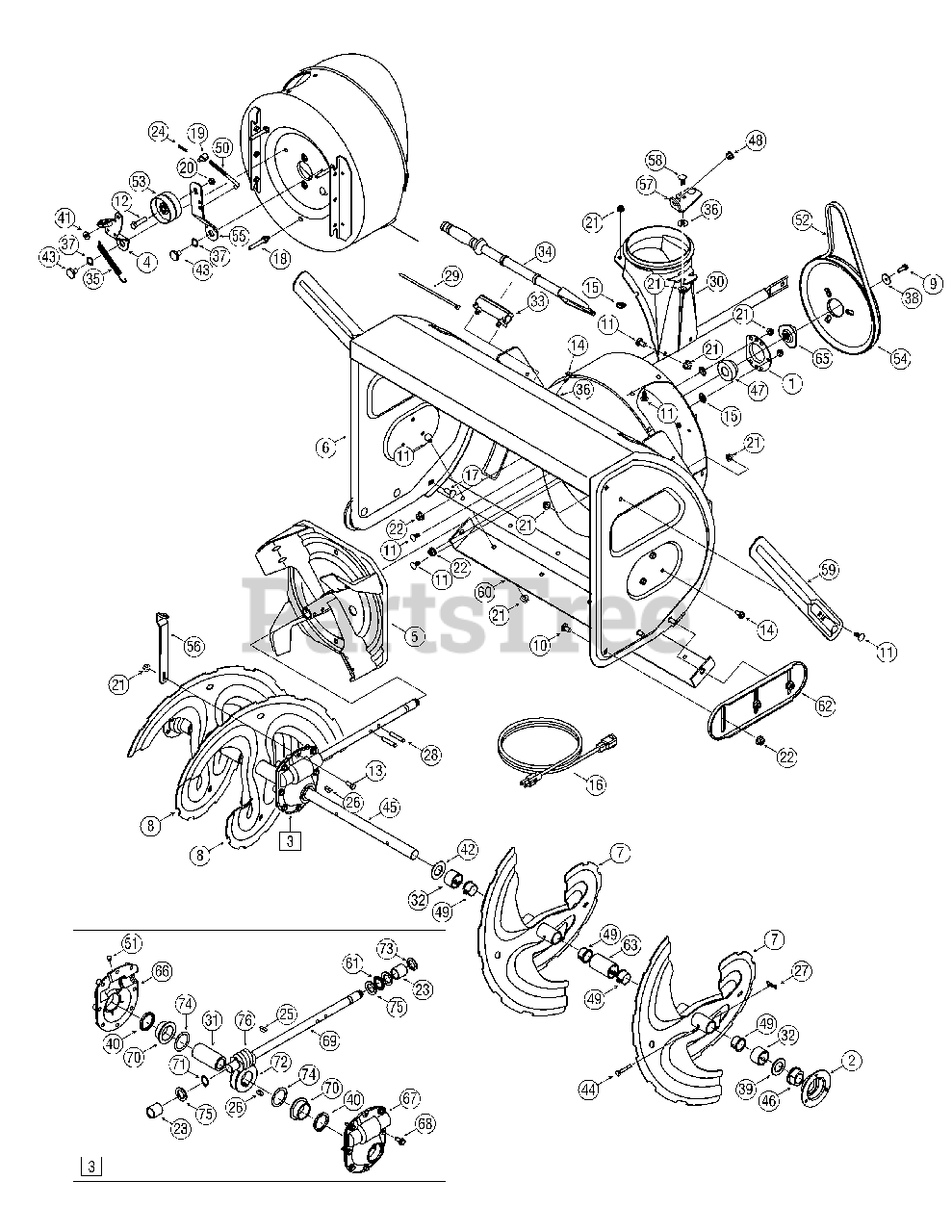

247.888330 (31AH9J6I799) - Craftsman Snow Thrower (2008) (Sears) General Assembly Parts Diagram

Snow Thrower

General Assembly Parts Diagram

  • Title

1

MTD 05244B

Housing, Bearing

$23.99

$

Usually ships in 3-6 days

0

2

MTD 05845C

Housing, Bearing

Variations

MTD 05845C-0637

Bearing Housing - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

MTD 05845C-0665

HOUSING:BEARING - YARDMAN GREEN (0665)

$

$

Not available

$19.99

$

Usually ships in 3-6 days

0

3

MTD 618-04515

Gear Box Assembly, Auger
(Superseded to 918-04515)

$734.99

$

In Stock, only 1 left!

0

4

MTD 618-0281A

Bracket Assy, Auger Brake
(Superseded to 918-0281A)

$64.99

$

In Stock, only 2 left!

0

5

MTD 684-0090B-0637

Impellar, 16"

$

$

Not available

6

MTD 684-04214-0721

Housing, Auger - 33"
(Superseded to 684-04214)

$712.99

$

Usually ships in 3-6 days

0

7

MTD 684-04151-0637

Spiral Assy, LH

$261.99

$

Usually ships in 3-6 days

0

8

MTD 684-04152-0637

Spiral Assy, RH

$261.99

$

Usually ships in 3-6 days

0

9

MTD 710-1245B

Screw, 5/16-24 x .875

$8.49

$

In Stock, only 4 left!

0

10

MTD 710-0389

Bolt, Carriage, 3/8-16 x .750

$4.49

$

Usually ships in 3-6 days

0

11

MTD 710-0451

Screw, Carriage, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0347

Scr, Hex Cap, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

13

MTD 710-0376

Scr,Hex Cap, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

15

MTD 726-04012

Nut, Push

$7.49

$

In Stock, Qty 8

0

16

MTD 629-0071

Extension Cord, 110V
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

17

MTD 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-04606

Screw, 5/16-18 x .4300
(Superseded to 710-04606A)

$7.49

$

In Stock, only 1 left!

0

19

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

20

MTD 712-0116

Nut, Hex Lock, 3/8-24

$4.99

$

In Stock, Qty 6

0

21

MTD 712-04063

Nut, Flnge Lk, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04065

Nut, Flg Lk, 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

MTD 741-0217

Sleeve
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 7

0

24

MTD 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

25

MTD 714-0126

Key, Hi Pro, 3/16 x 3/4

$4.99

$

In Stock, Qty 12

0

26

MTD 714-0135

Key, Woodruff,1/4 x 3/4

$4.99

$

In Stock, only 2 left!

0

27

MTD 714-04040

Pin, Bowtie Cotter

$1.49

$

In Stock, Qty 20+

0

28

MTD 715-0118

Pin, Spirol, 5/16 x 1.75

$12.99

$

In Stock, Qty 7

0

29

MTD 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

30

MTD 731-1696A

Adapter, Chute, 6"
(Superseded to 731-1696B)

$91.99

$

In Stock, Qty 11

0

31

MTD 738-0275

Shf, Gear, Worm

$112.99

$

Usually ships in 3-6 days

0

32

MTD 731-05163

Spacer, 1.0 x 1.5 x 1

$7.49

$

In Stock, Qty 20+

0

33

MTD 731-2635

Clip, Mounting
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 18

0

34

MTD 731-2643

Tool, Cleanout
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 11

0

35

MTD 732-0858

Spring, Extension

$24.99

$

In Stock, only 4 left!

0

36

MTD 736-0159

Washer, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0174

Washer, .625 x .885 x .015

$6.99

$

In Stock, Qty 8

0

38

MTD 736-0505

Washer, Flat, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

39

MTD 750-04020

Spacer, 1.004 x 1.375 x .25
(Superseded to 950-04020)

$12.99

$

In Stock, only 1 left!

0

40

MTD 721-0146

Oil Seal
(Superseded to 921-0146)

$12.99

$

Usually ships in 3-6 days

0

41

MTD 736-3008

Washer, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

42

MTD 736-3046A

Washer, 1.01 x 1.86 x .06

$8.99

$

Usually ships in 3-6 days

0

43

MTD 738-0281

Screw, Shoulder, .625 x .17

$10.99

$

In Stock, only 2 left!

0

44

MTD 738-04155

Pin, Shear, .25 x 1.75

$1.99

$

In Stock, Qty 20+

0

45

MTD 738-04158

Axle, Spiral, 33"
(Superseded to 938-04158)

$186.99

$

Usually ships in 3-6 days

0

46

MTD 741-0192

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

47

MTD 741-04024

Bearing, Self Aligning
(Superseded to 941-04024)

$64.99

$

Usually ships in 3-6 days

0

48

MTD 741-0475

Bushing, Nylon
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

49

MTD 741-0494

Bushing, Flange, 1.051 x 1.16

$3.99

$

In Stock, Qty 20+

0

50

MTD 747-0980A

Rod, Auger Idler

$47.99

$

Usually ships in 3-6 days

0

51

MTD 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

52

MTD 754-04131

V Belt,1/2 x 42
(Superseded to 954-04131)

$31.99

$

In Stock, only 1 left!

0

53

MTD 756-0178

Pulley, Flat Idler, 2.75 OD

$20.99

$

In Stock, only 4 left!

0

54

MTD 756-04244A

Pulley, Auger Drive, 10.0

$60.99

$

Usually ships in 3-6 days

0

55

MTD 784-0385B

Bracket, Auger Idler
(Superseded to 784-0385D)

$29.99

$

Usually ships in 3-6 days

0

56

MTD 790-00264A-0637

Bracket, Gear Box Support

$19.99

$

Usually ships in 3-6 days

0

57

MTD 784-5123-0637

Bracket, Chute Crank

$17.99

$

In Stock, only 1 left!

0

58

MTD 710-0276

Screw, Carriage, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

59

MTD 790-00181

Drift Cutter

Variations

MTD 790-00181-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0691

BLADE-GUIDE (DRIFT - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0606

BLADE-GUIDE (DRIFT - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0650

BLADE-GUIDE (DRIFT - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$40.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0689

BLADE-GUIDE (DRIFT - POLO GREEN (0689)

$34.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0709

BLADE-GUIDE (DRIFT - MASTERCRAFT GREEN (0709)

$34.99

$

Usually ships in 3-6 days

0

MTD 790-00181-0721

BLADE-GUIDE (DRIFT - SEARS RED (0721)

$40.99

$

Usually ships in 3-6 days

0

MTD 790-00181-4021

BLADE-GUIDE - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

MTD 790-00181-4044

BLADE-GUIDE (DRIFT - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

60

MTD 784-5714B-0637

Plate, Shave, 33"

$55.99

$

In Stock, only 3 left!

0

61

MTD 741-0184

Brg, Thrust

$16.99

$

Usually ships in 3-6 days

0

62

MTD 784-5697-0637

Shoe, Skid

$44.99

$

In Stock, only 2 left!

0

63

MTD 731-05162

Spacer, 1.0 x 1.5 x 2

$7.49

$

Usually ships in 3-6 days

0

64

MTD 710-3008

Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

65

MTD 748-04067A

Pulley, Adapter, .75 Dia.

$26.99

$

Usually ships in 3-6 days

0

66

MTD 618-0246

Hsg Assy Auger RH
(Superseded to 918-0246)

Note: (Inc. 40 & 70)

$

$

Not available

67

MTD 618-0247

Hsg Assy Auger LH
(Superseded to 918-0247)

Note: (Inc. 40 & 70)

$103.99

$

In Stock, only 1 left!

0

68

MTD 710-1260A

Screw, LD, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

69

MTD 711-04714

Shf, Drive, Auger

$66.99

$

Usually ships in 3-6 days

0

70

MTD 741-0670

Flange Bearing

$13.99

$

Usually ships in 3-6 days

0

71

MTD 716-0111

Ext, Ret, Ring

$6.99

$

In Stock, only 4 left!

0

72

MTD 717-1425

Gear, Worm, LH
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

73

MTD 721-0145

Seal, Oil
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

74

MTD 736-0266

Washer, Flat, 1.52 ID x 2.0 OD
(Superseded to 936-0266)

$

$

Not available

75

MTD 736-0291

Washer, Flat, .88 ID x .38 OD

$11.99

$

Usually ships in 3-6 days

0

76

MTD 717-0299

Gear, Worm, Dbl Thread
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0
