247.888160 (31AE5D8E099) - Craftsman Snow Thrower (2003) (Sears) Starter Housing (Part 2) Parts Diagram

Snow Thrower

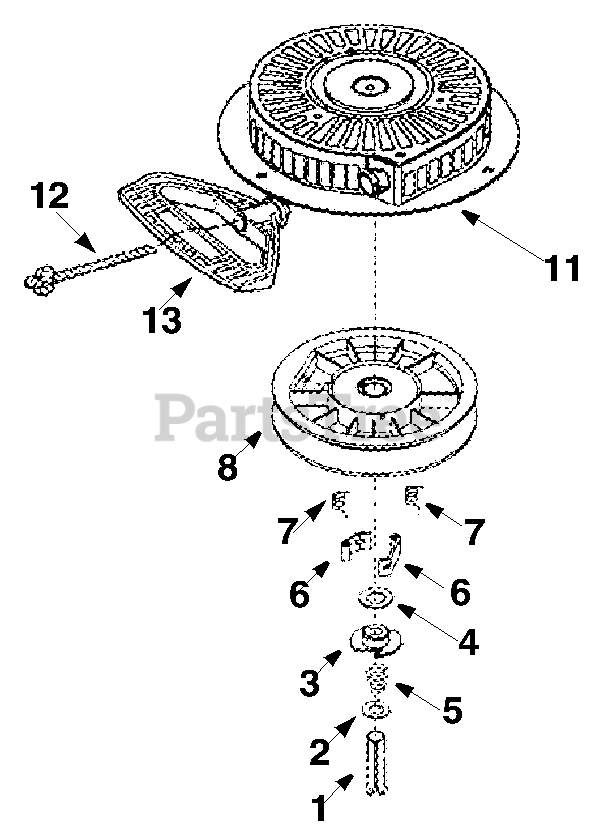

Starter Housing (Part 2) Parts Diagram

  • Title
?0

Tecumseh 590749

Rewind Starter
(Superseded to 590789)

$87.99

$

In Stock, only 1 left!

0

1

Tecumseh 590599A

Spring Pin

$5.49

$

In Stock, only 2 left!

0

2

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 590679

Retainer

$3.99

$

Usually ships in 3-12 days

0

4

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590678

Brake Spring

$3.49

$

Usually ships in 3-12 days

0

6

Tecumseh 590680

Starter Dog

$5.99

$

In Stock, Qty 6

0

7

Tecumseh 590412

Dog Spring

$8.49

$

In Stock, only 2 left!

0

8

Tecumseh 590682

Pulley & Rewind Spring Assembly

$

$

Not available

11

Tecumseh 590750A

Starter Housing Assembly
(Superseded to 590750B)

$

$

Not available

12

Tecumseh 590535

Starter Rope

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590574

Mitten Grip Handle

$5.49

$

In Stock, only 1 left!

0
