247.888160 (31AE5D8E099) - Craftsman Snow Thrower (2003) (Sears) Pulley & Belt Assembly Parts Diagram

Snow Thrower

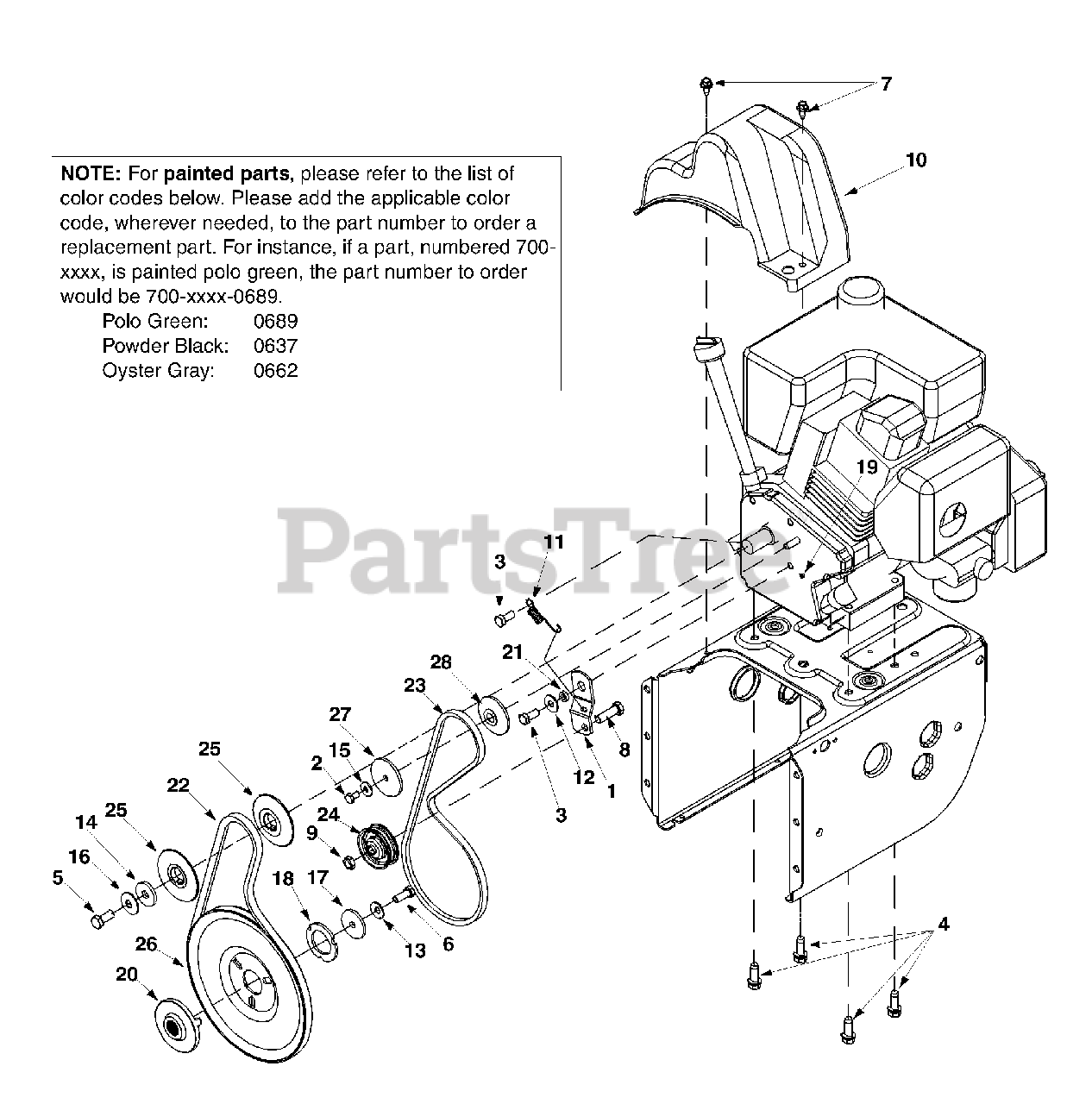

Pulley & Belt Assembly Parts Diagram

  • Title
1

MTD 05896A

Idler Bracket

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0230

Hex Screw 1/4-28 x 0.50"

$

$

Not available

3

MTD 710-0627

Lock Screw 5/16-24 x 0.750"

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0654A

TT Sems Screw

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0696

Hex Screw 3/8-24 x 0.875"

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-1245B

Lock Screw 5/16-24 x 0.875"

$8.49

$

In Stock, only 4 left!

0

7

MTD 710-1652

TT Screw 1/4-20 x 0.625"

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3005

Hex Screw 3/8-16 x 1.25"

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0181

Jam Nut

$4.49

$

In Stock, only 3 left!

0

10

MTD 731-1324

Belt Cover

$21.99

$

In Stock, Qty 6

0

11

MTD 732-0339

Extension Spring
(Superseded to 932-0339)

$

$

Not available

12

MTD 736-0159

Washer

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 12

0

15

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

16

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

17

MTD 736-0505

Flat Washer

$6.49

$

In Stock, Qty 11

0

18

MTD 736-0507

Special Washer
(Superseded to 936-0507)

$6.99

$

Usually ships in 3-6 days

0

19

MTD 737-0318

Grease
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

20

MTD 748-0360

Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

21

MTD 750-1053

Spacer

$

$

Not available

22

MTD 754-0430B

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

MTD 754-0456

V-Belt
(Superseded to 954-0456)

$29.99

$

In Stock, only 4 left!

0

24

MTD 756-0313

Flat Idler

$26.99

$

In Stock, only 3 left!

0

25

MTD 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

26

MTD 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

27

MTD 756-0984

Pulley Half

$

$

Not available

28

MTD 756-0985

Pulley Half

$

$

Not available
