247.888160 (31AE5D8E099) - Craftsman Snow Thrower (2003) (Sears) Auger Housing Parts Diagram

Snow Thrower

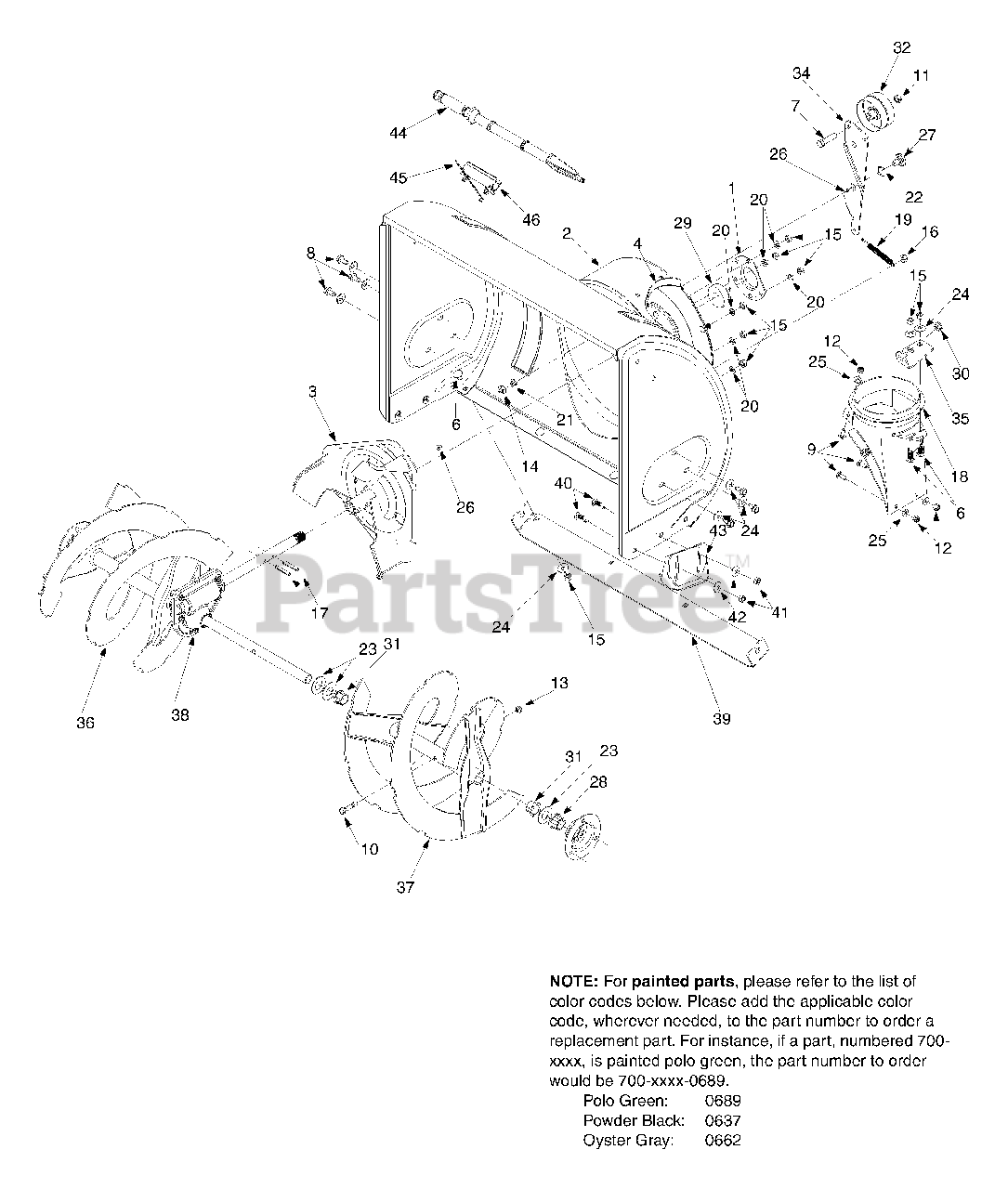

Auger Housing Parts Diagram

  • Title

1

MTD 05931A

Bearing Housing

$10.99

$

Usually ships in 3-6 days

0

2

MTD 684-0039C

Auger Housing Assy. 24"
(Superseded to 684-0039D)

Variations

MTD 684-0039C-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0039C-0498

No Longer Available HOUSINGAS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0039C-0629

HOUSING ASM-24" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0039C-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0039C-0650

HOUSING ASM-24" - RED METALLIC (0650)

$

$

Not available

MTD 684-0039C-0662

HOUSING ASM-24" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0039C-0665

HOUSING ASM-24" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0039C-0687

HOUSING ASM-24" - PINE GREEN (0687)

$

$

Not available

MTD 684-0039C-0689

HOUSING ASM-24" - POLO GREEN (0689)

$

$

Not available

MTD 684-0039C-0691

HOUSING ASM-24" - BLACK JACK (0691)

$

$

Not available

MTD 684-0039C-0716

No Longer Available HOUSINGAS - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

MTD 684-0065

Impeller Assy. 12" dia.
(Superseded to 984-0065-0637)

Variations

MTD 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, Qty 6

0

MTD 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 6

0

$90.99

$

In Stock, Qty 6

0

4

MTD 705-5226

Chute Reinforcement

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

6

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Gr.2

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0459A

Hex Screw 3/8-24 x 1.5" Gr.5

$6.99

$

In Stock, Qty 8

0

8

MTD 710-0604A

Hex Washer Head Self-Tapping Screw 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0703

Carriage Screw 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5"

$1.99

$

In Stock, Qty 20+

0

11

MTD 712-0116

Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

12

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

13

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0798

Hex Nut 3/8-16 Gr.2

$4.49

$

In Stock, Qty 6

0

15

MTD 712-3010

Hex Nut 5/16-18 Gr.5

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-3068

Hex Patch Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

17

MTD 715-0114

Spiral Pin

$9.49

$

In Stock, Qty 20+

0

18

MTD 731-1379C

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

19

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

20

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

22

MTD 736-0167

Flat Washer
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 6

0

23

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0463

Flat Washer

$4.49

$

In Stock, Qty 20+

0

26

MTD 737-0318

Grease
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

27

MTD 738-0281

Shoulder Screw

$10.99

$

In Stock, only 2 left!

0

28

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

29

MTD 741-0309

Flange Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

30

MTD 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

31

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

32

MTD 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

34

MTD 784-5632B

Auger Idler Bracket
(Superseded to 984-0064-0637)

Variations

MTD 784-5632B-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

35

MTD 784-5647

Chute Directional Control Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

36

MTD 605-5188A

Spiral Assembly: RH 24"
(Superseded to 684-04180-0637)

Variations

MTD 605-5188A-0637

Auger Spiral Assembly, RH 24" - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 605-5189A

Spiral Assembly: LH 24"
(Superseded to 684-04181-0637)

Variations

MTD 605-5189A-0637

Auger Spiral Assembly, LH 24" - POWDER BLACK (0637)

$178.99

$

Usually ships in 3-6 days

0

$178.99

$

Usually ships in 3-6 days

0

38

MTD 618-0120A

Gear Assembly: Auger 24"
(Superseded to 918-0414B)

$

$

Not available

39

MTD 784-5581A

Shave Plate: Auger 24"
(Superseded to 790-00120-0637)

Variations

MTD 784-5581A-0637

Shave Plate, 24" Powder Black - POWDER BLACK (0637)

$34.99

$

In Stock, Qty 20+

0

MTD 784-5581A-0662

Shave Plate, 24" Gray - OYSTER GRAY (0662)

$34.99

$

In Stock, Qty 20+

0

MTD 784-5581A-0687

Shave Plate, 24" Green - PINE GREEN (0687)

$34.99

$

In Stock, Qty 20+

0

$34.99

$

In Stock, Qty 20+

0

40

MTD 710-0451

Carr. Bolt: 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-3010

Hex Nut: 5/16-18 Gr.5

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

43

MTD 784-5580

Slide Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 16

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 16

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

44

MTD 731-2643

Chute Clean-Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 11

0

45

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

46

MTD 731-2635

Clean-Out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 17

0
