247.887910 (31AH54TG799) - Craftsman Snow Thrower (2009) (Sears) Engine Assembly 478-SU Parts Diagram

Snow Thrower

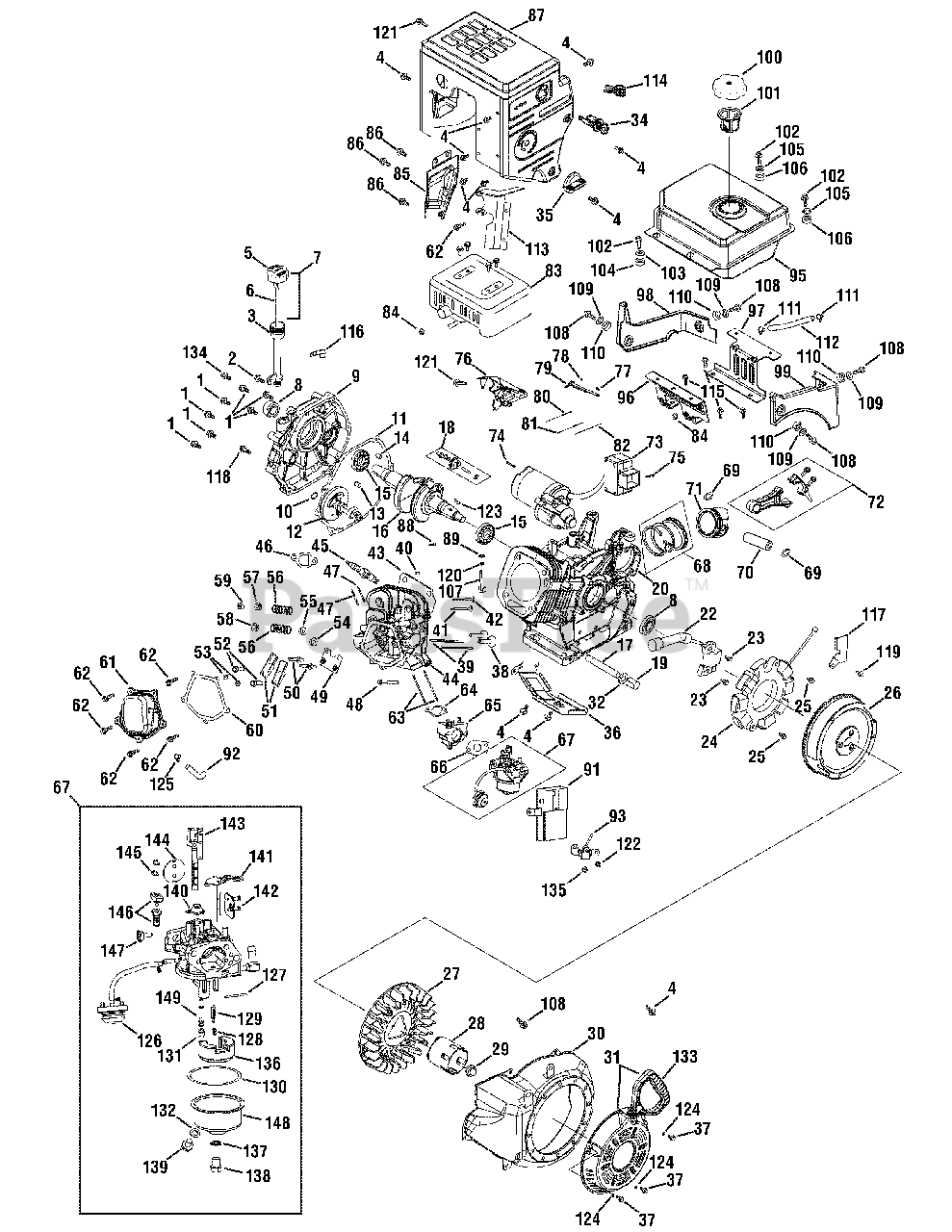

Engine Assembly 478-SU Parts Diagram

  • Title

1

MTD 710-04971

Flange Bolt
(Superseded to 710-06061)

$6.49

$

Usually ships in 3-6 days

0

1

MTD 710-04971

Flange Bolt
(Superseded to 710-06061)

Note: Furnish 951-11228, Crankcase Cover Kit

$6.49

$

Usually ships in 3-6 days

0

1

MTD 710-04971

Flange Bolt
(Superseded to 710-06061)

Note: Furnish 951-11187, Short Block Assembly

$6.49

$

Usually ships in 3-6 days

0

2

MTD 710-04968

Flange Bolt

$6.99

$

In Stock, only 3 left!

0

2

MTD 710-04968

Flange Bolt

Note: Furnish 951-11187, Short Block Assembly

$6.99

$

In Stock, only 3 left!

0

3

MTD 951-11206

Dipstick Tube

$18.99

$

Usually ships in 3-6 days

0

4

MTD 710-04915

Flange Bolt

$4.49

$

In Stock, only 3 left!

0

5

N/A

Oil Cap

Note: Furnish 951-11205, Dipstick Assembly

$

$

Not available

6

N/A

Dipstick

Note: Furnish 951-11205, Dipstick Assembly

$

$

Not available

7

MTD 951-11205

Dipstick Assembly

Note: (Incl. Ref No. 5,6)

$26.99

$

Usually ships in 3-6 days

0

8

MTD 951-11372

Crankshaft Oil Seal

$15.99

$

In Stock, only 1 left!

0

8

MTD 951-11372

Crankshaft Oil Seal

Note: Furnish 951-11228, Crankcase Cover Kit

$15.99

$

In Stock, only 1 left!

0

8

MTD 951-11372

Crankshaft Oil Seal

Note: Furnish 951-11229, Crankshaft Kit

$15.99

$

In Stock, only 1 left!

0

8

MTD 951-11372

Crankshaft Oil Seal

Note: Furnish 951-11230, Crankcase Kit

$15.99

$

In Stock, only 1 left!

0

8

MTD 951-11372

Crankshaft Oil Seal

Note: Furnish 951-11209, Gasket Kit Complete

$15.99

$

In Stock, only 1 left!

0

8

MTD 951-11372

Crankshaft Oil Seal

Note: Furnish 951-11187, Short Block Assembly

$15.99

$

In Stock, only 1 left!

0

9

N/A

Crankcase Cover

Note: Furnish 951-11228, Crankcase Cover Kit

$

$

Not available

9

N/A

Crankcase Cover

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

10

N/A

Flat Washer

Note: Furnish 951-11228, Crankcase Cover Kit

$

$

Not available

10

N/A

Flat Washer

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

11

MTD 951-11374

Crankcase Cover Gasket

$15.99

$

Usually ships in 3-6 days

0

11

MTD 951-11374

Crankcase Cover Gasket

Note: Furnish 951-11228, Crankcase Cover Kit

$15.99

$

Usually ships in 3-6 days

0

11

MTD 951-11374

Crankcase Cover Gasket

Note: Furnish 951-11209, Gasket Kit Complete

$15.99

$

Usually ships in 3-6 days

0

11

MTD 951-11374

Crankcase Cover Gasket

Note: Furnish 951-11187, Short Block Assembly

$15.99

$

Usually ships in 3-6 days

0

11

MTD 951-11374

Crankcase Cover Gasket

Note: Furnish 951-11210, Gasket Kit External

$15.99

$

Usually ships in 3-6 days

0

12

N/A

Camshaft Assembly

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

13

MTD 715-04102

Dowel Pin

$5.99

$

Usually ships in 3-6 days

0

13

MTD 715-04102

Dowel Pin

Note: Furnish 951-11187, Short Block Assembly

$5.99

$

Usually ships in 3-6 days

0

14

MTD 715-04096

Dowel Pin
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

14

MTD 715-04096

Dowel Pin
(Superseded to 715-04096A)

Note: Furnish 951-11187, Short Block Assembly

$4.49

$

Usually ships in 3-6 days

0

15

MTD 951-11373

Ball Bearing

$34.99

$

Usually ships in 3-6 days

0

15

MTD 951-11373

Ball Bearing

Note: Furnish 951-11228, Crankcase Cover Kit

$34.99

$

Usually ships in 3-6 days

0

15

MTD 951-11373

Ball Bearing

Note: Furnish 951-11229, Crankshaft Kit

$34.99

$

Usually ships in 3-6 days

0

15

MTD 951-11373

Ball Bearing

Note: Furnish 951-11230, Crankcase Kit

$34.99

$

Usually ships in 3-6 days

0

15

MTD 951-11373

Ball Bearing

Note: Furnish 951-11187, Short Block Assembly

$34.99

$

Usually ships in 3-6 days

0

16

N/A

Crankshaft Assembly

Note: Furnish 951-11229, Crankshaft Kit

$

$

Not available

16

N/A

Crankshaft Assembly

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

17

N/A

Oil Drain Bolt

Note: Furnish 951-10641, Oil Drain Assembly

$

$

Not available

17

N/A

Oil Drain Bolt

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

18

N/A

Governor Gear Assembly

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

19

N/A

Extended Oil Drain Plug

Note: Furnish 951-10641, Oil Drain Assembly

$

$

Not available

19

N/A

Extended Oil Drain Plug

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

20

N/A

Crankcase

Note: Furnish 951-11230, Crankcase Kit

$

$

Not available

20

N/A

Crankcase

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

22

MTD 951-11197

Ignition Coil
(Superseded to 951-11197A)

$83.99

$

Usually ships in 3-6 days

0

23

MTD 710-04920

Flange Bolt
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

24

MTD 951-11216

Stator

$

$

Not available

25

MTD 710-04969

Flange Bolt

$4.49

$

In Stock, only 3 left!

0

26

MTD 951-11214

Flywheel

$

$

Not available

27

MTD 951-11217

Cooling Fan

$53.99

$

Usually ships in 3-6 days

0

28

MTD 951-11218

Starter Cup

$16.99

$

Usually ships in 3-6 days

0

29

MTD 712-04220

Flange Nut

$6.49

$

Usually ships in 3-6 days

0

30

MTD 951-11379

Blower Housing

$87.99

$

Usually ships in 3-6 days

0

31

MTD 951-11208

Recoil Starter Assembly

$102.99

$

In Stock, only 2 left!

0

32

MTD 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

32

MTD 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-10641, Oil Drain Assembly

$6.99

$

In Stock, only 2 left!

0

32

MTD 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-11209, Gasket Kit Complete

$6.99

$

In Stock, only 2 left!

0

32

MTD 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-11187, Short Block Assembly

$6.99

$

In Stock, only 2 left!

0

32

MTD 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-11210, Gasket Kit External

$6.99

$

In Stock, only 2 left!

0

34

MTD 951-10637

Ignition Switch

$14.99

$

In Stock, only 1 left!

0

35

MTD 951-11191

Choke Knob

$

$

Currently unavailable

35

MTD 951-11302

Choke Knob

$6.99

$

In Stock, only 1 left!

0

36

MTD 951-11180

Cylinder Baffle

$24.99

$

Usually ships in 3-6 days

0

37

MTD 710-04974

Flange Bolt

$6.99

$

In Stock, only 3 left!

0

38

N/A

Tappet

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

39

MTD 951-11199

Push Rod Kit

$13.99

$

Usually ships in 3-6 days

0

40

MTD 715-04097

Dowel Pin

$6.49

$

Usually ships in 3-6 days

0

40

MTD 715-04097

Dowel Pin

Note: Furnish 951-11187, Short Block Assembly

$6.49

$

Usually ships in 3-6 days

0

41

N/A

Intake Valve

Note: Furnish 951-11198, Valve Kit

$

$

Not available

41

N/A

Intake Valve

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

42

N/A

Exhaust Valve

Note: Furnish 951-11198, Valve Kit

$

$

Not available

42

N/A

Exhaust Valve

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

43

N/A

Head Gasket

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

43

N/A

Head Gasket

Note: Furnish 951-11209, Gasket Kit Complete

$

$

Not available

43

N/A

Head Gasket

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

43

N/A

Head Gasket

Note: Furnish 951-11226, Cylinder Head Kit

$

$

Not available

44

N/A

Cylinder Head

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

45

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

46

MTD 951-11212

Muffler Gasket
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

46

MTD 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11188, Cylinder Head Assembly

$5.49

$

In Stock, only 2 left!

0

46

MTD 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11209, Gasket Kit Complete

$5.49

$

In Stock, only 2 left!

0

46

MTD 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11187, Short Block Assembly

$5.49

$

In Stock, only 2 left!

0

47

MTD 710-04964

Exhaust Stud

$6.49

$

In Stock, only 1 left!

0

47

MTD 710-04964

Exhaust Stud

Note: Furnish 951-11207, Muffler Stud Assembly

$6.49

$

In Stock, only 1 left!

0

47

MTD 710-04964

Exhaust Stud

Note: Furnish 951-11188, Cylinder Head Assembly

$6.49

$

In Stock, only 1 left!

0

48

MTD 710-04973

Flange Bolt
(Superseded to 710-04965)

$6.99

$

In Stock, only 1 left!

0

48

MTD 710-04973

Flange Bolt
(Superseded to 710-04965)

Note: Furnish 951-11188, Cylinder Head Assembly

$6.99

$

In Stock, only 1 left!

0

48

MTD 710-04973

Flange Bolt
(Superseded to 710-04965)

Note: Furnish 951-11187, Short Block Assembly

$6.99

$

In Stock, only 1 left!

0

48

MTD 710-04973

Flange Bolt
(Superseded to 710-04965)

Note: Furnish 951-11226, Cylinder Head Kit

$6.99

$

In Stock, only 1 left!

0

49

N/A

Pushrod Guide Plate

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

50

MTD 710-04962

Rocker Stud Bolt

$6.49

$

In Stock, only 1 left!

0

50

MTD 710-04962

Rocker Stud Bolt

Note: Furnish 951-11188, Cylinder Head Assembly

$6.49

$

In Stock, only 1 left!

0

51

N/A

Rocker Arm

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

52

MTD 751-11123

Valve Adjusting Nut

$10.99

$

In Stock, only 4 left!

0

52

MTD 751-11123

Valve Adjusting Nut

Note: Furnish 951-11188, Cylinder Head Assembly

$10.99

$

In Stock, only 4 left!

0

53

MTD 751-11124

Pivot Locking Nut

$9.49

$

In Stock, only 2 left!

0

53

MTD 751-11124

Pivot Locking Nut

Note: Furnish 951-11188, Cylinder Head Assembly

$9.49

$

In Stock, only 2 left!

0

54

N/A

Intake Valve Seal

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

54

N/A

Intake Valve Seal

Note: Furnish 951-11226, Cylinder Head Kit

$

$

Not available

55

N/A

Exhaust Valve Spring Support

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

56

N/A

Valve Spring

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

57

N/A

Exhaust Spring Retainer

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

58

N/A

Intake Spring Retainer

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

59

N/A

Exhaust Valve Cap

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

60

N/A

Valve Cover Gasket

Note: Furnish 951-11188, Cylinder Head Assembly

$

$

Not available

60

N/A

Valve Cover Gasket

Note: Furnish 951-11209, Gasket Kit Complete

$

$

Not available

60

N/A

Valve Cover Gasket

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

60

N/A

Valve Cover Gasket

Note: Furnish 951-11226, Cylinder Head Kit

$

$

Not available

60

N/A

Valve Cover Gasket

Note: Furnish 951-11210, Gasket Kit External

$

$

Not available

61

MTD 951-11220

Valve Cover

$35.99

$

Usually ships in 3-6 days

0

62

MTD 710-05054

Bolt

$6.49

$

In Stock, only 2 left!

0

63

MTD 710-04963

Carburetor Stud

$6.99

$

In Stock, only 1 left!

0

63

MTD 710-04963

Carburetor Stud

Note: Furnish 951-11188, Cylinder Head Assembly

$6.99

$

In Stock, only 1 left!

0

64

MTD 951-11225

Intake Gasket

$4.49

$

In Stock, Qty 5

0

64

MTD 951-11225

Intake Gasket

Note: Furnish 951-11188, Cylinder Head Assembly

$4.49

$

In Stock, Qty 5

0

64

MTD 951-11225

Intake Gasket

Note: Furnish 951-11209, Gasket Kit Complete

$4.49

$

In Stock, Qty 5

0

64

MTD 951-11225

Intake Gasket

Note: Furnish 951-11187, Short Block Assembly

$4.49

$

In Stock, Qty 5

0

64

MTD 951-11225

Intake Gasket

Note: Furnish 951-11210, Gasket Kit External

$4.49

$

In Stock, Qty 5

0

65

MTD 951-11222

Carburetor Insulator

$8.49

$

In Stock, Qty 10

0

65

MTD 951-11222

Carburetor Insulator

Note: Furnish 951-11188, Cylinder Head Assembly

$8.49

$

In Stock, Qty 10

0

65

MTD 951-11222

Carburetor Insulator

Note: Furnish 951-11209, Gasket Kit Complete

$8.49

$

In Stock, Qty 10

0

65

MTD 951-11222

Carburetor Insulator

Note: Furnish 951-11187, Short Block Assembly

$8.49

$

In Stock, Qty 10

0

65

MTD 951-11222

Carburetor Insulator

Note: Furnish 951-11210, Gasket Kit External

$8.49

$

In Stock, Qty 10

0

66

MTD 951-11223

Carburetor Gasket

$5.49

$

In Stock, Qty 20+

0

66

MTD 951-11223

Carburetor Gasket

Note: Furnish 951-11209, Gasket Kit Complete

$5.49

$

In Stock, Qty 20+

0

66

MTD 951-11223

Carburetor Gasket

Note: Furnish 951-11210, Gasket Kit External

$5.49

$

In Stock, Qty 20+

0

67

MTD 951-11193

Carburetor Assembly
(Superseded to 951-14024A)

$113.99

$

In Stock, only 1 left!

0

67

MTD 951-11193

Carburetor Assembly
(Superseded to 951-14024A)

Note: (Incl. Ref No. 126-132, 136-149)

$113.99

$

In Stock, only 1 left!

0

68

N/A

Piston Ring Set

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

69

N/A

Piston Pin Clip

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

70

N/A

Piston Pin

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

71

N/A

Piston

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

72

N/A

Connecting Rod Assembly

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

73

MTD 951-11196

Electric Starter

$407.99

$

Usually ships in 3-6 days

0

74

MTD 710-04967

Flange Bolt

$6.49

$

Usually ships in 3-6 days

0

75

MTD 710-04965

Screw

$6.99

$

In Stock, only 1 left!

0

76

MTD 951-11213

Throttle Control Assembly

$43.99

$

Usually ships in 3-6 days

0

77

MTD 710-04908

Bolt

$6.49

$

Usually ships in 3-6 days

0

78

MTD 712-04211

Nut
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

79

MTD 951-11231

Governor Arm Bracket
(Superseded to 951-14200)

$23.99

$

Usually ships in 3-6 days

0

80

MTD 951-11202

Governor Spring

$4.49

$

In Stock, only 3 left!

0

81

MTD 951-11203

Throttle Return Spring

$4.49

$

In Stock, only 3 left!

0

82

MTD 951-11204

Governor Rod

$3.99

$

Usually ships in 3-6 days

0

83

MTD 951-11195

Muffler Assembly

$130.99

$

Usually ships in 3-6 days

0

84

MTD 712-04219

Nut

$6.49

$

In Stock, only 2 left!

0

85

MTD 951-11181

Muffler Baffle

$30.99

$

Usually ships in 3-6 days

0

86

MTD 710-04914

Flange Bolt

$4.49

$

In Stock, only 3 left!

0

87

MTD 951-11194

Muffler Shield

$68.99

$

Usually ships in 3-6 days

0

88

MTD 714-04077

Governor Shaft Clip

$6.49

$

In Stock, only 1 left!

0

88

MTD 714-04077

Governor Shaft Clip

Note: Furnish 951-11187, Short Block Assembly

$6.49

$

In Stock, only 1 left!

0

89

MTD 736-04453

Washer

$6.49

$

Usually ships in 3-6 days

0

89

MTD 736-04453

Washer

Note: Furnish 951-11187, Short Block Assembly

$6.49

$

Usually ships in 3-6 days

0

91

MTD 951-11190

Heater Box

$23.99

$

Usually ships in 3-6 days

0

92

MTD 951-11221

Breather Hose

$6.99

$

In Stock, only 1 left!

0

93

MTD 951-11192

Choke Assembly

$9.49

$

Usually ships in 3-6 days

0

95

MTD 951-11201

Fuel Tank

$144.99

$

In Stock, only 1 left!

0

96

MTD 951-11182

Fuel Tank Mounting Bracket

$38.99

$

Usually ships in 3-6 days

0

97

MTD 951-11183

Fuel Tank Mounting Bracket

$42.99

$

Usually ships in 3-6 days

0

98

MTD 951-11184

Fuel Tank Shroud

$22.99

$

Usually ships in 3-6 days

0

99

MTD 951-11419

Engine Shroud

$22.99

$

Usually ships in 3-6 days

0

100

MTD 951-10649

Fuel Cap Assembly
(Superseded to 951-12533)

$23.99

$

In Stock, only 4 left!

0

101

MTD 951-10652

Fuel Filter

$9.49

$

In Stock, only 2 left!

0

102

MTD 710-04970

Flange Bolt

$6.49

$

Usually ships in 3-6 days

0

103

MTD 736-04451

Washer

$5.99

$

Usually ships in 3-6 days

0

104

MTD 750-05313

Bushing

$3.99

$

Usually ships in 3-6 days

0

105

MTD 736-04450

Washer

$6.49

$

Usually ships in 3-6 days

0

106

MTD 750-05312

Bushing

$4.49

$

Usually ships in 3-6 days

0

107

N/A

Governor Shaft

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

108

MTD 710-11012

Flange Bolt

$

$

Currently unavailable

109

MTD 736-04452

Washer

$6.49

$

In Stock, only 1 left!

0

110

MTD 750-05314

Bushing

$3.99

$

Usually ships in 3-6 days

0

111

N/A

Fuel Hose Clamp

Note: Furnish 951-11200, Fuel Line Kit

$

$

Not available

112

N/A

Fuel Hose

Note: Furnish 951-11200, Fuel Line Kit

$

$

Not available

113

MTD 951-11227

Carburetor Heat Shield

$29.99

$

Usually ships in 3-6 days

0

114

MTD 951-11224

Throttle Knob

$7.99

$

In Stock, Qty 5

0

115

MTD 710-04921

Flange Bolt

$5.49

$

Usually ships in 3-6 days

0

116

MTD 951-11185

Oil Tube Support Bracket
(Superseded to 951-11320)

$7.99

$

Usually ships in 3-6 days

0

117

MTD 951-11186

Alternator Wire Clamp Bracket

$4.99

$

Usually ships in 3-6 days

0

118

MTD 710-04972

Flange Bolt
(Superseded to 710-06062)

$5.99

$

Usually ships in 3-6 days

0

118

MTD 710-04972

Flange Bolt
(Superseded to 710-06062)

Note: Furnish 951-11228, Crankcase Cover Kit

$5.99

$

Usually ships in 3-6 days

0

118

MTD 710-04972

Flange Bolt
(Superseded to 710-06062)

Note: Furnish 951-11187, Short Block Assembly

$5.99

$

Usually ships in 3-6 days

0

119

MTD 710-04966

Flange Bolt

$6.49

$

Usually ships in 3-6 days

0

120

N/A

Governor Shaft Seal

Note: Furnish 951-11230, Crankcase Kit

$

$

Not available

120

N/A

Governor Shaft Seal

Note: Furnish 951-11209, Gasket Kit Complete

$

$

Not available

120

N/A

Governor Shaft Seal

Note: Furnish 951-11187, Short Block Assembly

$

$

Not available

121

MTD 710-04916

Flange Bolt

$4.49

$

Usually ships in 3-6 days

0

122

MTD 712-04211

Nut
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

123

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

123

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

Note: Furnish 951-11229, Crankshaft Kit

$2.49

$

Usually ships in 3-6 days

0

123

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

Note: Furnish 951-11187, Short Block Assembly

$2.49

$

Usually ships in 3-6 days

0

124

MTD 736-04455

Flat Washer
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

125

MTD 726-04101

Breather Hose Clip

$4.49

$

In Stock, only 1 left!

0

126

MTD 951-10639

Primer
(Superseded to 951-10639A)

$15.99

$

In Stock, Qty 17

0

126

MTD 951-10639

Primer
(Superseded to 951-10639A)

Note: Furnish 951-11193, Carburetor Assembly

$15.99

$

In Stock, Qty 17

0

127

N/A

Float Pin

Note: Furnish 951-11219, Carburetor Kit

$

$

Not available

127

N/A

Float Pin

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

128

N/A

Needle Valve Spring

Note: Furnish 951-11219, Carburetor Kit

$

$

Not available

128

N/A

Needle Valve Spring

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

129

N/A

Needle Valve

Note: Furnish 951-11219, Carburetor Kit

$

$

Not available

129

N/A

Needle Valve

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

130

N/A

Bowl Gasket

Note: Furnish 951-11219, Carburetor Kit

$

$

Not available

130

N/A

Bowl Gasket

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

131

N/A

Main Jet

Note: Furnish 951-11219, Carburetor Kit

$

$

Not available

131

N/A

Main Jet

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

132

MTD 751-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

132

MTD 751-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

Note: Furnish 951-11219, Carburetor Kit

$4.49

$

In Stock, Qty 11

0

132

MTD 751-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

Note: Furnish 951-11193, Carburetor Assembly

$4.49

$

In Stock, Qty 11

0

133

MTD 731-05696

Starter Handle

$16.99

$

In Stock, only 1 left!

0

134

MTD 710-05052

Bolt
(Superseded to 710-06063)

$6.49

$

Usually ships in 3-6 days

0

135

MTD 736-04477

Lock Washer

$6.49

$

Usually ships in 3-6 days

0

136

N/A

Carburetor Float

Note: Furnish 951-11219, Carburetor Kit

$

$

Not available

136

N/A

Carburetor Float

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

137

MTD 751-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

137

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

Note: Furnish 951-11193, Carburetor Assembly

$5.99

$

Usually ships in 3-6 days

0

138

MTD 710-04945

Fuel Drain Bolt

$4.49

$

In Stock, only 4 left!

0

138

MTD 710-04945

Fuel Drain Bolt

Note: Furnish 951-11193, Carburetor Assembly

$4.49

$

In Stock, only 4 left!

0

139

MTD 710-04903

Fuel Drain Plug
(Superseded to 710-04938)

$4.49

$

In Stock, only 1 left!

0

139

MTD 710-04903

Fuel Drain Plug
(Superseded to 710-04938)

Note: Furnish 951-11193, Carburetor Assembly

$4.49

$

In Stock, only 1 left!

0

140

N/A

Throttle Pressure Plate

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

141

N/A

Choke Shaft

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

142

N/A

Choke Plate

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

143

N/A

Throttle Shaft

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

144

N/A

Throttle Plate

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

145

N/A

Screw

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

146

N/A

Idle Jet Assembly

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

147

N/A

Idle Speed Adjusting Screw

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

148

N/A

Fuel Bowl

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

149

N/A

Main Nozzle

Note: Furnish 951-11219, Carburetor Kit

$

$

Not available

149

N/A

Main Nozzle

Note: Furnish 951-11193, Carburetor Assembly

$

$

Not available

MTD 731-05632

Key (Not Shown)
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 7

0

MTD 951-10641

Oil Drain Assembly (Not Shown)

Note: (Incl. Ref No. 17, 19, 32)

$12.99

$

In Stock, only 2 left!

0

MTD 951-10651

Fuel Tank Nipple (Not Shown)

$15.99

$

In Stock, only 1 left!

0

MTD 951-11187

Short Block Assembly (Not Shown)

Note: (Incl. Ref No. 1, 2, 8-20, 32, 38, 40, 43, 46, 48, 60, 64, 65, 68-72, 88, 89, 107, 118, 120, 123)

$885.99

$

Usually ships in 3-6 days

0

MTD 951-11188

Cylinder Head Assembly (Not Shown)

Note: (Incl. Ref No. 41-44, 46-60, 63-65)

$338.99

$

Usually ships in 3-6 days

0

MTD 951-11198

Valve Kit (Not Shown)

Note: (Incl. Ref No. 41-42)

$48.99

$

Usually ships in 3-6 days

0

MTD 951-11200

Fuel Line Kit (Not Shown)

Note: (Incl. Ref No. 111-112)

$33.99

$

In Stock, only 1 left!

0

MTD 951-11207

Muffler Stud Assembly (Not Shown)

Note: (Incl. Ref No. 47)

$8.49

$

Usually ships in 3-6 days

0

MTD 951-11209

Gasket Kit, Complete (Not Shown)

Note: (Incl. Ref No. 8, 11,32, 43, 46, 06, 64-66, 120)

$72.99

$

Usually ships in 3-6 days

0

MTD 951-11210

Gasket Kit, External (Not Shown)

Note: (Incl. Ref No. 11, 32,60, 64-66)

$32.99

$

Usually ships in 3-6 days

0

MTD 951-11219

Carburetor Kit (Not Shown)
(Superseded to 951-12762A)

Note: (Incl. Ref No. 127-132, 136, 149)

$54.99

$

Usually ships in 3-6 days

0

MTD 951-11226

Cylinder Head Kit (Not Shown)

Note: (Incl. Ref No. 43, 48, 54, 60)

$37.99

$

Usually ships in 3-6 days

0

MTD 951-11228

Crankcase Cover Kit (Not Shown)

Note: (Incl. Ref No. 1, 8911, 15, 118)

$123.99

$

Usually ships in 3-6 days

0

MTD 951-11229

Crankshaft Kit (Not Shown)

Note: (Incl. Ref No. 8, 15, 16, 123)

$215.99

$

Usually ships in 3-6 days

0

MTD 951-11230

Crankcase Kit (Not Shown)

Note: (Incl. Ref No. 8, 15, 20, 120)

$340.99

$

Usually ships in 3-6 days

0

MTD 952Z478-SU

Complete Engine (Not Shown)
(Superseded to 952Z678-SUA)

$1375.99

$

Usually ships in 3-6 days

0
