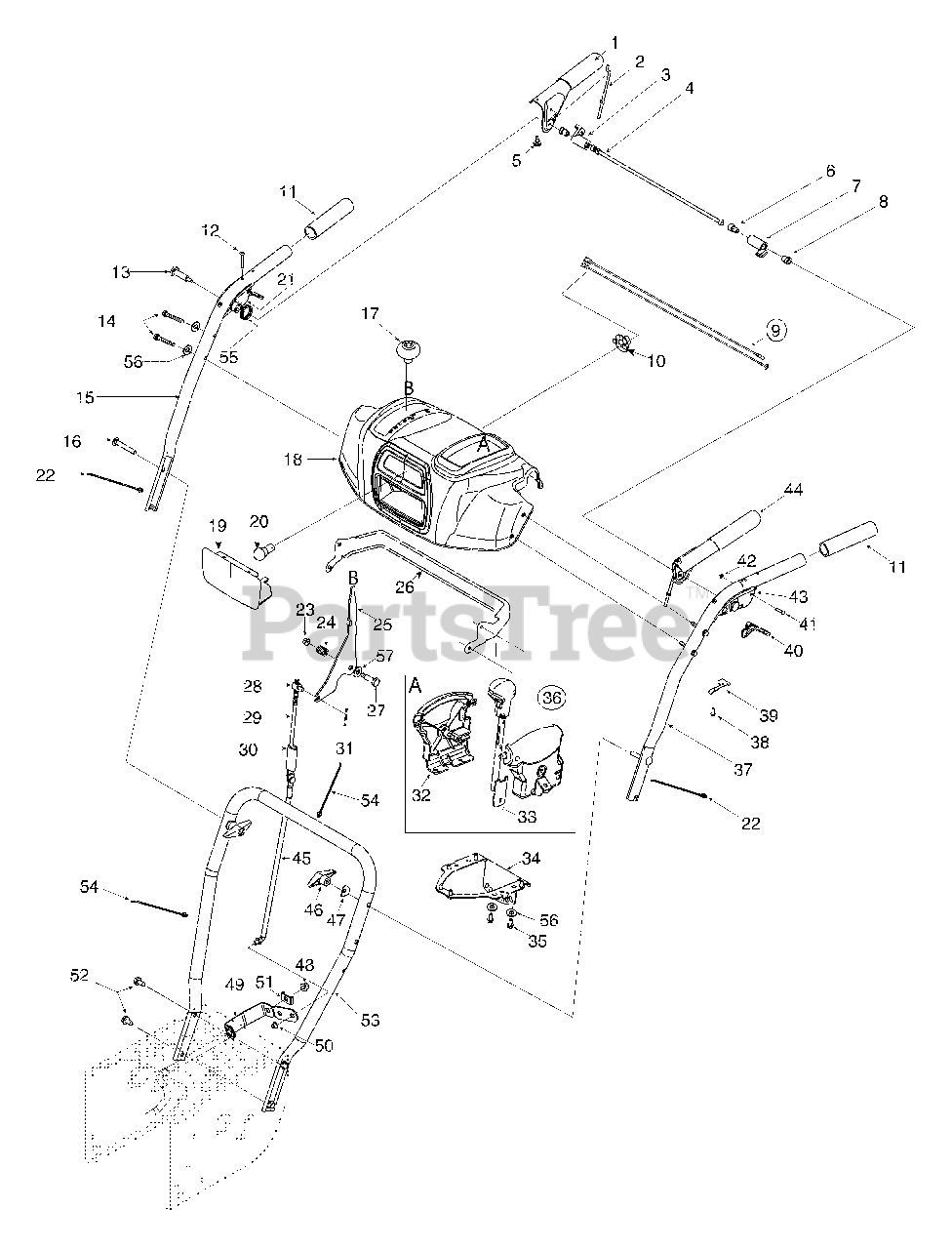

247.887900 (31AE5HTG799) - Craftsman Snow Thrower (2005) (Sears) Handle Parts Diagram

Snow Thrower

Handle Parts Diagram

  • Title

1

MTD 684-04112

Handle Engagement Assembly RH
(Superseded to 684-04112D)

Variations

MTD 684-04112-0638

Right Handle Assembly - MTD/TROY-BILT RED (0638)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

2

MTD 746-0778

Cable Z Fitting
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

3

MTD 731-04894

Lock Plate
(Superseded to 731-04894D)

$5.49

$

In Stock, Qty 9

0

4

MTD 711-04287

Pivot Rod
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

5

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 2 left!

0

6

MTD 710-04354

Screw, 1/4-20 x.375

$3.99

$

In Stock, Qty 20+

0

7

MTD 731-04896

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 20+

0

9

MTD 725-04214

Wire Harness

$

$

Not available

10

MTD 725-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

11

MTD 720-0274

Handle Grip

$11.99

$

In Stock, Qty 8

0

12

MTD 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

13

MTD 738-04122

Shoulder Screw, 1/4-20 x 1.345
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-1026

Screw, 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

15

MTD 749-04141

Upper Handle RH

Variations

MTD 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

16

MTD 710-0449

Carriage Screw, 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

17

MTD 720-04039

Shift Knob

$10.99

$

In Stock, only 1 left!

0

18

MTD 631-04146

Handle Panel
(Superseded to 931-05349)

$68.99

$

Usually ships in 3-6 days

0

19

MTD 731-04876

Lens
(Superseded to 931-04876)

$

$

Not available

20

MTD 725-04213

Lamp
(Superseded to 925-04213)

$4.99

$

In Stock, Qty 10

0

21

MTD 631-04134

Handle Clutch Lock - RH
(Superseded to 631-04134B)

$15.99

$

Usually ships in 3-6 days

0

22

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

25

MTD 790-00130

Shift Lever
(Superseded to 790-00130-0637)

Variations

MTD 790-00130-0637

LEVER-SHIFT - POWDER BLACK

$

$

Not available

$

$

26

MTD 790-00140

Panel Bracket
(Superseded to 790-00140-0637)

Variations

MTD 790-00140-0637

BRACKET-PANEL - POWDER BLACK

$

$

Not available

$

$

27

MTD 738-04125

Shoulder Screw

$4.99

$

In Stock, only 3 left!

0

28

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

29

MTD 747-04348

Upper Shift Rod

$13.99

$

In Stock, only 1 left!

0

30

MTD 750-0963

Shift Rod Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

31

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

32

MTD 753-04864

Joystick Housing w/Fasteners

$62.99

$

Usually ships in 3-6 days

0

33

MTD 753-04863

Knob Assembly w/ Trigger
(Superseded to 753-04866)

$

$

Not available

34

MTD 790-00155

Joystick Mounting Bracket
(Superseded to 790-00155A-0637)

Variations

Cub Cadet 790-00155A-0637

BRACKET-JOYSTICK MTG - POWDER BLACK

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

35

MTD 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

36

MTD 684-04116

4-Way Chute Control(TM) Assembly
(Superseded to 753-08388A)

$304.99

$

Usually ships in 3-6 days

0

37

MTD 749-04142

Upper Handle LH
(Superseded to 749-04191A)

Variations

MTD 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

38

MTD 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

39

MTD 732-04219

Clutch Lock Spring
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

40

MTD 731-04913

Steering Control

$5.49

$

Usually ships in 3-6 days

0

41

MTD 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

42

MTD 716-04036

E Ring

$6.49

$

In Stock, Qty 20+

0

43

MTD 631-04133

Handle Clutch Lock - LH
(Superseded to 631-04133A)

$15.99

$

In Stock, Qty 7

0

44

MTD 684-04111

Handle Engagement Assembly LH
(Superseded to 684-04111D)

Variations

MTD 684-04111-0638

Engage Handle Assembly, LH - MTD/TROY-BILT RED (0638)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

45

MTD 747-04266

Lower Shift Control Rod

$33.99

$

Usually ships in 3-6 days

0

46

MTD 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

47

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

48

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

MTD 732-04205

Shift Arm

$11.99

$

Usually ships in 3-6 days

0

50

MTD 726-0135

Speed Nut

$6.99

$

In Stock, only 1 left!

0

51

MTD 790-00156

Shift Bracket Spacer

$7.99

$

Usually ships in 3-6 days

0

52

MTD 710-0726

AB Screw, 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

53

MTD 749-04138

Lower Handle
(Superseded to 749-04138A)

Variations

MTD 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

54

MTD 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

55

MTD 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 10

0

56

MTD 736-0463

Washer, Flat,.25 x.630 x.0515

$4.49

$

In Stock, Qty 20+

0

57

MTD 736-0262

Washer, Flat,.385 x.870 x.092

$3.99

$

In Stock, Qty 20+
