247.887870 (31A-62BD799) - Craftsman Snow Thrower (2011) (Sears) 165-SUB-11 Cylinder Head Parts Diagram

Snow Thrower

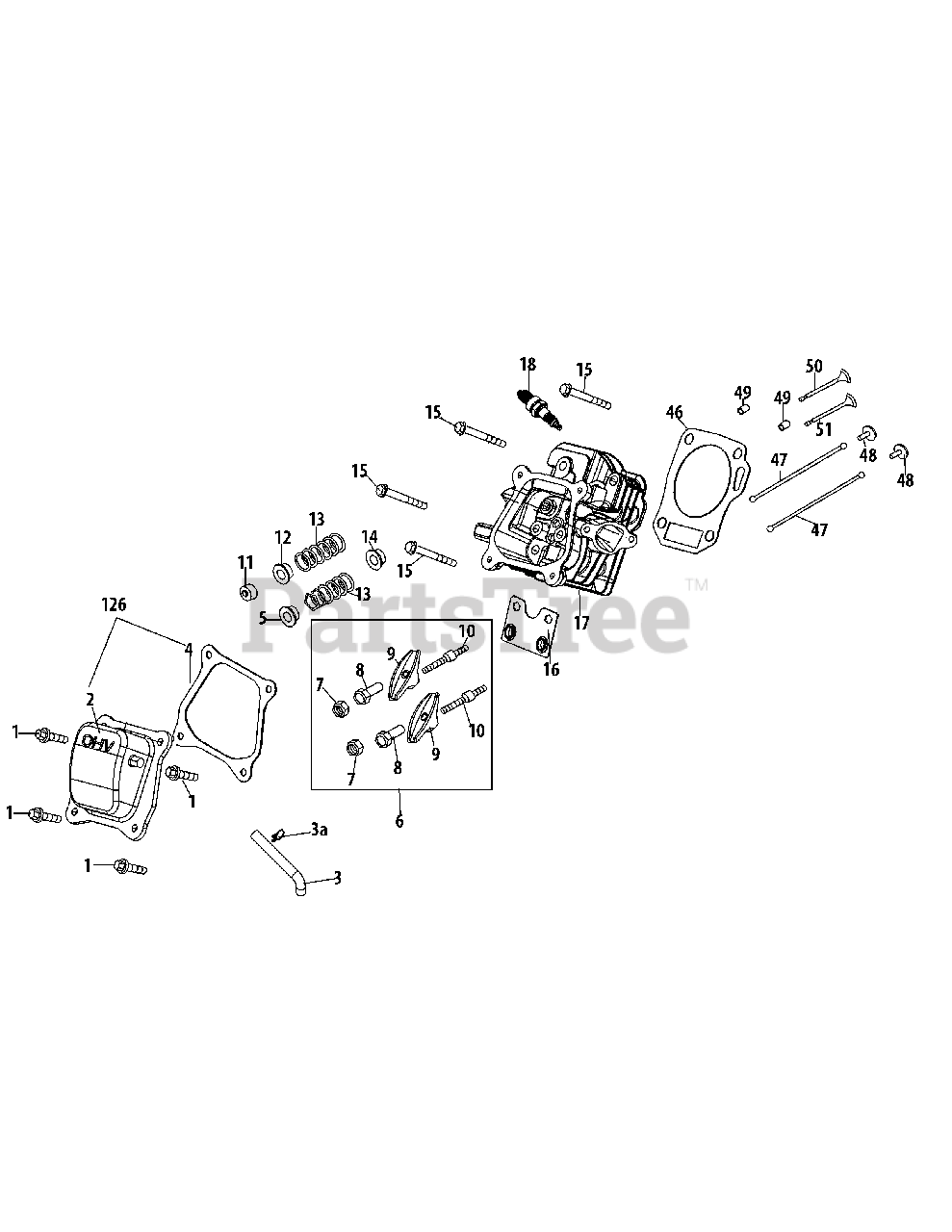

165-SUB-11 Cylinder Head Parts Diagram

  • Title
1

MTD 710-04744

Bolt M6×16

$5.49

$

In Stock, Qty 11

0

2

MTD 951-11054

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3

MTD 951-14855

Breather Hose

$8.99

$

In Stock, Qty 6

0

3a

MTD 726-04101

Breather Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

4

MTD 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 10

0

5

MTD 951-12000

Retainer, In.Valve Spring

$4.49

$

In Stock, only 1 left!

0

6

MTD 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

7

MTD 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

8

MTD 751-11123

Adjusting Nut ,Valve

$10.99

$

In Stock, only 4 left!

0

9

MTD 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

10

MTD 710-04902

Bolt, Pivot

$6.99

$

In Stock, only 4 left!

0

11

MTD 951-12002

Adjuster, Exh Valve
(Superseded to 751P12002A)

$2.99

$

In Stock, Qty 12

0

12

MTD 951-12003

Retainer, Ex.Valve Spring

$4.49

$

In Stock, only 1 left!

0

13

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

14

MTD 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

15

MTD 710-04933

Bolt M8×55

$3.99

$

In Stock, Qty 10

0

16

MTD 951-11895

Push Rod Guide

$8.99

$

Usually ships in 3-6 days

0

17

MTD 951-10722A

Cylinder Head Assembly
(Superseded to 951-10722B)

Note: (Incl.4,5,7-14,16,17,21,29,30,46,50,51)

$170.99

$

In Stock, only 1 left!

0

18

MTD 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

46

MTD 951-11898

Gasket, Cylinder Head

$11.99

$

Usually ships in 3-6 days

0

47

MTD 951-10648

Push Rod Kit

$17.99

$

In Stock, only 3 left!

0

48

MTD 951-11899

Tappet

$8.49

$

In Stock, only 4 left!

0

49

MTD 715-04090

Dowel Pin 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

50

MTD 951-10647A

Valve Kit

$64.99

$

Usually ships in 3-6 days

0

51

MTD 951-10647A

Valve Kit

$64.99

$

Usually ships in 3-6 days

0

126

MTD 951-11063

Valve Cover Kit
(Superseded to 951-12626)

$28.99

$

Usually ships in 3-6 days

0

MTD 952Z165-SUB-11

Complete Engine
(Superseded to 952Z165-WU)

$683.99

$

Usually ships in 3-6 days

0

MTD 951-10661B

Gasket Kit - External

Note: (Incl.4,21,29-31,34,77)

$32.99

$

In Stock, Qty 5

0

MTD 951-11061A

Gasket Kit - Complete

Note: (Incl.4,21,29-31,34,46,60,61,70,74,77,79)

$44.99

$

Usually ships in 3-6 days

0

MTD 951-11062B

Short Block

Note: (Incl.4,21,29,30,46,48,49,52-55,58-72,74-79)

$380.99

$

Usually ships in 3-6 days

0
