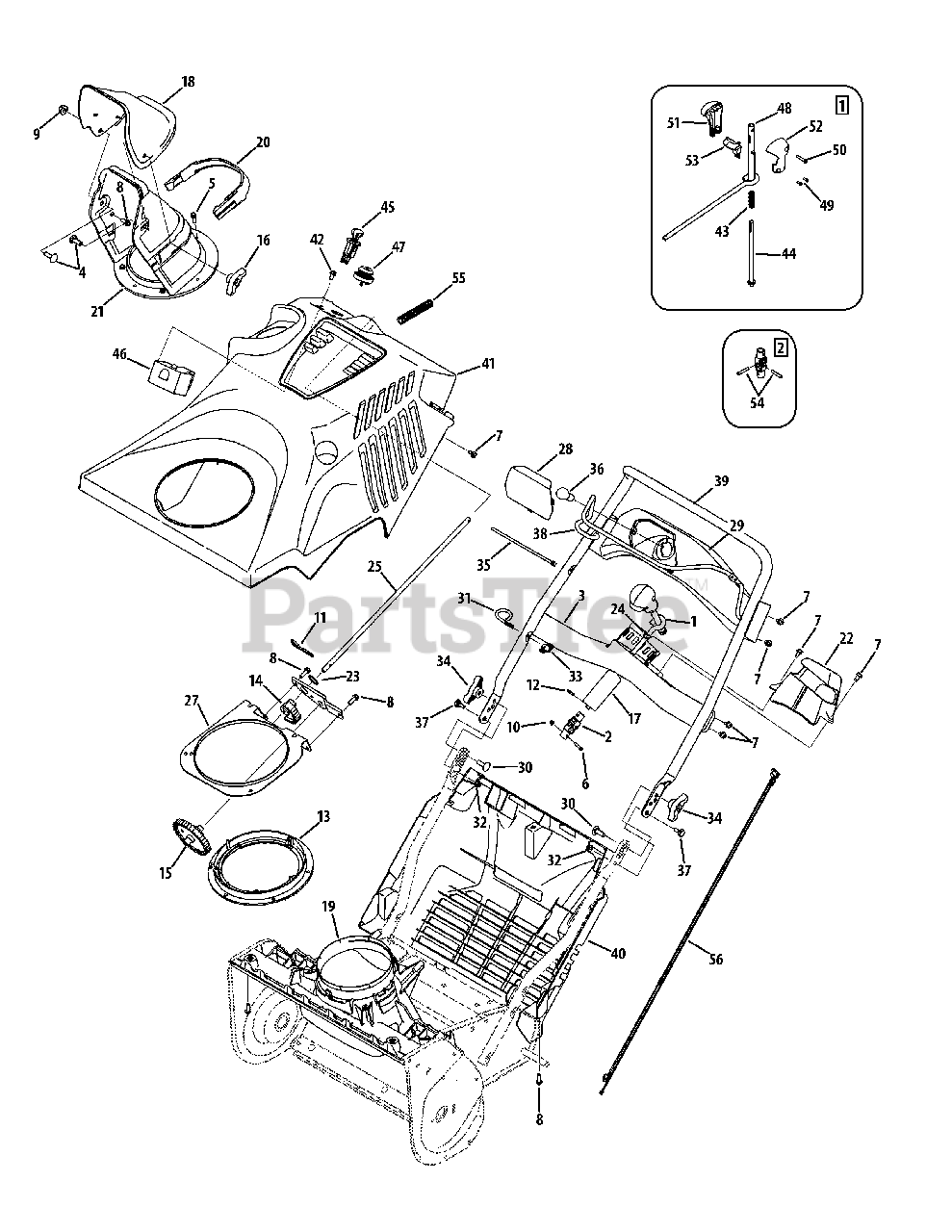

247.887821 (31AM2T6D799) - Craftsman Snow Thrower (2013) Handle & Housing Parts Diagram

Snow Thrower

Handle & Housing Parts Diagram

  • Title

1

MTD 631-04526P

Chute Rotation Control Assembly

$92.99

$

Usually ships in 3-6 days

0

2

MTD 984-04400

Joint Block Assembly
(Superseded to 684-04400)

$

$

Not available

3

MTD 684-04383-0637

Indicator Bracket Assembly

$103.99

$

Usually ships in 3-6 days

0

4

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-05108

Hex Washer Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-05179A

Machine Screw, #8-32 x .88

$4.49

$

Usually ships in 3-6 days

0

7

MTD 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0895

Hex Washer Screw, 1/4-15 x 0.750

$6.49

$

In Stock, Qty 10

0

9

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04035

Hex Lock Nut, #8-32

$4.49

$

Usually ships in 3-6 days

0

11

MTD 714-04003

Cotter Pin, .125 x 2.5

$8.49

$

Usually ships in 3-6 days

0

12

MTD 715-04095

Spring Pin, .156 x .85

$5.49

$

In Stock, Qty 14

0

13

MTD 917-04844B

Bevel Gear, 95T

$35.99

$

Usually ships in 3-6 days

0

14

MTD 717-04940

Spur Gear, 35T

$13.99

$

Usually ships in 3-6 days

0

15

MTD 717-04941

Spur Gear, 40T/11T

$19.99

$

Usually ships in 3-6 days

0

16

MTD 720-04122

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

17

MTD 720-04174

Grip, 1.18 x 3.33

$8.99

$

Usually ships in 3-6 days

0

18

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 11

0

19

MTD 931-07626B

Chute Adapter

$42.99

$

Usually ships in 3-6 days

0

20

MTD 731-07708

Chute Plug

$13.99

$

Usually ships in 3-6 days

0

21

MTD 931-07753A

Lower Chute

$35.99

$

Usually ships in 3-6 days

0

22

MTD 731-07957

Chute Rotation Cover

$12.99

$

Usually ships in 3-6 days

0

23

MTD 736-04161

Flat Washer, .75 x 1.00 x .06

$6.99

$

Usually ships in 3-6 days

0

24

MTD 941-0475

Plastic Bushing, .380

$4.49

$

In Stock, Qty 20+

0

25

MTD 747-05299A

Chute Rotation Rod, 3/8

$15.99

$

Usually ships in 3-6 days

0

26

MTD 790-00416

Gear Mounting Plate

$5.99

$

Usually ships in 3-6 days

0

27

MTD 790-00471

Gear Retainer Bracket

$21.99

$

Usually ships in 3-6 days

0

28

MTD 731-07784

Handle Panel Lens

$10.99

$

In Stock, only 1 left!

0

29

MTD 931-04504

Handle Panel

$53.99

$

Usually ships in 3-6 days

0

29

MTD 777X44559

Light Label

$13.99

$

Usually ships in 3-6 days

0

30

MTD 710-04998

Carriage Screw, 5/16-18 x 1.00

$5.99

$

In Stock, only 2 left!

0

31

MTD 710-05348

Eye Bolt, 1/4-20

$3.99

$

In Stock, Qty 9

0

32

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

MTD 720-0279

Wing Knob, 1/4-20

$4.49

$

In Stock, Qty 20+

0

34

MTD 720-04122

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

35

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

36

MTD 925-1629

Lamp, #1141

$11.99

$

In Stock, Qty 11

0

37

MTD 738-04419A

Shoulder Screw, 1/4-20 x .375 x .148

$4.49

$

In Stock, Qty 20+

0

38

MTD 747-05327C-0637

Auger Control

$16.99

$

In Stock, Qty 13

0

39

MTD 749-04693B-0637

Upper Handle

$45.99

$

Usually ships in 3-6 days

0

40

MTD 731-07725

Bottom Cover Assembly
(Superseded to 731-07725B)

$56.99

$

In Stock, only 1 left!

0

41

MTD 753-06908

Cover Assembly
(Superseded to 753-06908A)

$69.99

$

Usually ships in 3-6 days

0

42

MTD 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

43

MTD 732-04789

Compression Spring, .460 x 1.469

$3.49

$

Usually ships in 3-6 days

0

44

MTD 731-08018

Chute Rotation Rod

$8.99

$

Usually ships in 3-6 days

0

45

MTD 925-04031A

Ignition Switch Assembly
(Superseded to 951-10637)

$14.99

$

In Stock, Qty 8

0

46

MTD 951-10645A

Electric Starter

$304.99

$

In Stock, only 1 left!

0

47

MTD 951-10639A

Primer

$15.99

$

In Stock, Qty 20+

0

48

MTD n/a

Chute Rotation Rod Assembly

$

$

Currently unavailable

49

MTD 710-04352

Screw, #6 x .375

$4.49

$

Usually ships in 3-6 days

0

50

MTD 710-04353

Screw, #8 x 1.00

$6.99

$

Usually ships in 3-6 days

0

51

MTD 731-04904

RH Control Knob

$11.99

$

Usually ships in 3-6 days

0

52

MTD 731-04905

LH Control Knob

$10.99

$

Usually ships in 3-6 days

0

53

MTD 731-06525

Joystick Trigger

$11.99

$

Usually ships in 3-6 days

0

54

MTD 715-0150

Roll Pin, 3/16 x 1.1

$4.49

$

In Stock, Qty 12

0

55

MTD 731-08631

Conduit

$1.49

$

Usually ships in 3-6 days

0

56

MTD 925-04139

Wiring Harness w/ Light Socket

$23.99

$

Usually ships in 3-6 days

0

MTD 925-1649

Light Socket
(Superseded to 925-1649A)

Note: (not shown)

$11.99

$

In Stock, Qty 20+

0
