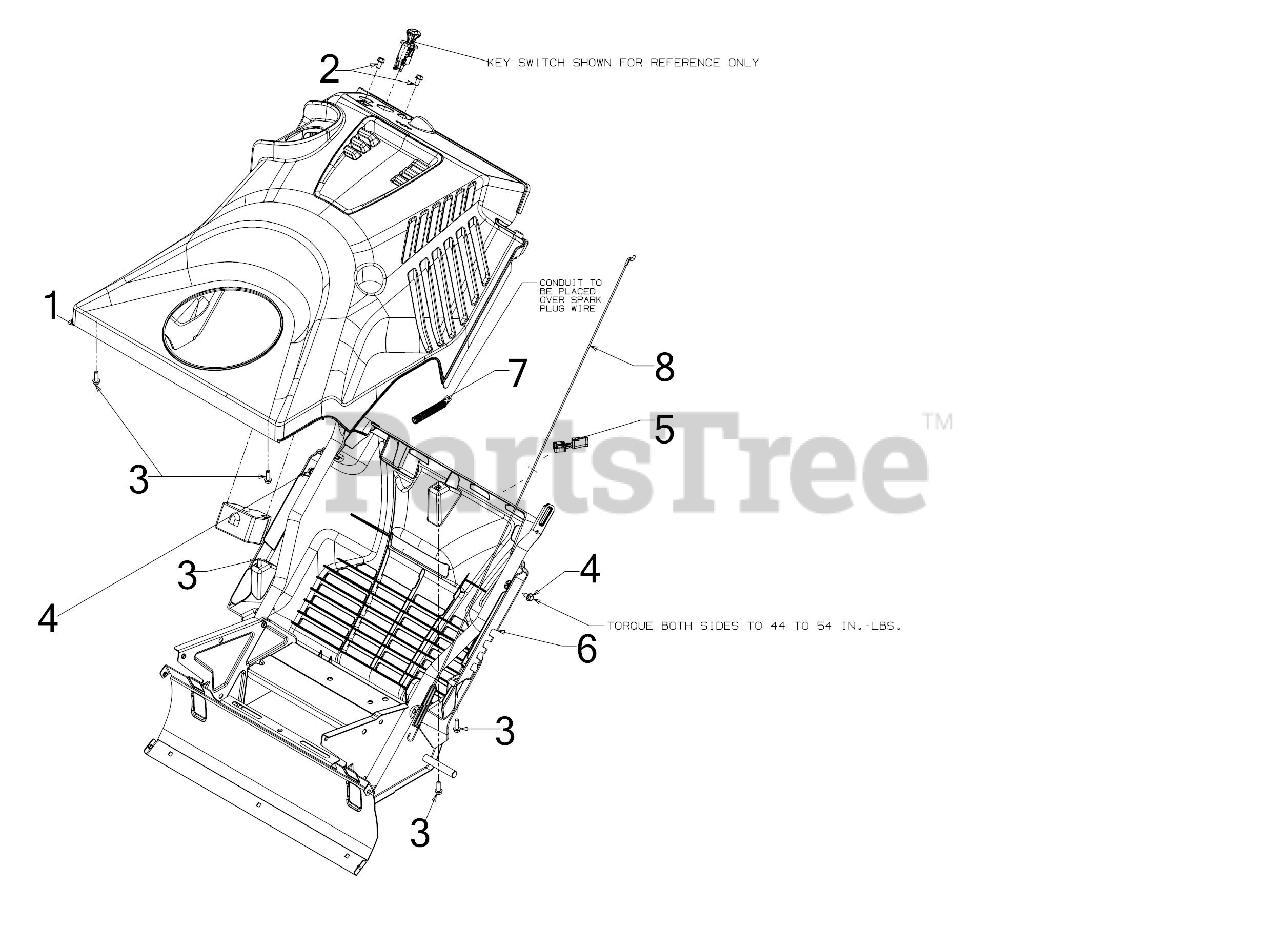

247.887803 (31AS2S5D799) - Craftsman Snow Thrower (2017) Panel Parts Diagram

Snow Thrower

Panel Parts Diagram

  • Title

1

MTD 931-04578B

COVER ASSEMBLY
(Superseded to 931-04578C)

$74.99

$

Usually ships in 3-6 days

0

1

MTD 777S33731

LABEL-SURFACE HOT PICTORIAL

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0

1

MTD 777S33118

LABEL-SNOW FRONT AUGER DANGER

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0

2

MTD 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

3

MTD 710-0895

SCREW 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

4

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

5

MTD 731-07664

CHOKE EXTENION LEVER

$4.99

$

Usually ships in 3-6 days

0

6

MTD 731-07725B

BOTTOM COVER

$56.99

$

In Stock, only 1 left!

0

7

MTD 731-08631-3

CONVOLUTED CONDUIT

$3.99

$

Usually ships in 3-6 days

0

8

MTD 946-04701

AUGER CLUTCH CABLE 37.05"

$23.99

$

In Stock, Qty 11

0
