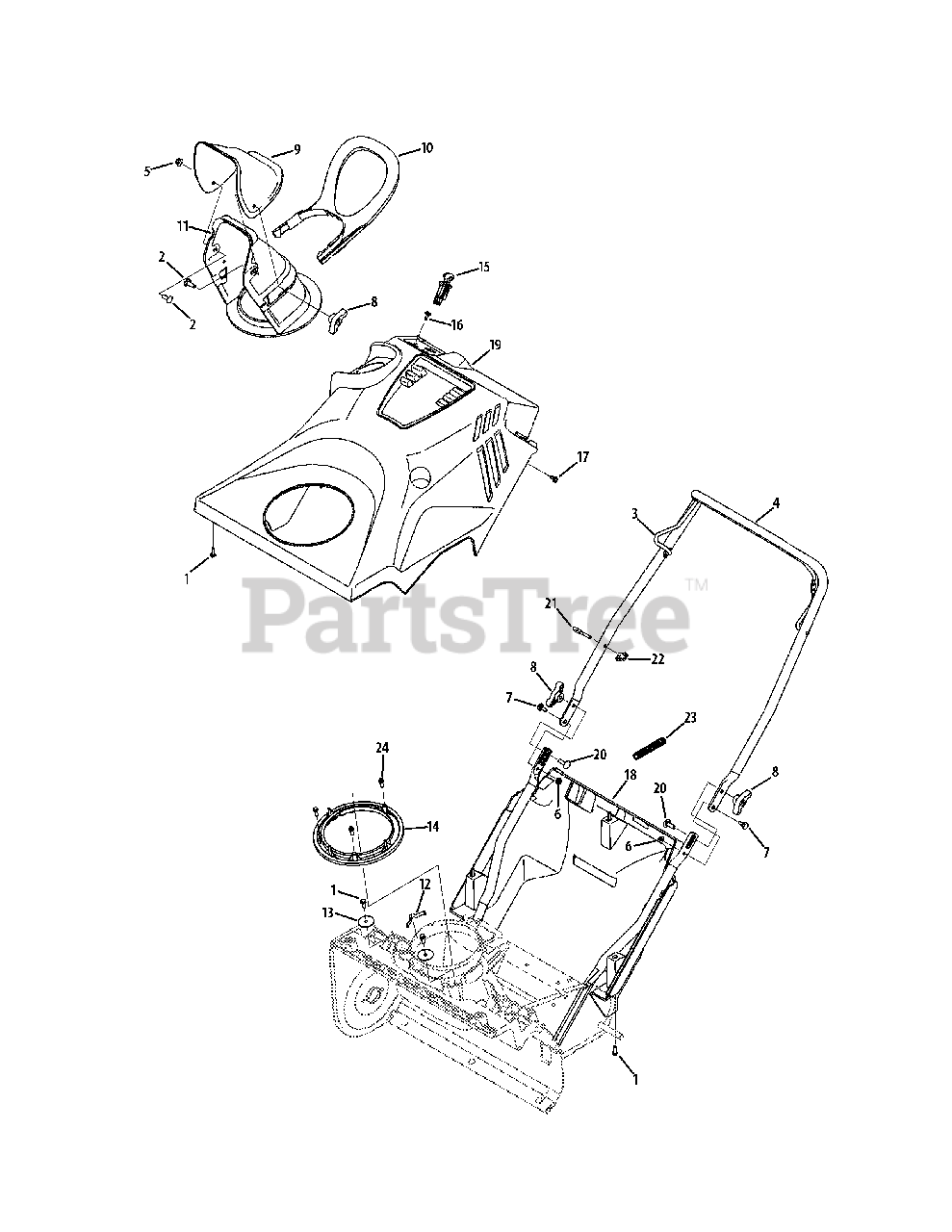

247.887802 (31AS2S5D799) - Craftsman Snow Thrower (2015) Handle & Shroud Parts Diagram

Snow Thrower

Handle & Shroud Parts Diagram

  • Title

1

MTD 710-0895

Screw, 1/4-15 x 0.75

$6.49

$

In Stock, Qty 5

0

2

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

3

MTD 747-05327C-0637

Auger Bail

$16.99

$

In Stock, only 1 left!

0

4

MTD 749-04703B-0637

Upper Handle
(Superseded to 749-04703D-0637)

$46.99

$

Usually ships in 3-6 days

0

5

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 738-04419A

Shoulder Screw, 1/4-20 x .375 x .148

$4.49

$

In Stock, Qty 14

0

8

MTD 720-04122

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 5

0

9

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

10

MTD 731-07644

Chute Handle

$25.99

$

In Stock, only 1 left!

0

11

MTD 931-07753A

Lower Chute

$35.99

$

Usually ships in 3-6 days

0

12

MTD 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, Qty 6

0

13

MTD 736-04576

Flat Washer, .28 x 1.51 x .066

$3.99

$

Usually ships in 3-6 days

0

14

MTD 731-08274

Chute Ring

$13.99

$

In Stock, only 1 left!

0

15

MTD 925-04031B

Ignition Switch Assembly

$41.99

$

Usually ships in 3-6 days

0

16

MTD 710-04187A

Hex Washer Screw, 1/4-15 x .50

$6.99

$

In Stock, Qty 7

0

17

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

18

MTD 731-07725B

Bottom Cover

$56.99

$

In Stock, only 1 left!

0

19

MTD 931-04578B

Top Cover
(Superseded to 931-04578C)

$74.99

$

Usually ships in 3-6 days

0

20

MTD 710-04998

Carriage Screw, 5/16-18 x 1.00

$5.99

$

Usually ships in 3-6 days

0

21

MTD 710-05348

Eye Bolt, 1/4-20

$3.99

$

In Stock, only 1 left!

0

22

MTD 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

23

MTD 731-08631-3

Conduit

$3.99

$

Usually ships in 3-6 days

0

24

MTD 710-05108

Hex Washer Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0
