247.887801 (31AS2S5D799) - Craftsman Snow Thrower (2012) (Sears) .Quick Reference Parts Diagram

Snow Thrower

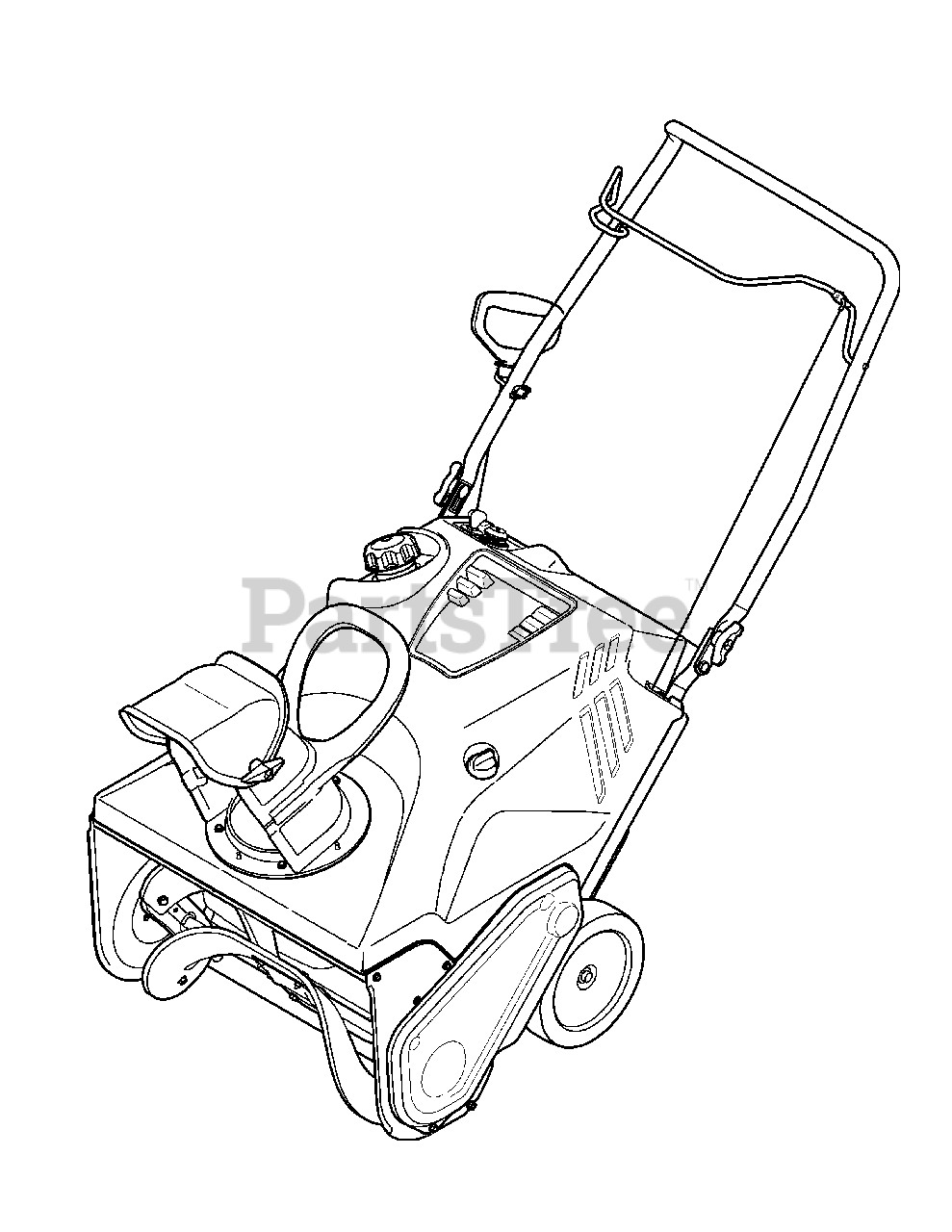

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 731-05632

Key, Ignition
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0

MTD 946-04701

Auger Cable

$23.99

$

In Stock, Qty 11

0

MTD 984-04364

Auger Paddle Assembly Complete

$247.99

$

Usually ships in 3-6 days

0

MTD 731-08171

Shave Plate

$18.99

$

In Stock, Qty 20+

0

MTD 954-04050

Auger Drive Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

MTD 735-04237

Rubber Paddle

$23.99

$

In Stock, Qty 20+

0

MTD 753-06469

Auger Paddle Replacement Kit

Note: (Inc. 2 Paddles and 12 Hex Washer Screws)

$90.99

$

In Stock, Qty 20+

0

MTD 734-1781

Wheel

$32.99

$

In Stock, Qty 7

0
