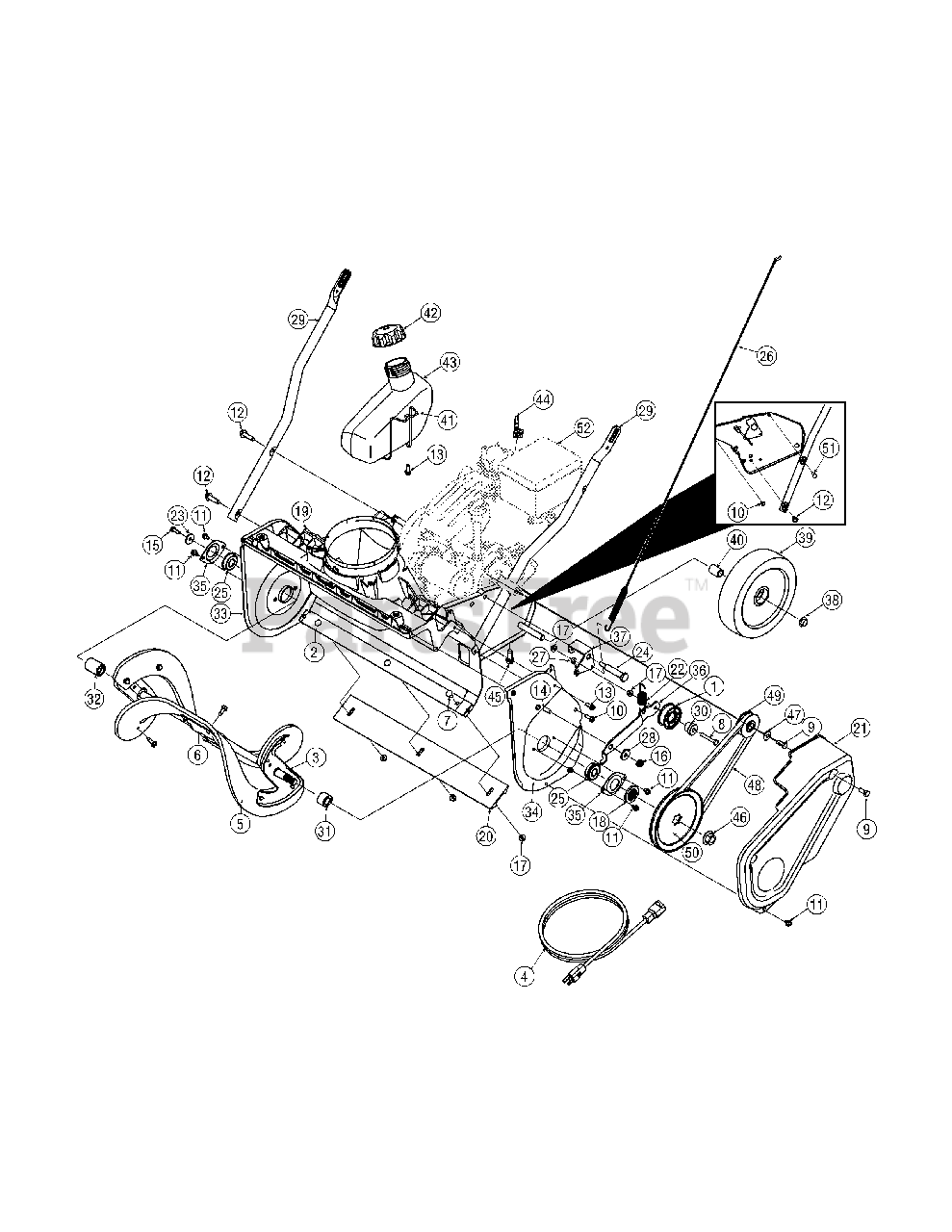

247.887800 (31AS2S5D799) - Craftsman Snow Thrower (2010) (Sears) Drive & Auger Assembly Parts Diagram

Snow Thrower

Drive & Auger Assembly Parts Diagram

  • Title

1

MTD 684-04168

Idler Pulley Assembly

$38.99

$

In Stock, only 1 left!

0

2

MTD 684-04363-0691

Frame
(Superseded to 753-11131A)

$138.99

$

In Stock, only 2 left!

0

3

MTD 984-04364

Auger Assembly Complete

$247.99

$

Usually ships in 3-6 days

0

3

MTD 684-04362-0637

Auger Assembly Axle

Note: (Not shown, w/o paddles and center auger bracket)

$

$

Not available

4

MTD 929-0071A

3-Prong Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

5

MTD 753-06469

Auger Paddle Replacement Kit

Note: (Includes 2 Paddles and 12 Hex Washer Screws)

$90.99

$

In Stock, Qty 20+

0

6

MTD 790-00427-0637

Center Auger Bracket

$8.49

$

Usually ships in 3-6 days

0

7

MTD 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0136

Hex Screw, 1/4-20 x 1.757

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0627

Hex Lock Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0642

Hex Washer Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0653

Hex Washer Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

12

MTD 710-0817

Hex Washer Screw, 5/16-18 x 1.250

$6.99

$

In Stock, Qty 15

0

13

MTD 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

14

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3296

Hex Lock Screw, 1/4-20 x .750

$4.49

$

In Stock, only 3 left!

0

16

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

MTD 718-04737

Pulley Hub

$3.99

$

Usually ships in 3-6 days

0

19

MTD 931-07626

Chute Adapter
(Superseded to 931-07626B)

$42.99

$

Usually ships in 3-6 days

0

20

MTD 931-07667

Shave Plate

$16.99

$

In Stock, Qty 7

0

21

MTD 731-07737

Belt Cover
(Superseded to 731-07737A)

$28.99

$

In Stock, only 3 left!

0

22

MTD 732-04748

Extension Spring, .70 x 3.035

$4.49

$

In Stock, only 1 left!

0

23

MTD 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

24

MTD 738-04456

Shoulder Bolt, 5/16-24 x .496 x 2.18

$5.99

$

In Stock, Qty 6

0

25

MTD 741-04188A

Ball Bearing, .625 x 37 x 12

$12.99

$

In Stock, only 2 left!

0

26

MTD 946-04701

Clutch Cable

$23.99

$

In Stock, Qty 11

0

27

MTD 747-05360

Drive Cable Wire Support
(Superseded to 747-05360A)

$3.99

$

Usually ships in 3-6 days

0

28

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

29

MTD 749-04694-0637

Lower Handle

$10.99

$

Usually ships in 3-6 days

0

30

MTD 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

31

MTD 750-04758

LH Auger Spacer

$6.49

$

In Stock, Qty 9

0

32

MTD 750-05393

RH Auger Spacer

$5.99

$

Usually ships in 3-6 days

0

33

MTD 790-00390-0691

RH Auger Plate

Note: (BLACK)

$

$

Not available

34

MTD 790-00390-4044

RH Auger Plate

Note: (CRAFTSMAN RED)

$

$

Not available

34

MTD 790-00391-0691

LH Auger Plate
(Superseded to 790-00391)

Note: (BLACK)

$40.99

$

Usually ships in 3-6 days

0

35

MTD 790-00391-4044

LH Auger Plate

Note: (CRAFTSMAN RED)

$44.99

$

Usually ships in 3-6 days

0

35

MTD 790-00403-0691

Bearing Cup

Note: (BLACK)

$

$

Not available

36

MTD 790-00403-4044

Bearing Cup

Note: (CRAFTSMAN RED)

$

$

Not available

36

MTD 790-00406-0637

Idler Bracket

$

$

Not available

37

MTD 790-00426

Cable Idler Bracket

Variations

MTD 790-00426-0637

Clutch Cable Bracket - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$7.49

$

Usually ships in 3-6 days

0

38

MTD 726-0299

Push Cap, 1/2

$8.49

$

In Stock, Qty 20+

0

39

MTD 734-1781

Wheel, 8 x 1.7

$32.99

$

In Stock, Qty 7

0

40

MTD 750-05417

Sleeve Spacer, .525 x .78 x 1.00

$3.99

$

Usually ships in 3-6 days

0

41

MTD 747-05341

Gas Tank Wire Support

$

$

Not available

42

MTD 751-10487

Fuel Cap
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

43

MTD 751-11648

Fuel Tank
(Superseded to 751-14001A)

$44.99

$

Usually ships in 3-6 days

0

44

MTD 731-07664

Choke Extension Lever

$4.99

$

Usually ships in 3-6 days

0

45

MTD 710-0654A

Hex Washer Screw, 3/8-16 x 1.000

$4.49

$

In Stock, Qty 20+

0

46

MTD 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 1 left!

0

47

MTD 736-0371

Flat Washer, .343 x .88 x .062

$4.49

$

In Stock, only 3 left!

0

48

MTD 954-04050

Belt, .500 x 35.06
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

49

MTD 956-0416B

Pulley Half, .625 x 2.25

$10.99

$

In Stock, only 2 left!

0

50

MTD 756-04443

Pulley, 1/2 x 6.00

$23.99

$

In Stock, only 4 left!

0

51

MTD 710-05183

Hex Screw, 5/16-24 x 1.25

$4.49

$

Usually ships in 3-6 days

0

52

MTD 752Z265-JU

Replacement Engine
(Superseded to 952Z265-JU-12)

$787.99

$

Usually ships in 3-6 days

0
