247.887790 (31AS32BD799) - Craftsman Snow Thrower (2010) (Sears) Auger & Housing Assembly Parts Diagram

Snow Thrower

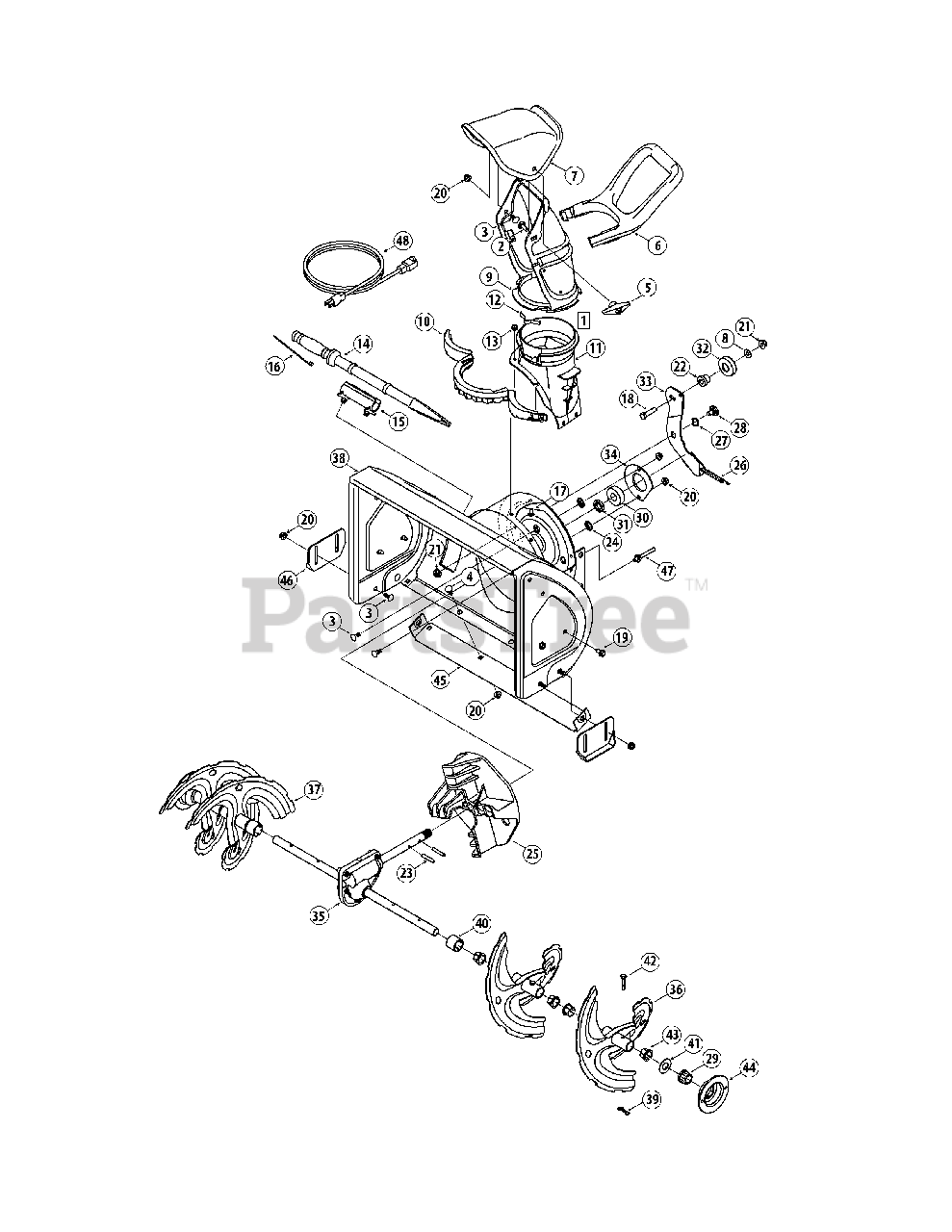

Auger & Housing Assembly Parts Diagram

  • Title

1

MTD 984-04037

Chute Assembly

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-04071

Carriage Bolt 5/16-18 x 1.0"

$4.49

$

In Stock, Qty 15

0

3

MTD 710-0451

Carriage Bolt 5/16-18

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0260A

Carriage Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

5

MTD 720-04072AA

Wing Knob 5/16-18

$

$

Currently unavailable

6

MTD 731-04388A

Chute Handle

$26.99

$

Usually ships in 3-6 days

0

7

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

8

MTD 936-0267

Flat Washer .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

9

MTD 931-04127

Lower Chute

$33.99

$

Usually ships in 3-6 days

0

10

MTD 931-04353

Chute Ring

$18.99

$

Usually ships in 3-6 days

0

11

MTD 931-2636A

Chute Adapter 5" Dia.

$20.99

$

Usually ships in 3-6 days

0

12

MTD 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, only 3 left!

0

13

MTD 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

MTD 931-2643

Clean-out Tool

$19.99

$

In Stock, Qty 18

0

15

MTD 731-2635

Clean-out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 7

0

16

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

17

MTD 710-0134

Carriage Screw 1/4-20 x 0.62"

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-0520

Hex Bolt 3/8-16 x 1.50"

$4.49

$

In Stock, Qty 6

0

19

MTD 710-04484

AB Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 18

0

22

MTD 750-04852

Shoulder Spacer

$6.99

$

In Stock, only 1 left!

0

23

MTD 715-04020

Spiral Pin

$11.99

$

In Stock, only 2 left!

0

24

MTD 926-04012

Push On Nut
(Superseded to 726-04012)

$

$

Not available

25

MTD 731-04218B

Impeller

$82.99

$

In Stock, only 2 left!

0

26

MTD 932-0611

Extension Spring

$7.49

$

In Stock, Qty 20+

0

27

MTD 736-0174

Wave Washer

$6.99

$

In Stock, only 2 left!

0

28

MTD 938-0281

Shoulder Screw 3/8-16
(Superseded to 738-0281)

$

$

Not available

29

MTD 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

30

MTD 941-0309

Ball Bearing

$74.99

$

Usually ships in 3-6 days

0

31

MTD 950-04191

Spacer

$6.49

$

Usually ships in 3-6 days

0

32

MTD 684-04358

Flat Idler

$25.99

$

In Stock, only 1 left!

0

33

MTD 784-0434-0637

Auger Idler Bracket
(Superseded to 784-0434C-0637)

$19.99

$

Usually ships in 3-6 days

0

34

MTD 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

Usually ships in 3-6 days

0

35

MTD 918-04292B

Auger Gearbox Assembly
(Superseded to 918-04292C)

$275.99

$

Usually ships in 3-6 days

0

36

MTD 684-04113A-0637

Auger Assembly - LH

$84.99

$

Usually ships in 3-6 days

0

37

MTD 684-04114A-0637

Auger Assembly - RH

$84.99

$

Usually ships in 3-6 days

0

38

MTD 684-04166A-4044

Auger Housing, 22"

$256.99

$

Usually ships in 3-6 days

0

39

MTD 714-04040

Bow Tie Cotter Pin 72

$1.49

$

In Stock, Qty 20+

0

40

MTD 731-04870

Spacer, 1.25 x.75 x 1.00

$4.99

$

In Stock, Qty 18

0

41

MTD 936-0351

Flat Washer
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

42

MTD 738-04124A

Shear Pin,.25 x 1.50

$1.99

$

In Stock, Qty 20+

0

43

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

44

MTD 790-00087A-0637

Hex Bearing Housing

$22.99

$

In Stock, only 2 left!

0

45

MTD 790-00117-0637

Shave Plate 2.25 x 21.66 LG

$30.99

$

In Stock, Qty 20+

0

46

MTD 784-5580-4044

Skid Shoe

$23.99

$

In Stock, Qty 18

0

47

MTD 710-04606A

Belt Keeper

$7.49

$

In Stock, only 1 left!

0

48

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

$21.99

$

Usually ships in 3-6 days
