247.887360 (55AC5GMR299) - Craftsman Walk-Behind Mower (2008) (Sears) Spindle Assembly Parts Diagram

Walk-Behind Mower

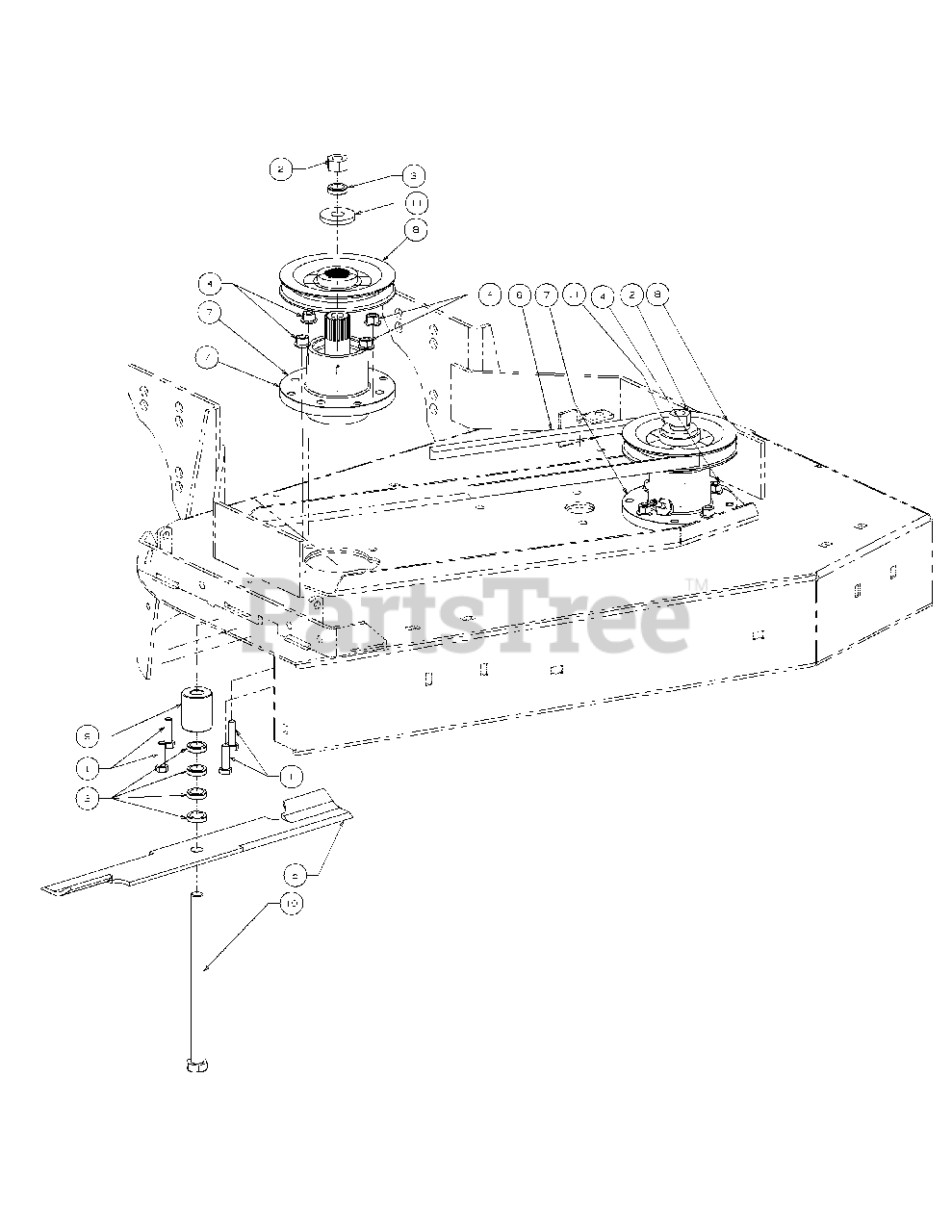

Spindle Assembly Parts Diagram

  • Title

1

MTD 00010980

Hex Cap Screw, 3/8-16 x 1-1/2

$6.49

$

Usually ships in 3-6 days

0

2

MTD 00011807

Hex Nut, 5/8-11

$

$

Not available

3

MTD 00021924

Blade Spacer, 5/8 ID, 1/4 Thick

$

$

Not available

4

MTD 712-04065

Hex Nut Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

MTD 00050125

18" Rotary Blade

$45.99

$

Usually ships in 3-6 days

0

6

MTD 00050441

V-Belt

$59.99

$

In Stock, only 3 left!

0

7

MTD 01007491

Spindle Assembly
(Superseded to 01007491P)

$352.99

$

Usually ships in 3-6 days

0

7

MTD 01007642

Grease Fitting, 1/4-28 x 1.609
(Superseded to 737-04352)

$15.99

$

Usually ships in 3-6 days

0

8

MTD 01007499

Deck Pulley

$168.99

$

Usually ships in 3-6 days

0

9

MTD 01007577

Blade Spacer, .630 x 1.500 x 1.850
(Superseded to 01007577P)

$28.99

$

Usually ships in 3-6 days

0

10

MTD 01007591

Hex Cap Screw, 5/8-11 x 9
(Superseded to 01007591P)

$

$

Not available

11

MTD 01007595

Flat Washer, .656 ID x 1.313 OD
(Superseded to 01007595P)

$17.99

$

Usually ships in 3-6 days

0
