247.887360 (55AC5GMR299) - Craftsman Walk-Behind Mower (2008) (Sears) Cover Assembly Parts Diagram

Walk-Behind Mower

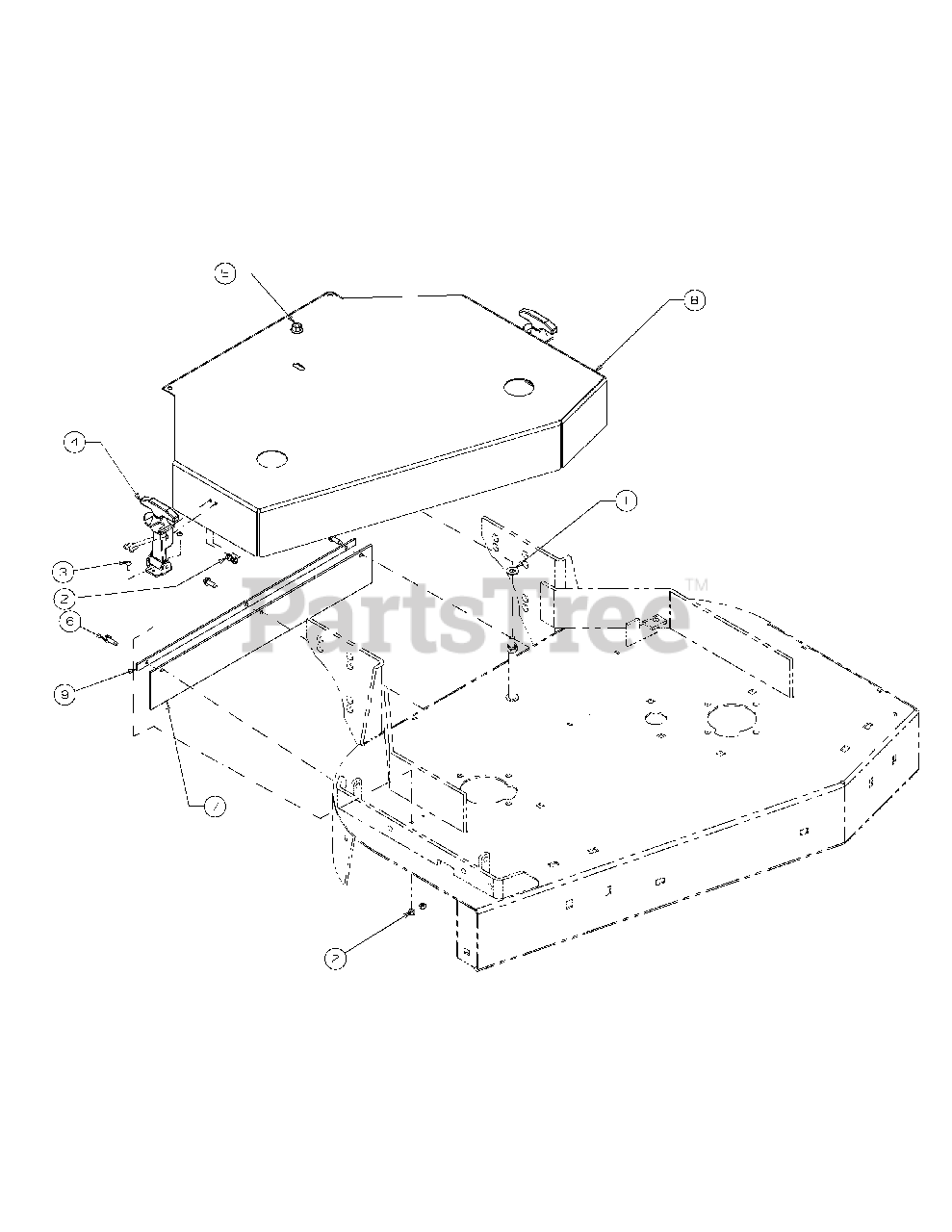

Cover Assembly Parts Diagram

  • Title
1

MTD 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

2

MTD 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

3

MTD 00017778

Phillips Head Screw, #10-32 x 1/2

$4.99

$

In Stock, only 2 left!

0

4

MTD 00021951

Rubber Hood Latch

$72.99

$

Usually ships in 3-6 days

0

5

MTD 712-04065

Hex Nut, 3/8-16, Flange Lock

$3.99

$

In Stock, Qty 20+

0

6

MTD 01000629

Self Tapping Screw, 1/4-20 x 0.75
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

7

MTD 02005520

Trail Shield

$41.99

$

Usually ships in 3-6 days

0

8

MTD 02005533

Deck Cover, 36
(Superseded to 02005533-0637)

Variations

MTD 02005533-0637

DECK COVER- 36" - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 02005636

Trailshield Plate
(Superseded to 02005636-4028)

Variations

MTD 02005636-4028

PLATE-TRAIL SHIELD - SEARS YELLOW (4028)

$

$

Not available

$

$
