247.887330 (12A-764M099) - Craftsman Walk-Behind Mower (2009) (Sears) Handle & Frame Assembly Parts Diagram

Walk-Behind Mower

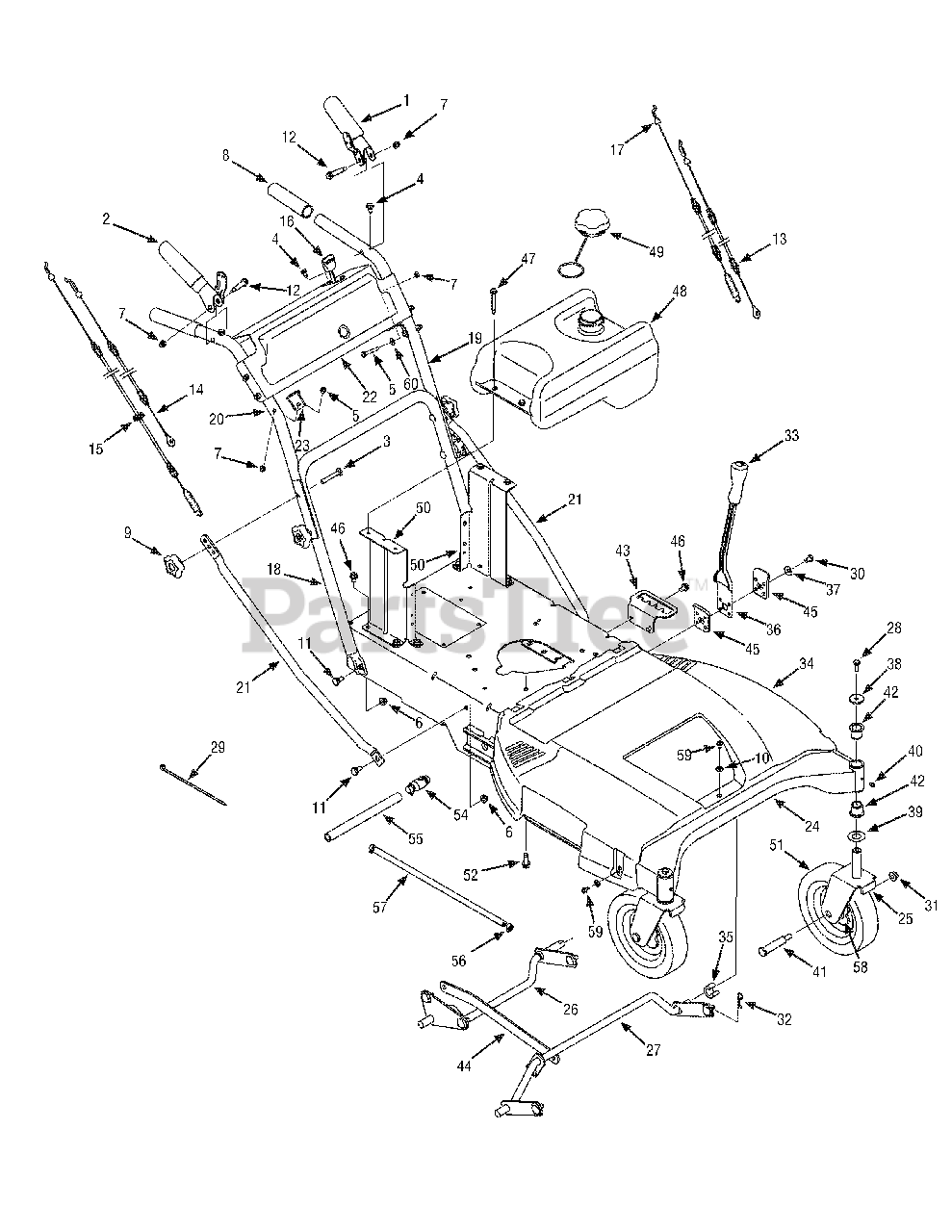

Handle & Frame Assembly Parts Diagram

  • Title

1

MTD 687-02427

Lever Assembly: LH
(Superseded to 687P02427C)

$28.99

$

In Stock, only 1 left!

0

2

MTD 687-02426

Lever Assembly: RH
(Superseded to 687P02426C)

$28.99

$

In Stock, only 1 left!

0

3

MTD 710-0572

Screw, Carriage: 5/16-18 x 2.25"

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0599

Screw, TT: 1/4-20 x 0.500"

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0606

Screw, HH Cap: 1/4-20 x 1.50"

$5.49

$

In Stock, Qty 10

0

6

MTD 712-04063

Nut, Flange Lock: 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 912-0442

Nut, Lock Cap: 1/4-20
(Superseded to 712-0442)

$

$

Not available

8

MTD 720-0274

Grip: 1.0" ID x 5.0" Lg

$11.99

$

In Stock, Qty 11

0

9

MTD 720-04072A

Star Knob 5/16-18

Note: replaces 720-04072

$6.99

$

In Stock, Qty 20+

0

10

MTD 936-0463

Washer, Flat: .25 x .63 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

11

MTD 938-0140

Screw, Shoulder: .435" x .178-5/16
(Superseded to 738-0140)

$

$

Not available

12

MTD 938-1226

Screw, Shoulder: .375" x 1.355" x 1/4-20

$7.99

$

In Stock, only 1 left!

0

13

MTD 946-04609

Cable, Clutch Wheel
(Superseded to 753-08265A)

$59.99

$

In Stock, Qty 20+

0

14

MTD 946-04606

Cable, Brake, Transmission: RH
(Superseded to 946-05076A)

$36.99

$

In Stock, only 1 left!

0

15

MTD 946-04610

Cable, Clutch Deck
(Superseded to 753-08266)

$44.99

$

In Stock, Qty 6

0

16

MTD 946-04604

Cable, Throttle/Choke: 38" x 1.1" Ext

$42.99

$

Usually ships in 3-6 days

0

17

MTD 946-04608

Cable, Brake, Transmission: LH
(Superseded to 946-05077A)

$36.99

$

In Stock, Qty 20+

0

18

MTD 749-04330-0637

Lower Handle

$84.99

$

In Stock, only 1 left!

0

19

MTD 749-04331-0637

Upper Handle: LH

$

$

Not available

20

MTD 749-04332-0637

Upper Handle: RH

$52.99

$

Usually ships in 3-6 days

0

21

MTD 749-04333-0637

Brace Tube

$46.99

$

Usually ships in 3-6 days

0

22

MTD 787-01540-0721

Handle Panel
(Superseded to 787-01540-4044)

$61.99

$

Usually ships in 3-6 days

0

23

MTD 787-01490A-0637

Cable Mount Bracket: RH

$10.99

$

Usually ships in 3-6 days

0

23

MTD 787-01491A-0637

Cable Mount Bracket: LH

$19.99

$

Usually ships in 3-6 days

0

24

MTD 687-02255B-0721

Frame Assembly
(Superseded to 687-02591B-4044)

$540.99

$

Usually ships in 3-6 days

0

25

MTD 687-02263-0721

Caster Wheel Bracket Assembly
(Superseded to 687-02263-4044)

$83.99

$

Usually ships in 3-6 days

0

26

MTD 687-02419-0637

Deck Lift Assembly: RR

$68.99

$

In Stock, only 1 left!

0

27

MTD 687-02265-0637

Deck Lift Assembly: Front

$59.99

$

Usually ships in 3-6 days

0

28

MTD 710-0627

Screw, HH Cap: 5/16-24 x .750"

$4.49

$

In Stock, Qty 20+

0

29

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

30

MTD 710-04312

Screw, HH Cap: 5/16-18 x .50"

$7.49

$

In Stock, only 1 left!

0

31

MTD 712-04065

Nut, Flange Lock: 3/8-16

$3.99

$

In Stock, Qty 20+

0

32

MTD 914-0145

Click Pin: .092" x 1.64"
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

33

MTD 720-0311

Handle Grip 1/2"

$15.99

$

In Stock, only 1 left!

0

34

MTD 931-05684

Belt Cover 33" Wide Cut Mower

$121.99

$

Usually ships in 3-6 days

0

35

MTD 731-05791

Snap Spacer: .63" ID x .75" LG

$5.99

$

In Stock, only 2 left!

0

36

MTD 732-04418A

Deck Height Lever
(Superseded to 732-04418C)

$45.99

$

In Stock, only 1 left!

0

37

MTD 736-0242

Washer, Bell: .340" x .872" x .060"

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0343

Washer, Flat: .330" x 1.25" x .120"

$4.49

$

In Stock, Qty 7

0

39

MTD 936-0351

Washer, Flat: .760" ID x 1.50" OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

40

MTD 937-3000

Lube Fitting: 3/16: LNC #70

$4.99

$

In Stock, Qty 20+

0

41

MTD 738-04216A

Bolt, Shoulder: .625" x 2.515" x 3/8-16

$8.49

$

In Stock, Qty 9

0

42

MTD 741-0660A

Flange Bearing: .760" x .941" x 1.0"

$3.49

$

In Stock, Qty 20+

0

43

MTD 787-01496-0721

Height Adjustment Bracket
(Superseded to 787-01496-4044)

$17.99

$

Usually ships in 3-6 days

0

44

MTD 787-01510-0637

Link Pivot Bracket

$39.99

$

Usually ships in 3-6 days

0

45

MTD 787-01521-0637

Lever Pivot Bracket
(Superseded to 787-06323-0637)

$9.49

$

Usually ships in 3-6 days

0

46

MTD 710-0604A

Screw, TT: 5/16-18 x .625"

$4.49

$

In Stock, Qty 20+

0

47

MTD 938-1225

Screw, Shoulder: .3175" x .188" x 1/4-20
(Superseded to 738-1225)

$

$

Not available

48

MTD 951-10480

Fuel Tank, 2 Gal.

$124.99

$

Usually ships in 3-6 days

0

49

MTD 951-10514

Fuel Cap

$37.99

$

In Stock, only 1 left!

0

50

MTD 787-01507-0721

Fuel Tank Mounting Bracket
(Superseded to 787-01507B-4044)

$19.99

$

Usually ships in 3-6 days

0

51

MTD 734-04243

Wheel, 8" x 1.75"

$57.99

$

In Stock, only 1 left!

0

52

MTD 710-1315

Screw, TT: 3/8-16 x 1.25"

$4.49

$

In Stock, Qty 20+

0

54

MTD 951-10517A

Oil Drain

$24.99

$

In Stock, only 2 left!

0

55

MTD 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 8

0

56

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

57

MTD 751-10349-28

Fuel Hose

$41.99

$

In Stock, only 1 left!

0

58

MTD 941-0706

Flange Bearing, .635"

$8.49

$

In Stock, Qty 7

0

59

MTD 710-0896

Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

60

MTD 736-0270

Washer, Bell: .265" x .75" x .062"

$3.99

$

In Stock, Qty 20+

0
