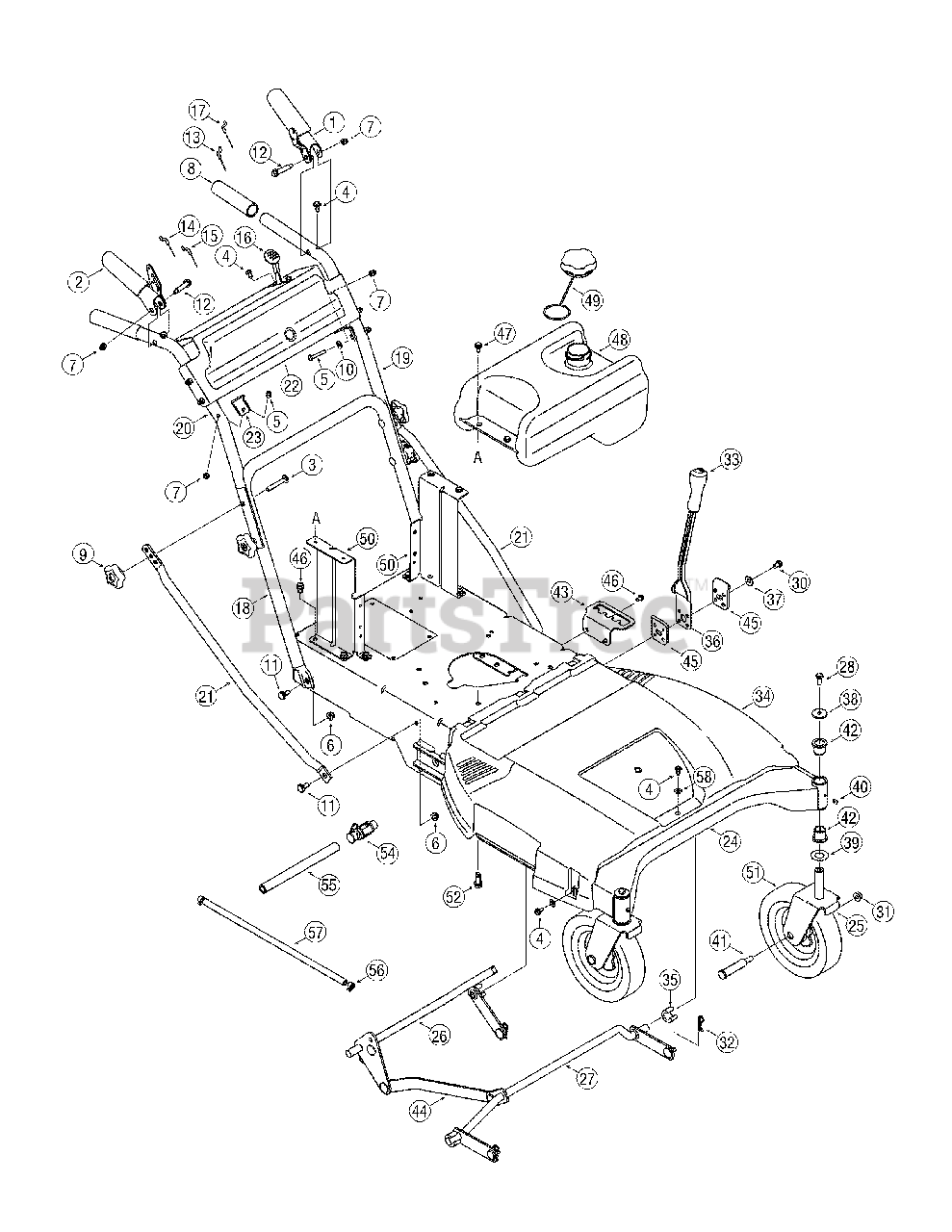

247.887330 (12A-764M099) - Craftsman Walk-Behind Mower (2008) (Sears) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 687-02427

Lever Assembly: LH
(Superseded to 687P02427C)

$28.99

$

In Stock, only 1 left!

0

2

MTD 687-02426

Lever Assembly: RH
(Superseded to 687P02426C)

$28.99

$

In Stock, only 1 left!

0

3

MTD 710-0449

Screw, Carriage: 5/16-18 x 2.25"
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0599

Screw, TT: 1/4-20 x 0.500"

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0606

Screw, HH Cap: 1/4-20 x 1.50"

$5.49

$

In Stock, Qty 10

0

6

MTD 712-04063

Nut, Flange Lock: 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-0442

Nut, Lock Cap: 1/4-20

$6.99

$

In Stock, only 4 left!

0

8

MTD 720-0274

Grip: 1.0" ID x 5.0" Lg

$11.99

$

In Stock, Qty 8

0

9

MTD 720-04072

Star Knob 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

10

MTD 736-0463

Washer, Flat: .25 x .63 x .0515

$4.49

$

In Stock, Qty 20+

0

11

MTD 738-0140

Screw, Shoulder: .435" x .178-5/16

$5.99

$

In Stock, Qty 15

0

12

MTD 738-1226

Screw, Shoulder: .375" x 1.355" x 1/4-20

$7.99

$

Usually ships in 3-6 days

0

13

MTD 746-04445

Cable, Clutch Wheel
(Superseded to 946-05149)

$55.99

$

In Stock, only 4 left!

0

14

MTD 746-04446

Cable, Brake, Transmission: RH
(Superseded to 946-04446)

$56.99

$

Usually ships in 3-6 days

0

15

MTD 746-04449

Cable, Clutch Deck
(Superseded to 946-04449)

$57.99

$

In Stock, only 1 left!

0

16

MTD 746-04355

Cable, Throttle/Choke: 38" x 1.1" Ext
(Superseded to 946-04355)

$52.99

$

Usually ships in 3-6 days

0

17

MTD 746-04450

Cable, Brake, Transmission: LH

$60.99

$

In Stock, only 1 left!

0

18

MTD 749-04330

Lower Handle
(Superseded to 749-04330-0637)

Variations

MTD 749-04330-0637

HANDLE-LOWER - POWDER BLACK (0637)

$84.99

$

In Stock, only 1 left!

0

$84.99

$

In Stock, only 1 left!

0

19

MTD 749-04331

Upper Handle: LH
(Superseded to 749-04331-0637)

Variations

MTD 749-04331-0637

Left Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 749-04332

Upper Handle: RH
(Superseded to 749-04332-0637)

Variations

MTD 749-04332-0637

Right Upper Handle - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

21

MTD 749-04333

Brace Tube
(Superseded to 749-04333-0637)

Variations

MTD 749-04333-0637

BRACE-HANDLE ADJ - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

22

MTD 787-01449

Handle Panel
(Superseded to 787-01540-4044)

Variations

MTD 787-01449-0716

No Longer Available PANEL-HAND - CUB YELLOW-99 (0716)

$

$

Not available

MTD 787-01449-0721

No Longer Available PANEL-HAND - SEARS RED (0721)

$

$

Not available

$61.99

$

Usually ships in 3-6 days

0

23

MTD 787-01490A

Cable Mount Bracket: RH
(Superseded to 787-01490A-0637)

Variations

MTD 787-01490A-0637

BRACKET-CABLE MTG RH - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

23

MTD 787-01491A

Cable Mount Bracket: LH
(Superseded to 787-01491A-0637)

Variations

MTD 787-01491A-0637

BRACKET-CABLE MTG LH - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

24

MTD 687-02255A

Frame Assembly
(Superseded to 687-02591B)

Variations

MTD 687-02255A-0638

FRAME ASM-33" WCM - MTD/TROY-BILT RED (0638)

$502.99

$

Usually ships in 3-6 days

0

MTD 687-02255A-0721

USE 687-02591B-4044 FRAME ASM - SEARS RED (0721)

$540.99

$

Usually ships in 3-6 days

0

MTD 687-02255A-4015

FRAME ASSY-33" MOWER WIDECUT - FIRE RED (4015)

$437.99

$

Usually ships in 3-6 days

0

MTD 687-02255A-4021

FRAME ASM-33" WCM - CUB YELLOW 2 (4021)

$447.99

$

Usually ships in 3-6 days

0

$437.99

$

Usually ships in 3-6 days

0

25

MTD 687-02263

Caster Wheel Bracket Assembly

Variations

MTD 687-02263-0606

Caster Wheel Yoke, Orange - MAJESTIC ORANGE (0606)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-0716

Caster Wheel Yoke, Yellow - CUB YELLOW-99 (0716)

$83.99

$

In Stock, only 2 left!

0

MTD 687-02263-0721

YOKE-CASTER WHEEL - SEARS RED (0721)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-4021

Caster Wheel Yoke, Yellow - CUB YELLOW 2 (4021)

$83.99

$

In Stock, only 2 left!

0

MTD 687-02263-4044

YOKE-CASTER WHEEL - CRAFTSMAN RED (4044)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-0637

Caster Wheel Yoke, Black - POWDER BLACK (0637)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-0638

YOKE-CASTER WHEEL - MTD/TROY-BILT RED (0638)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-4033

Caster Wheel Yoke, Red - FLINT MICA (4033)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-0691

YOKE-CASTER WHEEL - BLACK JACK (0691)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-4015

YOKE-CASTER WHEEL - FIRE RED (4015)

$83.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

26

MTD 687-02419

Deck Lift Assembly: RR
(Superseded to 687-02419-0637)

Variations

MTD 687-02419-0637

Deck Lift Assembly - POWDER BLACK (0637)

$68.99

$

In Stock, only 1 left!

0

$68.99

$

In Stock, only 1 left!

0

27

MTD 687-02265

Deck Lift Assembly: Front
(Superseded to 687-02265-0637)

Variations

MTD 687-02265-0637

Front Lift Assembly - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0

28

MTD 710-0627

Screw, HH Cap: 5/16-24 x .750"

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-04312

Screw, HH Cap: 5/16-18 x .50"

$7.49

$

In Stock, only 1 left!

0

31

MTD 712-04065

Nut, Flange Lock: 3/8-16

$3.99

$

In Stock, Qty 20+

0

32

MTD 714-0145

Click Pin: .092" x 1.64"

$4.99

$

In Stock, Qty 20+

0

33

MTD 720-0311

Handle Grip 1/2"

$15.99

$

In Stock, only 1 left!

0

34

MTD 731-05684

Belt Cover 33" Wide Cut Mower
(Superseded to 931-05684)

$121.99

$

Usually ships in 3-6 days

0

35

MTD 731-05791

Snap Spacer: .63" ID x .75" LG

$5.99

$

In Stock, only 2 left!

0

36

MTD 732-04418

Deck Height Lever
(Superseded to 732-04418C)

$45.99

$

In Stock, only 1 left!

0

37

MTD 736-0242

Washer, Bell: .340" x .872" x .060"

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0343

Washer, Flat: .330" x 1.25" x .120"

$4.49

$

In Stock, Qty 7

0

39

MTD 736-0351

Washer, Flat: .760" ID x 1.50" OD

$4.49

$

In Stock, Qty 20+

0

40

MTD 737-3000

Lube Fitting: 3/16: LNC #70
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

41

MTD 738-04216A

Bolt, Shoulder: .625" x 2.515" x 3/8-16

$8.49

$

In Stock, Qty 6

0

42

MTD 741-0660A

Flange Bearing: .760" x .941" x 1.0"

$3.49

$

In Stock, Qty 20+

0

43

MTD 787-01496

Height Adjustment Bracket

Variations

MTD 787-01496-0716

Height Adjustment Bracket - CUB YELLOW-99 (0716)

$19.99

$

Usually ships in 3-6 days

0

MTD 787-01496-0606

BRACKET-HEIGHT ADJ - MAJESTIC ORANGE (0606)

$17.99

$

Usually ships in 3-6 days

0

MTD 787-01496-4021

Height Adjustment Bracket - CUB YELLOW 2 (4021)

$19.99

$

Usually ships in 3-6 days

0

MTD 787-01496-0638

BRACKET-HEIGHT ADJ - MTD/TROY-BILT RED (0638)

$19.99

$

Usually ships in 3-6 days

0

MTD 787-01496-0691

BRACKET-HEIGHT ADJ - BLACK JACK (0691)

$19.99

$

Usually ships in 3-6 days

0

MTD 787-01496-0721

BRACKET-HEIGHT ADJ - SEARS RED (0721)

$17.99

$

Usually ships in 3-6 days

0

MTD 787-01496-4015

BRACKET-HEIGHT ADJ - FIRE RED (4015)

$17.99

$

Usually ships in 3-6 days

0

MTD 787-01496-4028

BRACKET-HEIGHT ADJ - SEARS YELLOW (4028)

$19.99

$

Usually ships in 3-6 days

0

MTD 787-01496-4033

BRACKET-HEIGHT ADJ - FLINT MICA (4033)

$19.99

$

Usually ships in 3-6 days

0

MTD 787-01496-4044

BRACKET-HEIGHT ADJ - CRAFTSMAN RED (4044)

$17.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

44

MTD 787-01510

Link Pivot Bracket
(Superseded to 787-01510-0637)

Variations

MTD 787-01510-0637

LINK-LIFT PIVOT - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

45

MTD 787-01521

Lever Pivot Bracket
(Superseded to 787-06323-0637)

Variations

MTD 787-01521-0637

Height Lever Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

46

MTD 710-0604A

Screw, TT: 5/16-18 x .625"

$4.49

$

In Stock, Qty 20+

0

47

MTD 738-1225

Screw, Shoulder: .3175" x .188" x 1/4-20

$6.99

$

In Stock, only 2 left!

0

48

MTD 751-10480

Fuel Tank, 2 Gal.
(Superseded to 951-10480)

$124.99

$

Usually ships in 3-6 days

0

49

MTD 751-10514

Fuel Cap
(Superseded to 951-10514)

$37.99

$

In Stock, only 1 left!

0

50

MTD 787-01507

Fuel Tank Mounting Bracket
(Superseded to 787-01507B)

Variations

MTD 787-01507-0638

BRACKET-FUEL TANK - MTD/TROY-BILT RED (0638)

$18.99

$

Usually ships in 3-6 days

0

MTD 787-01507-0691

BRACKET-FUEL TANK - BLACK JACK (0691)

$18.99

$

Usually ships in 3-6 days

0

MTD 787-01507-0716

BRACKET-FUEL TANK - CUB YELLOW-99 (0716)

$20.99

$

Usually ships in 3-6 days

0

MTD 787-01507-0721

BRACKET-FUEL TANK - SEARS RED (0721)

$19.99

$

Usually ships in 3-6 days

0

MTD 787-01507-4015

BRACKET-FUEL TANK - FIRE RED (4015)

$19.99

$

Usually ships in 3-6 days

0

MTD 787-01507-4021

BRACKET-FUEL TANK - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

MTD 787-01507-4028

BRACKET-FUEL TANK - SEARS YELLOW (4028)

$16.99

$

Usually ships in 3-6 days

0

MTD 787-01507-4033

BRACKET-FUEL TANK - FLINT MICA (4033)

$20.99

$

Usually ships in 3-6 days

0

MTD 787-01507-4044

BRACKET-FUEL TANK - CRAFTSMAN RED (4044)

$19.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

51

MTD 734-04243

Wheel, 8" x 1.75"

$57.99

$

In Stock, only 1 left!

0

52

MTD 710-1315

Screw, TT: 3/8-16 x 1.25"

$4.49

$

In Stock, Qty 20+

0

54

MTD 751-10517

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

55

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

56

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

57

MTD 751-10349

Fuel Hose

$9.49

$

Usually ships in 3-6 days

0
