247.887210 (12AE999K299) - Craftsman Walk-Behind Mower (2008) (Sears) General Assembly Parts Diagram

Walk-Behind Mower

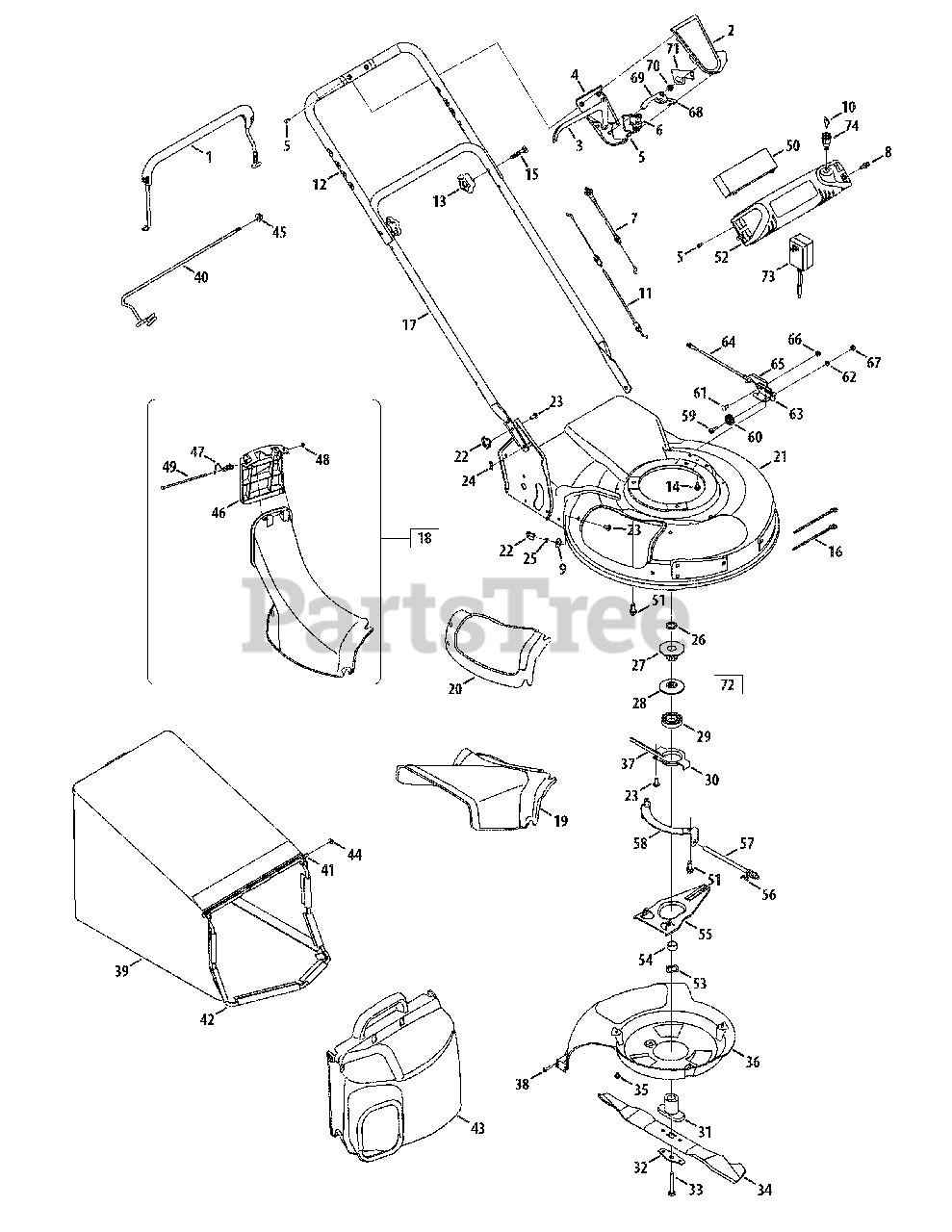

General Assembly Parts Diagram

  • Title

1

MTD 647-0004

Blade Control
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 753-0717

Upper Control Housing

$

$

Not available

3

MTD 731-0620A

Drive Control

$15.99

$

In Stock, only 1 left!

0

4

MTD 753-0717

Lower Control Housing

$

$

Not available

5

MTD 710-1667A

C Sunk Tap Screw, #10 x.75 Lg

$4.49

$

In Stock, Qty 13

0

6

MTD 753-0717

Cable Mounting Cap

$

$

Not available

7

MTD 746-0711B

Drive Cable - 51"
(Superseded to 946-0711B)

$32.99

$

In Stock, only 1 left!

0

8

MTD 728-0199

Rivet

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-3090

Washer, Flat, .260 x .720 x .060

$6.99

$

In Stock, Qty 11

0

10

MTD 925-0201

Key

$9.49

$

In Stock, only 1 left!

0

11

MTD 746-1131

Control Cable - 46"
(Superseded to 946-1131)

$24.99

$

Usually ships in 3-6 days

0

12

MTD 749-04354A-0637

Upper Handle

$52.99

$

Usually ships in 3-6 days

0

13

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

14

MTD 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

16

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

17

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

18

MTD 931-0066

Adapter Assembly

$115.99

$

Usually ships in 3-6 days

0

19

MTD 731-1832

Side Discharge Chute

$

$

Not available

20

MTD 931-1833A

Mulch Cover

$44.99

$

In Stock, only 1 left!

0

21

MTD 782-0078B-4028

Deck 21"

$

$

Not available

22

MTD 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0703

Carriage Bolt, 1/4-20 x .75"

$4.49

$

In Stock, Qty 15

0

24

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

25

MTD 726-0233

Push Nut, .25 x ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

26

MTD 950-1071

Sleeve Spacer, .88ID x 1.13OD

$4.49

$

In Stock, Qty 5

0

27

MTD 756-0612A

Half Pulley: 2.62 OD

$16.99

$

Usually ships in 3-6 days

0

28

MTD 756-0613

Half Pulley: 2.62 OD x 1.61

$17.99

$

Usually ships in 3-6 days

0

29

MTD 741-0545

Ball Bearing

$19.99

$

Usually ships in 3-6 days

0

30

MTD 682-7527

Cup

$29.99

$

Usually ships in 3-6 days

0

31

MTD 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

32

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

33

MTD 710-1257

Hex Bolt, 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

34

MTD 942-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

35

MTD 710-0653

Screw, 1/4-20 x 3.75

$4.49

$

In Stock, Qty 8

0

36

MTD 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

37

MTD 954-0460

Belt, 3/8 x 39.24

$19.99

$

In Stock, Qty 20+

0

38

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

39

MTD 964-04093A

Grass Catcher

$98.99

$

Usually ships in 3-6 days

0

40

MTD 747-0940A-0637

Support Rod w/ Rope Guide

$26.99

$

Usually ships in 3-6 days

0

41

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

42

MTD 747-0937-0637

Grass Catcher Frame

$58.99

$

Usually ships in 3-6 days

0

43

MTD 631-0071

Grass Catcher Cover

$103.99

$

Usually ships in 3-6 days

0

44

MTD 926-0106

Cap Nut
(Superseded to 726-0106)

$

$

Not available

45

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

46

MTD 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

47

MTD 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

48

MTD 726-0111

Push Cap

$

$

Not available

49

MTD 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

50

MTD 925-04323

12V Battery
(Superseded to 753-10804)

$114.99

$

In Stock, only 3 left!

0

51

MTD 710-0654A

Sems Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

52

MTD 925-04072

Harness Assembly

$99.99

$

Usually ships in 3-6 days

0

53

MTD 936-0526

Wave Washer, 1.38 ID x.88 OD

$6.99

$

In Stock, only 2 left!

0

54

MTD 950-1070

Slve Spacer, .88 ID x 1.00 OD

$5.99

$

In Stock, Qty 9

0

55

MTD 782-7596A

Control Arm

Variations

MTD 782-7596A-0637

ARM CONTROL: 6 SPD - POWDER BLACK (0637)

$

$

Not available

$

$

56

MTD 932-0807

Torsion Spring

$7.49

$

Usually ships in 3-6 days

0

57

MTD 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

58

MTD 782-7597

Pivot Bracket

Variations

MTD 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

59

MTD 738-0924A

Shlder Screw, .375 ID x 1/4-14

$6.99

$

In Stock, Qty 5

0

60

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

61

MTD 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

62

MTD 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 11

0

63

MTD 782-7575A-0637

Cable Mounting Bracket
(Superseded to 782-7575B-0637)

$

$

Not available

64

MTD 746-0939A

6 Speed Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

65

MTD 782-7574A-0637

Cable Adjustment Bracket

$

$

Not available

66

MTD 712-04064

Hex Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

67

MTD 912-0138

Hex Nut 1/4-28
(Superseded to 712-0138)

$

$

Not available

68

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

69

MTD 731-0924

6 Speed Shift Lever

$

$

Not available

70

MTD 913-0397

Gear Insert

$5.49

$

In Stock, only 4 left!

0

71

MTD 16864

6 Spd. Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

72

MTD 956-0613A

Pulley Assembly

$72.99

$

In Stock, only 1 left!

0

73

MTD 725-04329

12V Battery Charger
(Superseded to 725-06121B)

$47.99

$

In Stock, Qty 11

0

74

MTD 925-04347

Key Switch

$33.99

$

Usually ships in 3-6 days

0
