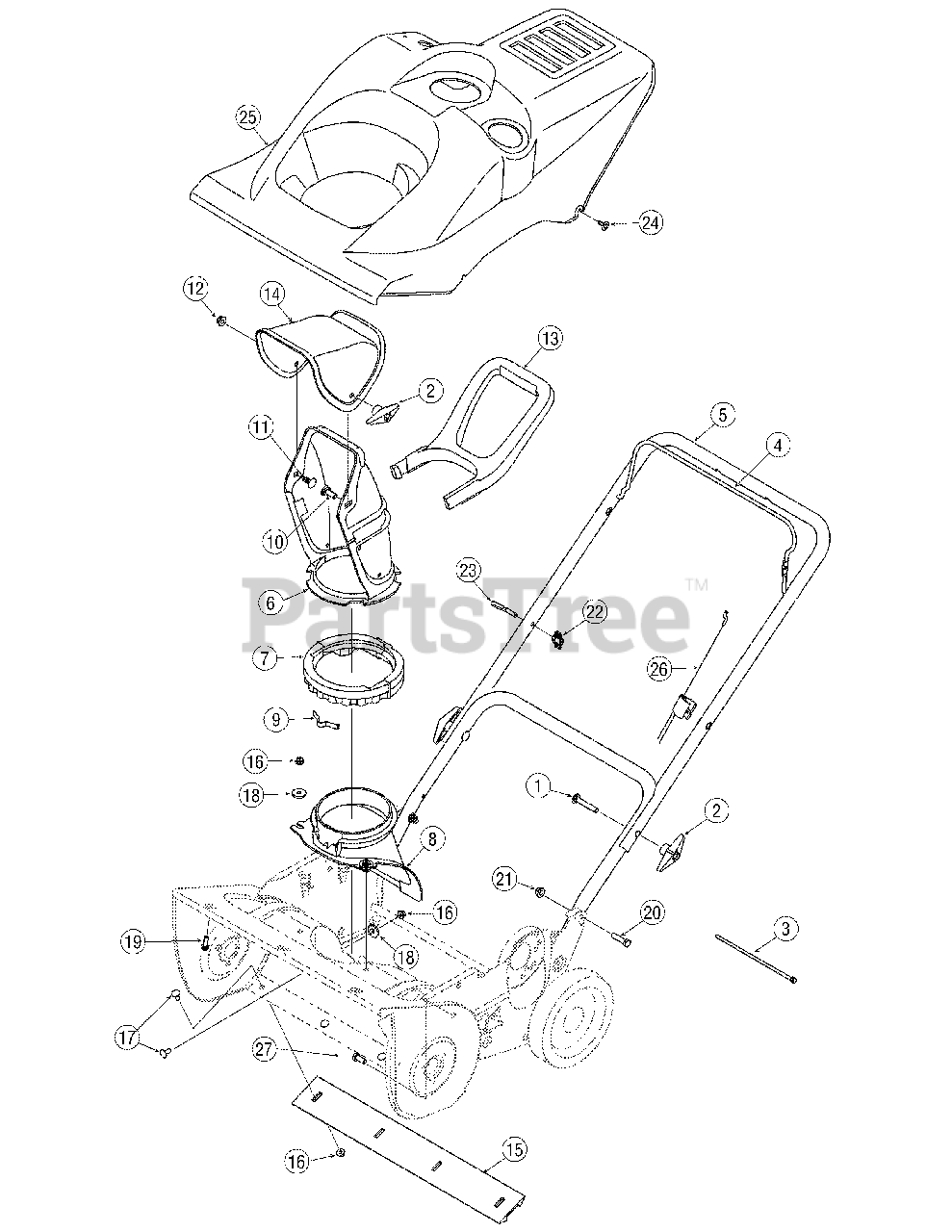

247.887050 (31AM2N1C799) - Craftsman Snow Thrower (2008) (Sears) General Assembly Parts Diagram

Snow Thrower

General Assembly Parts Diagram

  • Title
1

MTD 710-04532

Carriage Screw, 5/16-18 x 2.00

$6.49

$

In Stock, Qty 5

0

2

MTD 720-0284

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

3

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

4

MTD 747-04165-0637

Bail Control

$13.99

$

In Stock, only 4 left!

0

5

MTD 749-04459-0637

Upper Handle

$39.99

$

Usually ships in 3-6 days

0

6

MTD 731-04127

Lower Chute
(Superseded to 931-04127)

$33.99

$

Usually ships in 3-6 days

0

7

MTD 731-04353

Chute Ring
(Superseded to 931-04353)

$18.99

$

In Stock, Qty 6

0

8

MTD 731-04886

Chute Adapter
(Superseded to 931-04886)

$20.99

$

Usually ships in 3-6 days

0

9

MTD 732-04111

Chute Adjustment Spring
(Superseded to 932-04111)

$4.99

$

In Stock, Qty 20+

0

10

MTD 710-04071

Carriage Bolt. 5/16-18 x 1.00

$4.49

$

In Stock, Qty 14

0

11

MTD 710-0451

Carriage Bolt. 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 731-04388A

Chute Handle

$26.99

$

Usually ships in 3-6 days

0

14

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 3 left!

0

15

MTD 731-1033

Shave Plate, 21"

$47.99

$

In Stock, Qty 14

0

16

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-0134

Carriage Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0176

Flat Washer, .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

19

MTD 710-0895

Hex Screw, 5/16-18 x .750

$6.49

$

Usually ships in 3-6 days

0

20

MTD 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-1205

Eye Bolt, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

MTD 710-04669

Hex Screw, 10-16 x .625

$3.49

$

In Stock, Qty 20+

0

25

MTD 731-06551

Shroud

$

$

Not available
