247.887050 (31AM2N1C799) - Craftsman Snow Thrower (2008) (Sears) Drive Assembly Parts Diagram

Snow Thrower

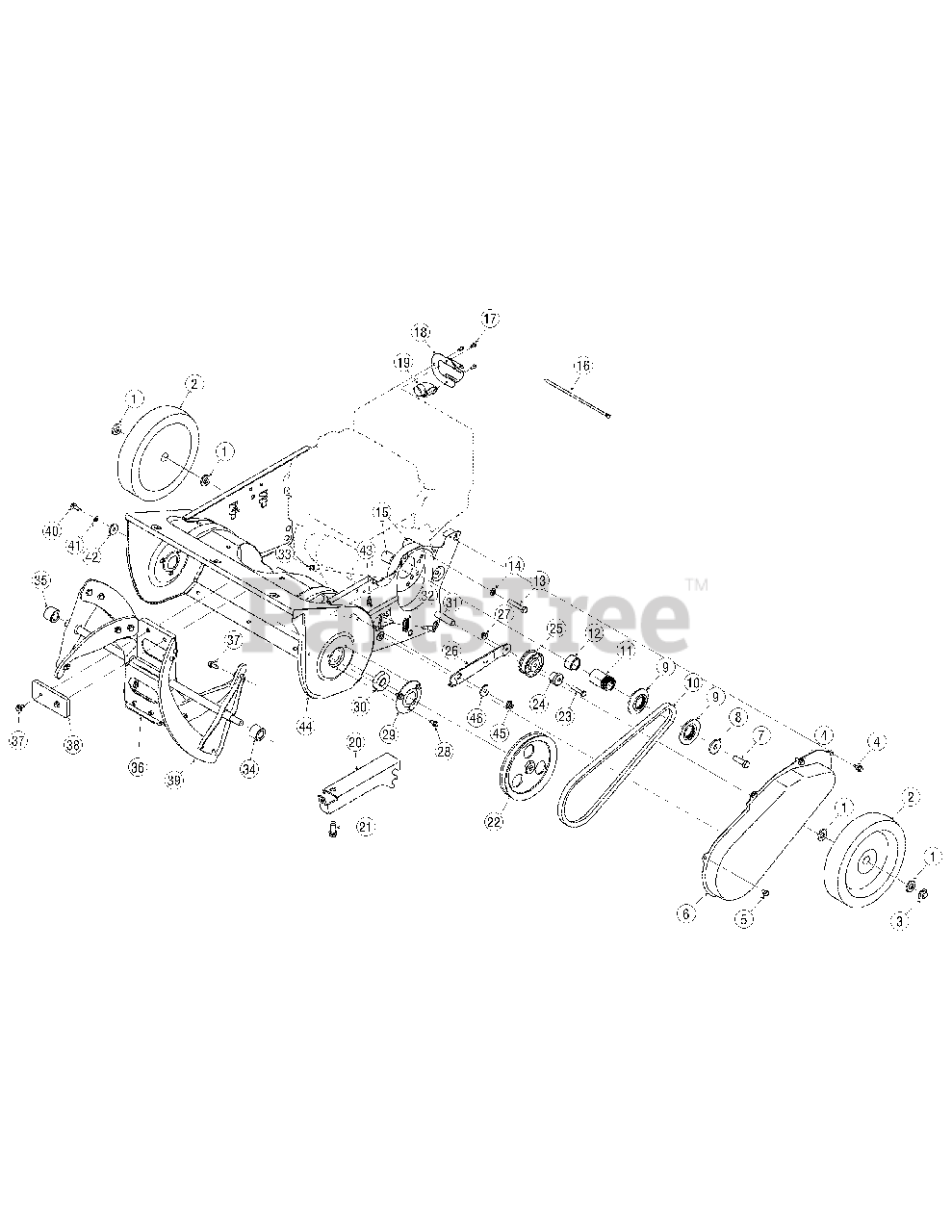

Drive Assembly Parts Diagram

  • Title

1

MTD 736-0326

Flat Washer, .510 x 1.000 x .125

$4.49

$

In Stock, only 2 left!

0

2

MTD 734-1855

Wheel, 8 x 1.7
(Superseded to 734-1781)

$32.99

$

In Stock, Qty 7

0

3

MTD 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

4

MTD 710-0896

Hex Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0653

Hex Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

6

MTD 790-00045B-0721

Belt Cover
(Superseded to 790-00045C-4044)

$57.99

$

Usually ships in 3-6 days

0

7

MTD 710-0879

Hex Bolt, 3/8-24 x 1.25

$3.99

$

Usually ships in 3-6 days

0

8

MTD 736-0247

Flat Washer, .406 x 1.25 x .157

$9.49

$

In Stock, Qty 12

0

9

MTD 756-04353A

Pulley Half, 4L-V x .240 OD
(Superseded to 756-04353)

$7.49

$

Usually ships in 3-6 days

0

10

MTD 754-04204

V-Belt
(Superseded to 954-04204)

$23.99

$

In Stock, Qty 7

0

11

MTD 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 4 left!

0

12

MTD 750-05084

Spacer, .88 ID x 1.18 OD x .74

$

$

Not available

13

MTD 710-0409

Hex Bolt, 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

14

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

MTD 750-04297B

Spacer, .875 x .320 x 1.027

$4.49

$

Usually ships in 3-6 days

0

16

MTD 726-0154

Cable Tie, 7.5"
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

17

MTD 710-0148

Hex Screw, #8-32 x .375

$4.49

$

In Stock, Qty 16

0

18

MTD 751-10768

Heat Shield
(Superseded to 951-10768)

$

$

Not available

19

MTD 751-10769

Exhaust Tube
(Superseded to 951-10769)

$

$

Not available

20

MTD 790-00334-0637

Engine Support Bracket

$

$

Not available

21

MTD 710-0654A

Hex Screw, 3/8-16 x 1.000

$4.49

$

In Stock, Qty 20+

0

22

MTD 756-04232

Pulley, 1/2 x 6.00 OD

$60.99

$

In Stock, only 1 left!

0

23

MTD 710-0106

Hex Screw, 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

24

MTD 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

25

MTD 684-04168

Idler Pulley Assembly, 1.917 OD

$38.99

$

Usually ships in 3-6 days

0

26

MTD 790-00238A-0637

Idler Bracket

$10.99

$

Usually ships in 3-6 days

0

27

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

28

MTD 710-1005

Hex Screw, 1/4-14 x .500
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

29

MTD 790-00249-0637

Bearing Cap

$18.99

$

Usually ships in 3-6 days

0

30

MTD 741-04188A

Ball Bearing, .625 x 37 x 12 x .6301

$12.99

$

In Stock, only 2 left!

0

31

MTD 738-0924A

Shoulder Screw, .340 x .335 x C x 1/4-28

$6.99

$

In Stock, Qty 5

0

32

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

33

MTD 712-0896

Hex Lock Nut, 1/4-28

$4.99

$

In Stock, Qty 6

0

34

MTD 750-04757

Auger Spacer, LH

$8.49

$

Usually ships in 3-6 days

0

35

MTD 750-04758

Auger Spacer, RH

$6.49

$

In Stock, Qty 8

0

36

MTD 684-04253-0637

Auger Assembly, 21" (Incl. 37, 38 & 39)
(Superseded to 984-04253-0637)

$160.99

$

In Stock, only 1 left!

0

37

MTD 710-0896

Hex Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

38

MTD 735-04033

Rubber Paddle

$8.49

$

In Stock, Qty 20+

0

39

MTD 735-04032

Spiral Crescent

$18.99

$

In Stock, Qty 20+

0

40

MTD 710-0642

Hex Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

41

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

42

MTD 736-0176

Flat Washer, .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

43

MTD 732-0357A

Extension Spring, .33 OD x 1.12

$4.49

$

In Stock, Qty 13

0

44

MTD 684-04314-0721

Auger Housing, 21"
(Superseded to 684-04314-4044)

$

$

Not available

45

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

46

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0
