247.887001 (31AS3AAD799) - Craftsman Snow Thrower (2005) (Sears) General Assembly Parts Diagram

Snow Thrower

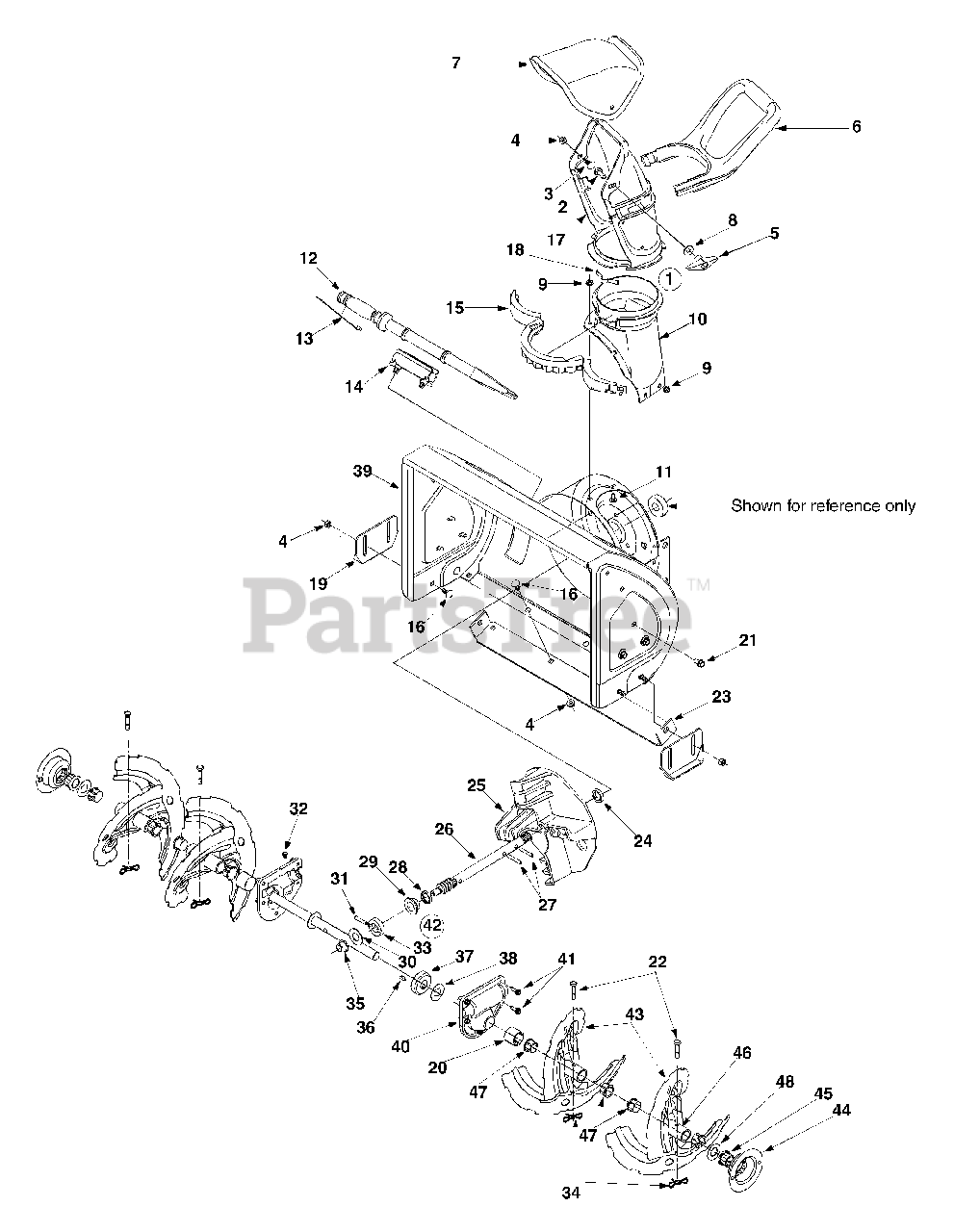

General Assembly Parts Diagram

  • Title

1

MTD 684-04037

Chute Assembly
(Superseded to 984-04037)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-04071

Carriage Bolt 5/16-18 x 1.0"

$4.49

$

In Stock, Qty 15

0

3

MTD 710-0451

Carriage Bolt 5/16-18 x 0.750"

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-0284

Chute Knob Assembly

$6.99

$

In Stock, Qty 20+

0

6

MTD 731-04388A

Chute Handle

$26.99

$

Usually ships in 3-6 days

0

7

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

8

MTD 736-0159

Washer

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

10

MTD 731-2636A

Chute Adapter
(Superseded to 931-2636A)

$20.99

$

Usually ships in 3-6 days

0

11

MTD 710-0134

Carriage Screw 1/4-20 x 0.62"

$4.49

$

In Stock, Qty 20+

0

12

MTD 731-2643

Clean-out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, only 1 left!

0

13

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

14

MTD 731-2635

Clean-out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 7

0

15

MTD 731-04353

Lower Chute Ring
(Superseded to 931-04353)

$18.99

$

In Stock, only 1 left!

0

16

MTD 710-0451

Carriage Bolt 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

17

MTD 731-04127

Lower Chute
(Superseded to 931-04127)

$33.99

$

Usually ships in 3-6 days

0

18

MTD 732-04111

Chute Adjuster Spring
(Superseded to 932-04111)

$4.99

$

In Stock, Qty 6

0

19

MTD 784-5580

Skid Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

20

MTD 731-04870

Spacer, 1.25OD x.75ID x 1.00 Lg.

$4.99

$

In Stock, Qty 20+

0

21

MTD 710-0726

AB Screw 5/16-12

$4.49

$

In Stock, Qty 20+

0

22

MTD 738-04124

Shear Pin,.25 x 1.50
(Superseded to 738-04124A)

$1.99

$

In Stock, Qty 20+

0

23

MTD 790-00117

Shave Plate

Variations

MTD 790-00117-0637

Shave Plate, 22" Black - POWDER BLACK

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0638

Shave Plate, 22" - MTD/TROY-BILT RED

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-4044

Shave Plate, 22" - CRAFTSMAN RED

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0709

Shave Plate, 22" Green - MASTERCRAFT GREEN

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0662

Shave Plate, 22" - OYSTER GRAY

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0691

Shave Plate, 22" - BLACK JACK

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-4041

Shave Plate, 22" - PURE ORANGE

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-4043

Shave Plate, 22" - CRAFTSMAN METALLIC GRAY

$30.99

$

In Stock, Qty 20+

0

$25.99

$

Usually ships in 3-6 days

0

24

MTD 750-04191

Spacer
(Superseded to 950-04191)

$6.49

$

Usually ships in 3-6 days

0

25

MTD 731-04218A

Impeller
(Superseded to 731-04218B)

$82.99

$

In Stock, only 2 left!

0

26

MTD 717-1772A

Worm Shaft
(Superseded to 917-1772A)

$

$

Not available

27

MTD 715-04020

Spiral Pin

$11.99

$

In Stock, only 2 left!

0

28

MTD 721-0327

Oil Seal

$6.99

$

In Stock, Qty 20+

0

29

MTD 741-0662

Flange Bearing

$10.99

$

In Stock, Qty 20+

0

30

MTD 736-3084

Flat Washer,.51 x 1.12 x.06

$4.99

$

In Stock, Qty 20+

0

31

MTD 715-04021

Spiral Pin

$4.49

$

In Stock, Qty 8

0

32

MTD 721-0325

Plug

$4.49

$

In Stock, only 4 left!

0

33

MTD 718-04071

Thrust Collar

$7.99

$

In Stock, Qty 10

0

34

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

35

MTD 741-0663

Flange Bearing

$9.99

$

In Stock, Qty 20+

0

36

MTD 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

37

MTD 717-0528A

Worm Gear 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

38

MTD 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

39

MTD 684-04089

Auger Housing, 22"

Variations

MTD 684-04089-0689

HOUSING ASM-AUGER 22" - POLO GREEN (0689)

$

$

Not available

MTD 684-04089-0638

HOUSING ASM-AUGER 22" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04089-0691

HOUSING ASM-AUGER 22" - BLACK JACK (0691)

$

$

Not available

MTD 684-04089-0709

HOUSING ASM-AUGER 22" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

40

MTD 618-0124

Reducer Housing Assembly LH
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 12

0

MTD 618-0123

Reducer Housing Assembly RH
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 10

0

41

MTD 710-0642

TT Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

42

MTD 618-04181

Auger Gearbox Assembly
(Superseded to 918-04181)

$257.99

$

Usually ships in 3-6 days

0

43

MTD 684-04113

Auger Assembly - LH
(Superseded to 684-04113A)

Variations

MTD 684-04113-0637

AUGER ASM-LH - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

MTD 684-04113-0638

AUGER ASM-LH - MTD/TROY-BILT RED (0638)

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04113-0731

AUGER ASM-LH - YELLOW JACKET (0731)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

MTD 684-04114

Auger Assembly - RH
(Superseded to 684-04114A)

Variations

MTD 684-04114-0637

AUGER ASM-RH - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

MTD 684-04114-0638

AUGER ASM-RH - MTD/TROY-BILT RED (0638)

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04114-0731

AUGER ASM-RH - YELLOW JACKET (0731)

$80.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

44

MTD 790-00087

Hex Bearing Housing
(Superseded to 790-00087A-0637)

Variations

Cub Cadet 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK

$22.99

$

In Stock, only 2 left!

0

$22.99

$

In Stock, only 2 left!

0

45

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

46

MTD 711-04286

Auger Axle
(Superseded to 711-04286A)

$45.99

$

Usually ships in 3-6 days

0

47

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0
