247.886913 (31AS53TF799) - Craftsman Snow Thrower (2013) Drive Parts Diagram

Snow Thrower

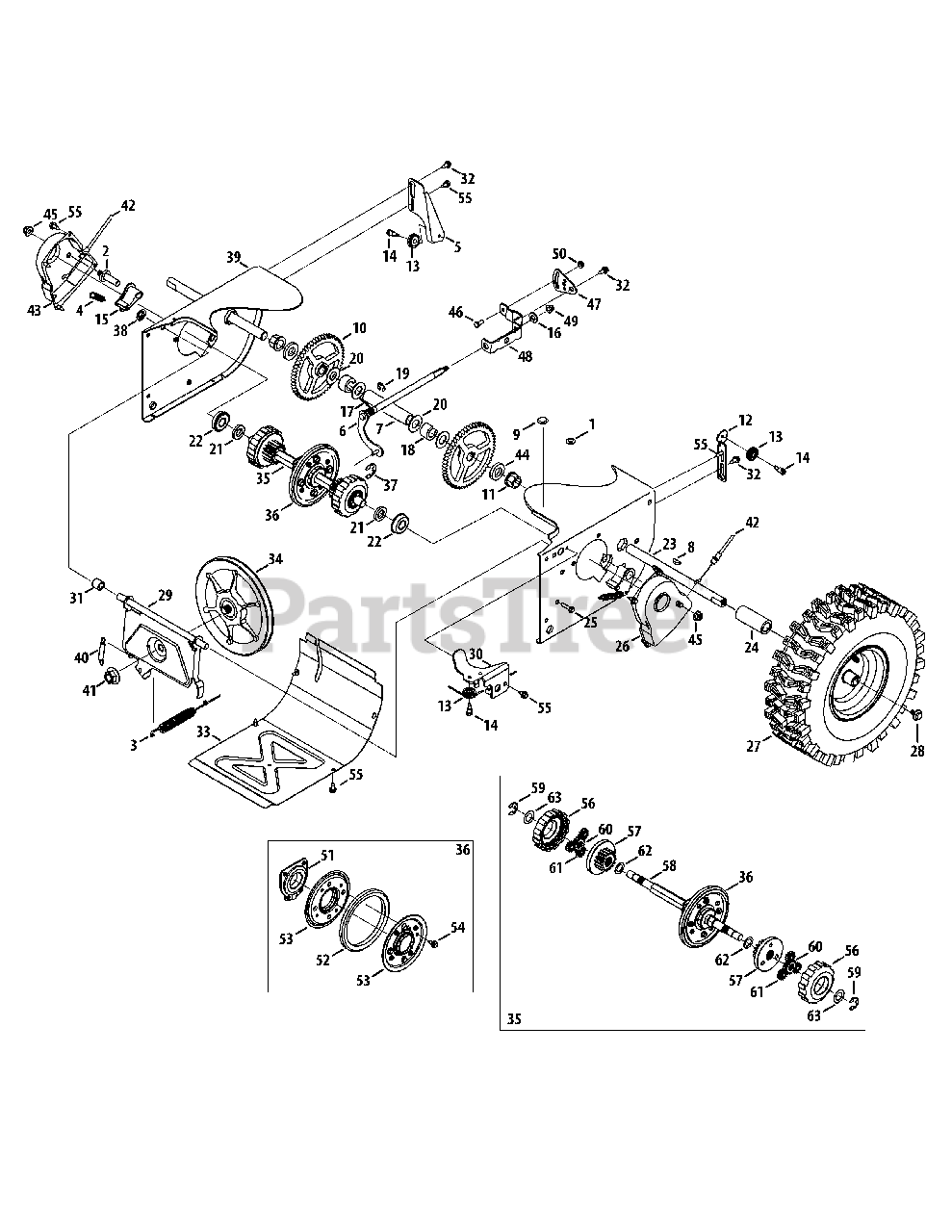

Drive Parts Diagram

  • Title

1

MTD 735-04099

Plug, 3/8 ID

$5.99

$

Usually ships in 3-6 days

0

2

MTD 711-1268B

Actuator Shaft

$10.99

$

Usually ships in 3-6 days

0

3

MTD 946-05067

Drive Clutch Cable

$25.99

$

In Stock, Qty 7

0

4

MTD 732-04345

Extension Spring

$10.99

$

In Stock, only 1 left!

0

5

MTD 790-00207C

Drive Clutch Cable Guide Bracket
(Superseded to 790-03997)

$5.49

$

In Stock, only 4 left!

0

6

MTD 684-04156A

Shift Rod Assembly

$61.99

$

Usually ships in 3-6 days

0

7

MTD 750-04474

Axle Support Tube

$42.99

$

In Stock, only 1 left!

0

8

MTD 914-0126

Hi Pro Key
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 18

0

9

MTD 735-04100

Plug, 1/2 ID

$5.99

$

Usually ships in 3-6 days

0

10

MTD 917-04210

Gear, 56T

$79.99

$

Usually ships in 3-6 days

0

11

MTD 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

12

MTD 790-00206A-0637

Auger Clutch Cable Guide Bracket
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

13

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

14

MTD 738-0924A

C Screw, 1/4-28 x 0.375

$6.99

$

In Stock, Qty 5

0

15

MTD 618-06988

Dogg Assembly - LH

$21.99

$

Usually ships in 3-6 days

0

15

MTD 618-06987

Dogg Assembly - RH

$21.99

$

In Stock, only 2 left!

0

16

MTD 936-3015

Washer, Flat

$4.49

$

In Stock, only 1 left!

0

17

MTD 732-04311A

Torsion Spring, .750 ID x .968 Lg.

$10.99

$

In Stock, only 1 left!

0

18

MTD 731-05297

Spacer

$9.99

$

In Stock, only 2 left!

0

19

MTD 916-0104

E Ring

$3.99

$

In Stock, Qty 15

0

20

MTD 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

21

MTD 750-06087

Spacer

$4.49

$

In Stock, only 2 left!

0

22

MTD 941-0563

Ball Bearing 17 x 40 x 12

Note: (w/.8125 diam hex shaft)

$36.99

$

In Stock, Qty 11

0

22

MTD 741-04076

Ball Bearing .5625 x 1.375 x .4375

Note: (w/.75 diam hex shaft)

$14.99

$

In Stock, Qty 16

0

23

MTD 938-04180

Axle

$70.99

$

In Stock, only 2 left!

0

24

MTD 731-04873

Spacer

$10.99

$

In Stock, only 2 left!

0

25

MTD 710-0788

TT Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

26

MTD 790-00527-4044

Shaft Retainer, LH (w/.8125 diam hex shaft)

$28.99

$

Usually ships in 3-6 days

0

26

MTD 790-00185-4044

Shaft Retainer, LH( w/.75 diam hex shaft)

$22.99

$

Usually ships in 3-6 days

0

27

MTD 634-04147A-0911

Wheel Complete - LH

$194.99

$

In Stock, only 1 left!

0

27

MTD 634-04148A-0911

Wheel Complete - RH

$232.99

$

Usually ships in 3-6 days

0

28

MTD 710-05339

Screw, 5/16-24 x 0.75
(Superseded to 710-05339A)

$4.49

$

In Stock, Qty 19

0

29

MTD 684-04154B-0637

Friction Wheel Support Brkt. Assy.

$41.99

$

Usually ships in 3-6 days

0

30

MTD 790-00096A-0637

Auger Cable Guide Bracket
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 1 left!

0

31

MTD 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

32

MTD 738-04184A

Shoulder Screw

$6.99

$

In Stock, Qty 15

0

33

MTD 790-00316-4044

Frame Cover

$47.99

$

Usually ships in 3-6 days

0

34

MTD 656-04055

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$59.99

$

Usually ships in 3-6 days

0

35

MTD 918-06072

Drive Shaft Assembly (w/.8125 diam hex shaft)

$444.99

$

Usually ships in 3-6 days

0

35

MTD 918-04322A

Drive Shaft Assembly (w/.75 diam hex shaft)

$495.99

$

Usually ships in 3-6 days

0

36

MTD 684-04153C

Friction Wheel Assembly

$101.99

$

In Stock, only 3 left!

0

37

MTD 716-0136

Retainer Ring

$8.99

$

In Stock, only 2 left!

0

38

MTD 726-0221

Speed Nut

$6.49

$

In Stock, only 1 left!

0

39

MTD 790-00183C-4044

Wheel Drive Frame
(Superseded to 790-00183E-4044)

$85.99

$

Usually ships in 3-6 days

0

40

MTD 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

41

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

42

MTD 946-0956C

Steering Cable

$23.99

$

In Stock, Qty 7

0

43

MTD 790-00528-4044

Shaft Retainer, RH (w/.8125 diam hex shaft)

$28.99

$

Usually ships in 3-6 days

0

43

MTD 790-00185-4044

Shaft Retainer, RH( w/.75 diam hex shaft)

$22.99

$

Usually ships in 3-6 days

0

44

MTD 750-0767

Axle Spacer

$5.99

$

Usually ships in 3-6 days

0

45

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

46

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

47

MTD 790-00217A-0637

Speed Selector Pivot Bracket
(Superseded to 790P01117)

$53.99

$

In Stock, only 1 left!

0

48

MTD 790-00218A-0637

Speed Selector Shift Bracket
(Superseded to 790-00218A)

$47.99

$

Usually ships in 3-6 days

0

49

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

50

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

51

MTD 618-0063A

Friction Wheel Bearing Assembly

$92.99

$

Usually ships in 3-6 days

0

52

MTD 935-04054

Friction Wheel
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

53

MTD 790-00174C

Friction Plate

$14.99

$

Usually ships in 3-6 days

0

54

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

55

MTD 710-1652

AB Screw, 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

56

MTD 918-06054

Gear Assembly, Plantry Ring

$57.99

$

Usually ships in 3-6 days

0

57

MTD 918-06056

Carrier Assembly, Plantry Ring

$71.99

$

Usually ships in 3-6 days

0

58

MTD 711-06117

Shaft, Strbl Drv Hex, .812
(Superseded to 711-06117B)

$102.99

$

Usually ships in 3-6 days

0

59

MTD 916-0231

E-Ring
(Superseded to 716-0231)

$

$

Not available

60

MTD 717-05146

Gear, Sun, 18T

$8.49

$

Usually ships in 3-6 days

0

61

MTD 717-1209A

Gear, 12T

$4.99

$

Usually ships in 3-6 days

0

62

MTD 736-04581

Washer, Thrust, .75 x 1.25 x .03

$4.49

$

Usually ships in 3-6 days

0

63

MTD 736-05031

Flat Washer .67 x 1.174 x .02 (4 Used)

Note: (w/.8125 diam hex shaft)

$3.49

$

Usually ships in 3-6 days

0

63

MTD 736-0626

Flat Washer .580 x 1.125 x .080 (2 Used)

Note: (w/.75 diam hex shaft)

$9.49

$

In Stock, only 2 left!

0
